Focusrite RedNet R1 Desktop Remote Controller
FOC-REDNETR1
$1849
Free Shipping
Anywhere Australia wide*
The RedNet R1 redefines professional audio monitoring with unprecedented flexibility and control for today's demanding studio environments. This advanced monitoring controller allows professionals to mix and route inputs from eight channels (selected from 32 possible sources) to up to 12 monitor output channels, supporting formats from mono through to 7.1.4 surround. The unit accommodates common setups including Dolby Atmos® and other immersive audio workflows, whilst also allowing completely custom configurations for bespoke speaker arrangements.

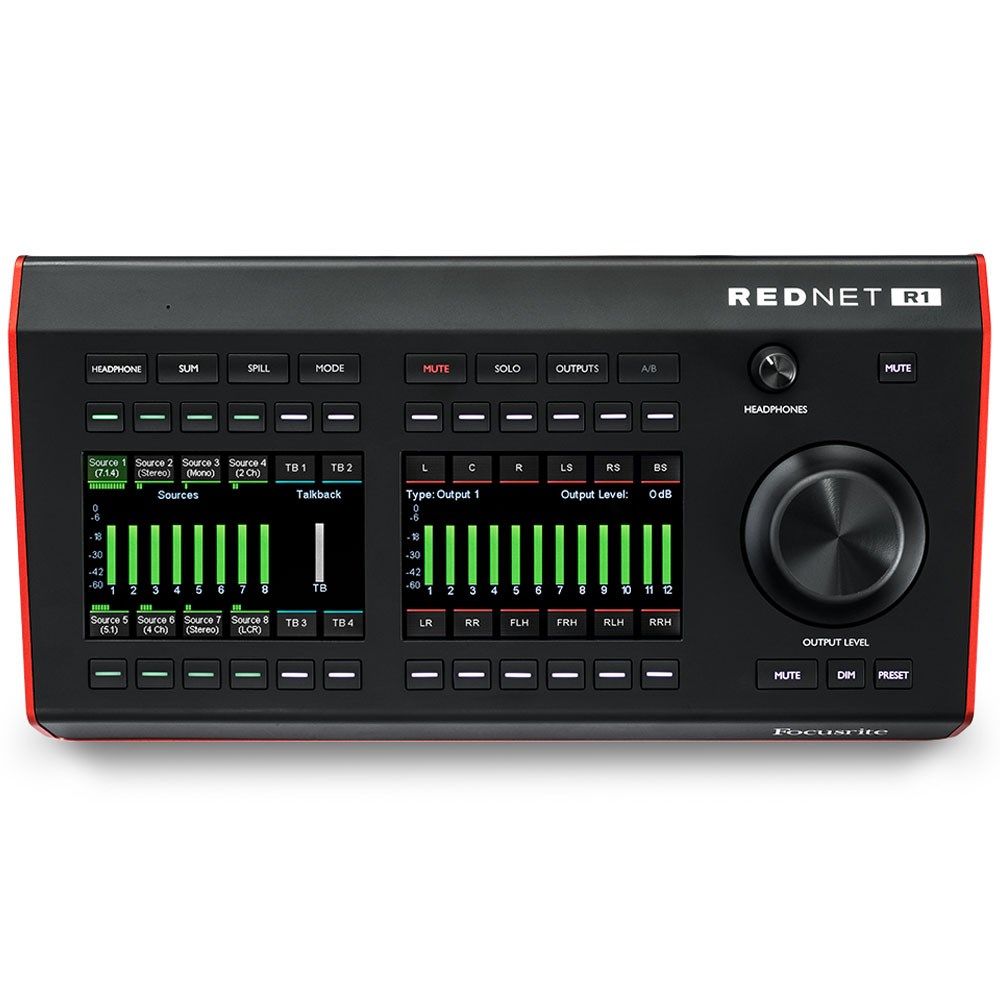

Built to handle the complexity of modern audio ecosystems, the R1 seamlessly integrates with Pro Tools™ | HD and other DAWs, analogue inputs and outputs, ADAT and S/PDIF connections, plus entire Dante® audio networks. Audio can be switched and summed across platforms simultaneously and interchangeably. The top-panel controls provide essential functions including level adjustment, reference level preset selection, dim, mute and various solo modes, plus an A/B switch for monitoring presets and up to four fold-down presets for quick downmix checking.
Communication capabilities are comprehensive, featuring Dante-enabled talkback with an internal mic preamp for external talkback microphones, built-in microphone and high-powered headphone output. Up to four talkback destination groups are available when paired with Red interfaces, whilst other Dante devices support a single talkback group. Two LCDs provide highly accurate level metering for outputs, sources and headphone outputs, along with visual menu navigation cues.
Setup and configuration are streamlined through RedNet Control software, handling both simple and complex monitoring scenarios. Additional features include a quarter-inch jack socket for footswitch control of talkback management and LFE muting functions. Power options include Ethernet via PoE standard to reduce cabling complexity, or the supplied DC power supply for maximum installation flexibility.
- The first Dante®, Pro Tools™ | HD and Thunderbolt™ interface system with a monitor controller
- Switch and su m a maximum of eight channels, each of up to 12 sources per channel, from 32 available audio sources
- Supports up to 12 monitor output channels formatted from mono through to 7.1.4 surround
- Flexible monitor controls include level, preset level selection and lock, plus dim, mute and a variety of solo modes
- A/B switch for switching between monitoring setups
- Up to four fold-down presets allow fast switching for checking downmixes
- Talkback functionality provides four destination groups when used with a Red interface, or a single talkback group when used with other Dante devices

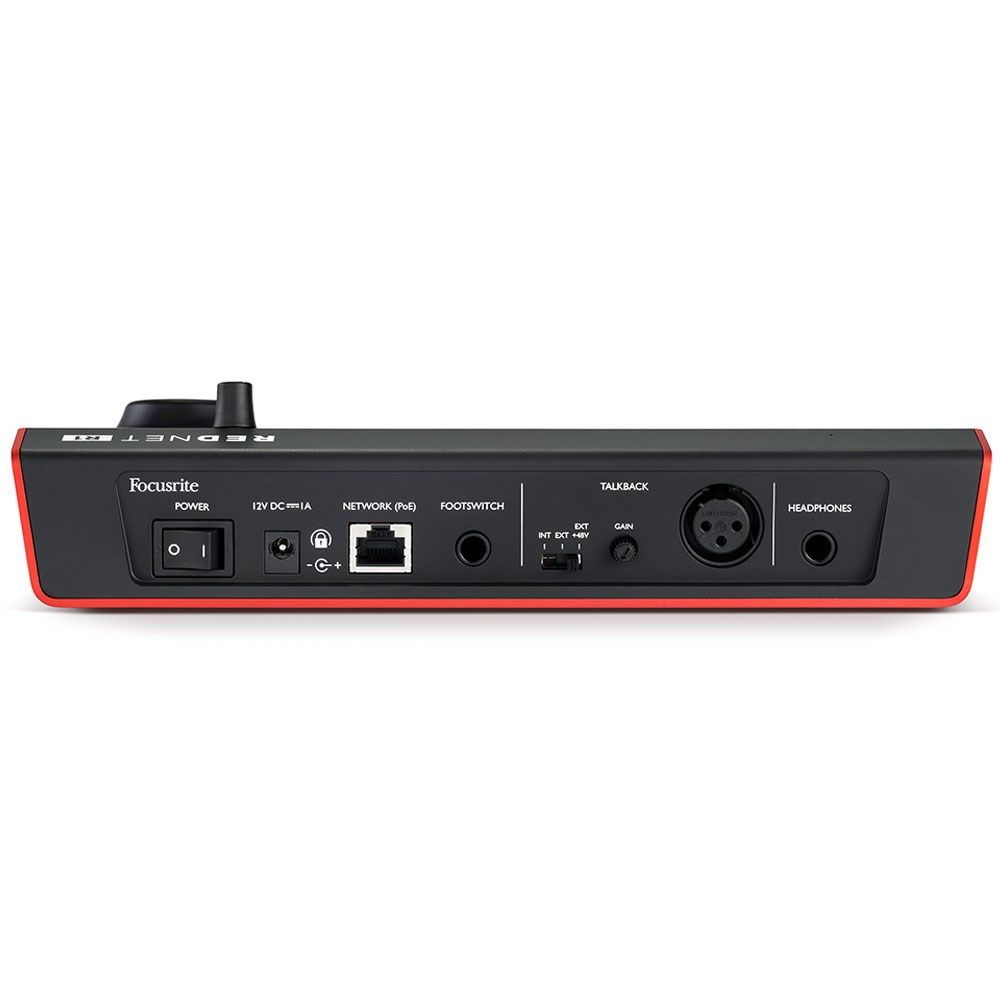

- Built-in internal microphone, or users can connect their own via the rear-panel XLRTwo LCDs display highly accurate level metering of the outputs, sources and headphone outputs, and give visual cues for navigating menus
- High-fidelity headphone output can take its source from a multitude of analogue or digital locations
- RedNet Control software with hardware focused workflow is designed for quickly setting up simple or complex configurations
- Quarter-inch jack footswitch input socket for talkback management, LFE muting and more
- Powered via Ethernet (using the PoE standard), or using the supplied DC power supply
