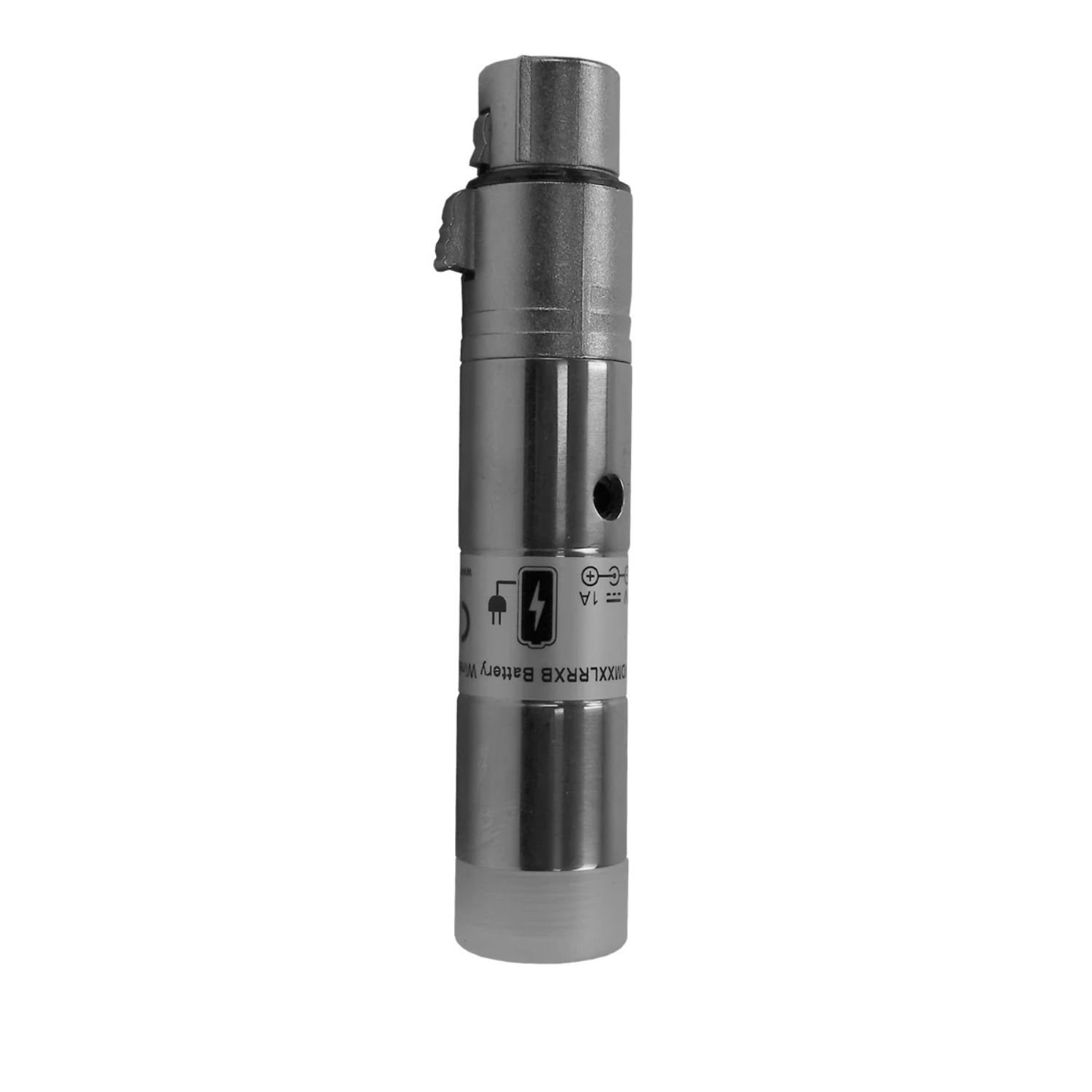

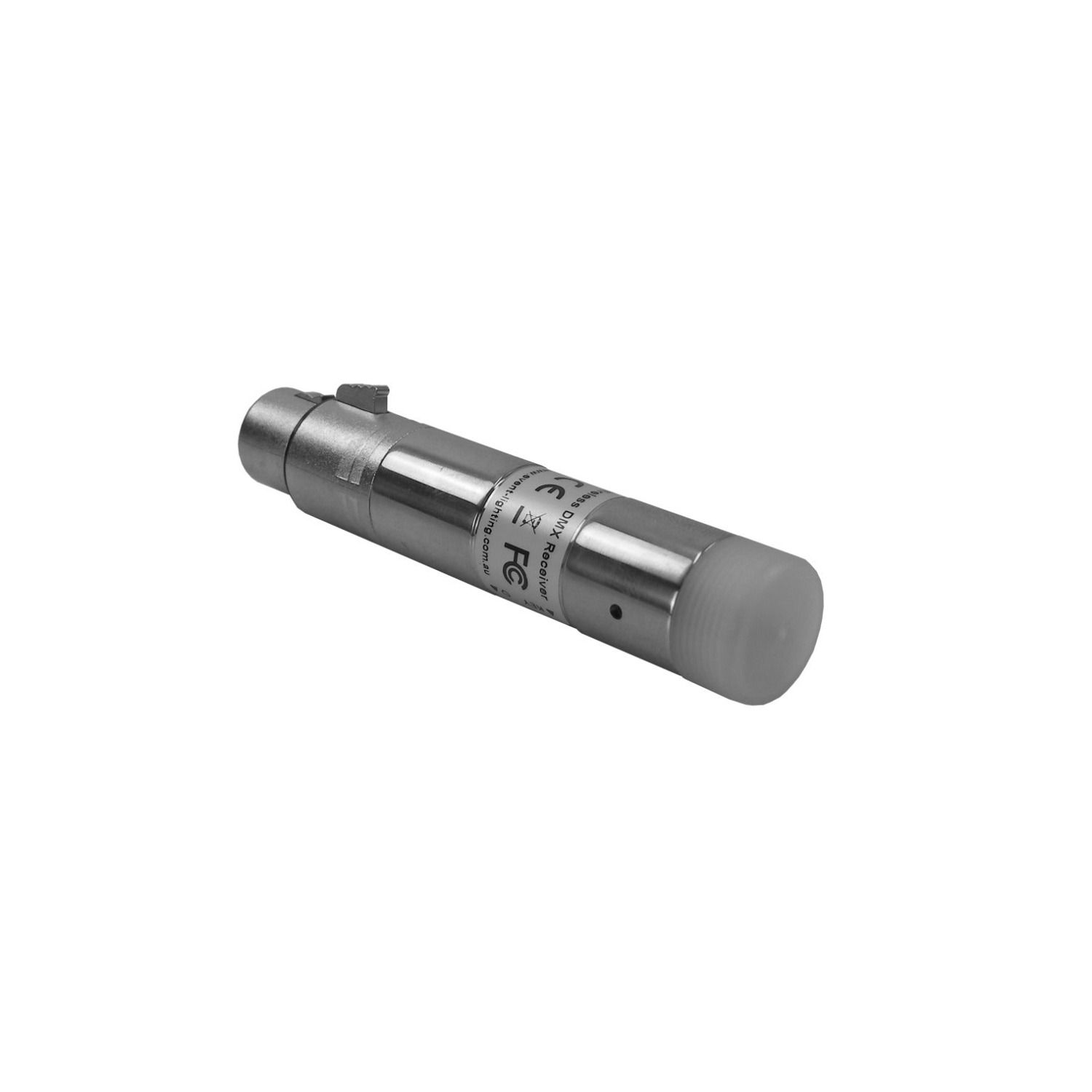

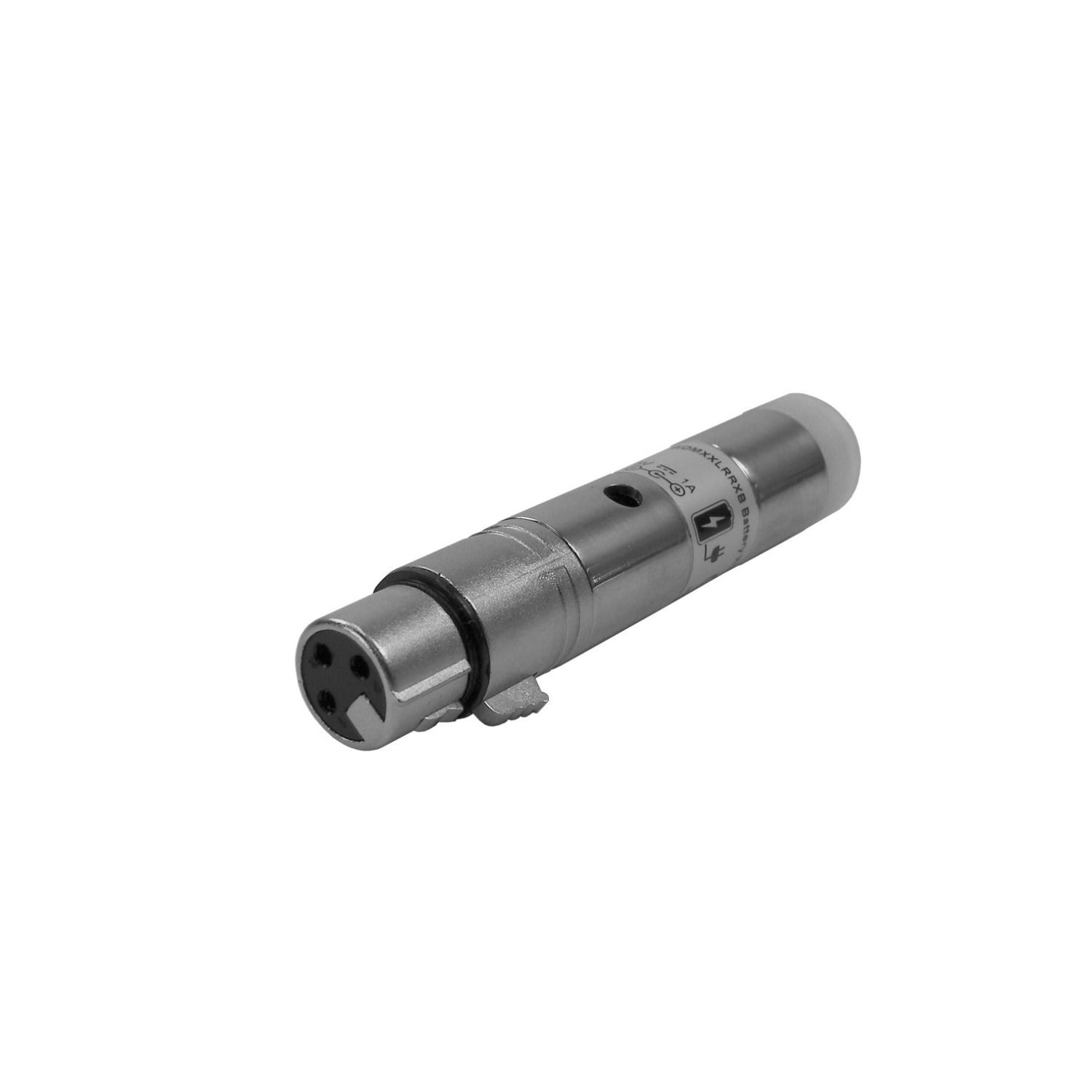

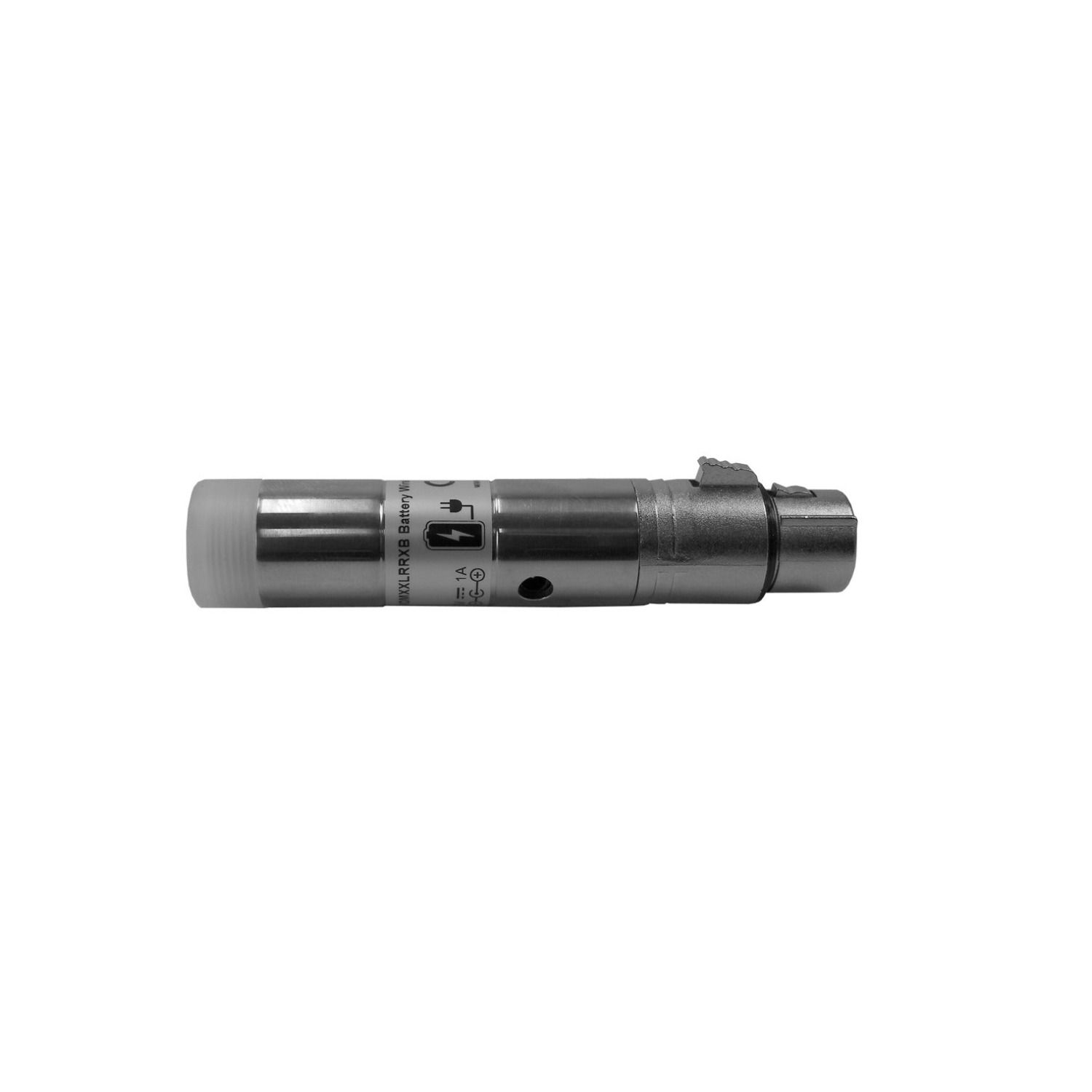

Event Lighting Rechargeable Wireless DMX 3-Pin Female XLR Receiver (2.4Ghz W DMX)

Wireless DMX receivers eliminate the need for cable runs on temporary rigs, touring setups, and venues where physical infrastructure isn't practical. The WDMXXLRRXB is a 3-pin Female XLR receiver operating across 2.402–2.480 GHz (79 channels, FHSS with 1100 hops per second) to capture wireless DMX signals with –94 dBm receiver sensitivity. Its compact footprint (85 × 18 × 18 mm, 110 g) and rechargeable lithium battery make it genuinely portable for mobile and freelance work.

The receiver operates on 5VDC and carries a rechargeable lithium battery delivering up to 20 hours of continuous use, charged to 90% capacity in 50 minutes (full charge in 70 minutes). Transmission range reaches 200 m line-of-sight with the compatible transmitter, reducing to approximately 30 m through a single brick wall under real-world conditions. The ARM 32-bit processor handles ELDMX, WDMX, and GZ protocols with automatic reboot capability via built-in watchdog timer, operating reliably across –40 to 85 °C. Support for six channel groups in ELDMX mode provides flexibility for mixed fixture control.

Wireless DMX shines in fast-turnaround productions where cable management creates bottlenecks or fire hazards, touring scenarios with variable venue layouts, and installations across multiple rooms or outdoor areas. The FHSS spread-spectrum architecture minimises interference in crowded RF environments common to multi-band installations. Battery performance and thermal stability ensure consistent operation through extended venue setups or festival runs without swapping units mid-show.

Features

• 3-pin Female XLR receiver, 2.4 GHz ISM band, 79 frequency channels
• FHSS spread-spectrum with 1100 hops per second interference rejection
• Receiver sensitivity –94 dBm, maximum transmission power 22 dBm
• Supports ELDMX, WDMX, and GZ protocols with six channel groups
• Rechargeable lithium battery, 20 hours maximum discharge time
• 50-minute charge to 90%, full charge 70 minutes at 500 mA
• Operating range 200 m line-of-sight, 30 m through single brick wall
• Compact 85 × 18 × 18 mm aluminium housing, rated –40 to 85 °C
