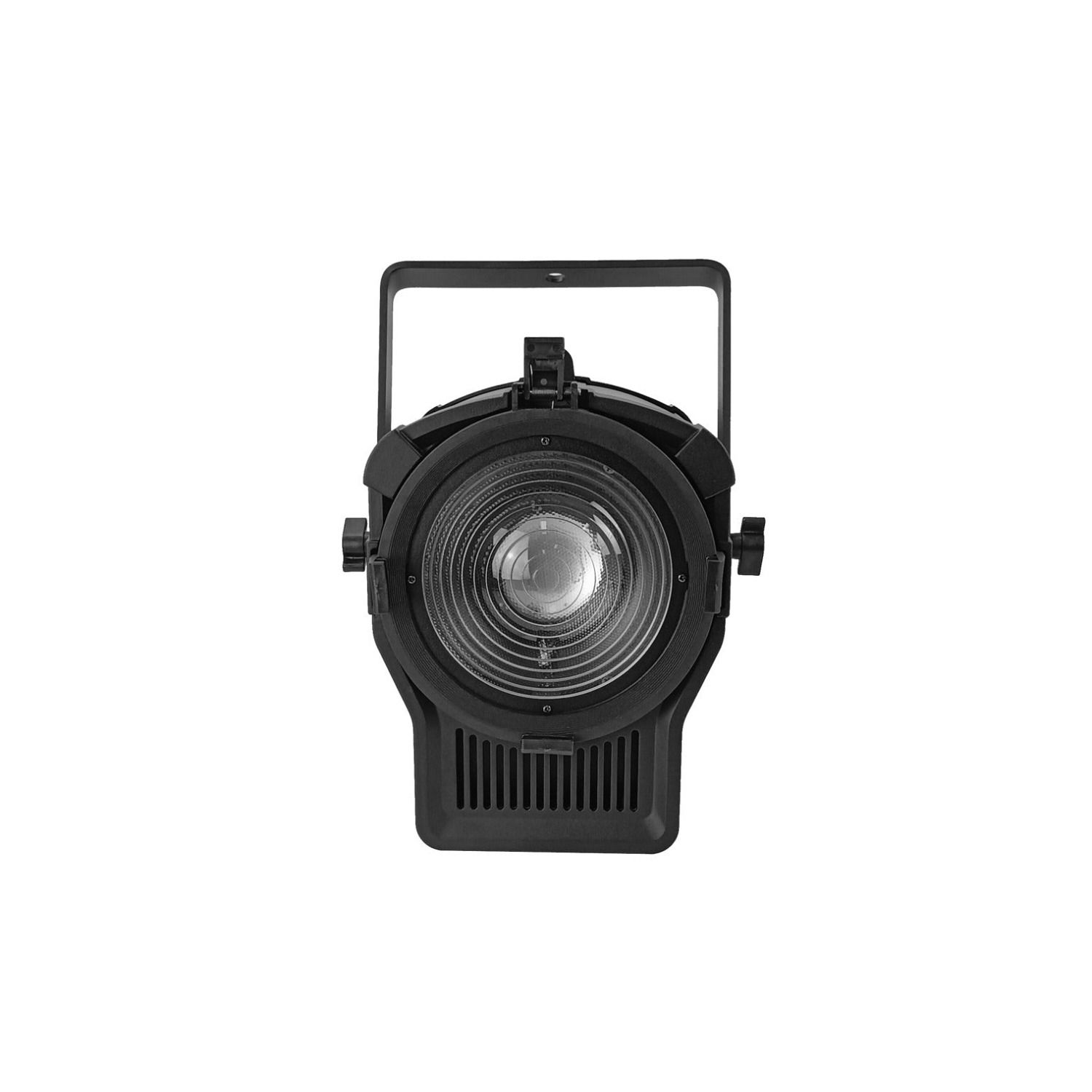

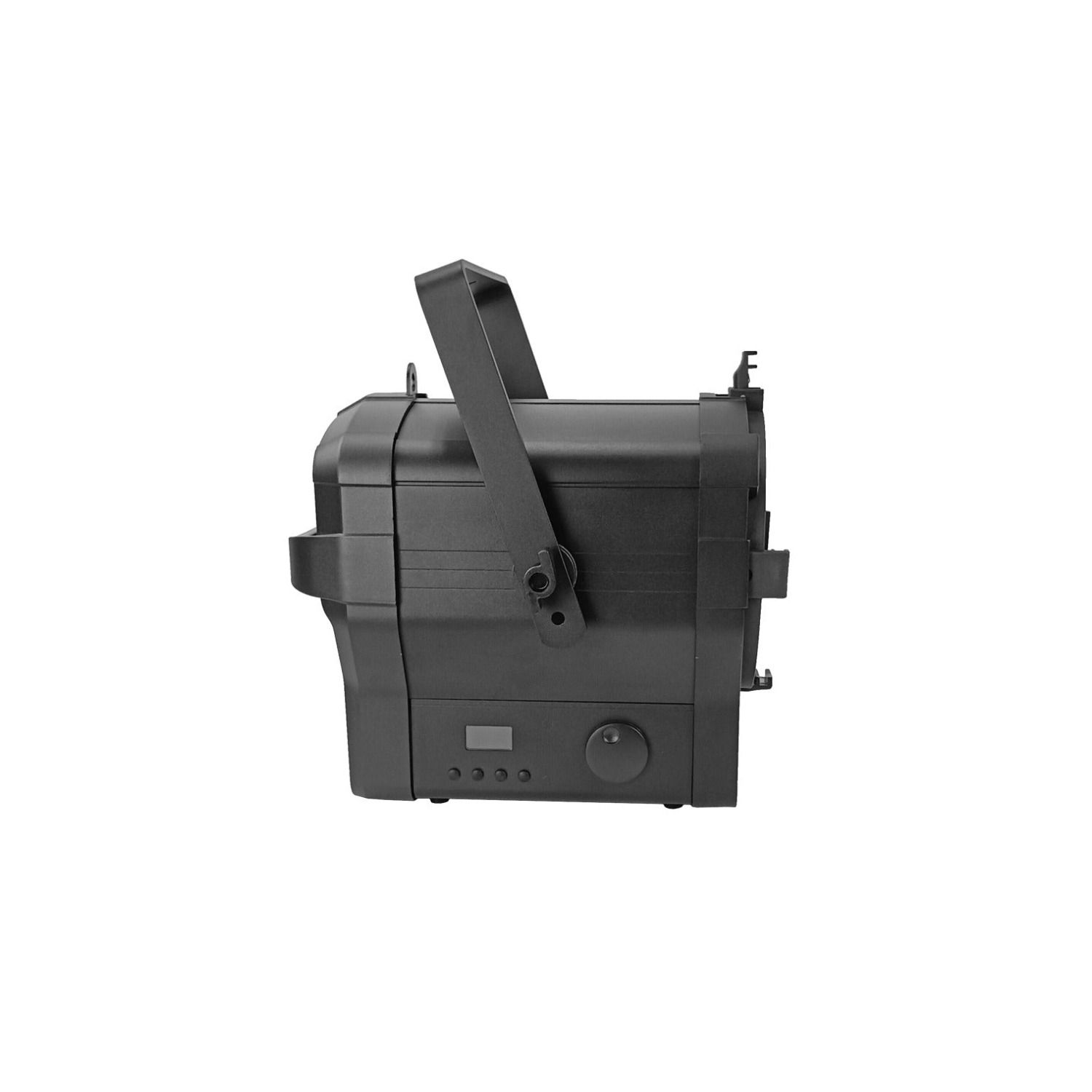

Event Lighting OPERAC200VWF Opera Compact Series Fresnel w/ 200w COB Variable White LED

The Opera Compact Series Fresnel represents a contemporary approach to theatre and venue lighting, built around a 200W COB variable–white LED engine that bridges the gap between tungsten throw and modern efficiency. Event Lighting's design philosophy prioritises intuitive operation alongside pro–spec connectivity: the fixture delivers colour temperature adjustment across 3200K to 5600K in a single channel, allowing technicians to match existing rigs without complex programming overhead. Its 95 CRI ensures colour fidelity across skin tones and set pieces.

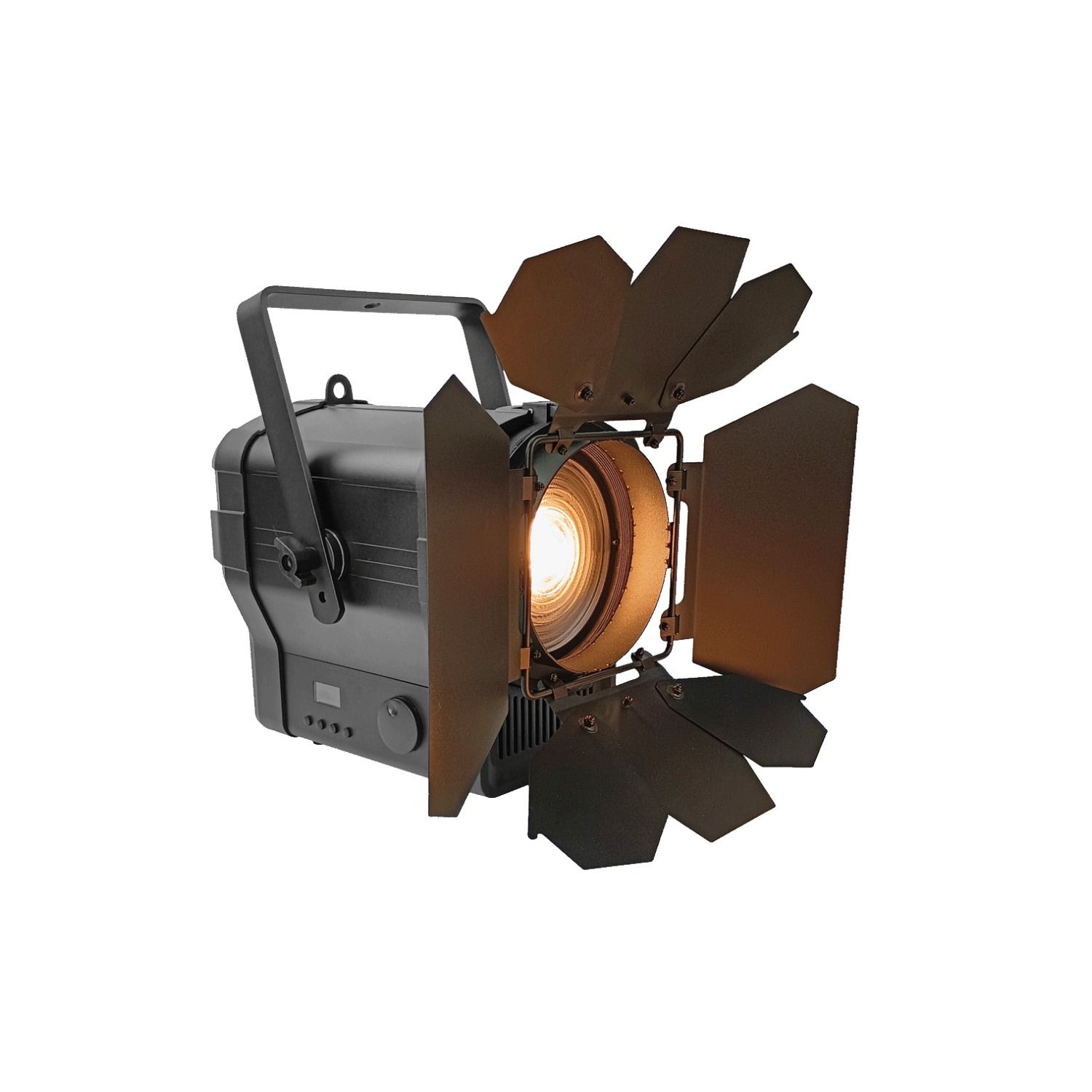

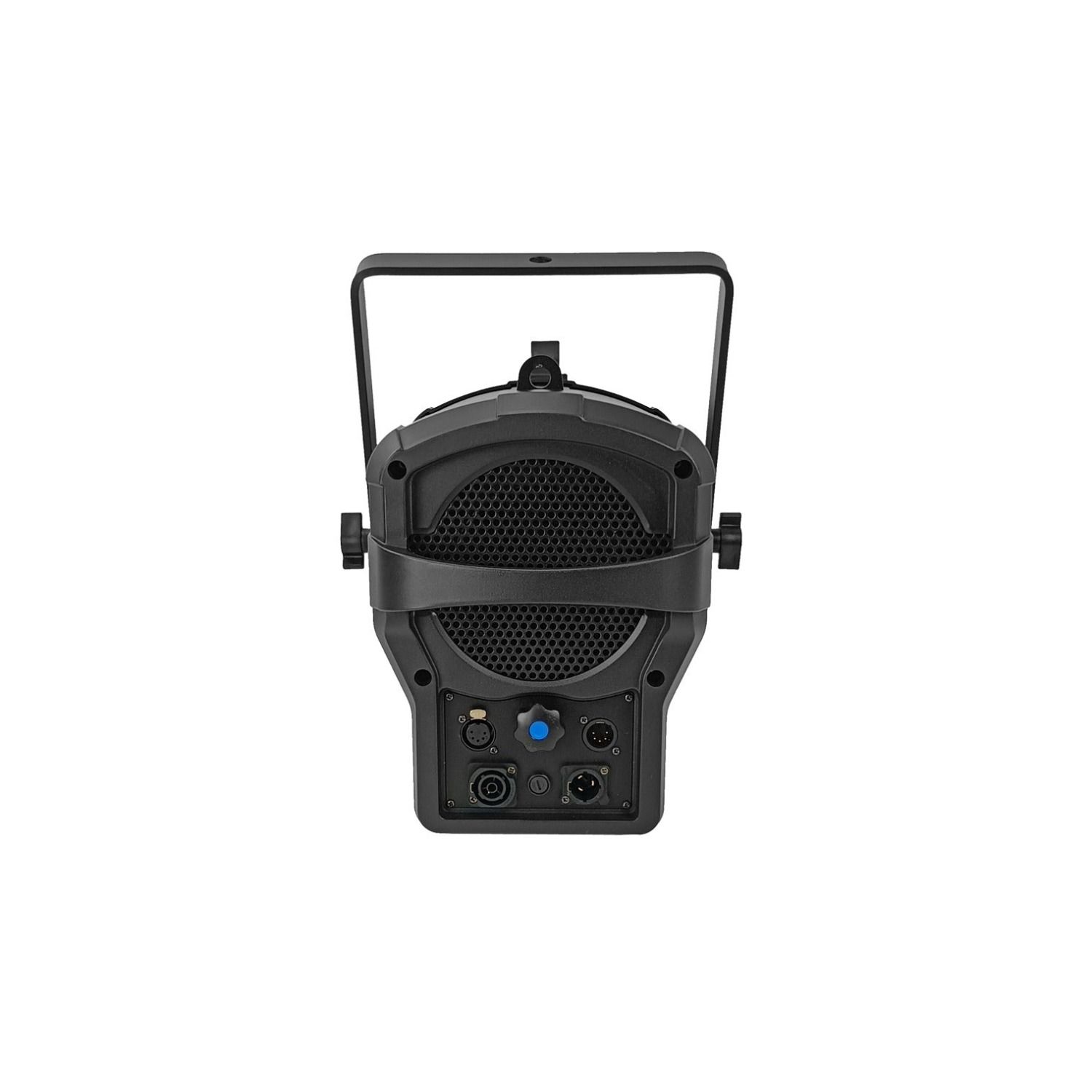

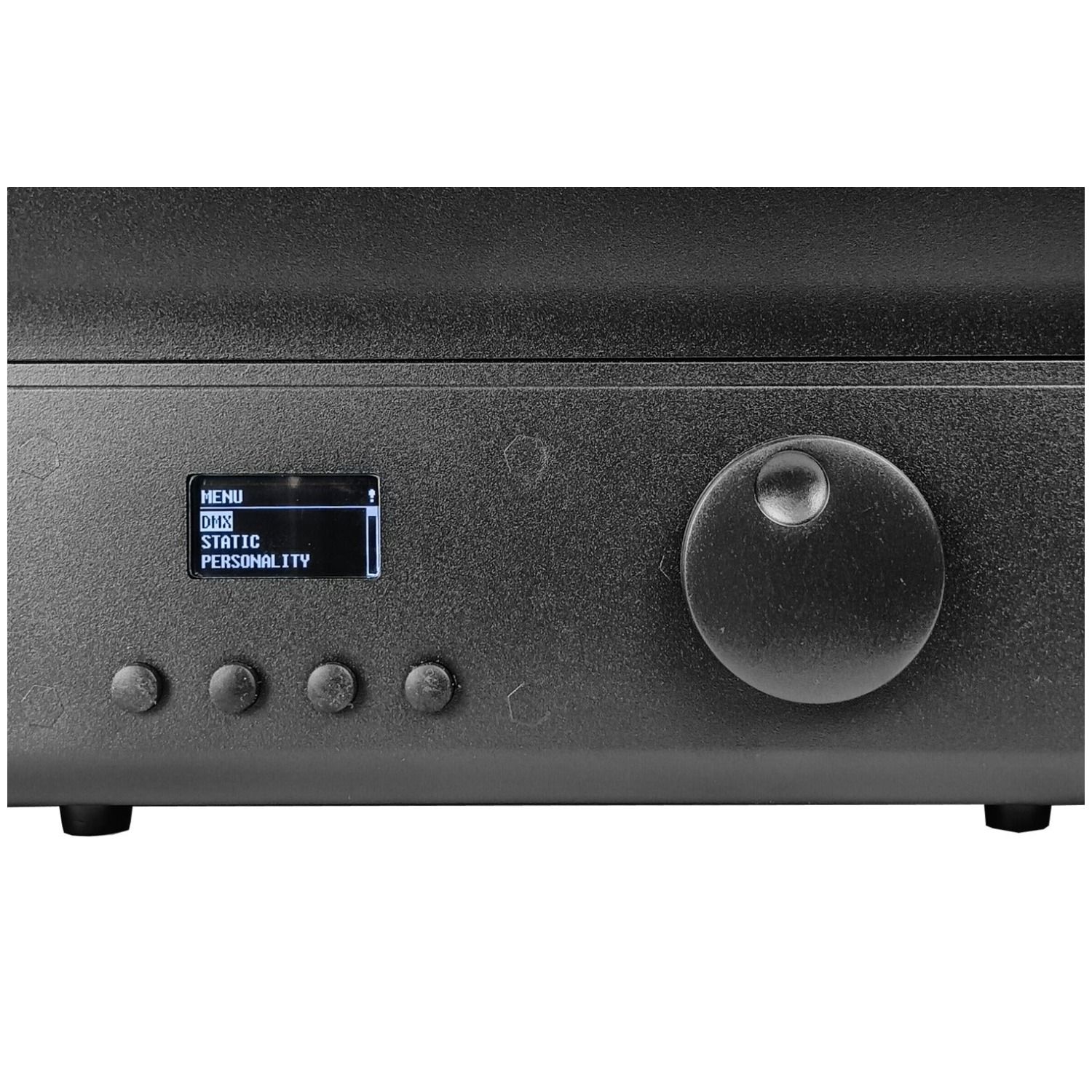

Construction centres on die–cast aluminium housing with an IP20 rating and intelligent temperature regulation via silent fan cooling. Manual zoom spans 23° to 62° using a glass lens set and 120 mm Fresnel element, adjustable on–fixture without tools. Connectivity runs dual True1 power in/out and 5–pin DMX XLR in/out; control modes include DMX512, RDM, and manual operation via 4–button TFT–LCD panel. Dimming operates across 16–bit resolution (0–100%) with three curve options and variable speed; PWM ranges from 1,000 Hz to 16,000 Hz. The package includes 8–leaf barndoors and gel frame. At 8.2 kg and 328 × 411 × 278 mm, it tolerates ambient conditions from –10°C to 40°C and achieves 50,000–hour LED lifespan.

Single–channel tuning mode makes this fixture practical for touring productions and hire scenarios where operators need colour matching without DMX infrastructure. The combination of manual zoom precision, True1 power continuity, and silent operation suits both theatrical venues and streaming setups where acoustic intrusion matters. Power consumption remains modest at 200W across 100–240V AC.

Features

• 200W COB LED variable–white engine, 3200K–5600K colour temperature range
• Manual zoom 23°–62° with glass lens and 120 mm Fresnel optical system
• 95 CRI for accurate colour rendition in theatre and film applications
• DMX512/RDM control with 1CH, 2CH, 6CH, 9CH selectable channel modes
• True1 in/out power and dual 5–pin XLR DMX connectivity
• 16–bit dimming with 3 curves; PWM 1,000–16,000 Hz adjustable
• Die–cast aluminium, 8.2 kg, ±90° tilt, silent intelligent temperature control
• 50,000–hour LED lifespan; includes 8–leaf barndoors and gel frame
