Event Lighting's Lite FXWAVE100 is a compact water–effect fixture built around a 100W LED source, engineered for venues and mobile rigs where footprint matters but output can't. The dual rotating water wheels create organic, rippling projections across stage surfaces, while the 45° beam angle and 9,000K colour temperature keep things punchy and visible even in dimmer environments. Powered by a 50,000–hour LED module, it's built to last through hundreds of gigs without lamp replacement headaches.
The fixture ships with a colour wheel offering five hues plus white, fully dimmable from 0–100% and strobe–capable up to 30 Hz. Control runs via standard 3–pin XLR DMX512 protocol across five channels, with additional support for auto, sound–reactive, and master/slave operation via a four–button LED interface. Dual powerCON connectors enable daisy–chaining; the steel chassis measures 320 × 220 × 200 mm and draws 140 W from a universal 100–240 V supply, weighing just 4.5 kg for quick transport and rigging setup.
Sound–reactive triggering makes the FXWAVE100 particularly useful in smaller clubs or rehearsal spaces where lighting automation isn't available; the integrated microphone responds in real–time to music dynamics. IP20 rating means it'll handle dust and accidental splashes on indoor stages, though outdoor deployment requires protective doming. The 2–year warranty covers component failure, a standard reassurance for touring rigs and rental stock alike.
Features
- 100W LED source, 50,000–hour lifespan, 9,000K colour temperature
- Dual rotating water effect wheels, manual focus, 45° beam angle
- Five colours plus white on single indexable colour wheel
- DMX512 control, 5 channels, 3–pin XLR in/out connectors
- Sound–reactive, auto, master/slave, and DMX operational modes
- Strobe function 0–30 Hz, dimming 0–100%

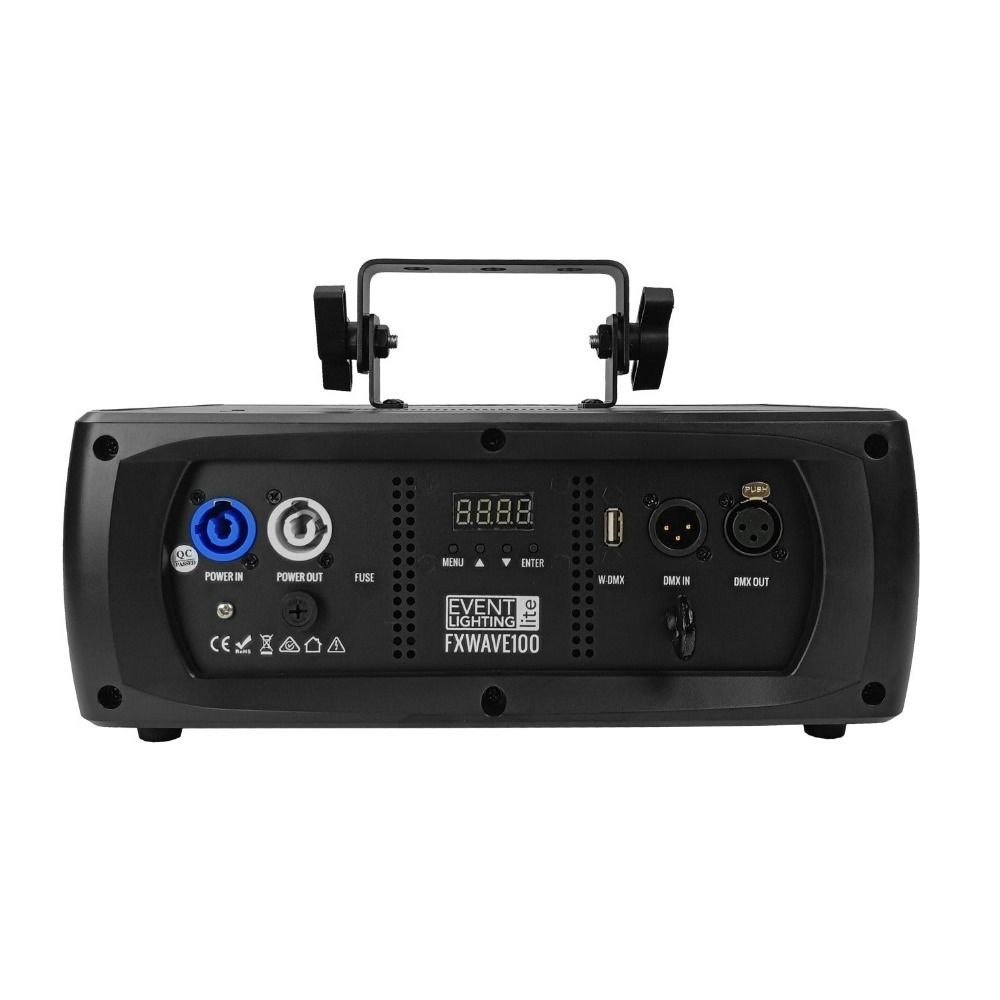

- Dual powerCON in/out, 140 W consumption, 100–240 V universal PSU
- Steel matte black chassis, 4.5 kg, 320 × 220 × 200 mm dimensions
