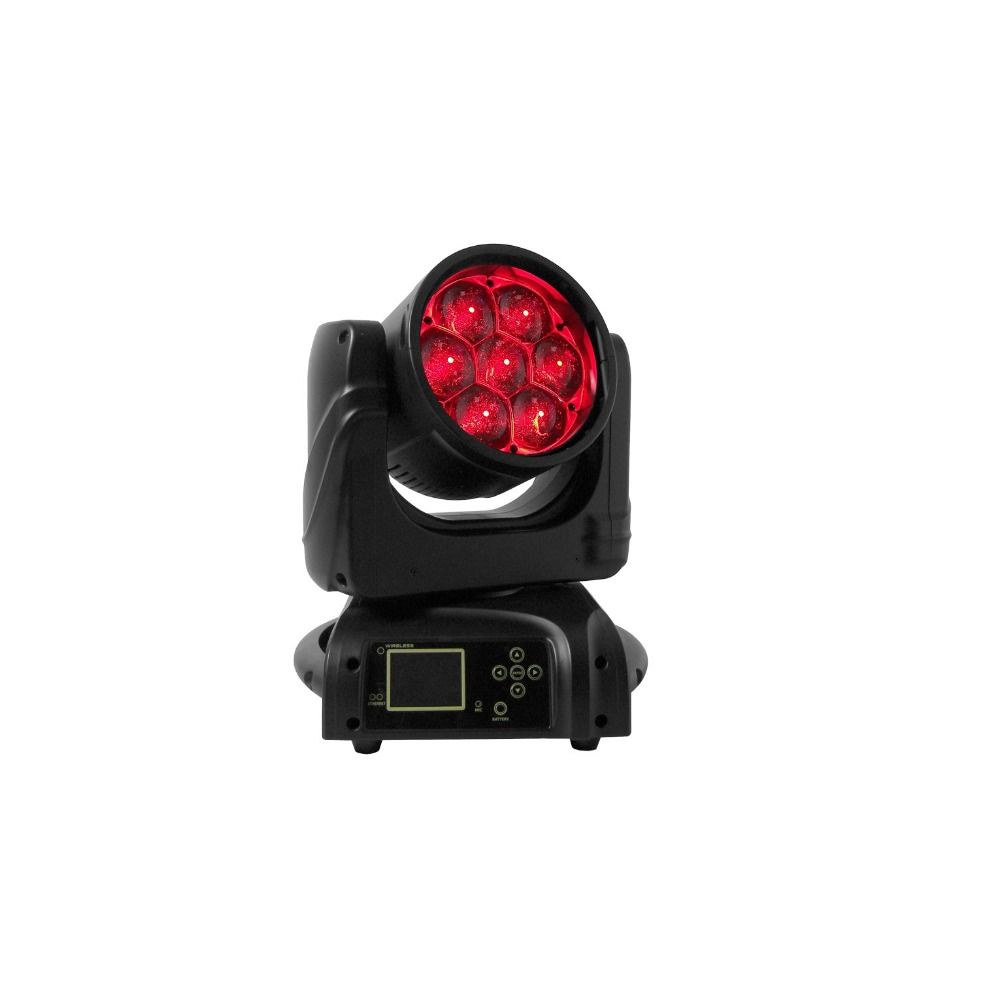

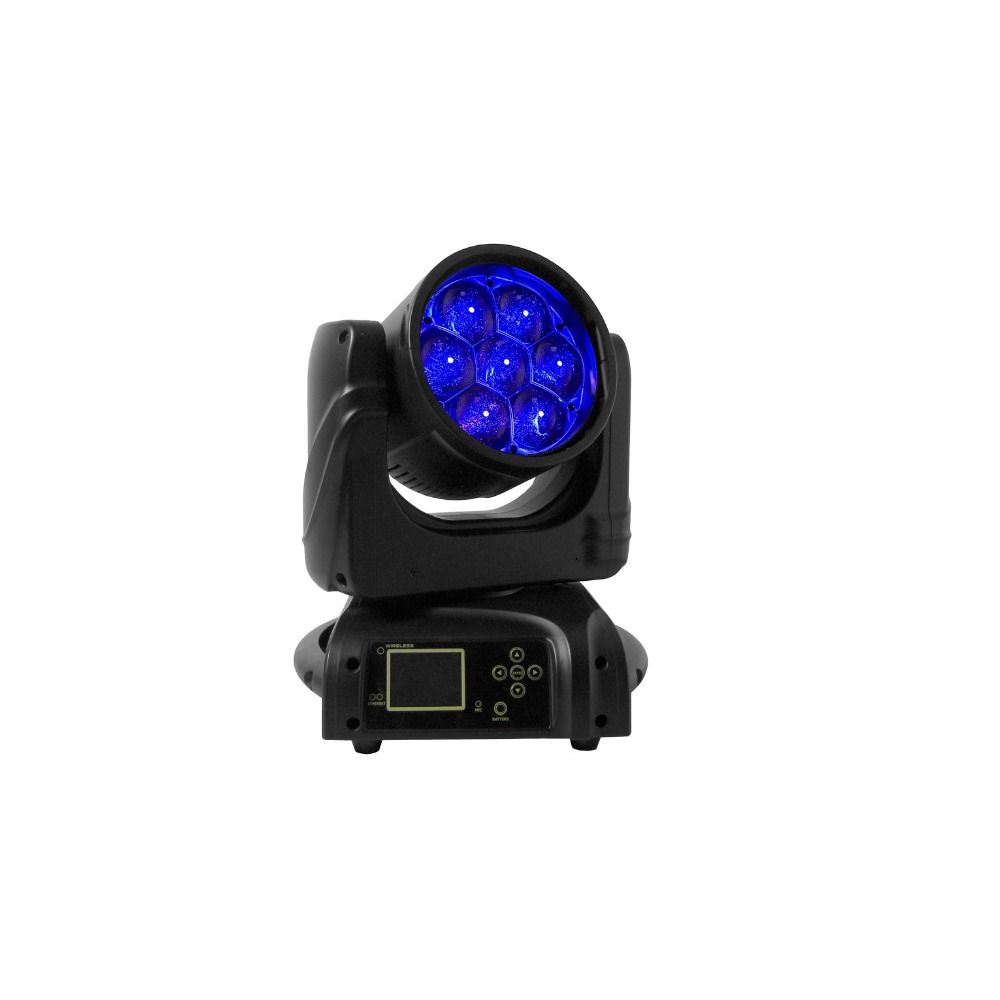

Event Lighting HAVOCW7X40 Moving Head Zoom Wash w/ 7 x 40w RGBW LEDs CRI version

The Event Lighting HAVOCW7X40CRI is a motorised zoom wash head built for touring and installation work where colour saturation and beam precision matter. Seven 40W RGBW LEDs deliver 4,130 lumens and a claimed colour rendering index of 93 or better, supporting a colour temperature range from 2,800K to 10,000K. The 6–53° zoom range provides flexibility across venues and stage sizes without requiring fixture swaps.

Specifications underscore the unit's output: 46,110 lux at 6° and 3,931 lux at 53°, both measured at 3 metres. The head offers 16–bit auto repositioning across 540° pan (2.61 seconds) and 265° tilt (1.03 seconds), with pixel control and strobe from 0.5–26 Hz built in. Connectivity spans DMX (3– and 5–pin), True1, and Art–Net; operation modes include DMX512, RDM, sound–active, and master/slave. The 2.4” colour LCD panel has battery backup. Matte black ABS and steel housing houses a sensor–controlled fan; the unit weighs 7.2 kg and includes one omega bracket.

The HAVOCW7X40CRI accommodates multiple DMX channel configurations (main 18, 25, or 37; pixel 8 or 28), allowing integration into existing touring consoles without reprogramming. Firmware is upgradeable via DMX or USB, extending the fixture's operational lifespan. A 60,000–hour LED lifespan and road case option support long–term deployments in permanent and temporary installations alike.

Features

• 7 × 40W RGBW LEDs, 4,130 lumen output, CRI 93 minimum
• Motorised zoom 6–53°, 46,110 lux at 6°, 3,931 lux at 53° @3m
• 540° pan, 265° tilt, 16–bit auto repositioning
• Colour temperature 2,800–10,000K, 0–100% dimming, 0.5–26Hz strobe
• DMX512, RDM, Art–Net support; 18/25/37 channel configurations

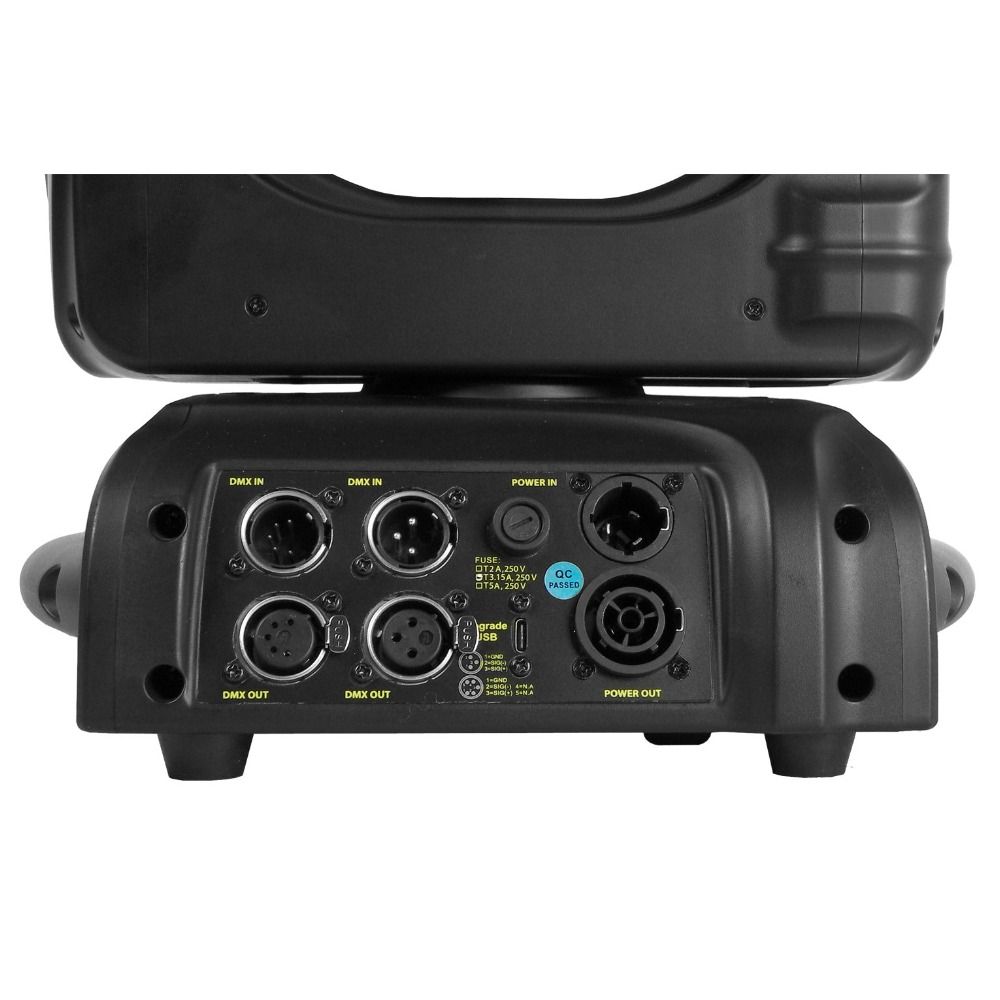

• True1, 3–pin and 5–pin DMX in/out, battery–backed 2.4” LCD control panel
• Matte black ABS and steel housing, sensor–controlled fan, 7.2 kg
• Firmware upgradeable via DMX or USB; 60,000–hour LED lifespan
