Event Lighting HAVOCW19X40 Moving Head Zoom Wash w/ 19 x 40w RGBW LEDs CRI version

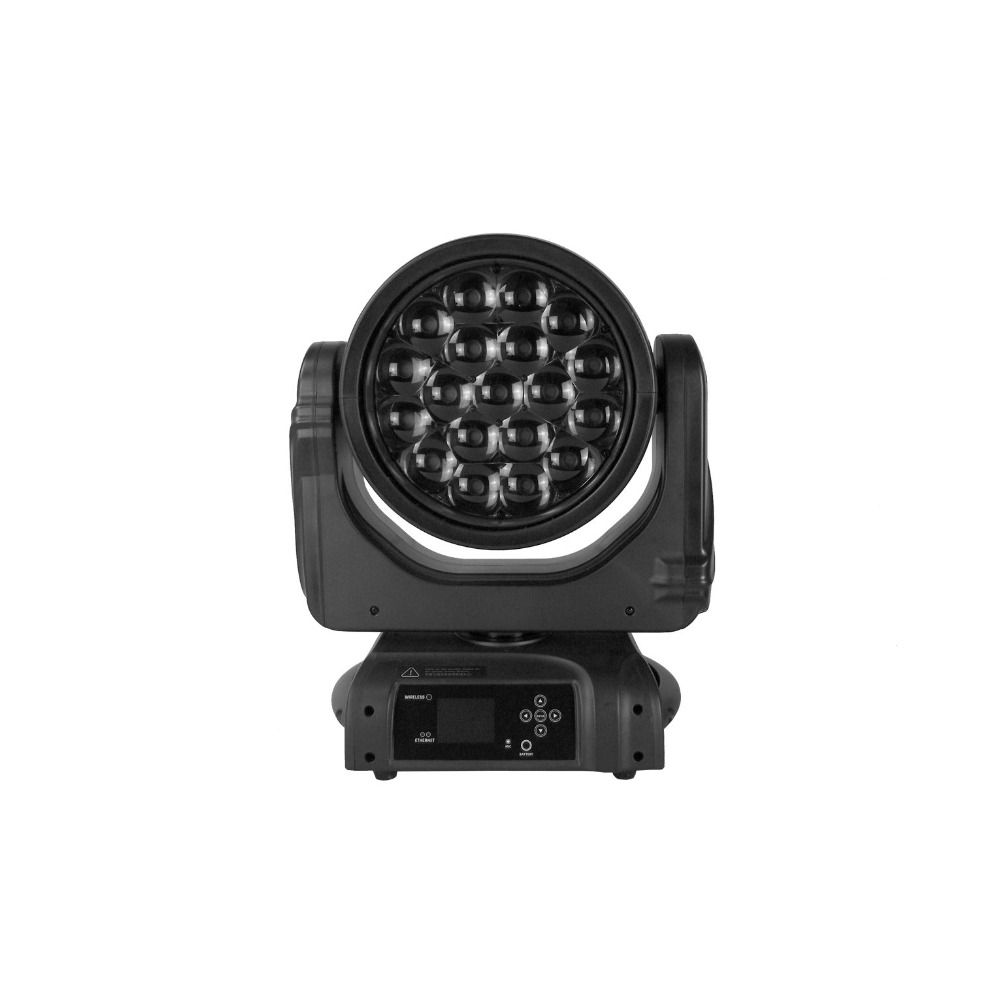

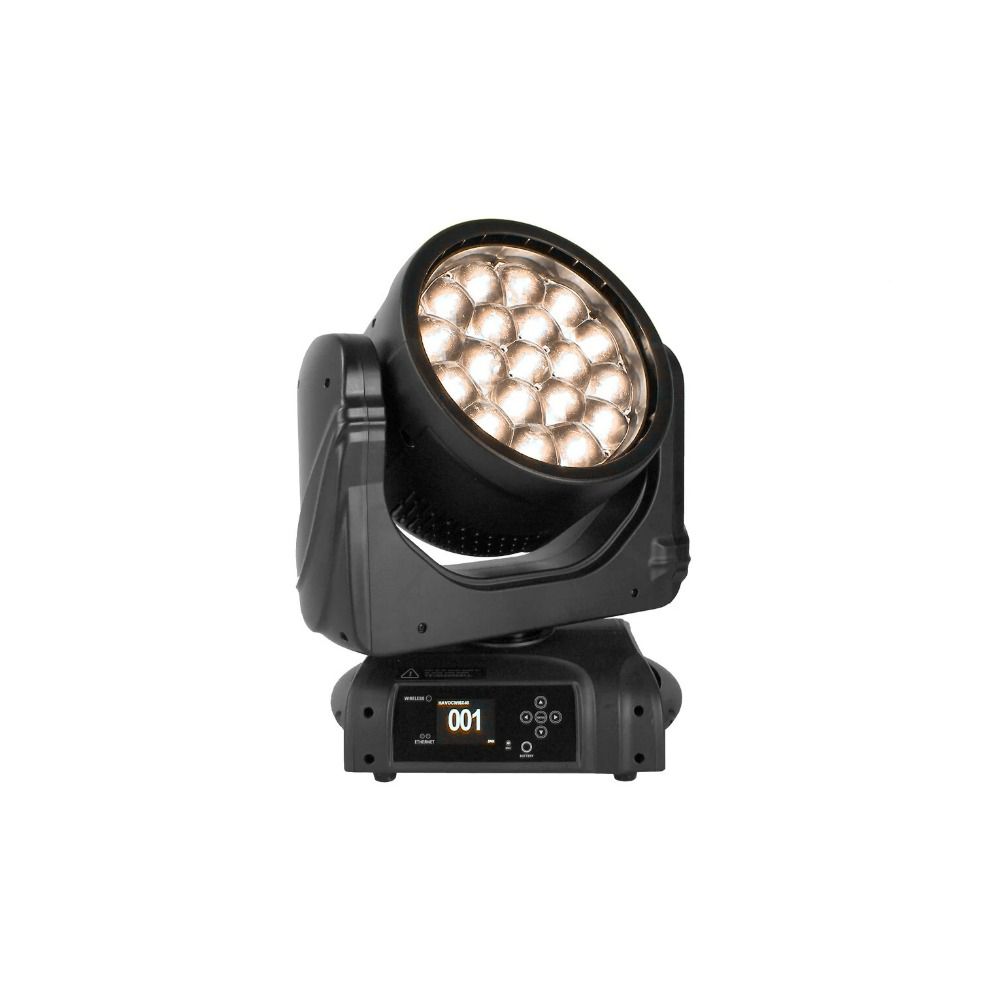

The Event Lighting HAVOCW19X40CRI is a motorised zoom wash head engineered for touring rigs, festival setups, and fixed installations where colour mixing and beam shaping precision matter. Its 19 × 40W RGBW LED array generates 7,443 lumens with 28,376 lux at 5 metres when locked at 4° beam angle. CRI≥93 and R9≥95 ratings ensure faithful colour rendering across long–run productions.

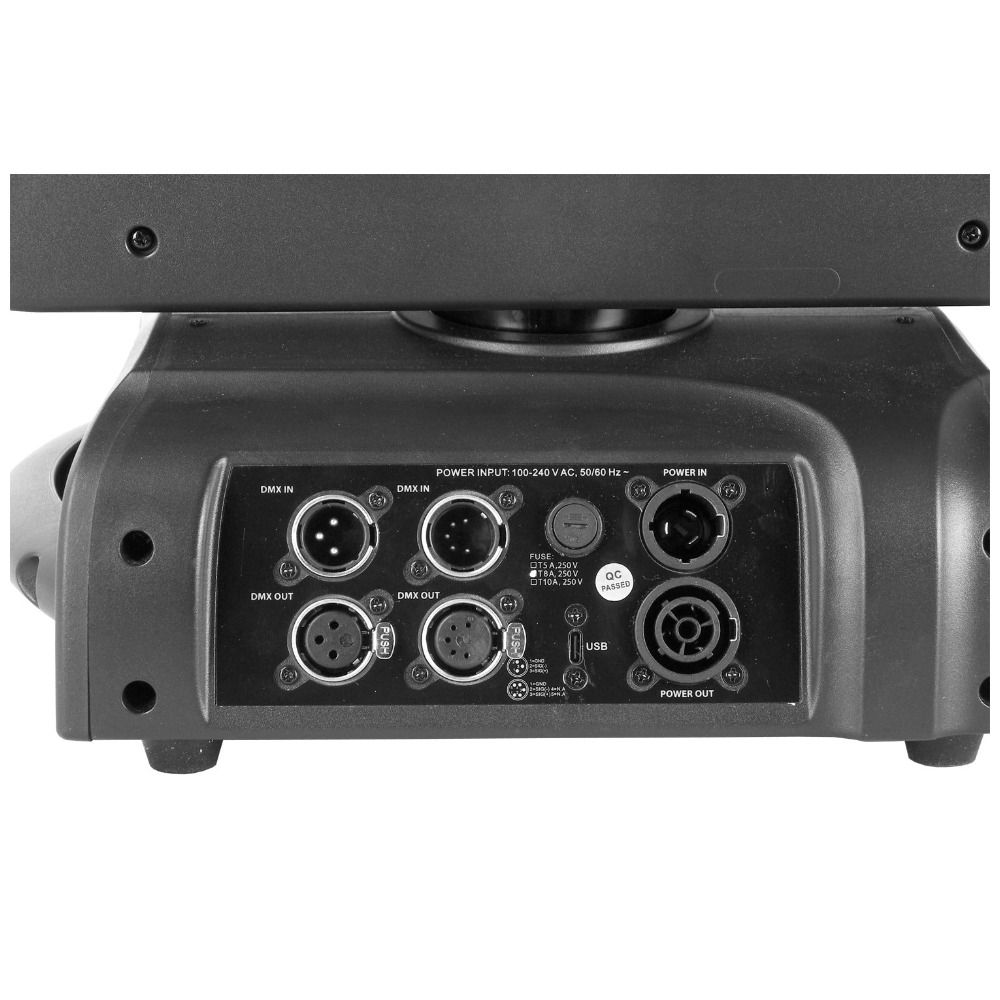

The fixture spans 4° to 48° motorised zoom travel with 16–bit auto–repositioning, 540° pan and 265° tilt movement capable of 3.2 second pan resets. Pixel control unlocks individual LED addressing for dynamic effects and scrolling patterns across the 19–unit array. DMX512 and RDM protocols ship alongside dual 3–pin and 5–pin connectors; True1 power in/out reduces cabling clutter. The 2.4" colour LCD panel with battery backup enables standalone operation or venue integration. Housing comprises steel and matte black ABS with sensor–managed cooling and 60,000–hour LED lifespan.

Multi–mode operation – DMX, auto, and sound–active – accommodates both programmed show environments and spontaneous live mixing. Rigging comes standard with two omega brackets featuring 1/4–turn quick locks. At 15.9 kg and 400 × 280 × 421.6 mm, transport via hardcase is practical for touring crews. Firmware updates over DMX or USB keep the unit’s feature set current.

Features

• 19 × 40W RGBW LEDs, 7,443 lumens output, 60,000–hour lifespan
• Motorised zoom, 4° to 48° beam angle with 28,376 lux at 5 metres–4°
• 16–bit auto–repositioning, 540° pan, 265–tilt in 3.2 seconds and 1.57 seconds
• Pixel control for individual LED addressing and dynamic effect mapping
• DMX512, RDM, 3– and 5–pin connectors, True1 power in/out connectivity
• 2.4" colour LCD panel with battery backup, DMX or USB firmware upgrade path
• Steel and ABS housing, sensor–controlled cooling, 15.9 kg, dual omega brackets included
• CRI≥93, R9≥95 colour rendering; DMX, auto, sound–active operation modes
