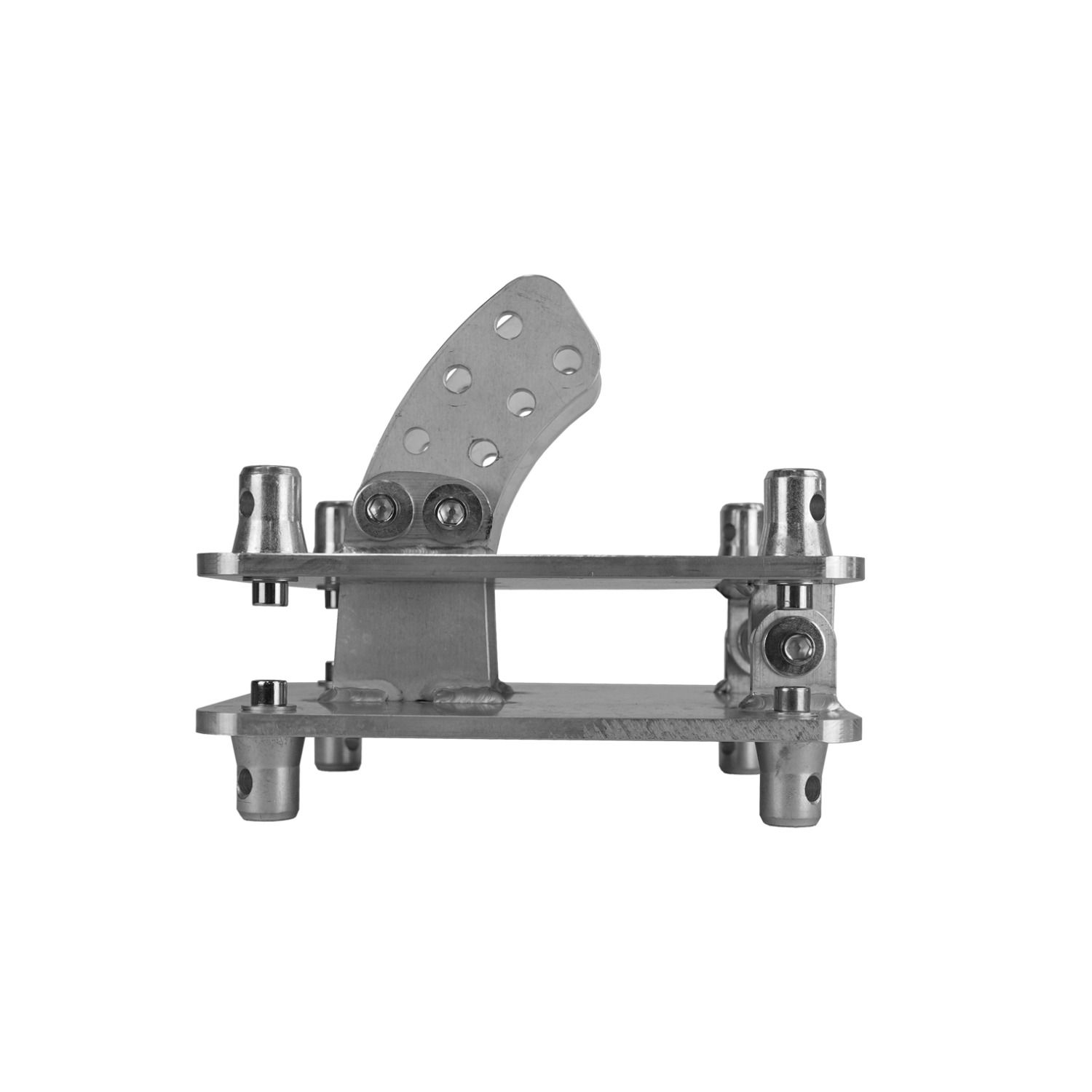

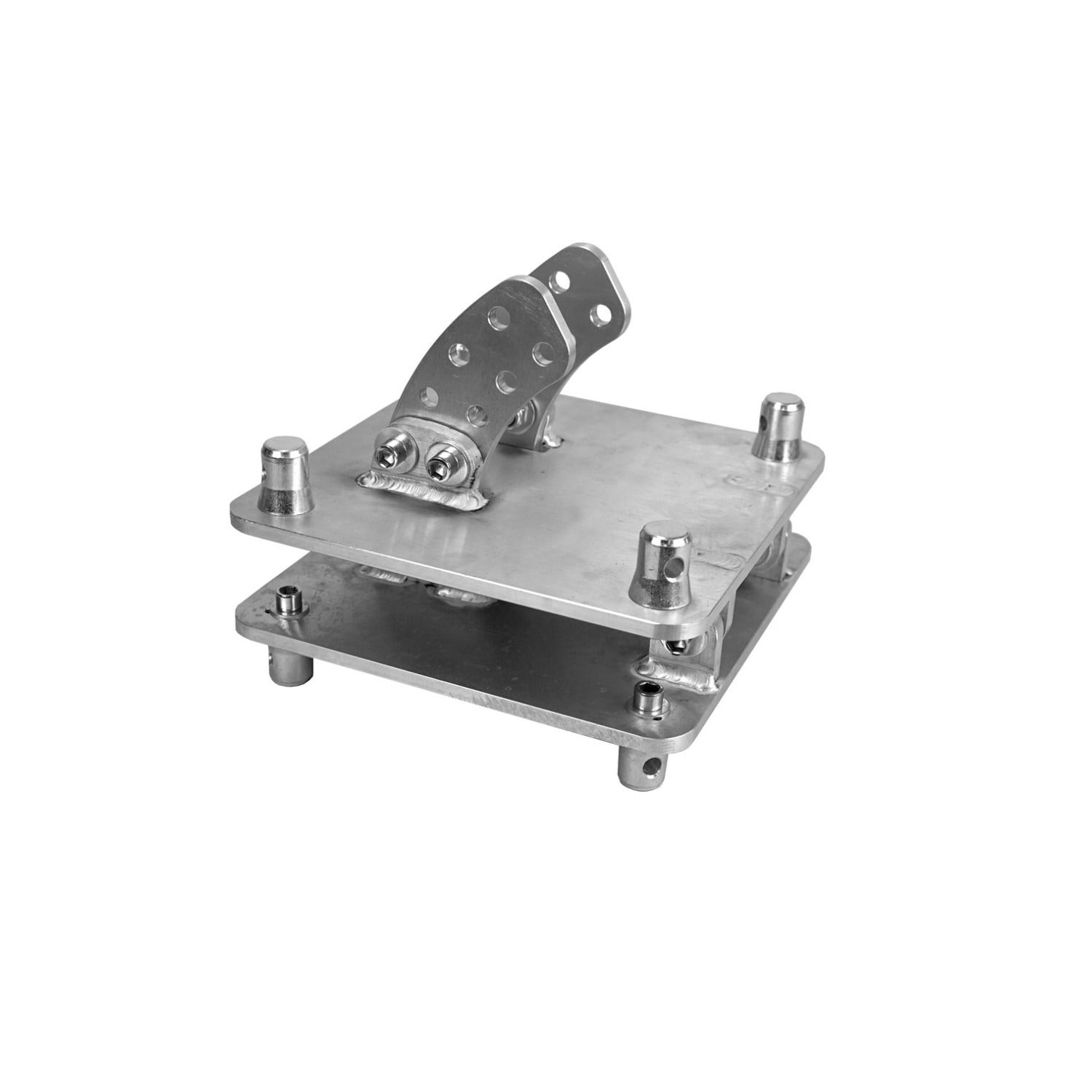

Event Lighting AHINGE290 Box Truss w/ Adjustable Hinge (290mm)

Designed to connect two 290mm box truss sections at any angle from straight through to 180 degrees, this adjustable hinge from Event Lighting brings flexibility to rigging configurations where fixed-angle corners won't work. Measuring 300 x 300 x 250mm, the AHINGE290 fits standard 290mm box truss and allows on-site angle adjustment without fabrication or welding. The hinge mechanism provides secure, repeatable positioning for curved arrays, angled backdrops, and non-linear overhead structures in live performance and installation environments.

Constructed with steel hardware and reinforced pivot points, the adjustable hinge locks into position once the desired angle is set. The 300mm width matches the outer dimensions of 290mm box truss, ensuring flush alignment and load distribution across the connection. Adjustment range spans the full 180-degree arc, accommodating everything from gentle curves to sharp directional changes in a single component. The unit integrates with existing Event Lighting box truss systems and accepts standard clamps and safety hardware for rigging compliance.

Features

• Compatible with 290mm square box truss sections and systems
• Adjustable hinge angle from 0 to 180 degrees for curved configurations
• Physical dimensions of 300 x 300 x 250mm for flush truss alignment
• Steel construction with reinforced pivot mechanism for structural integrity
• Accepts standard clamps and safety hardware for rigging compliance
• Enables curved arrays and non-linear overhead structures without fabrication
• Locking mechanism holds selected angle under load during performance
• Designed for live staging, installation, and architectural lighting applications
