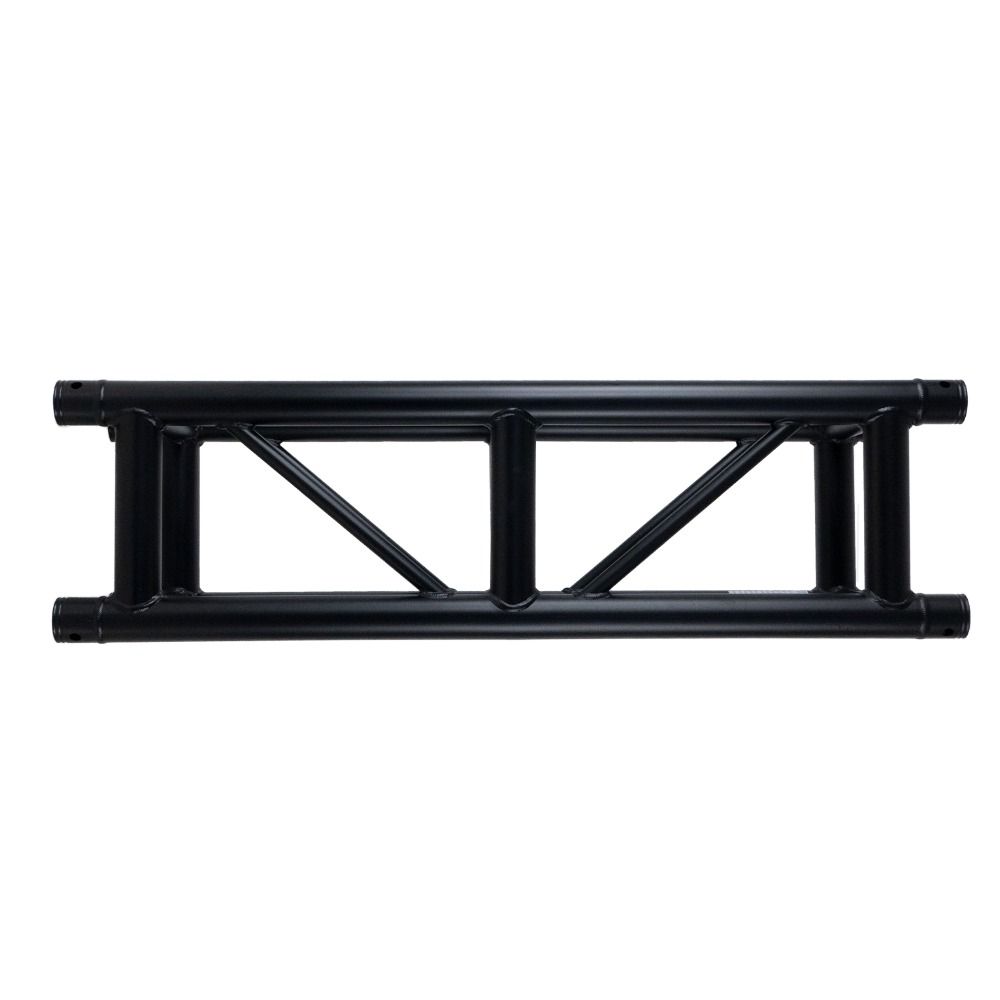

Event Lighting 290mm Box Truss Ladder Style (1m) Black T3BL1BK

Event Lighting's 290mm box truss ladder design delivers sturdy aluminium construction for touring rigs, festival builds, and permanent venue installations. The T3BL1BK model spans 1 metre and employs 6061–T6 alloy with 2mm wall thickness across main and vice braces, meeting TUV certification standards. Its compact footprint and black powder–coat finish integrate cleanly into both performance spaces and recording studio setups where overhead rigging demands reliability.

Construction centres on a 50mm x 2mm main tube paired with matching vice bracing and 20mm x 2mm diagonal reinforcement, creating a rigid ladder–style geometry. The 290 x 290mm profile provides consistent cross–section stiffness throughout its 1000mm length. Load ratings vary with span configuration: a single centre point load reaches 2500kg at shortest span, while distributed loads and multi–point configurations scale accordingly. Proper orientation–chords facing downward in horizontal use–is essential; incorrect placement voids all load ratings. Australian engineering certification and technical documentation are available for compliance verification.

Features

• 290 x 290 x 1000mm dimensions; 1 metre length for modular rig building
• 50mm x 2mm main tube and vice brace; 20mm x 2mm diagonal reinforcement
• Aluminium alloy 6061–T6 with 2mm wall thickness throughout construction
• Black powder–coat finish resists oxidation and stage wear
• TUV–certified load ratings; centre point capacity to 2500kg
• Ladder–style geometry requires chords facing downward when horizontal
• Australian engineering certification available for documentation and compliance
• User manual and technical specifications downloadable for installation reference
