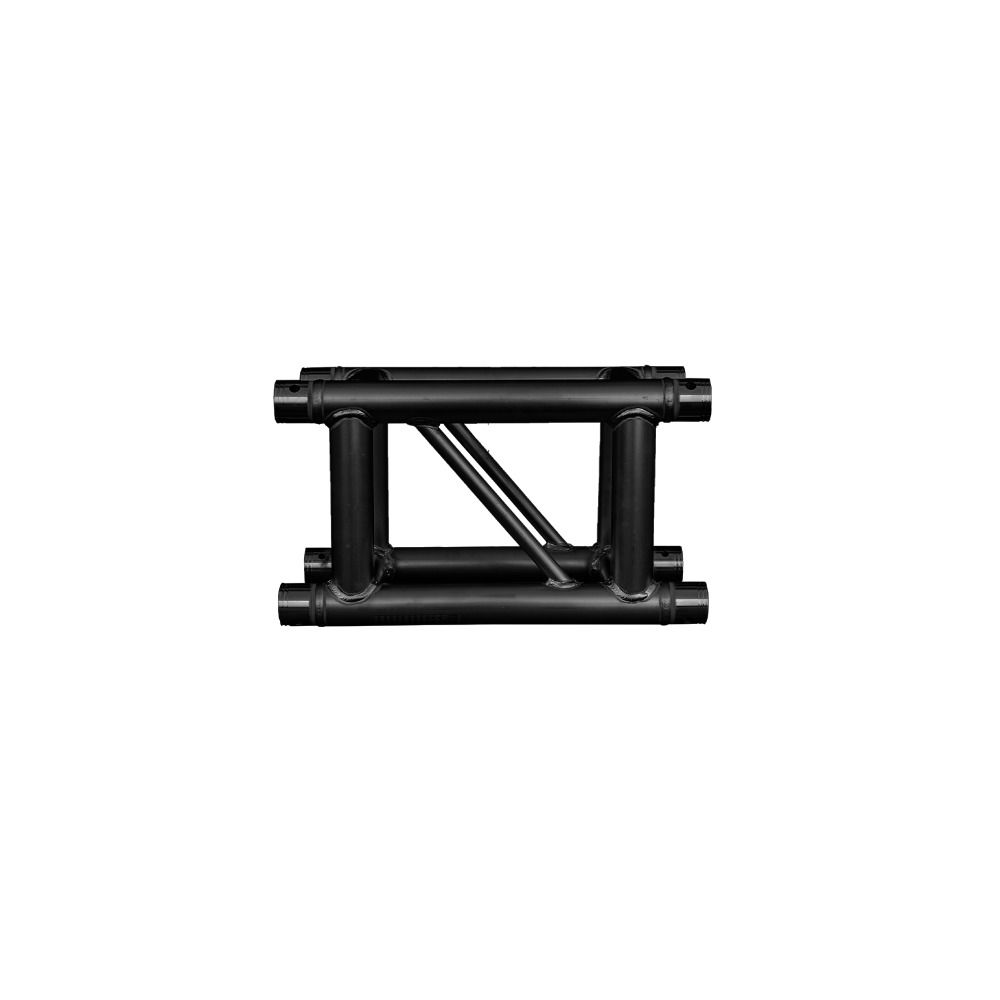

Event Lighting 290mm Box Truss Ladder Style (0.5m) Black T3BL05BK

The 290mm aluminium box truss ladder–style frame offers a straightforward structural solution for rigs, installations, and temporary stage setups. Built from 6061–T6 aluminium alloy with a 2mm wall thickness throughout, this 0.5m section provides proven load capacity and dimensional consistency. TUV certification confirms structural integrity, whilst the black powder coat protects against corrosion in both indoor and outdoor environments.

Construction centres on a 50mm × 2mm main tube paired with 50mm × 2mm vice braces and 20mm × 2mm diagonal reinforcement. The ladder design permits substantial point loads when properly oriented—2500kg uniformly distributed at 1m span, or 2500kg centre point load on a single metre. Load ratings scale predictably across longer spans: at 5m, the frame handles 400kg/m distributed or 800kg at centre point; at 10m, these figures drop to 95kg/m and 350kg respectively. Critical note: chords must face downward during horizontal use to maintain all stated load ratings.

Delivered with a 3–year warranty and supported by engineering documentation and an operator manual, this truss suits scalable rigging where modular construction and repeatable performance matter. Australian Engineering Certification confirms compliance with relevant standards, making it suitable for hired–in and permanent installation contexts across venues, festivals, and studio setups requiring overhead support infrastructure.

Features

• 290mm box profile, 500mm height, constructed from 6061–T6 aluminium alloy.
• 2mm wall thickness on main tube, vice brace, and diagonal brace throughout.
• 2500kg uniformly distributed load capacity at 1m span.
• 2500kg centre point load rating on single–metre section.
• Black powder–coated finish for corrosion resistance indoors and outdoors.
• TUV–certified structural integrity with Australian Engineering Certificate included.
• Ladder orientation requires chords facing downward to achieve published load ratings.
• 3–year warranty with comprehensive user manual and engineering documentation provided.
