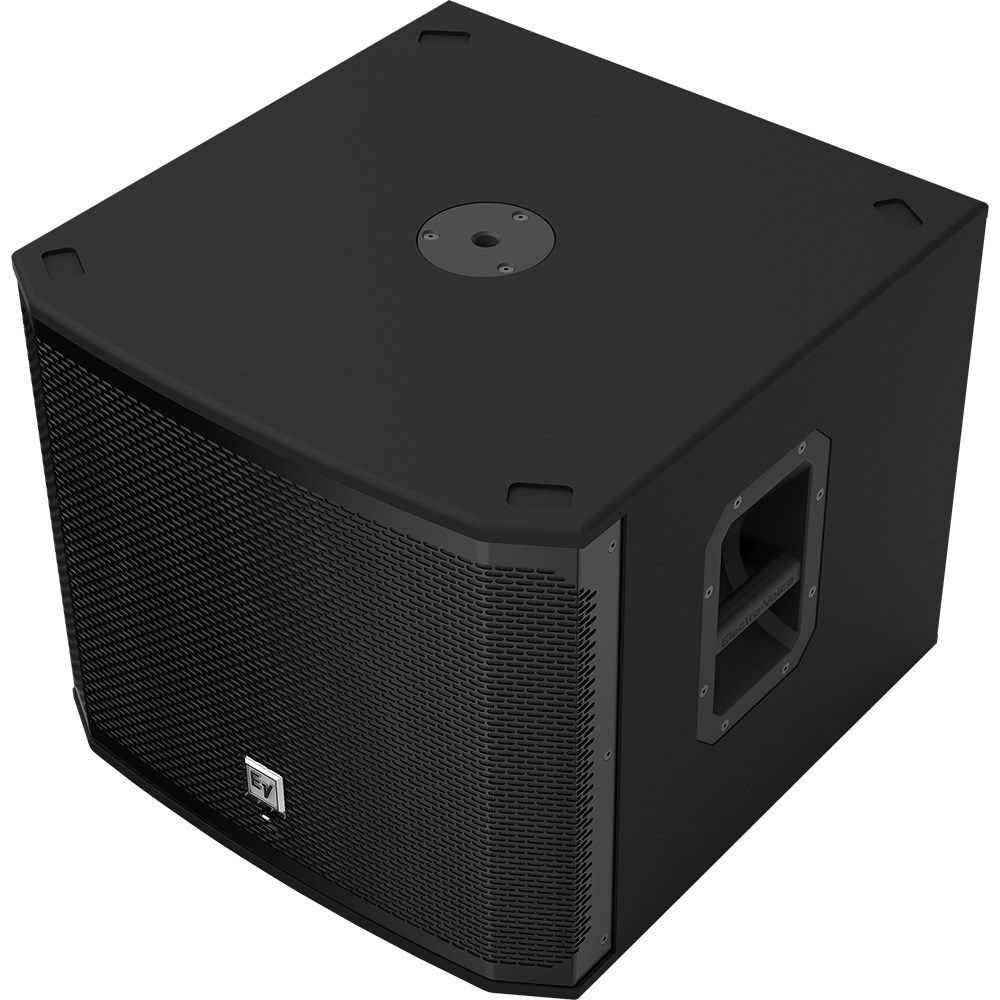

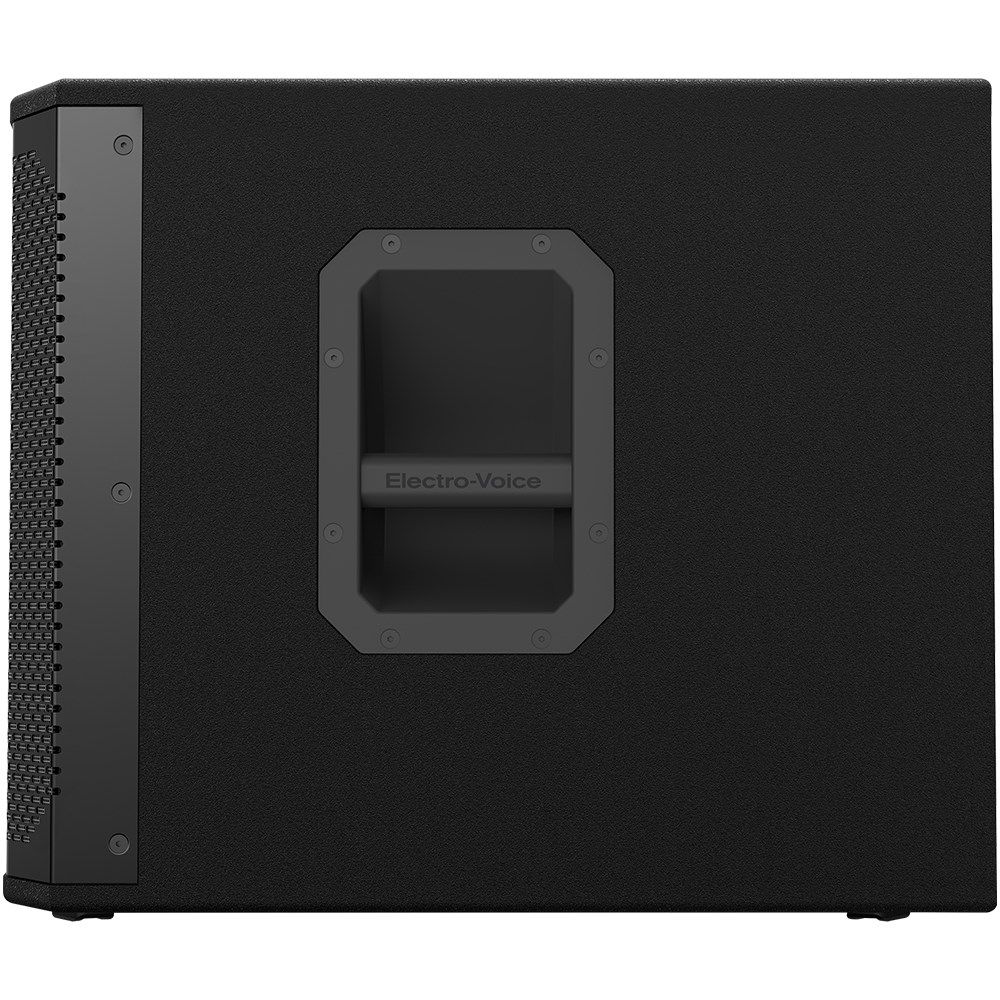

Electro-Voice EKX-15SP 15 inch 1300W Active Subwoofer
EVL-EKX15SP
$2119
Express post
Anywhere Australia wide*
The EKX-15SP subwoofer combines cutting-edge QuickSmartDSP processing with EV’s renowned single-knob interface and clear LCD menu navigation. This powerful unit features a high-efficiency 1300 W Class D amplifier that produces up to 133 dB peak SPL through specially designed high-sensitivity transducers engineered by EV.
Cardioid Control Technology stands out as a key feature, allowing you to direct output towards your audience while achieving up to 35 dB reduction on stage when using multiple subwoofers. The intelligent thermal management system uses a variable-speed fan controlled by multiple onboard sensors, maintaining superior performance and reliability even in challenging environmental conditions.
Practical connectivity comes via two XLR outputs for straightforward system expansion to additional loudspeakers or subwoofers. The design includes large slot ports for minimal distortion and excellent bass extension, plus metal grille reinforcement bars and an M20 threaded pole mount plate for secure installation options.
- Frequency Response (-3 dB): 45 Hz - 150 Hz¹
- Frequency Range (-10 dB): 40 Hz - 180 Hz¹
- Maximum SPL: 133 dB peak²
- Power Rating: 1300 W
- LF Transducer: EVS-15C 381 mm (15 in)
- Low Pass Frequency: Adjustable 80 Hz, 100 Hz, 120 Hz, 150 Hz

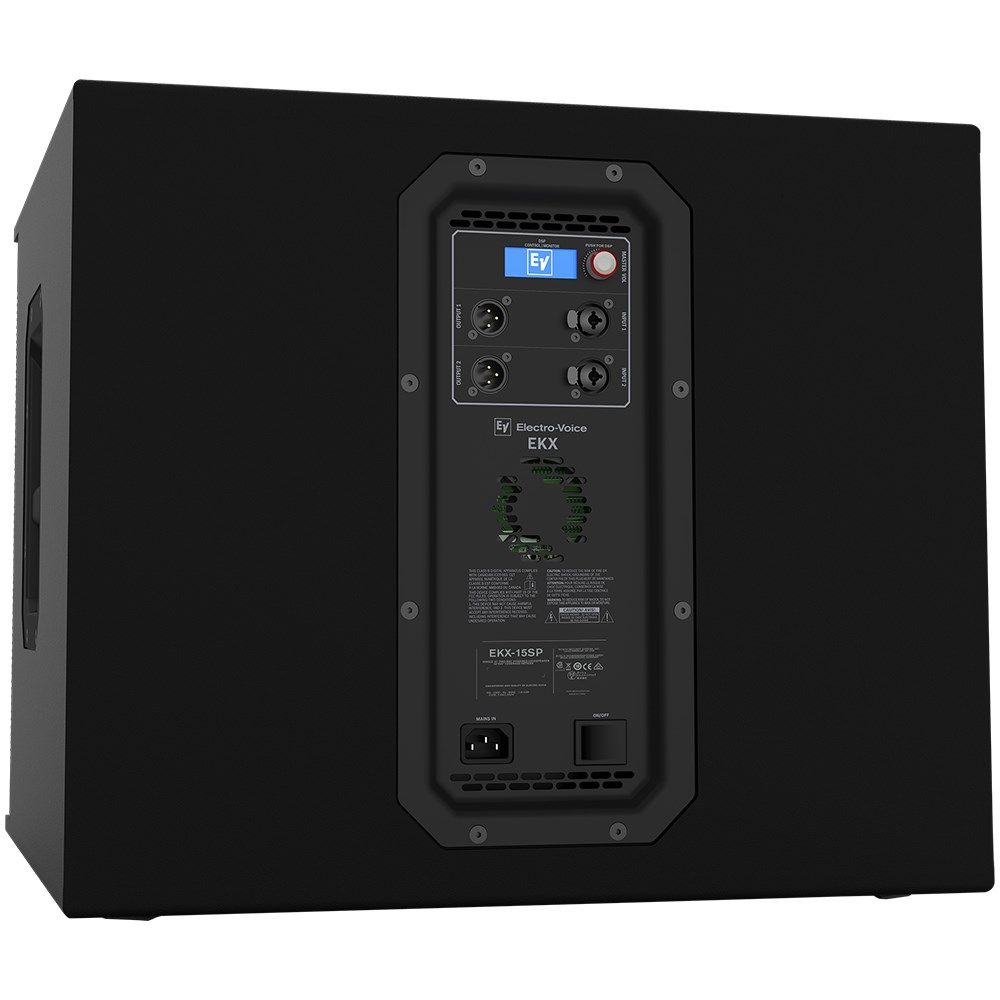

- Connectors: (2) XLR/TRS combo jacks and (2) XLR link outputs
- Enclosure: 15 mm plywood with EVCoat
- Grille: 18 AWG steel with powdercoat
- Dimensions (H x W x D): 455 in x 530 mm x 551 mm (18 in x 21 in x 22 in)
- Net Weight: 26.2 kg (57.7 lb)
- Shipping Weight: 32.6 kg (71.8 lb)
- Power Consumption: 1.8 A³
