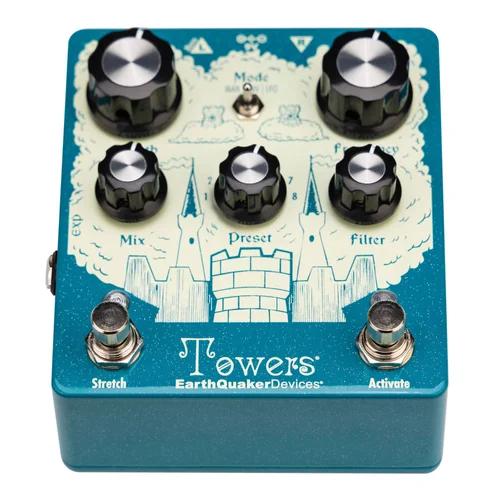

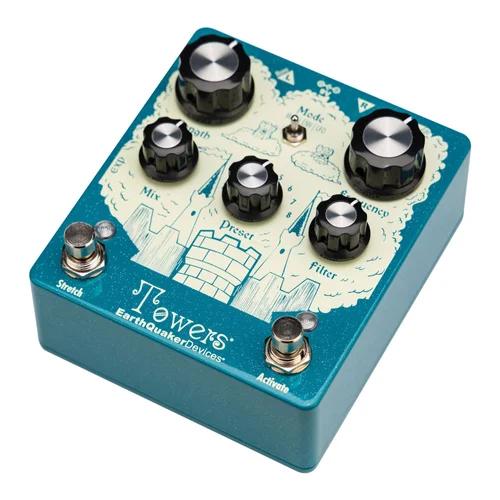

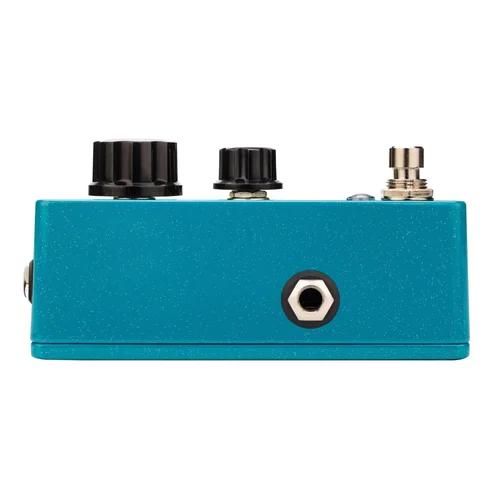

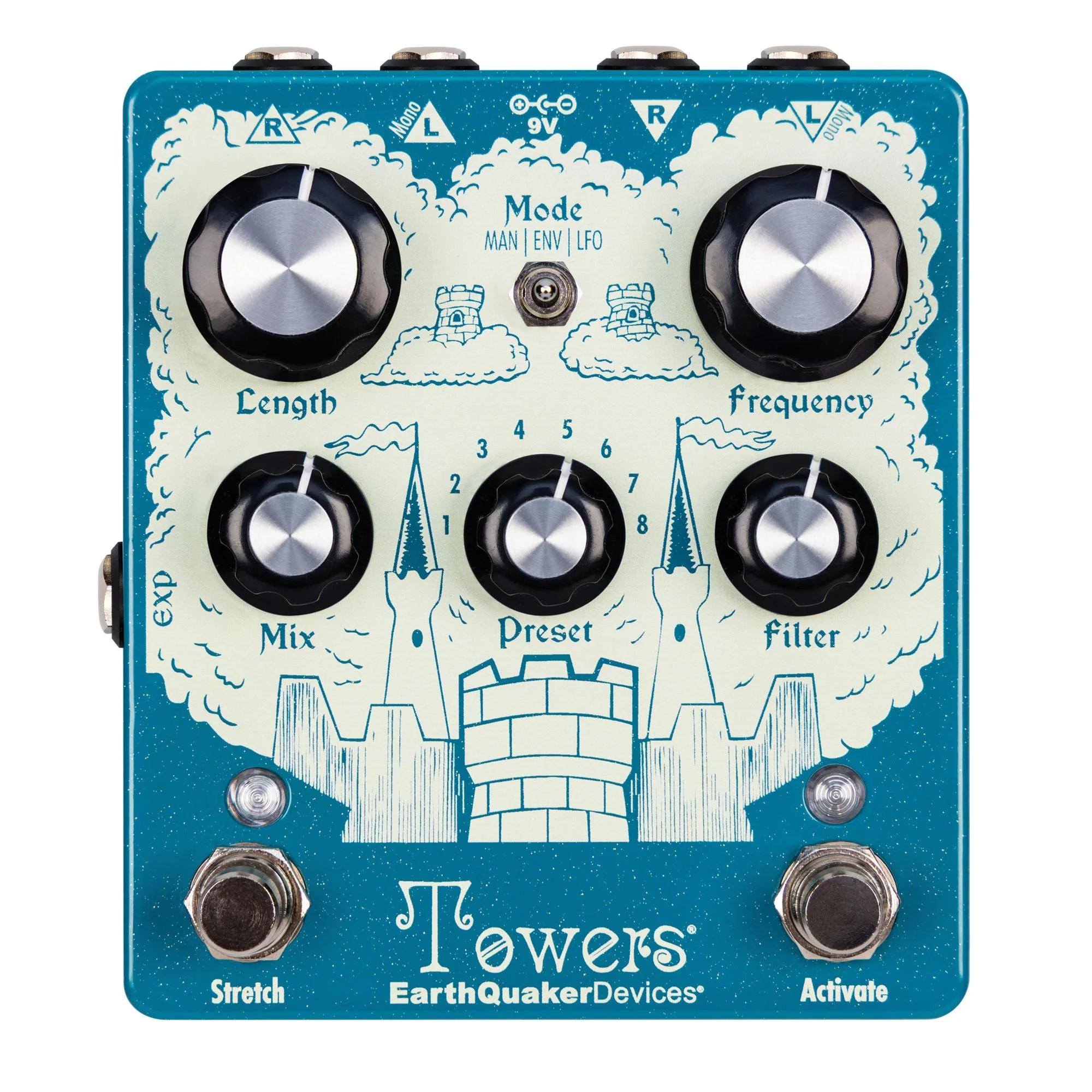

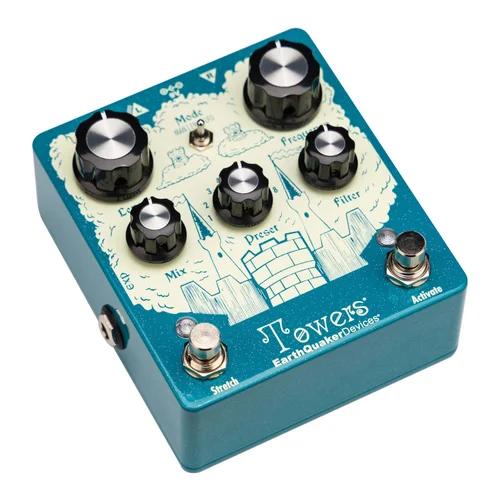

Earthquaker Devices Towers Stereo Reverb Pedal w/ Lowpass Resonant Filter

Earthquaker Devices' Towers Stereo Reverb Pedal combines spatial depth with tone-shaping versatility through an integrated lowpass resonant filter. Built for players seeking reverb that breathes naturally whilst maintaining clarity across dense mixes, it arrives configured in Tails mode by default–allowing reverb decay to persist after bypass–though Full Bypass switching is available for immediate effect termination. The pedal measures 121 × 108 × 64 mm and draws 85 mA, fitting comfortably on crowded pedalboards without excessive power demand.

Signal path architecture includes a 500 kΩ input impedance and 100 Ω output impedance, ensuring compatibility with both high– and low–impedance sources. An expression pedal jack with internally mapped CV control (tip wiper, 3.3V ring, ground sleeve) enables real–time modulation of reverb parameters. The pedal runs on standard 9–volt DC with 2.1 mm negative centre barrel connectors; transformer–isolated, pedal–specific power supplies are strongly recommended to minimise introduced noise from ripple or unfiltered switching supplies. Switching–type and daisy–chain arrangements tend to degrade signal cleanliness on sensitive reverb effects.

A limited lifetime warranty covers all Earthquaker Devices units. Should mechanical or electronic failure occur, the manufacturer provides repair services through earthquakerdevices.com/support. Artwork was conceived by Dave Neeson.

Features

• Stereo reverb with integrated lowpass resonant filter for tone shaping
• Tails and Full Bypass modes selectable via internal switching
• Green LED indicates Tails mode; Red LED indicates Full Bypass mode
• Expression pedal jack with CV control for real–time parameter modulation
• 500 kΩ input impedance, 100 Ω output impedance
• Dimensions: 121 × 108 × 64 mm; current draw 85 mA
• 9–volt DC power via 2.1 mm negative centre barrel connector
• Limited lifetime warranty with factory support and repair services
