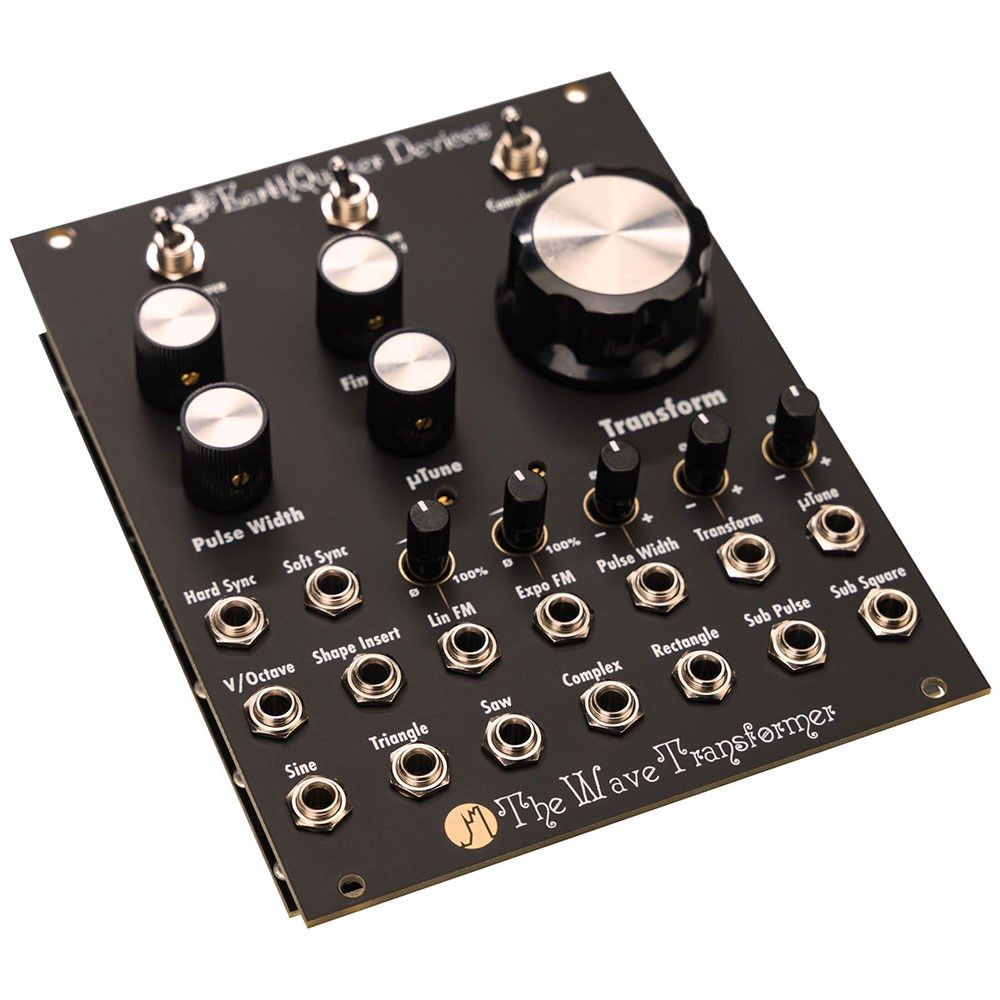

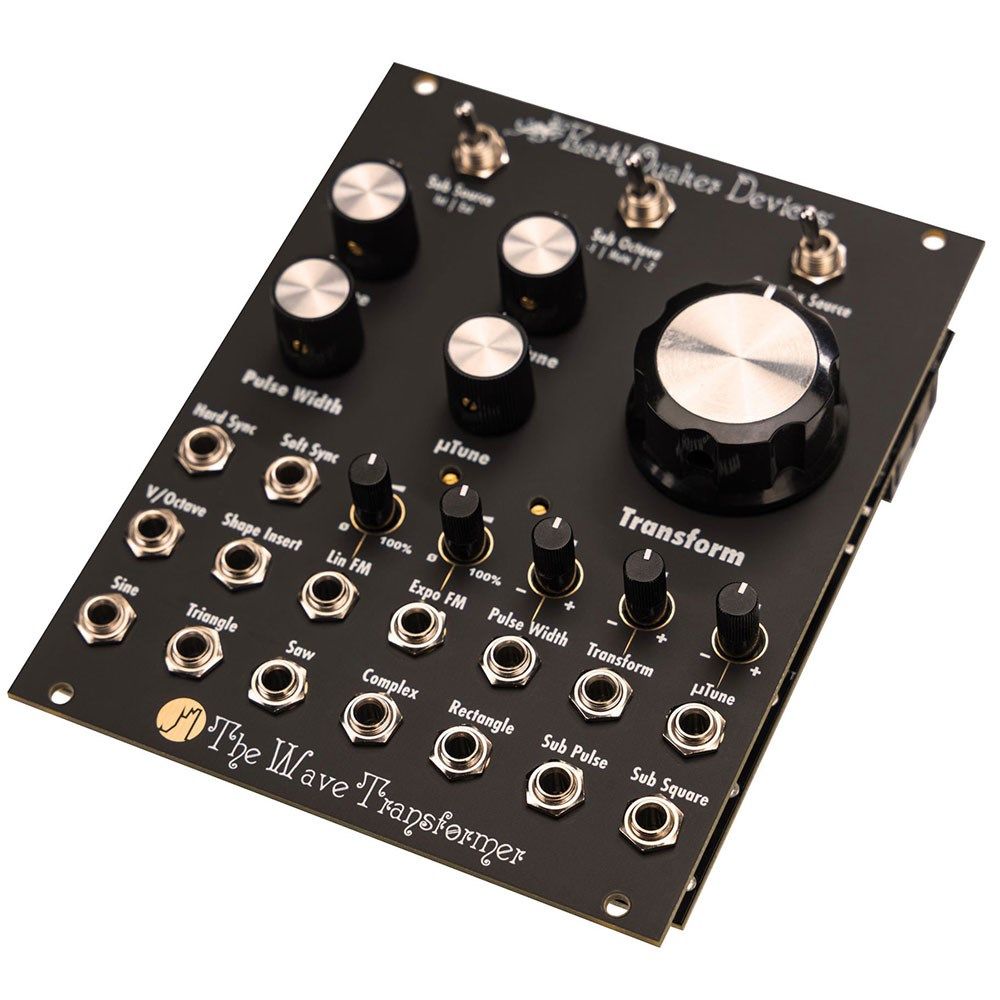

EarthQuaker Devices The Wave Transformer Eurorack Transfiguration Oscillator
EQD-WAVETRANS
$349
Free Shipping
Anywhere Australia wide*
The Wave Transformer brings vintage analogue character to your modular setup with precision pitch tracking across more than 8 octaves. This voltage-controlled oscillator features 7 simultaneous wave outputs, including a distinctive Complex output that sets it apart from conventional VCOs.
At the heart of this module lies the Transform control, which morphs basic waveforms through countless strange iterations into complex, gnarled audio mutations at the Complex output. You can create endless variations on these permutations by combining this novel circuit with Hard Sync, Soft Sync, Linear FM and Exponential FM capabilities.
The module's versatility extends beyond traditional oscillator duties - mute the source waveform and use the circuit as a harmonic gate/VCA, turning The Wave Transformer into a voice of its own. The Shape Insert feature adds another dimension, allowing you to process external oscillations and modular-level audio sources through the same unique circuitry.
- Inputs: Hard Sync, Soft Sync, V/Octave, Shape Insert, Lin FM, Expo FM, Pulse Width CV Input, Transform CV Input, µTune CV Input
- Outputs: Sine, Triangle, Saw, Complex, Rectangle, Sub Pulse, Sub Square

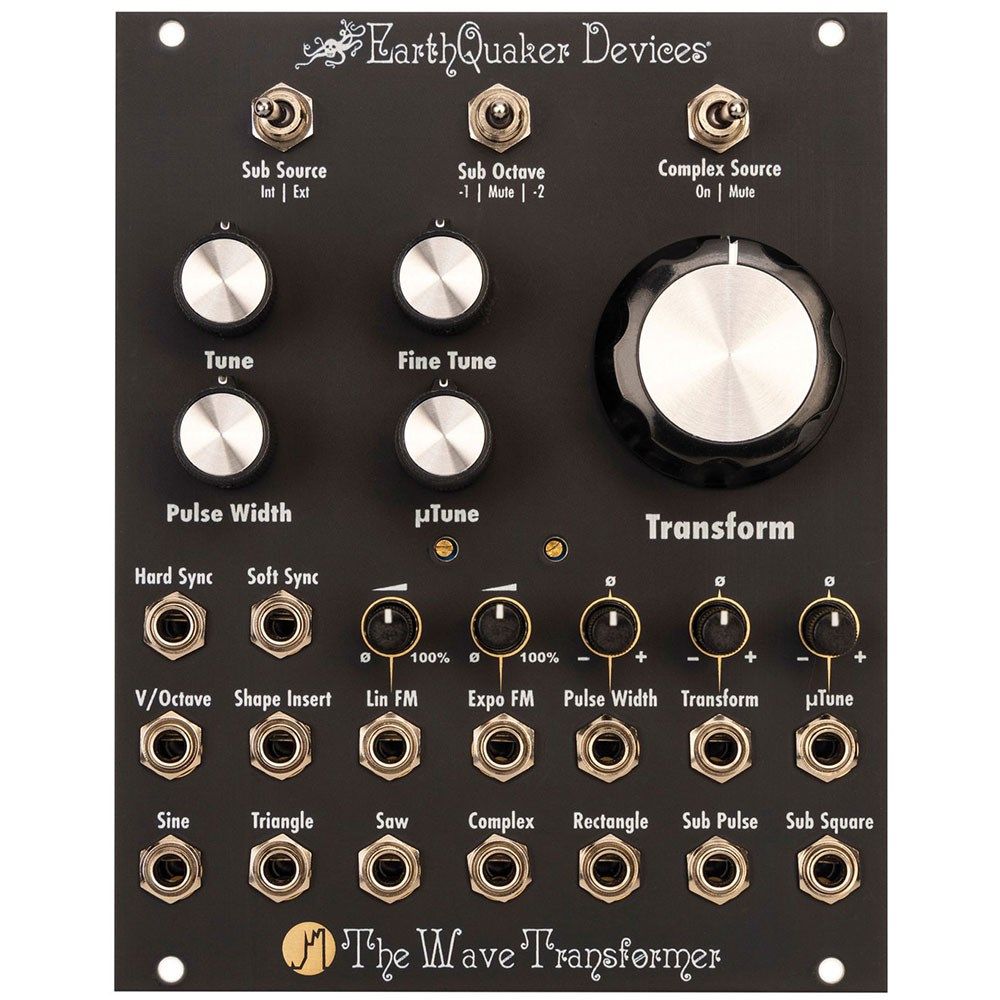

- Panel Controls: Sub Source, Sub Octave, Complex Source, Tune, Fine Tune, µTune (Micro Tune), Pulse Width, Transform
