EarthQuaker Devices Grand Orbiter Phase Machine V3 Guitar Effect Pedal
EQD-GOV3
$319
Free Shipping
Anywhere Australia wide*

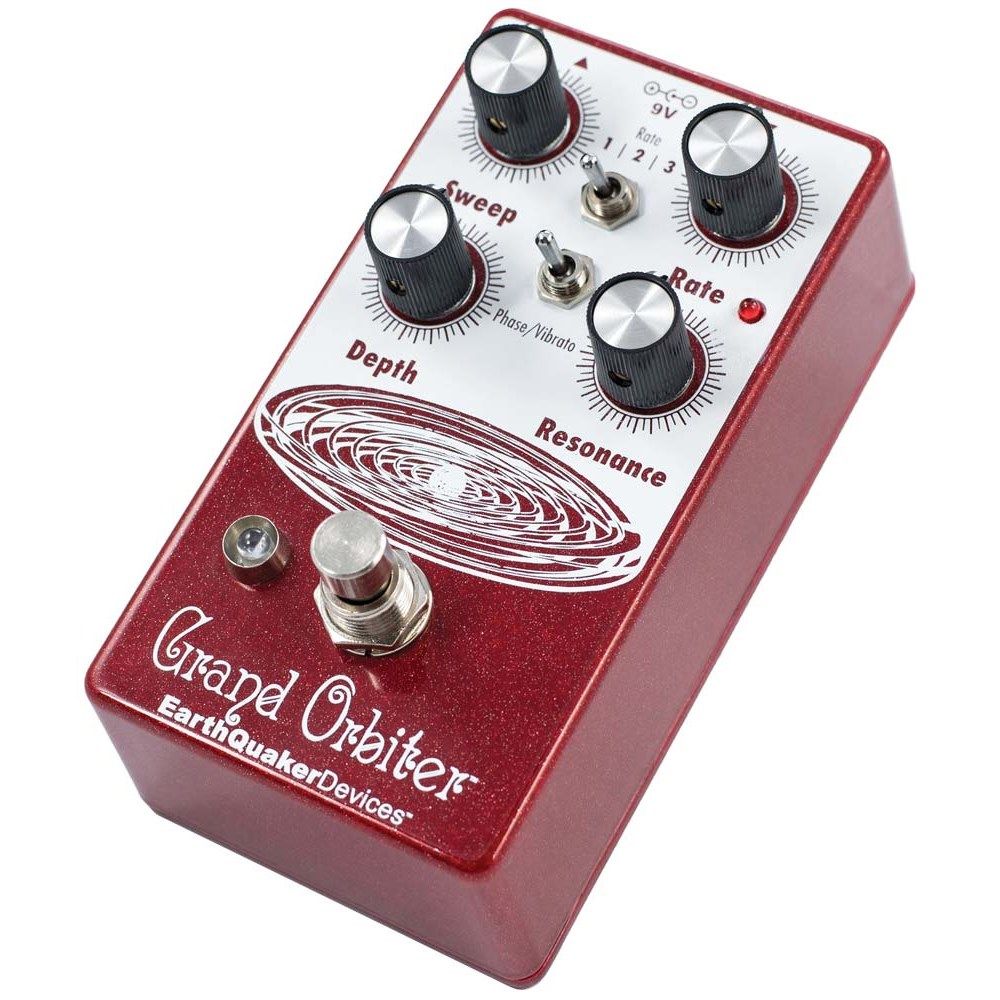

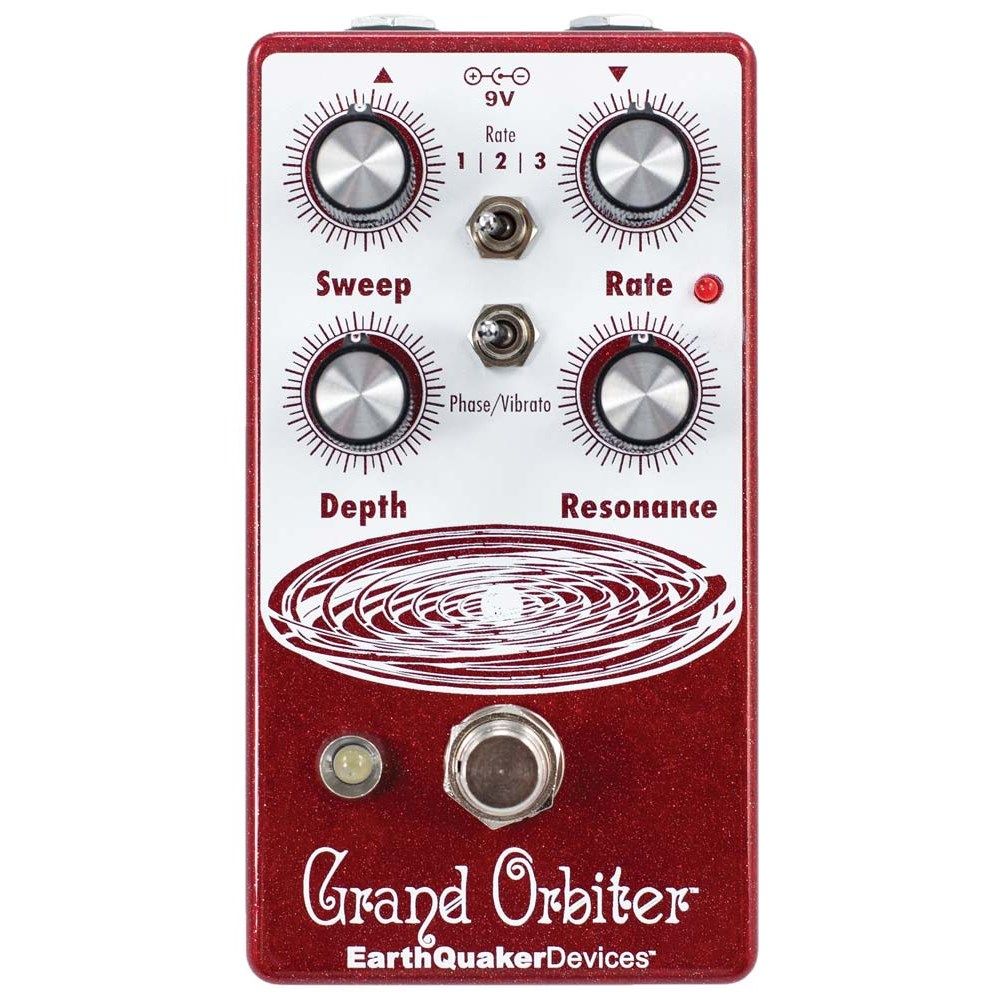

The Grand Orbiter™ brings four stages of OTA-based phasing to your pedalboard with remarkable versatility that spans from stationary resonant filtering to swirling modulation madness. This 100% analogue phaser features a three-way toggle switch that defines your modulation range: Rate 1 provides slow sweep mode, Rate 2 kills the LFO entirely for fixed resonant filtering, and Rate 3 unleashes fast sweep mode. The master Rate control fine-tunes your LFO speed across all modes, whilst the flashing red LED keeps you visually informed even when bypassed.
Control your sound with precision using the Depth knob to blend shifted and dry signals, adjusting effect intensity to taste. The Sweep control governs your phased signal's peak frequency – crank it clockwise for lively, intense sweeps or roll it back for darker, more laid-back tones. Resonance offers extensive regeneration control, with higher settings adding pronounced, resonant character to your sound.
Switch to true pitch vibrato mode using the “Phase/Vibrato” toggle, which removes the dry signal and converts the Depth control into a volume knob. Hand-built in Akron, Ohio, this true bypass pedal represents pure analogue craftsmanship for discerning musicians.
- Unique Phasing effects
- 3-way switch to select ranges of modulation
- Ability to turn off LFO to use as a fixed resonant filter
- LED acts as a visual indicator of modulation rate
- Sweep governs the peak frequency
- Resonance provides a wide range of control over regeneration
- Flexi-Switch™ allows you to simultaneously use momentary and latching style switching
- Switching is relay based so requires power to pass signal
- Uses standard 9 volt DC power supply with a 2.1mm negative centre barrel
- Hand made in Akron, Ohio
- Current Draw: 45mA
- Input impedance: 1M
- Output impedance: <1K
- Output impedance: <10K
