DBX ZC9 Wall Mount 8-Position Zone Controller
DBX-ZC9
$219
$99
Express Post
Anywhere Australia wide*
Zone Controllers bring professional-grade remote control capabilities to your DriveRack® and ZonePRO™ systems with remarkable simplicity. These nine specialised controllers utilise analogue DC voltage to manage critical functions including zone source selection, volume control, muting operations, and program or scene selection. Fire safety muting capabilities ensure compliance with safety regulations whilst maintaining system integrity.
Installation couldn’t be more straightforward – standard CAT5 cable with RJ-45 connectors handles connections up to 1000 feet, using readily available and cost-effective components that contractors already know and trust. This approach eliminates the need for specialised wiring whilst providing reliable signal transmission across extended distances.

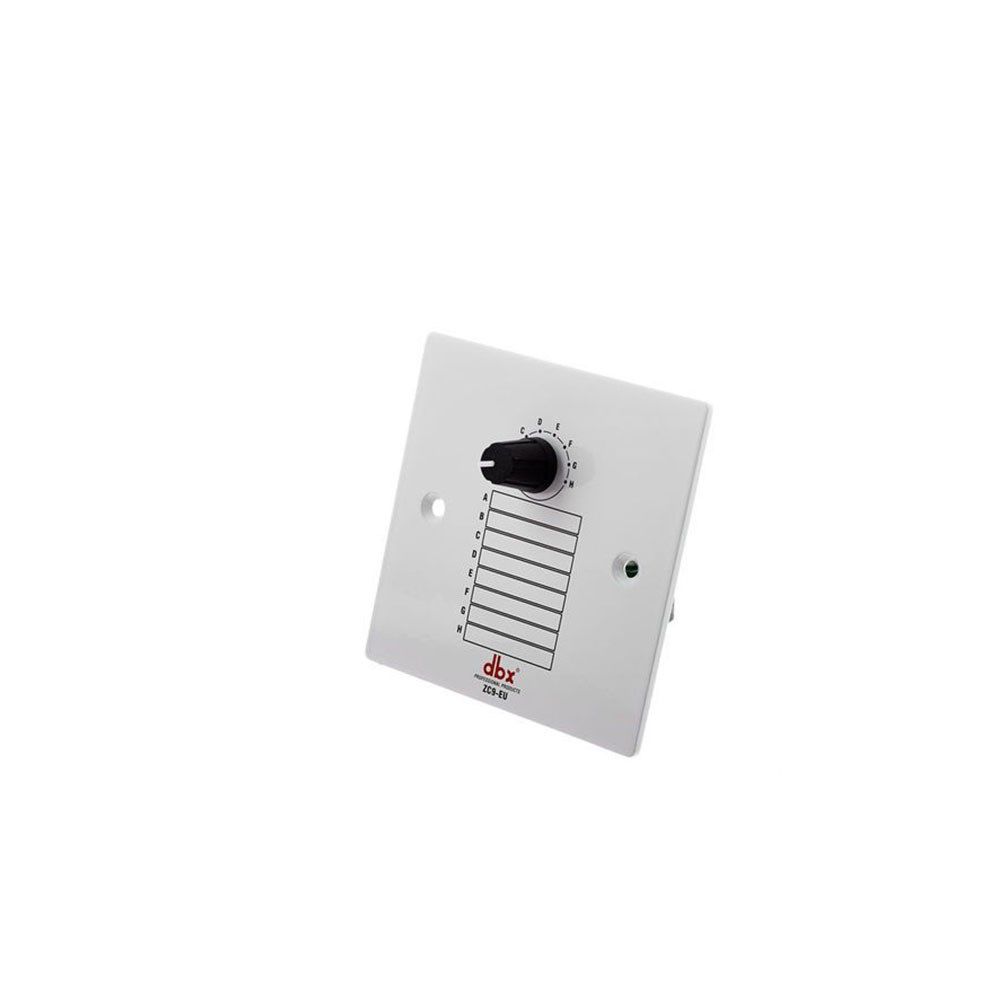

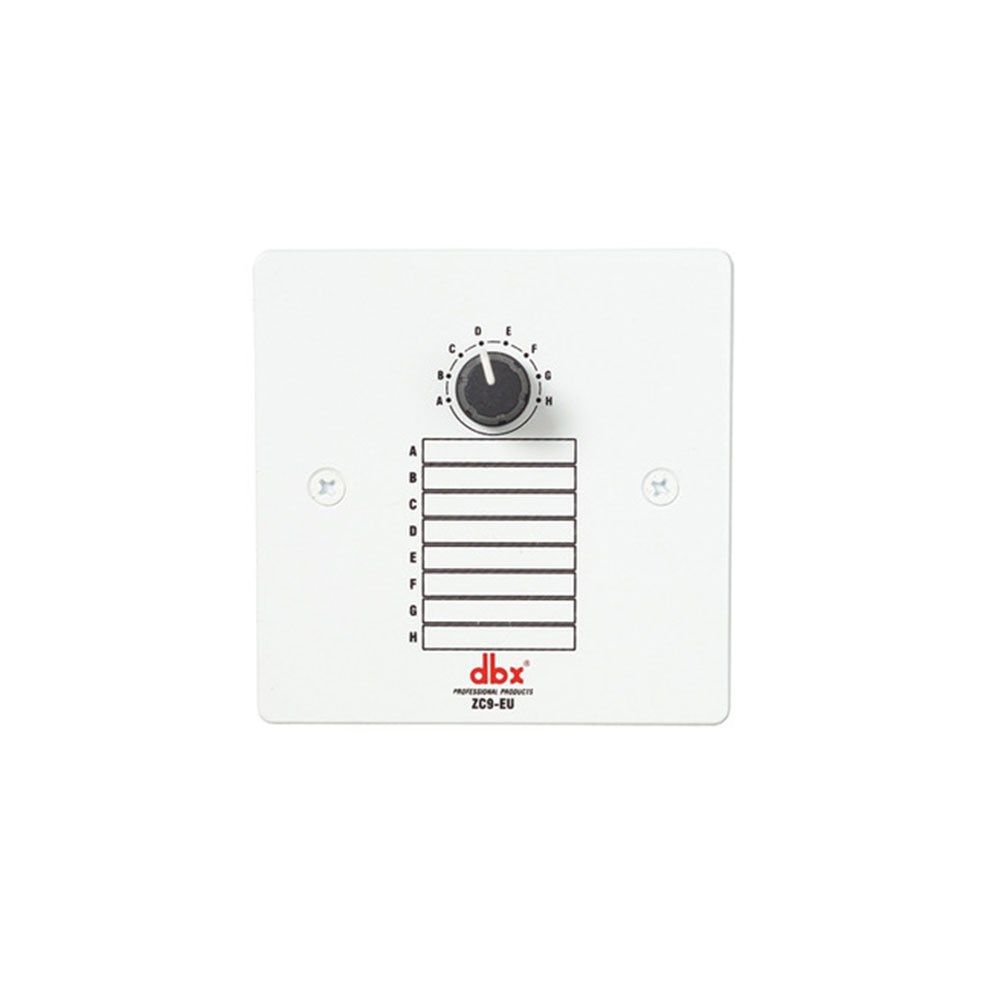

The remote device features rotary switch source selection specifically designed for ZonePro 1260 and 1261 units. DIP switch identification allows for precise system configuration, whilst the CAT5 and RJ-45 connection system maintains consistency with the broader Zone Controller range. This combination of familiar hardware and professional functionality makes these controllers an ideal solution for contractors seeking reliable zone management without complexity.
- Wall-Mounted Zone Controller

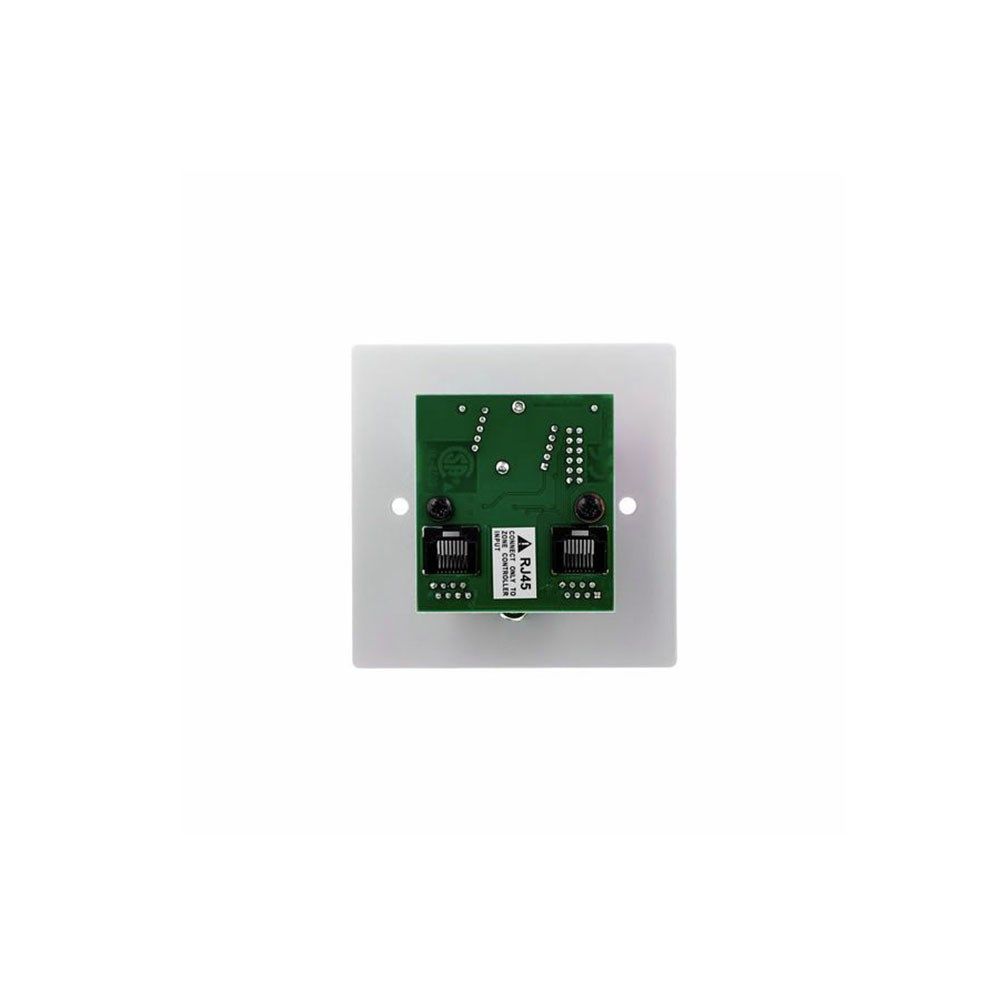

- Connectors:(2) RJ-45
- Series Wiring: Maximum Cable Length varies with number of Zone Controllers. For Example,Three Zone Controllers: 600 ft. Six Zone Controllers: 300 ft.
- Parallel Wiring using ZC-BOB: Up to Six Zone Controllers: 1000 ft.
- Parallel Wiring Cable: CAT5 or CAT5E with 28.6 Ohm/M (Ohm/1000ft.) nominal DCR and rated VW-1 or higher.
