Zone Controllers bring sophisticated control capabilities to your DriveRack® and ZonePRO™ systems through nine versatile models that harness analogue DC voltage for comprehensive logic control. These controllers manage everything from zone source selection and volume adjustments to programme changes and critical fire safety muting functions. Installation is straightforward using standard CAT5 cable with RJ-45 connectors, allowing reliable operation at distances up to 1000 feet whilst providing contractors with both simplicity and professional-grade performance.
Remote operation becomes seamless with programmable scene selection and output muting capabilities specifically designed for dbx® ZonePRO™ devices. Fire safety system integration offers flexibility through either relay connections or direct control voltage input, whilst DIP switches provide clear device identification throughout your installation. The CAT 5 cable connection system maintains consistent communication between processing units and remote controllers.

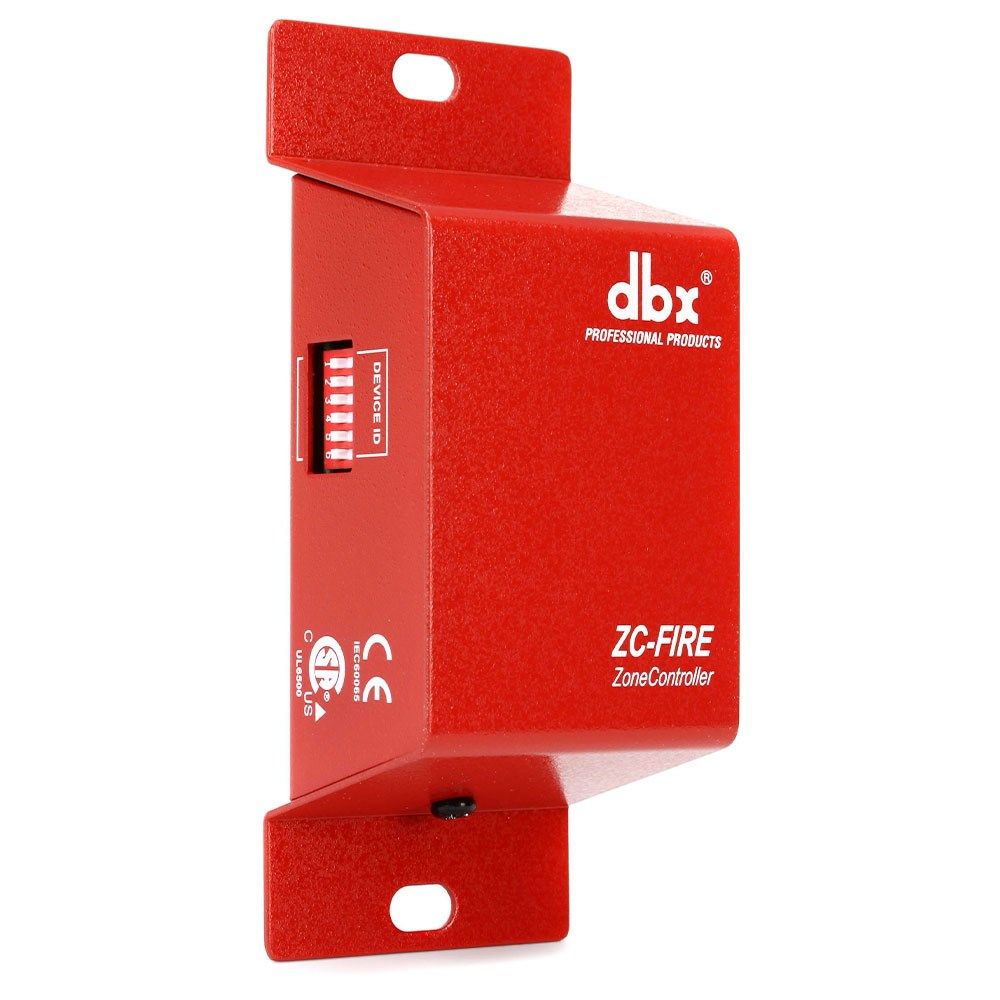

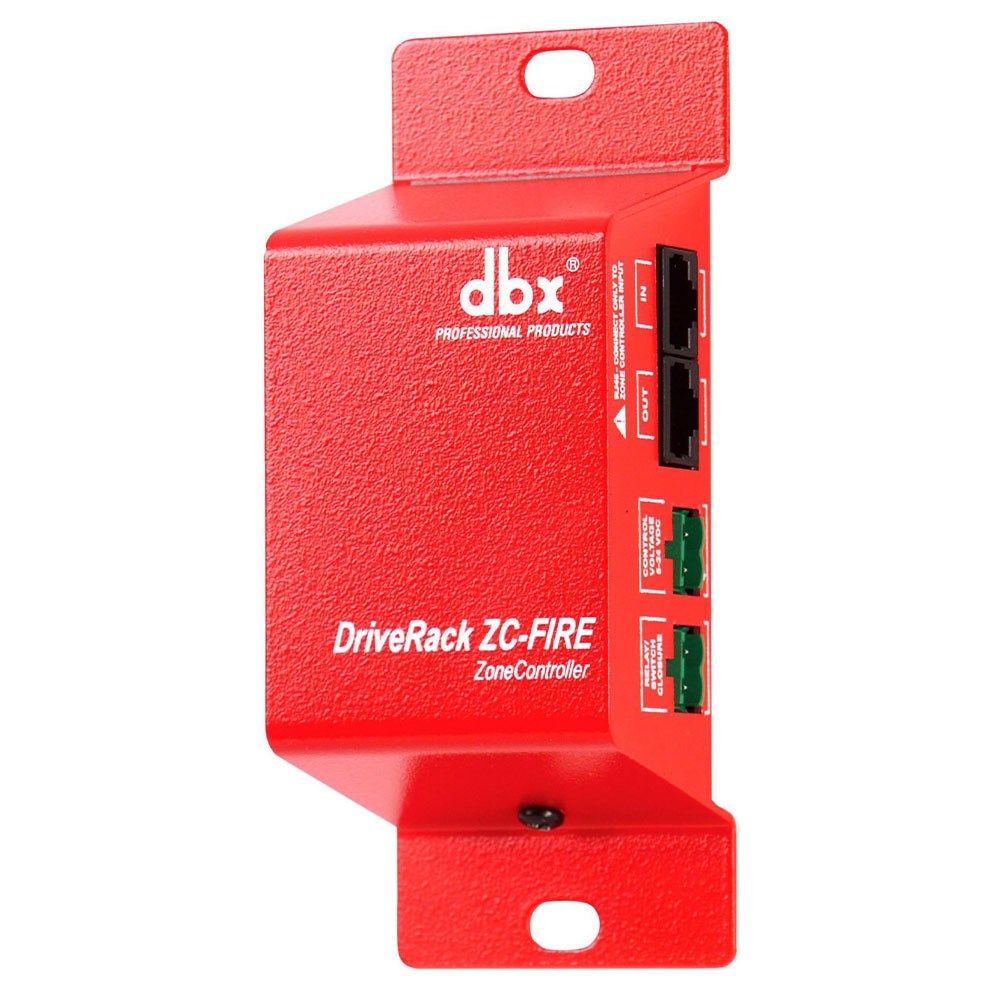

The ZC-FIRE stands as a purpose-built fire safety interface that responds to triggers from fire safety systems through either relay or control voltage inputs, offering system mute or scene selection functionality. For additional versatility, the ZC-4 controller doubles as an effective alarm system interface, expanding your system’s integration possibilities beyond standard audio control applications.
- ZonePRO Fire Safety Interface
- Wall-mountable
- Connectors:(2) RJ-45
- Series Wiring: Maximum Cable Length varies with number of Zone Controllers. For Example,Three Zone Controllers: 600 ft. Six Zone Controllers: 300 ft.
- Parallel Wiring using ZC-BOB: Up to Six Zone Controllers: 1000 ft.
- Parallel Wiring Cable: CAT5 or CAT5E with 28.6 Ohm/M (Ohm/1000ft.) nominal DCR and rated VW-1 or higher.
