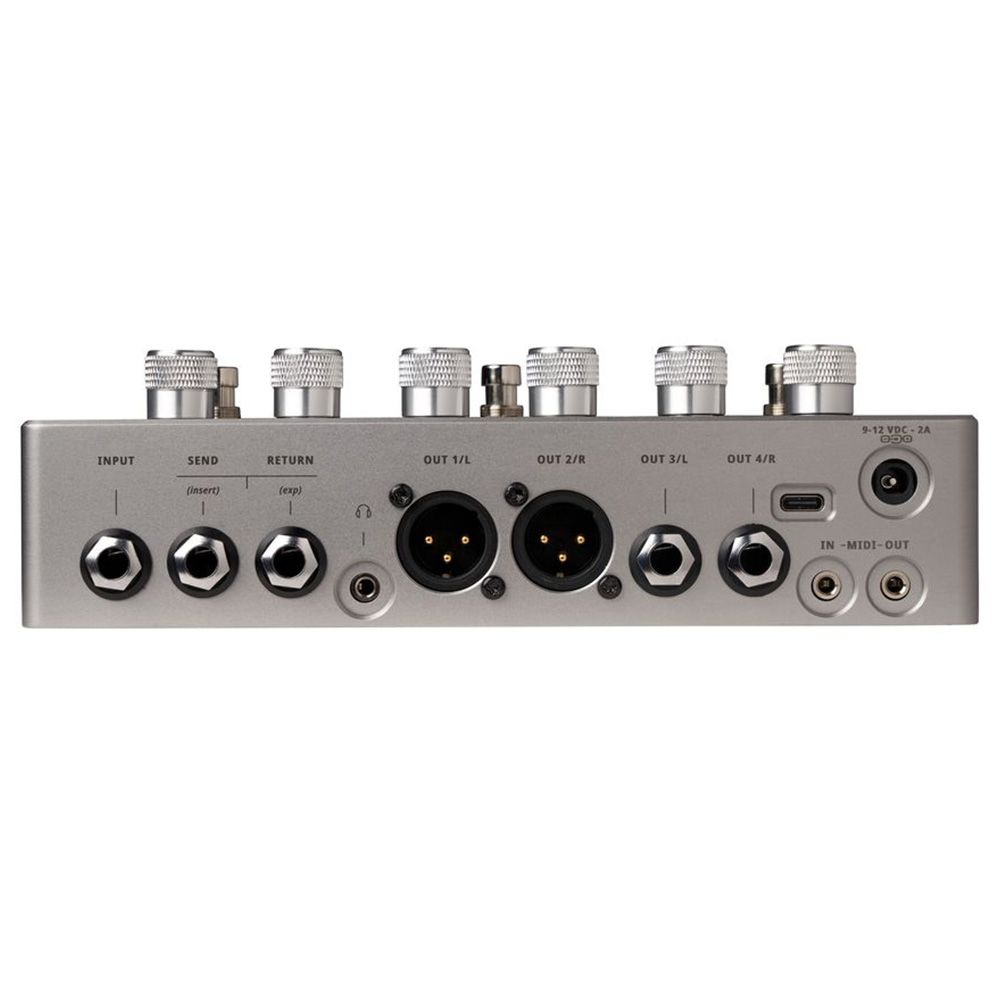

- Input: The primary input for connecting an instrument or the output from a pedalboard via a 1/4" mono jack.
- Send (Insert): A dual-function 1/4" jack that supports either a stereo send or a mono insert, allowing for the creation of an effects loop.
- Return (EXP): A dual-function 1/4" jack that supports either a stereo return or an expression pedal input.
- Headphone Output: A 3.5mm stereo headphone jack featuring three adjustable gain levels, ensuring optimal volume and clarity for any pair of headphones.
- Main Outputs: Two 1/4" outputs and two XLR outputs with an integrated, software-controlled ground lift. These outputs allow for stereo effects, split wet/dry signals, or multiple amplifier connections, delivering an immersive sonic experience.
- USB-C Port: The USB-C port enables Anagram's USB audio interface capabilities and allows interaction with the Darkglass Suite app for software updates and access to the Darkglass library.
- USB MIDI is also supported. Additionally, Anagram can be powered using a USB-C PD power supply, such as compatible laptop chargers, phone chargers, or power banks.
- MIDI In: A 3.5mm TRS (Type A) jack for connecting an external MIDI controller.
- MIDI Out: A 3.5mm TRS (Type A) jack for sending MIDI data from Anagram. 9V DC: Only use
