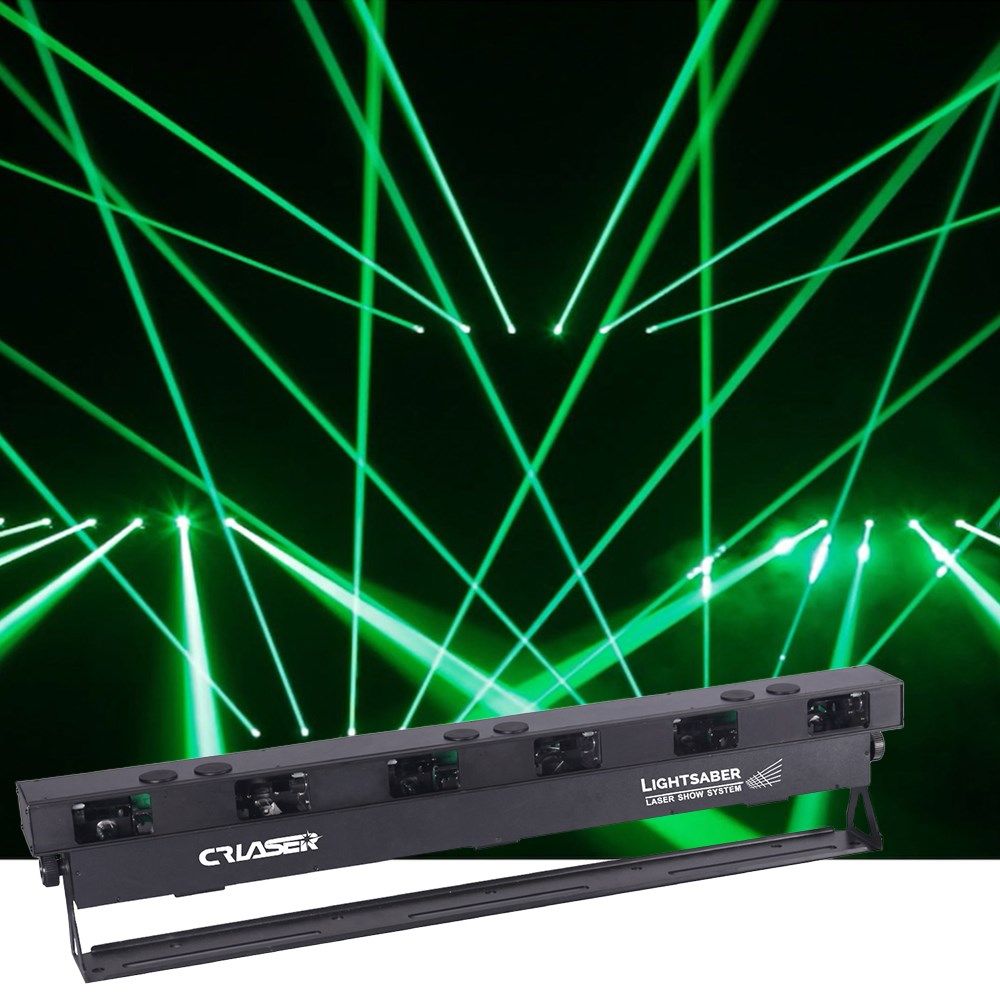

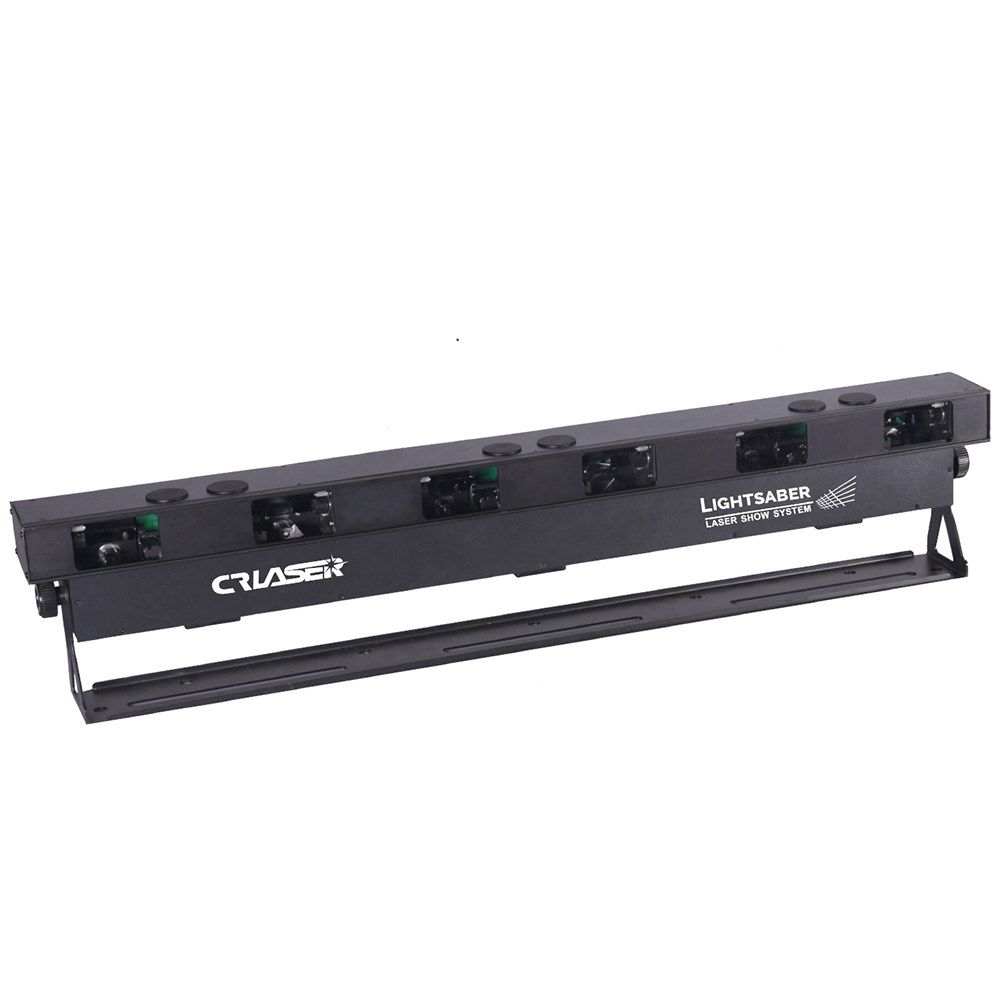

Six individually controllable 1W RGB lasers combine to create the Lightsaber LM-6 RGB, a professional laser bar designed specifically for indoor entertainment venues. This powerful lighting fixture produces noticeably thicker fat beam lasers that stand out from conventional laser effects, whilst analogue dimming of each red, green, and blue laser unit allows for full spectrum colour creation across every individual beam.
The unit provides comprehensive control options including auto, colour, master/slave, and DMX-512 modes to suit various performance requirements. With 32 internal patterns accessible through DMX selection, the Lightsaber LM-6 RGB offers extensive creative possibilities enhanced by intensity adjustment, zoom functionality, and 3-axis rotation effects.
For compliance with Australian regulations, an optionally available remote interlock may be required for legal operation. The fixture includes a remote interlock test connector for service and maintenance purposes, ensuring professional installation standards are met.
- Six 1000 mW Full Colour Fat Beam Lasers
- Six individually controllable beams
- DMX, Master/slave, Colour, and Auto modes
- 32 internal patterns
- Intensity, zoom, and 3-axis rotation
- Laser unit: Red: 200 mW / 638 nm, green: 200 mW / 520 nm, Blue: 600 mW / 450 nm
- Laser class: 3B (please note the applicable local laser safety regulations)
- Laser Modulation: Analog
- Scanner speed: 20 K
- Fat Beam diameter: 18 mm
- Beam divergence: 1.5 mrad,
- Deflection angle: 1-36degree
- Laser safety according to EN60825-1 2007
- Control: DMX-512
- DMX Channels: 7, 9, 12, 36, 48, 54, 66
- Power supply: 100-240 V, 50/60 Hz
- Power consumption: max 120W
- Housing: Aluminium
- IP Rating: IP20
- Fuse: 250V / 1.6A
- Dimensions (W x L x H): 201 x 200 x 1000 mm
- Weight: 10 kg
