Cloud CX163 2 Zone and Utility Zone Stereo Mixer
CLO-CX163
$1319
$779
Free Shipping
Anywhere Australia wide*
Derringers Music are pleased to present the Cloud CX163 2 Zone and Utility Zone Stereo Mixer.
Cloud's CX163 is ideal for leisure, licensed and retail venues providing six stereo line level inputs, one microphone input with paging mic for each zone. It is primarily intended for applications in pubs, clubs, wine bars and shops.
The CX163 has 2 stereo zone outputs + 1 mono utility output (ideal for utility areas such as toilets and foyers). Music level can be controlled remotely by the RL-1 on both stereo zones and when operating in mono, and each zone can be split into two sub-zones each with its own remote level control (RL-1). Once installed this compact 1U unit is extremely simple and convenient to operate.
Features
- 2 zone stereo mixer with mono utility output
- Both stereo zones can be configured to run as mono
- Utility output is constant OdB
- Utility music source is selectable via internal jumper
- 6 stereo line inputs
- Line 6 priority over other input sources in zone 1 only
- Remote music mute
- Microphone access contacts for paging to all 3 zones
- 100Hz high pass filter on all microphone inputs
- Two band microphone EQ
- Remote level control in each zone using RL1
- Front panel controls give microphone level, music source and volume
- EQ card option

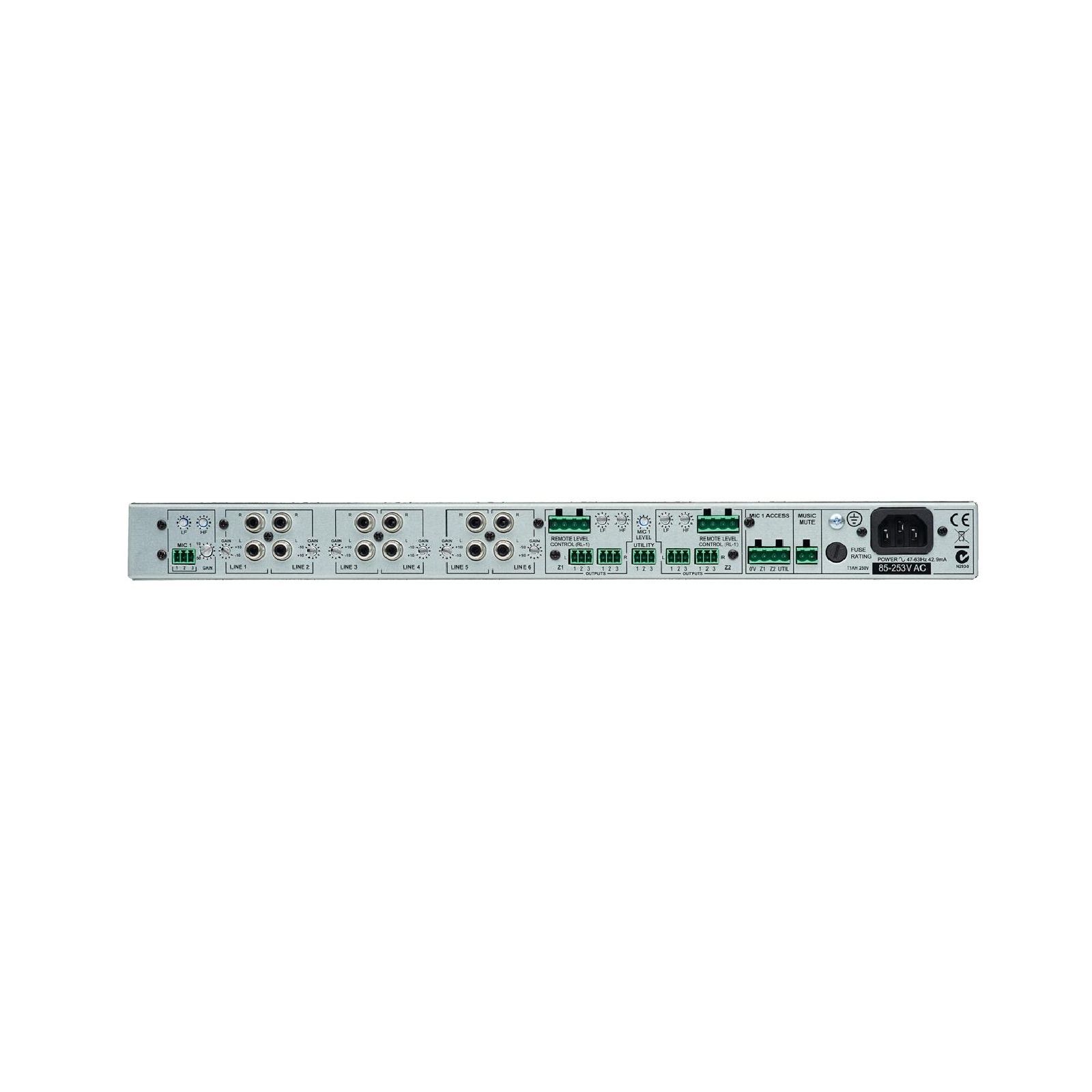

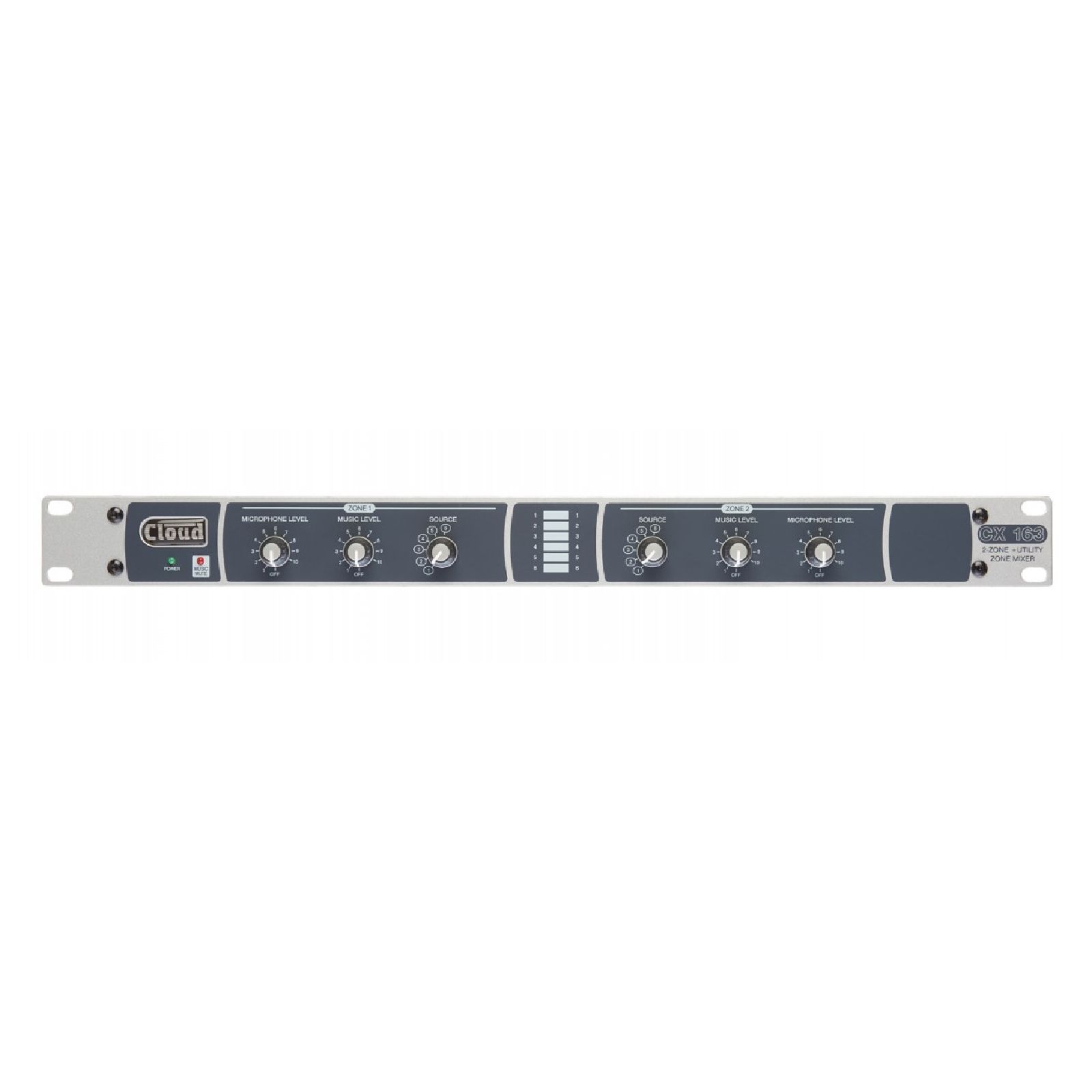

The team here at Derringers Music love the simple appearance of the front panel, with has a separate music source and level, and mic level for each stereo zone. The microphone gain control and EQ controls are of the pre-set type and are all positioned on the rear panel. The 6 stereo line inputs each have pre-set gain controls. Both zone output sections are provided with separate music EQ, again of the preset type, and are balanced on screw terminal connectors.
Come on in to one of Derringers stores to chat with our knowledgeable team, give us a ring, or email us! You can also simply hit the cart button and checkout to get one of these sent to your door ASAP! We've been looking after you — our musical family — for decades, offering our wealth of expertise and knowledge Adelaide and Australia wide! We won't be beaten!
Derringers Music — We're your support crew.
Line inputs
- Frequency Response: 20 Hz to 22 kHz, +0/-0.5 dB
- Distortion: <0.05% typical, 20 Hz to 20 kHz
- Sensitivity: 100 mV (-17.8 dBu) to 1.5 V (+6 dBu)
- Input Gain Control Range: 24 dB
- Input Impedance: 48 kohms
- Headroom: >20 dB
- Noise: <-84 dB, 20 Hz to 22 kHz @ 0 dB gain
- Equalisation: LF: +/-10 dB @ 50 Hz, HF: +/-10 dB @ 10kHz
Microphone input
- Frequency Response: -3 dB @ 100 Hz (filter) to 20 kHz, +/-0.5 dB
- Distortion: <0.05%, 20 Hz to 22 kHz
- Gain Range: 10 dB to 50 dB
- Input Impedance: >2 kohms
- Common Mode Rejection: >70 dB @ 1 kHz
- Headroom: >20 dB
- Noise: -128 dB EIN, 20 Hz to 22 kHz @ 0 dB gain
- Equalisation: LF: +/-10 dB @ 100 Hz, HF: +/-10 dB @ 5 kHz
Outputs
- Output level (nominal): 0 dBu
- Maximum output level: +20 dBu
- Minimum load impedance: 1.2 kohms
General
- Power input: 85 V to 253 V AC, 50/60 Hz
- Current consumption: 42.9 mA at 240 V
- Fuse Rating: 1A
- Fuse Type: T1A, 20 x 5 mm
- Dimensions (w x h x d): 482.6 mm x 44 mm (1U) x 152.5 mm / 19" x 1.73" (1U) x 6"
- Shipping Dimensions (w x h x d): 560 mm x 140 mm x 290 mm / 22" x 5.5" x 11.4"
- Weight: 2.10 kg / 4.63 lb
- Shipping Weight: 3.2 kg / 7.2 lb
