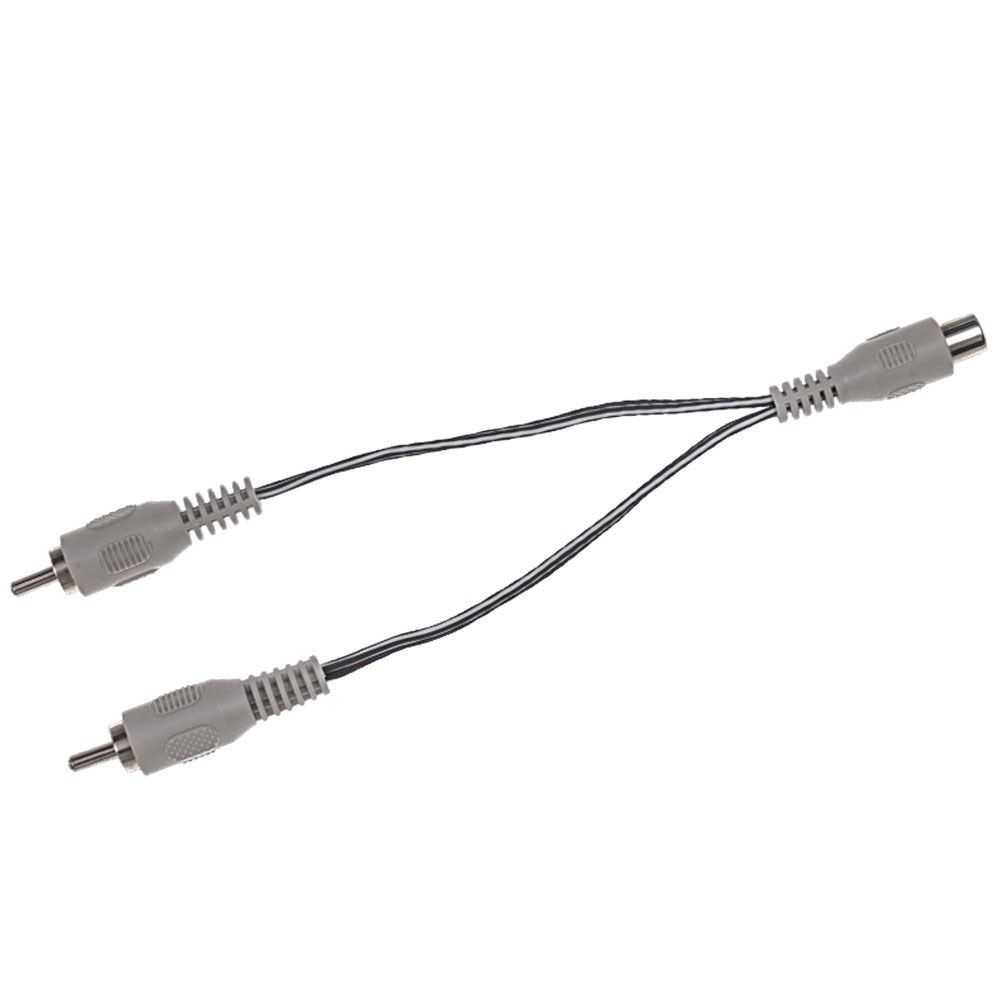

Double your power output with the ingenious Parallel adapter Flex, designed to combine two isolated outlets for pedals demanding higher current requirements. This clever adapter cable works alongside any CIOKS standard Flex cable, giving you both increased current capacity and the flexibility to select your preferred plug type and cable length based on the standard Flex cable you pair it with.
The Parallel adapter Flex creates a parallel connection between two outlets, which must be isolated from each other and share identical voltage ratings, ideally with matching current specifications as well. You'll receive the combined maximum current ratings whilst maintaining the same voltage as your connected outlets.
Here's how the maths works in practice: connecting two 9V outlets rated at 100mA each still provides 9V output, but doubles your maximum current to 200mA. Similarly, two 9V outlets at 200mA each will give you 9V with a maximum 400mA capacity, whilst two 400mA outlets deliver a substantial 800mA maximum total current for your most power-hungry pedals.
- Parallel flex adapter
- Combine two outputs of same voltage
- Double amplitude
