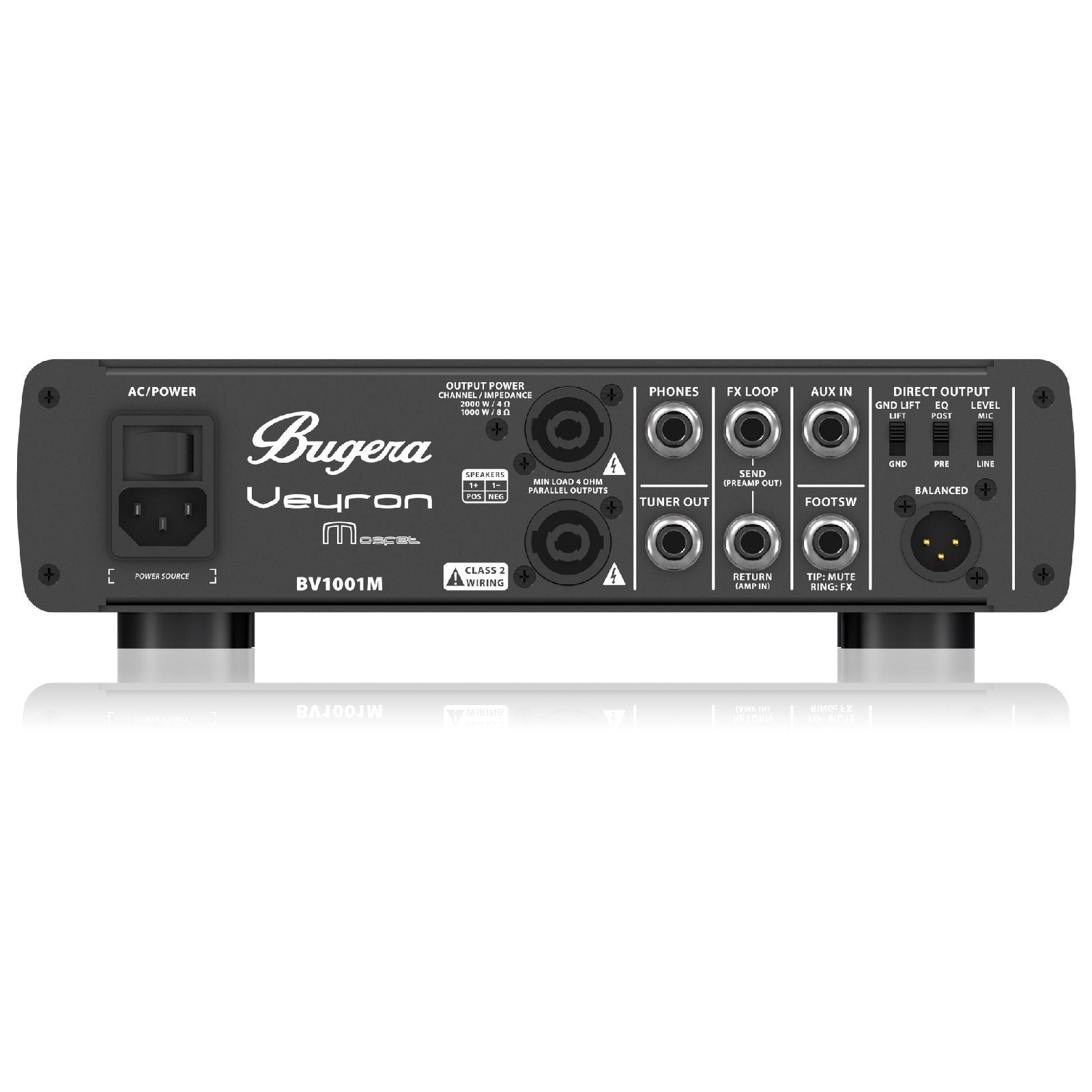

Audio Inputs
- Instrument input: 1/4" TS jack, unbalanced
- Impedance: 1 M Ohm
- FX loop return: 1/4" TS jack, unbalanced
- Impedance (when DI out is pre/post EQ): 20 k ohm / 9 k ohm
- Aux input: 1/4" TRS jack, unbalanced
- Impedance: 10 k ohm
Audio Outputs
- Phones out: 1/4" TRS jack, unbalanced
- Impedance: 180 ohm
- Tuner out: 1/4" TS jack, unbalanced
- Impedance: 500 ohm
- FX loop send: 1/4" TS jack, unbalanced
- Impedance: 1 k ohm
- Direct output: XLR jack, balanced
- Impedance: 1 k ohm
- Max. level mic / line: Pre EQ (-9 dBu / +12 dBu), Post EQ (-12 dBu / +9 dBu)
- Loudspeaker outputs: 2 x locking connector
- Min. load impedance: 4 ohm
System Data
- Preamp tubes: N/A
- Max output power: 2000 W peak
Mains Voltage
- Europe/UK/Australia/China/Korea: 220-240 V- 50/60 Hz
- USA/Canada/Japan: 100-120 V- 50/60 Hz
- Power consumption @ 1â„8 max power: 110 W
- Mains connection: Standard IEC receptacle
Physical
- Dimensions: 293 x 279 x 80 mm (11.5 x 10.9 x 3")
- Weight: 3.0 kg (6.6 lbs)
