The Blackmagic Video Assist combines four essential video production tools into one compact device, serving as a portable monitor, professional recorder, scope, and camera viewfinder solution. This versatile unit enhances any SDI or HDMI camera with superior recording codecs and a larger display, whilst incorporating four built-in scopes, advanced focus assist features, tally indicators, and built-in 3D LUTs. The 3G models handle formats up to 1080p60, while the 12G HDR variants support up to 2160p60 with brighter touchscreens optimised for HDR digital film production and outdoor shooting conditions.
The 12G HDR models offer Blackmagic RAW recording capabilities from compatible cameras and feature L-Series batteries for extended operational periods. This adaptability makes Video Assist suitable for countless applications - from camera rig integration providing large screen viewfinding with modern codecs and focus assistance, to functioning as an ultra-portable scope for testing broadcast and live production equipment to verify correct video levels and gear functionality.

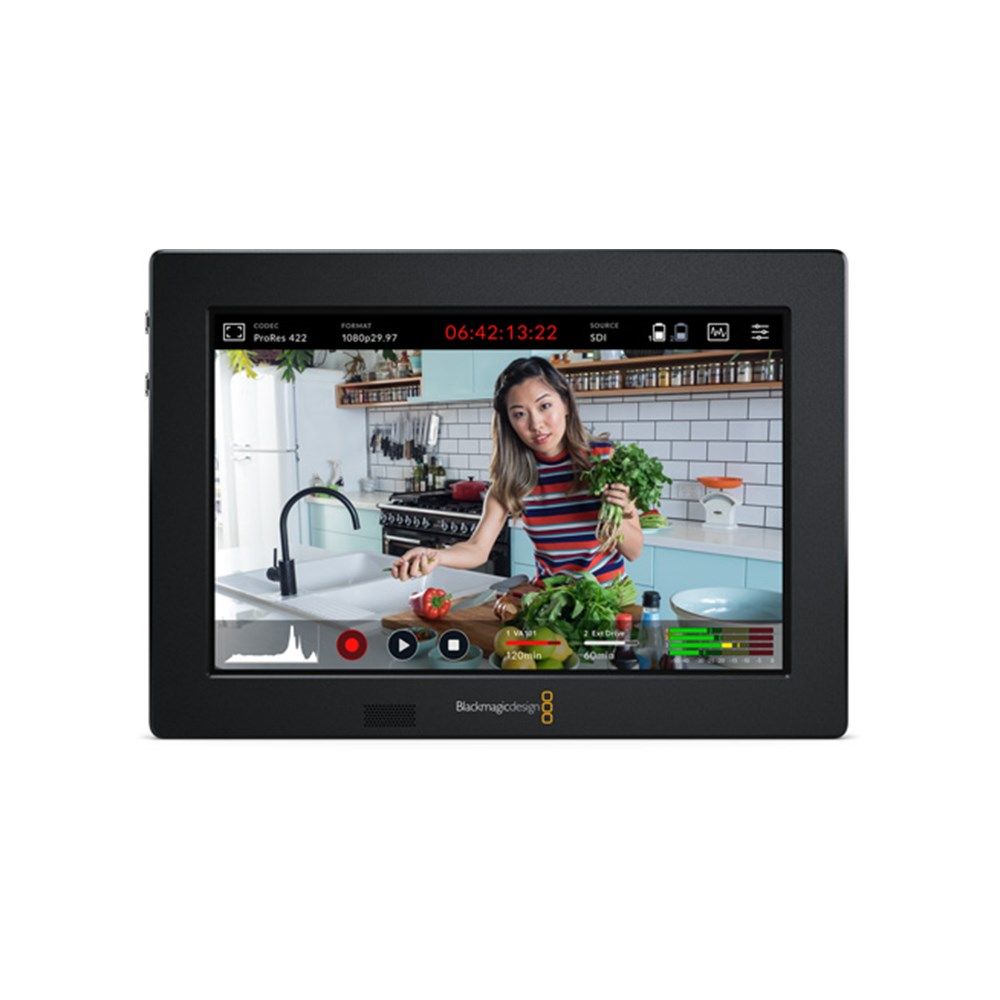

In live production environments, Video Assist operates like a large screen HyperDeck, functioning as a mastering recorder or clip player for inserting advertisements and promotional content into live programmes. The 7" 3G Portable Monitor model builds upon the 5" version's features with a significantly larger screen, dual SD card slots for continuous recording when cards reach capacity, and two mini XLR audio inputs with phantom power for direct microphone connection and recording.

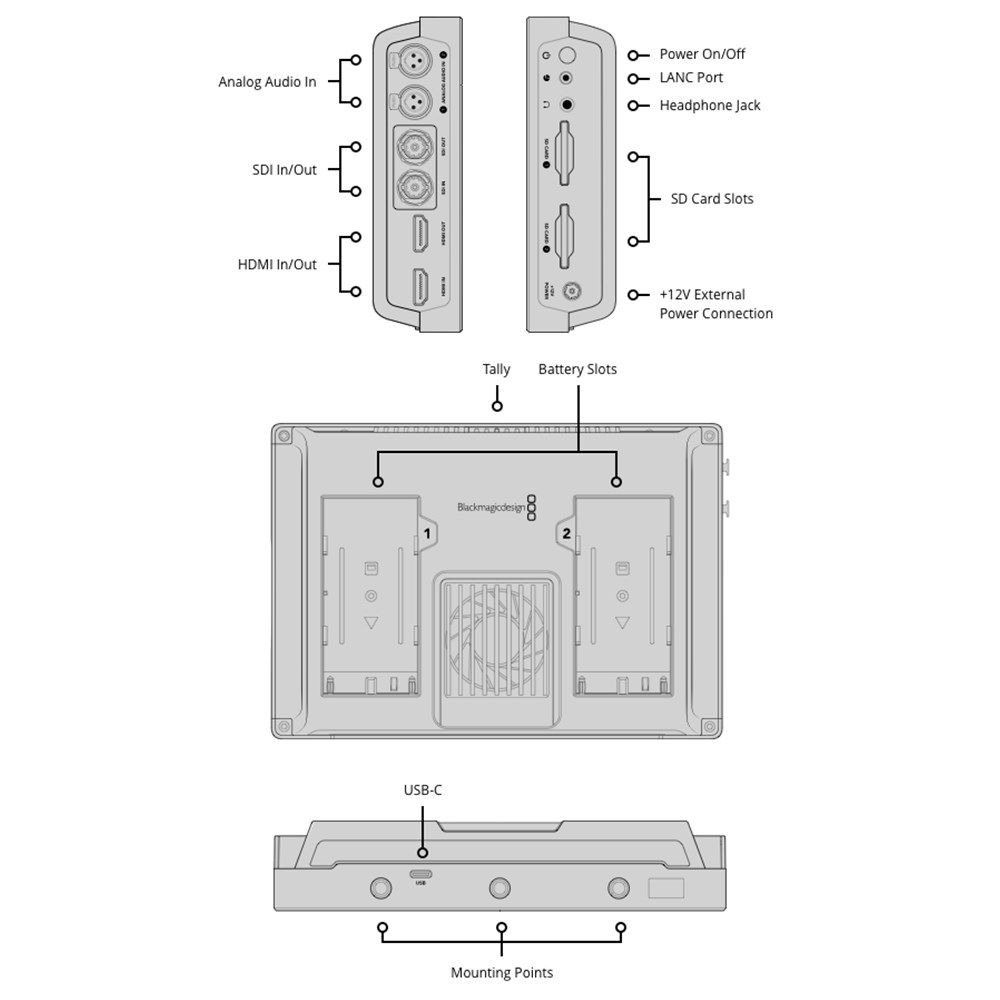

- SDI Video Inputs: 1
- SDI Video Outputs: 1
- SDI Rates: 270Mb, 1.5G, 3G
- HDMI Video Inputs: 1
- HDMI Video Outputs: 1
- Analog Audio Inputs: 2 x balanced mini XLR with phantom power
- Analog Audio Outputs: 1 x 3.5mm headphone jack
- Built in Speaker: Mono

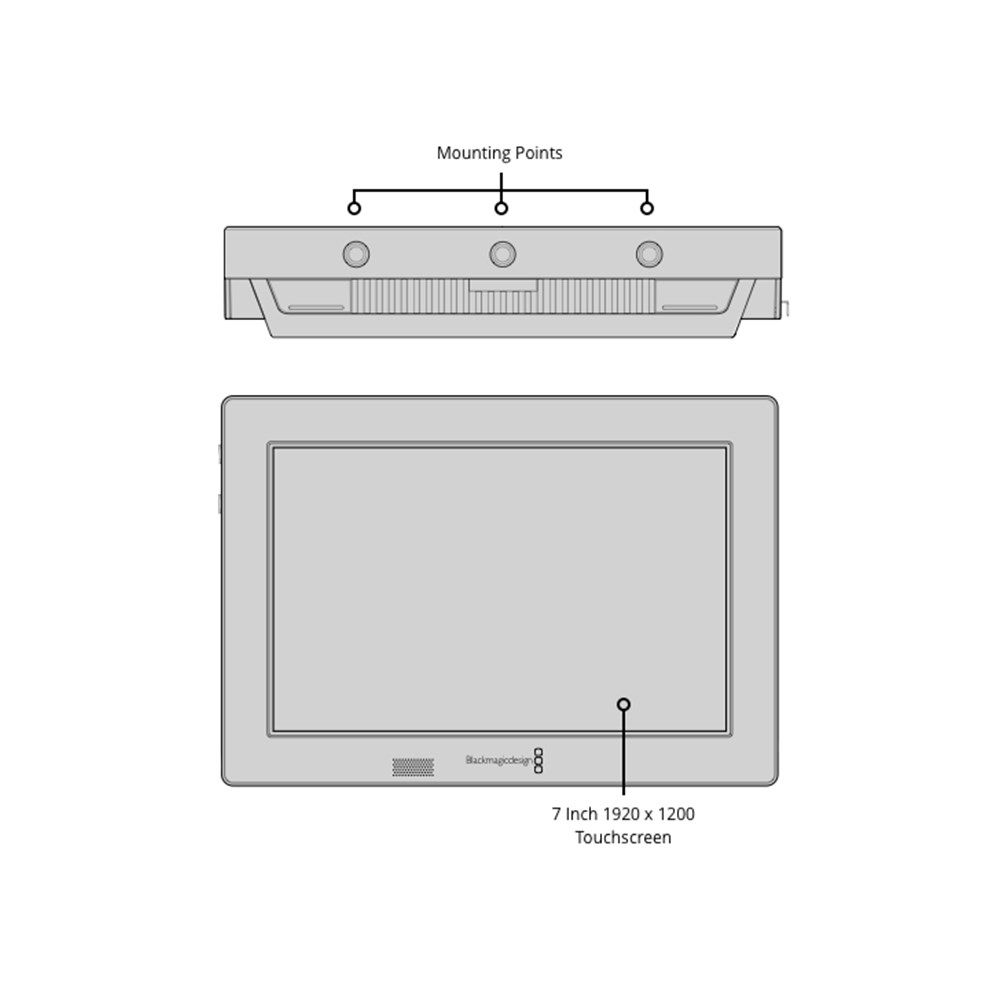

- Screen Dimensions: 7 inch 1920 x 1200
- Screen Brightness: 310nits
- SDI Audio Inputs: 16 channels embedded via SDI
- SDI Audio Outputs: 16 channels embedded via SDI
- HDMI Audio Inputs: 8 channels embedded via HDMI
- HDMI Audio Outputs: 8 channels embedded via HDMI
- Remote Control: 1 x 2.5mm LANC for Record Start and Stop

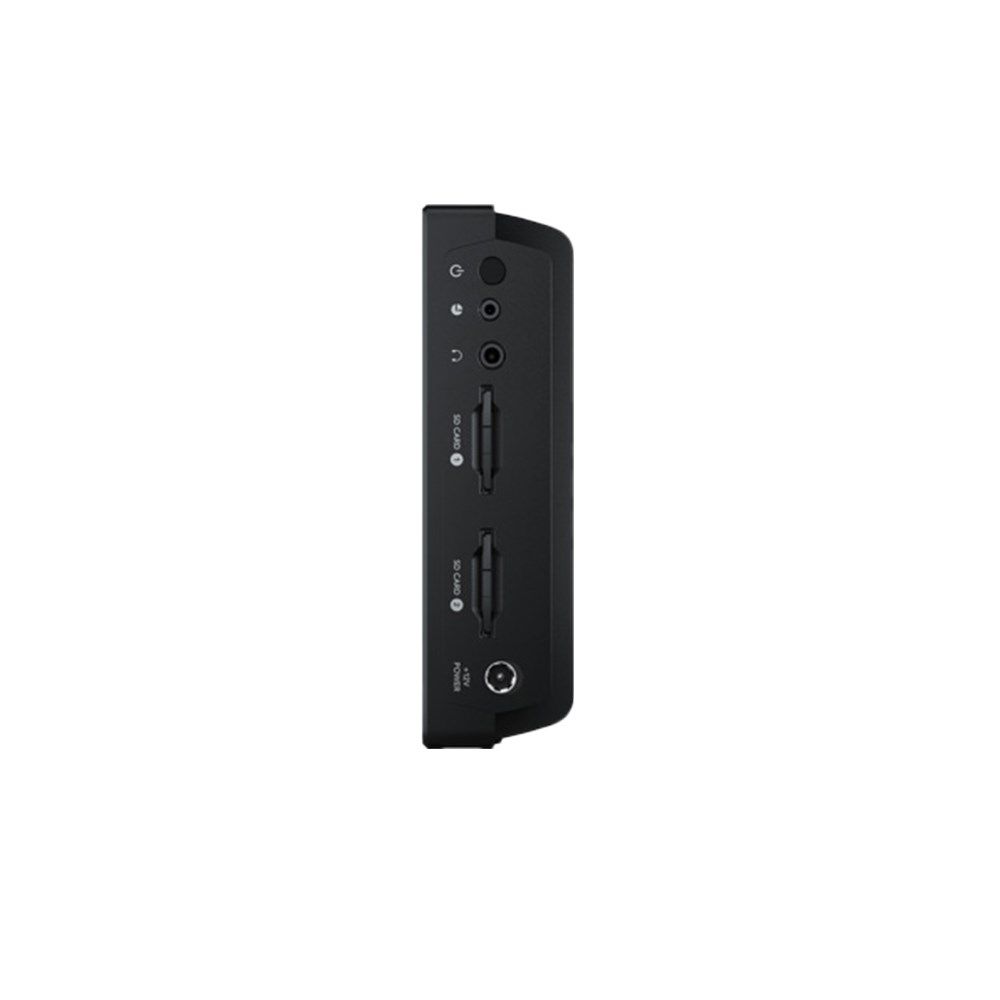

- SD Interface: Dual UHS-I SD slots
- Storage Type: SDXC UHS-I and SDHC UHS-I SD cards and supports DS, HS, SDR12, SDR25, DDR50, SDR50 and SDR104 SD cards
- Computer Interface: 1 x USB Type‑C for webcam out, initial setup, software updates and Video Assist Utility software control
