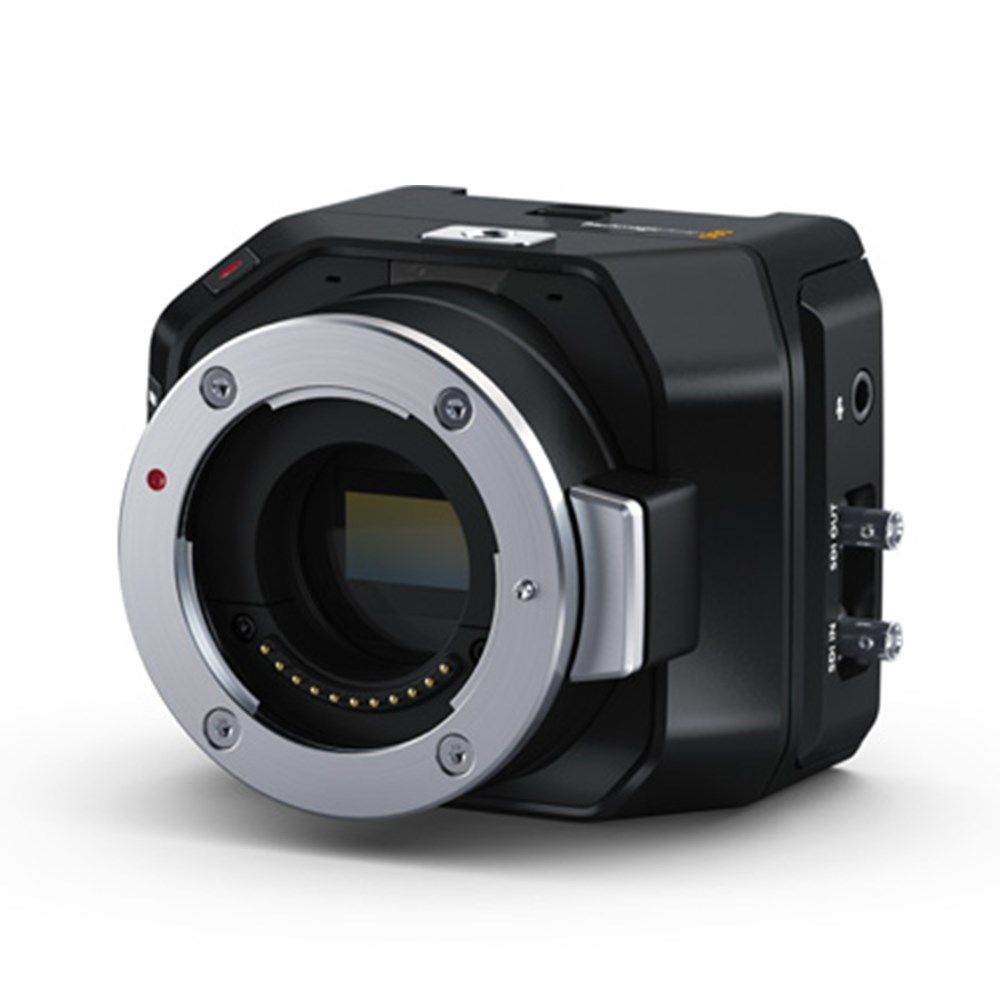

The Blackmagic Micro Studio Camera 4K G2 packs broadcast-grade performance into a remarkably compact form factor that opens up creative possibilities previously impossible with traditional camera setups. This professional live production camera features a Four Thirds sensor with an impressive 13 stops of dynamic range, ensuring exceptional image quality even in challenging lighting conditions whilst maintaining outstanding low light capabilities.
Professional connectivity comes standard with 12G-SDI Micro BNC connectors that handle 10-bit uncompressed video up to 2160p60 resolution, plus 2-channel audio output. The input supports comprehensive tally and camera control functions, including built-in colour correction and lens control when paired with ATEM switchers. For ATEM Mini users, the HDMI output provides 1080p with full control feature support.
Beyond live production capabilities, this versatile camera doubles as a cinema-quality recording solution through Blackmagic RAW recording to external USB-C drives. Multiple mounting points allow placement in locations where conventional cameras simply won’t fit, making it an invaluable tool for both live broadcast and film production applications.
- Effective Sensor Size: 17.78mm x 10mm (Four Thirds)
- Lens Mount: Active MFT Mount
- Lens Control: Iris, focus, zoom on supported lenses
- Dynamic Range: 13 Stops
- Dual Native ISO: 0dB and 18dB gain
- Sensitivity at 0dB Gain: f11 with 2160p59.94, f12 with 2160p50, at 2,000 lux with 89.9% reflectance
- Signal to Noise Ratio: 63dB for 2160p
- Shooting Resolutions: 3840 x 2160 (Ultra HD) up to 60 fps
- Frame Rates: 23.98, 24, 25, 29.97, 30, 50, 59.94 and 60 frames per second, Off-speed frame rates up to 60 fps in Ultra HD
- Focus: Auto focus available using compatible lenses
- Automatically populated lens data from electronic Micro Four Thirds lenses
- Automatic recording of camera settings, motion sensor data plus slate data such as project, scene number, take and special notes
- A 3D LUT can also be embedded in metadata of Blackmagic RAW files

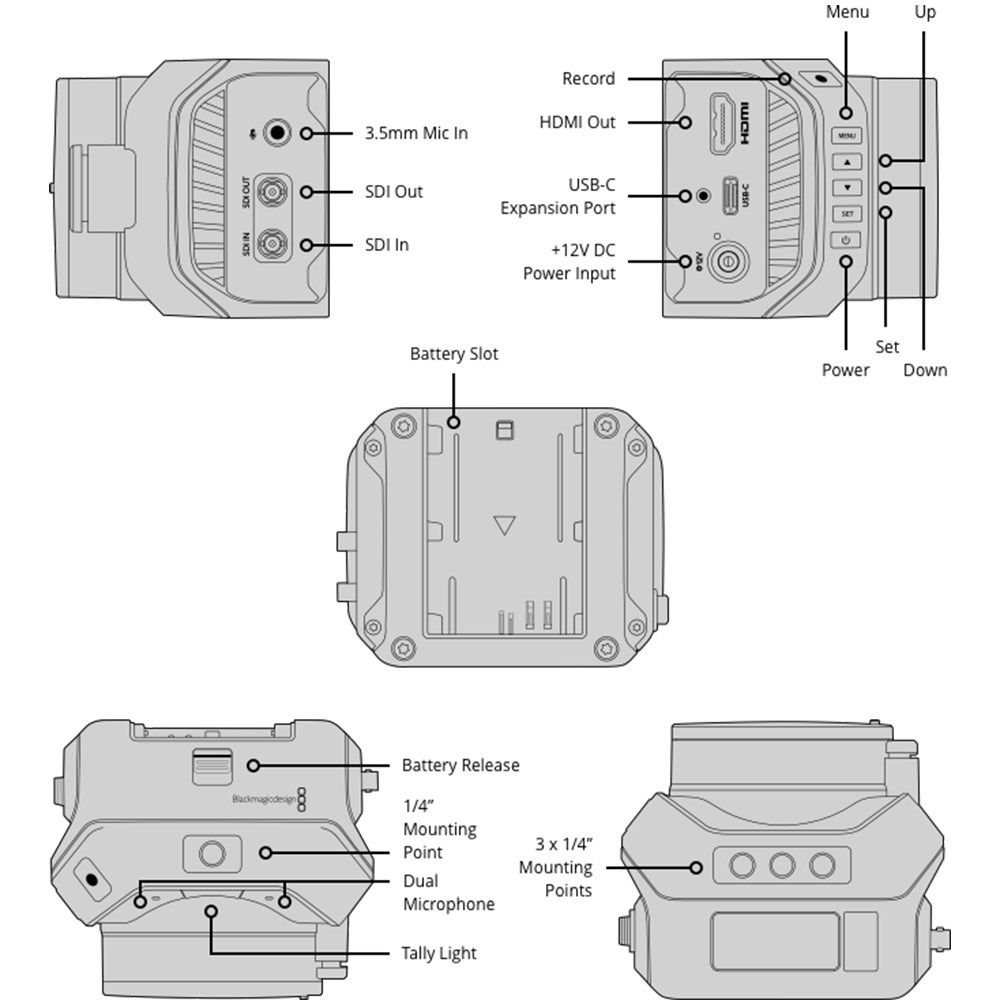

- Mounting Options: 1 x 1/4 inch (top), 3 x 1/4 inch (bottom)
