Blackmagic Design ATEM 4 M/E Constellation HD

The ATEM Constellation series represents the pinnacle of live production switching technology, offering unprecedented power in HD and 4K formats. These professional switchers come in three configurations: 1 M/E models with 10 inputs, 2 M/E models with 20 inputs, and the flagship 4 M/E models boasting 40 inputs. Every SDI input includes a comprehensive standards converter, ensuring maximum compatibility across different video formats.

Advanced production capabilities are built into every ATEM Constellation unit, featuring DVEs, sophisticated ATEM chroma keyers, media players, multi-views, and SuperSource processors. The integrated Fairlight audio mixer provides professional-grade sound processing with compressor, limiter, 6-band parametric EQ and expander on each input. Control options include the complimentary ATEM Software Control, with optional 1 M/E, 2 M/E or 4 M/E ATEM Advanced Panels available for enhanced operation.

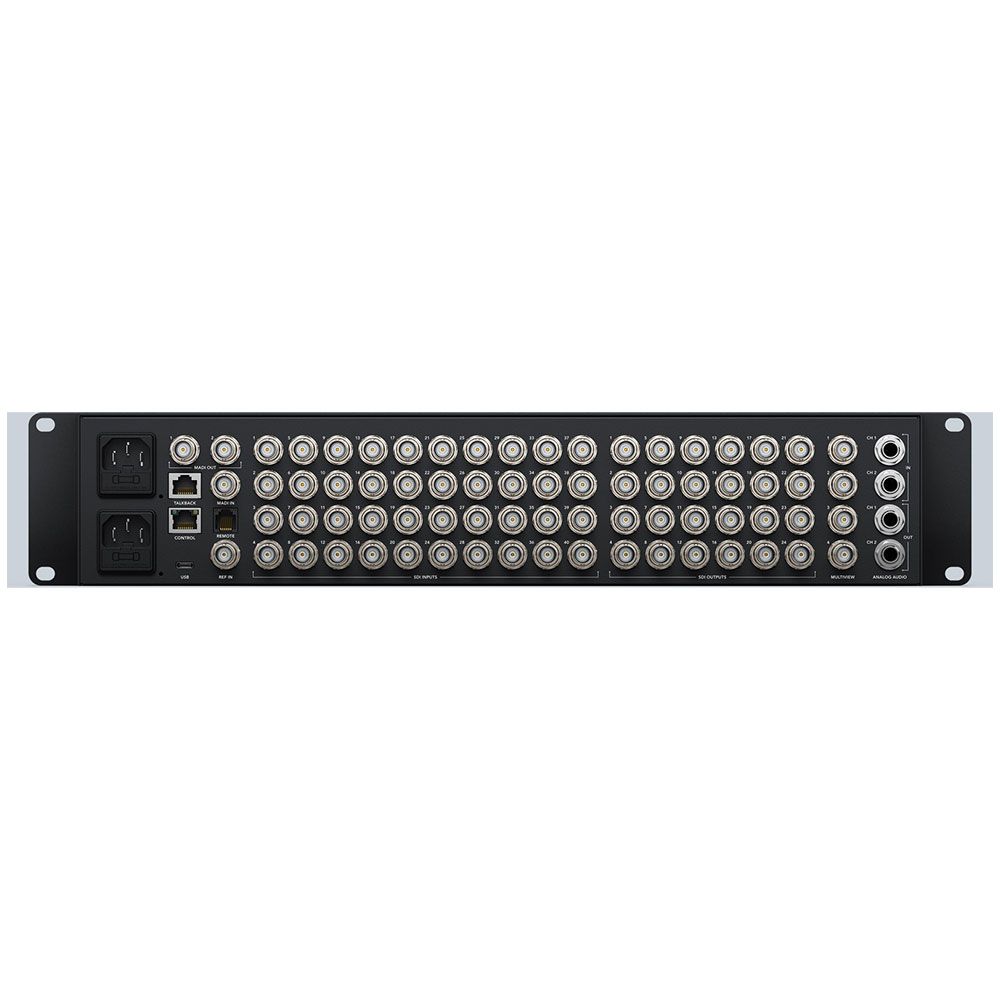

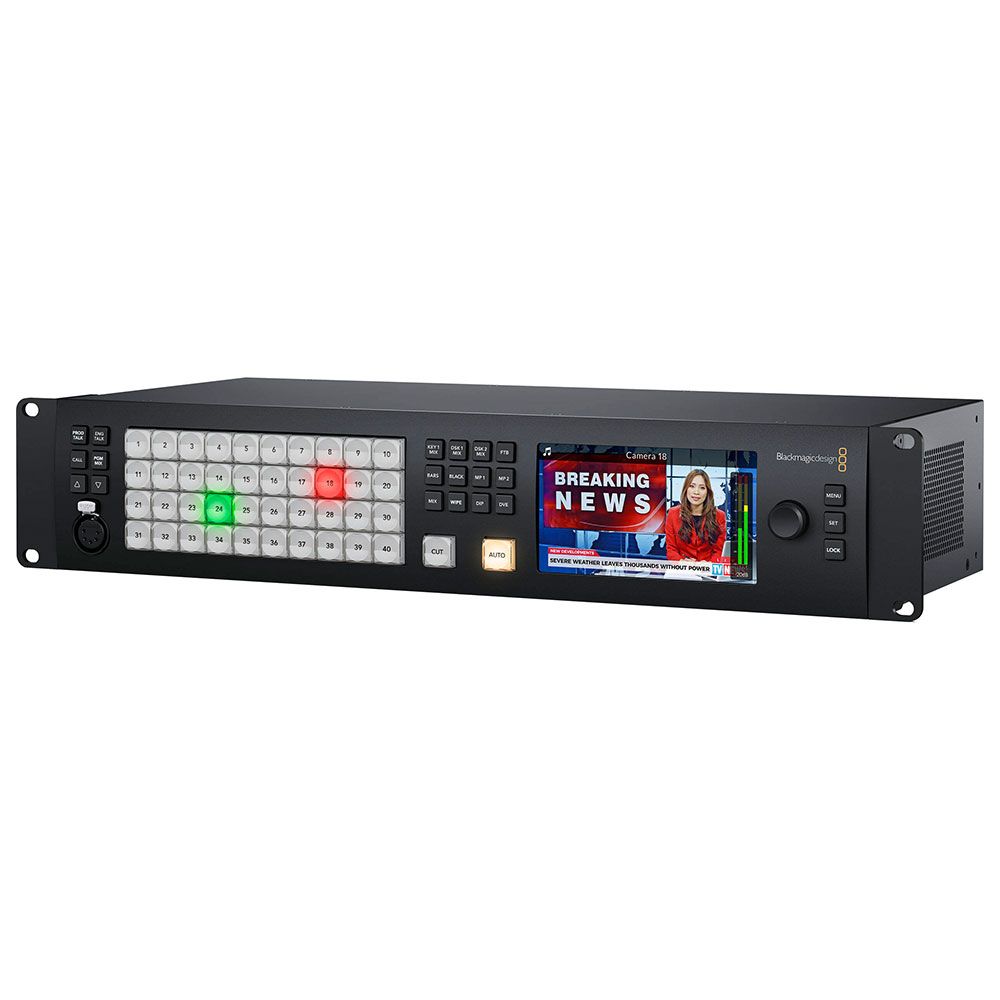

The compact rack-mount design incorporates a built-in control panel for immediate operation during setup or emergency situations, complemented by a large LCD display for program monitoring and menu navigation. This portable design makes it ideal for live production work, with rear connections supporting 3G-SDI or 12G-SDI inputs, aux outputs, balanced audio and Ethernet control. The front panel features the same premium control buttons found on full-sized panels, ensuring reliable performance in demanding environments.

Multi-view monitoring capabilities scale with each model: 1 M/E units include one multi-view, 2 M/E models feature two independent multi-views, and 4 M/E models provide four independent multi-views. All external SDI inputs and internal video sources can be routed to any view, with fully customisable layouts supporting 4, 7, 10, 13 or 16 simultaneous views per multi-view output.
