Bitwig Connect 4-in/12-out USB-C Audio Interface w/ CV/Gate
BIT-CONNECT
$999
$899
Free Shipping
Anywhere Australia wide*

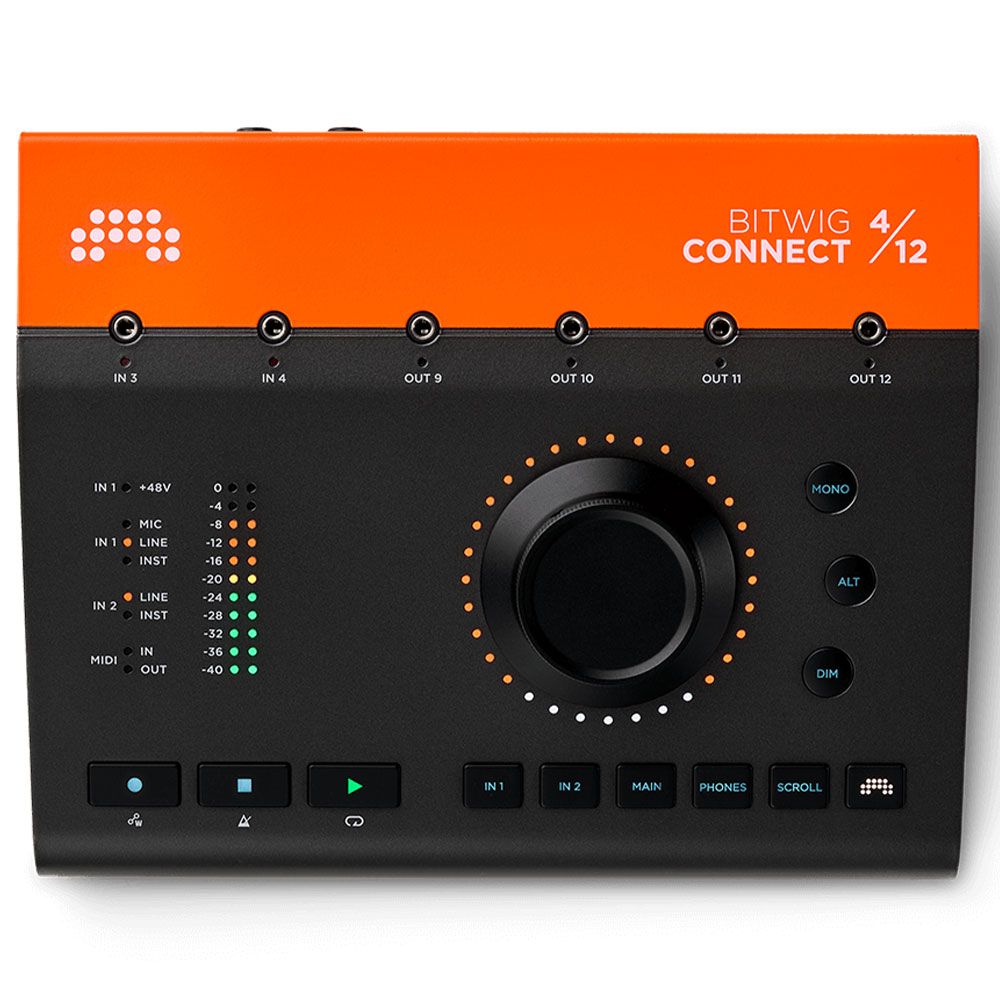

The Bitwig Connect 4/12 redefines what an audio interface can be, combining pristine audio conversion with intuitive DAW control and comprehensive CV connectivity in one compact unit. This class-compliant device offers 4 inputs and 12 outputs, featuring a distinctive 360° touch-sensitive dial surrounded by 32 RGB LEDs that provide immediate visual feedback for parameter values and automation data. Six mode buttons allow seamless switching between interface control, monitor management, and DAW parameter adjustment with exceptional resolution.
Musicians working with CV-enabled hardware will appreciate the two DC-coupled inputs and four outputs accessible via front-panel 3.5mm minijacks, factory-calibrated for pitch-perfect performance with Bitwig Studio straight out of the box. These connections work bidirectionally, sending CV signals from Bitwig Studio to external devices or receiving hardware sequencer and modulation signals into your software setup. The jacks double as additional line-level audio inputs and outputs, making them valuable for all users regardless of their CV requirements.
The unique Bitwig Mode provides seamless DAW integration, allowing precise automation writing and timeline navigation through the main dial. Simply hover your cursor over any control for quick access via the high-resolution dial, or double-tap to lock a selected parameter to Connect. The LED ring matches the colour of parameters or tracks in Bitwig Studio, ensuring you always know what you’re controlling. Premium components including balanced connections, quality mic preamps, and AKM converters support up to 192kHz/24-bit resolution with ultra-low noise floors, all housed in a robust steel chassis that’s USB-C bus-powered for maximum portability.
- USB-C/USB-2 port for data transfer and bus powering
- 4-in / 12-out audio interface with CV/Gate connectivity
- 1 MIDI input and 1 MIDI output for seamless MIDI integration

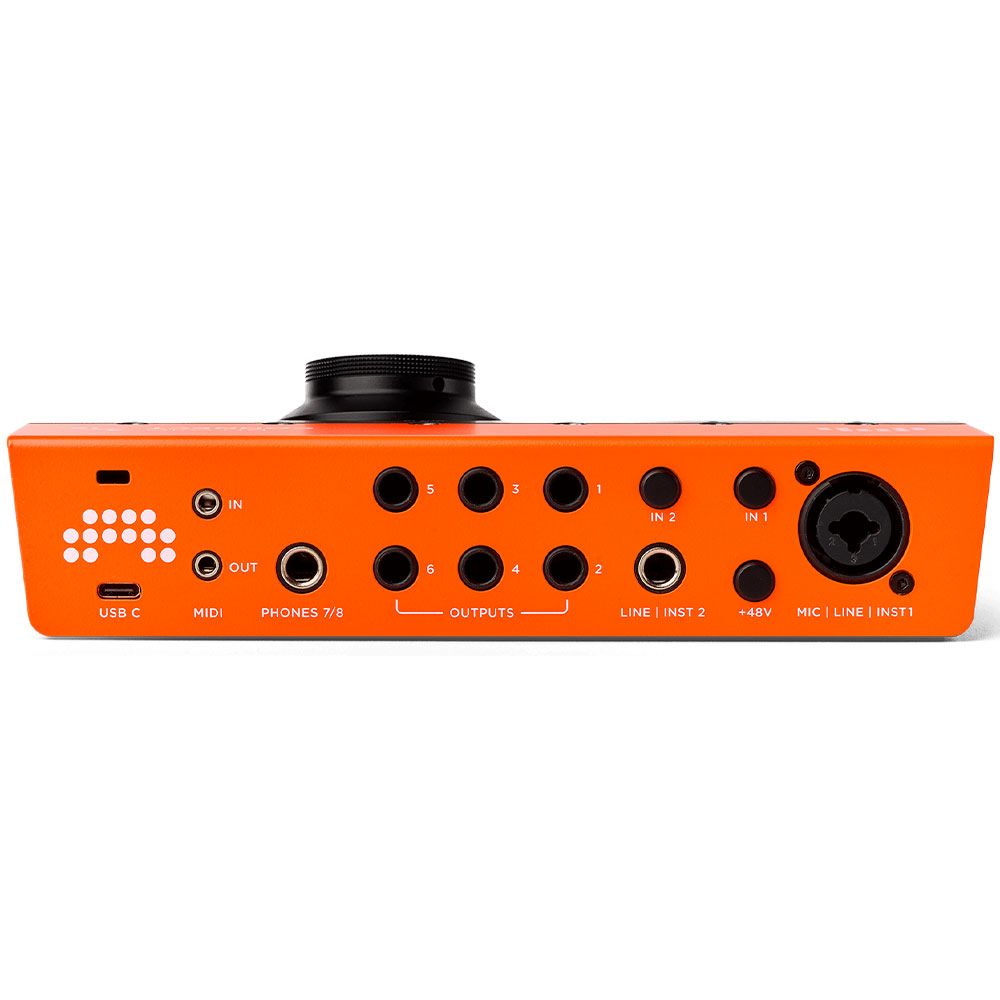

- Dedicated 6.3 mm stereo headphone output for monitoring
- 6 fully balanced 6.3 mm TRS line outputs for high-quality audio routing
- 1 fully balanced 6.3 mm TRS line input or high-impedance instrument input
- Combo XLR / 6.3 mm TRS input with high-gain microphone preamp and 48V phantom power
- 6 x 3.5 mm TS DC-coupled mini jack ports for audio/CV: 2 inputs, 4 outputs
- RGB LED metering for accurate input and output monitoring
- 360° high-resolution, touch-sensitive dial for precise control
- Integrated monitor control buttons for quick adjustments
- DAW transport controls with support for the MCU protocol
- Mode buttons for instant access to settings
- Advanced integration with Bitwig Studio for seamless workflow
- High-quality AKM converters for pristine audio performance
- Recording and playback support up to 192 kHz
- Compatible with macOS, Windows, and Linux with dedicated ASIO driver for Windows
- Bus-powered class-compliant USB 2 device for portable use
- Durable full-metal chassis for reliable performance
- Compact and lightweight design (20.7 x 16.3 x 5.9 cm, 1.45 kg)
- Includes USB-C cable, USB-C to USB-A adaptor, MIDI DIN to mini jack adapters, and mini jack audio patch cables
