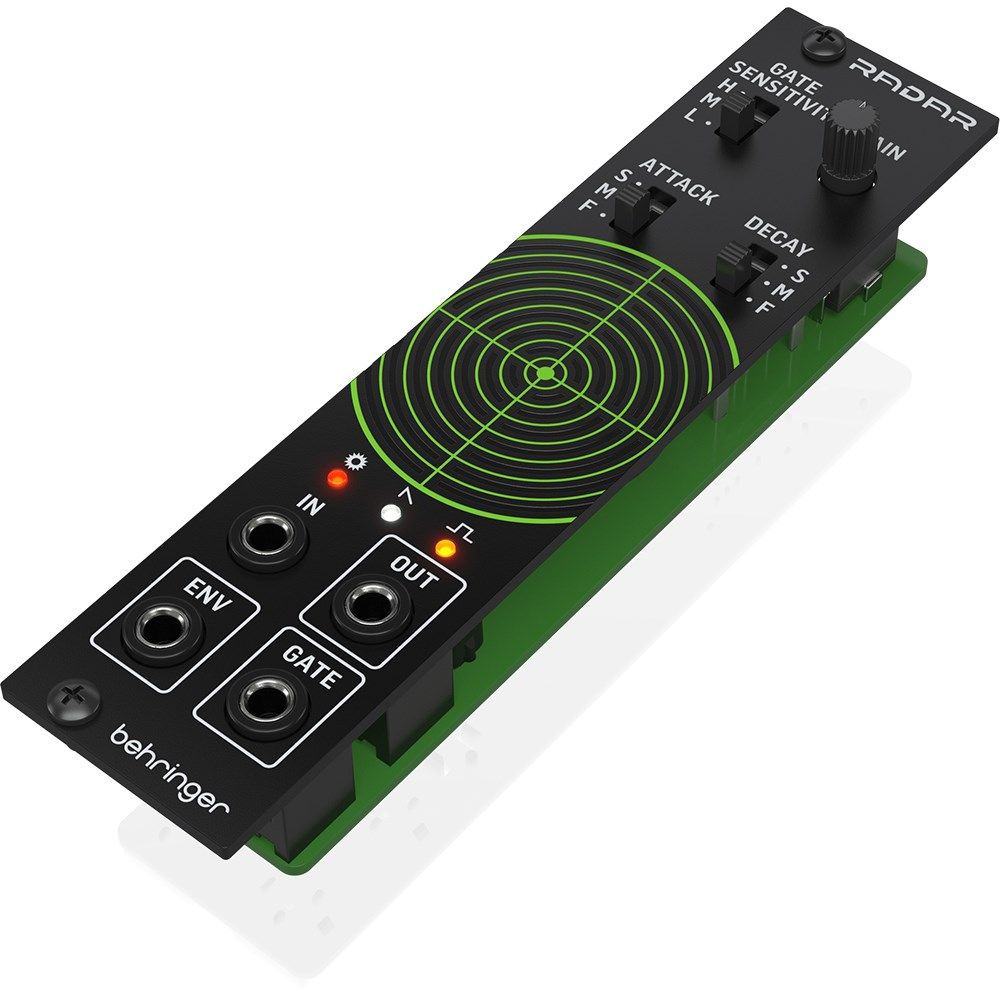

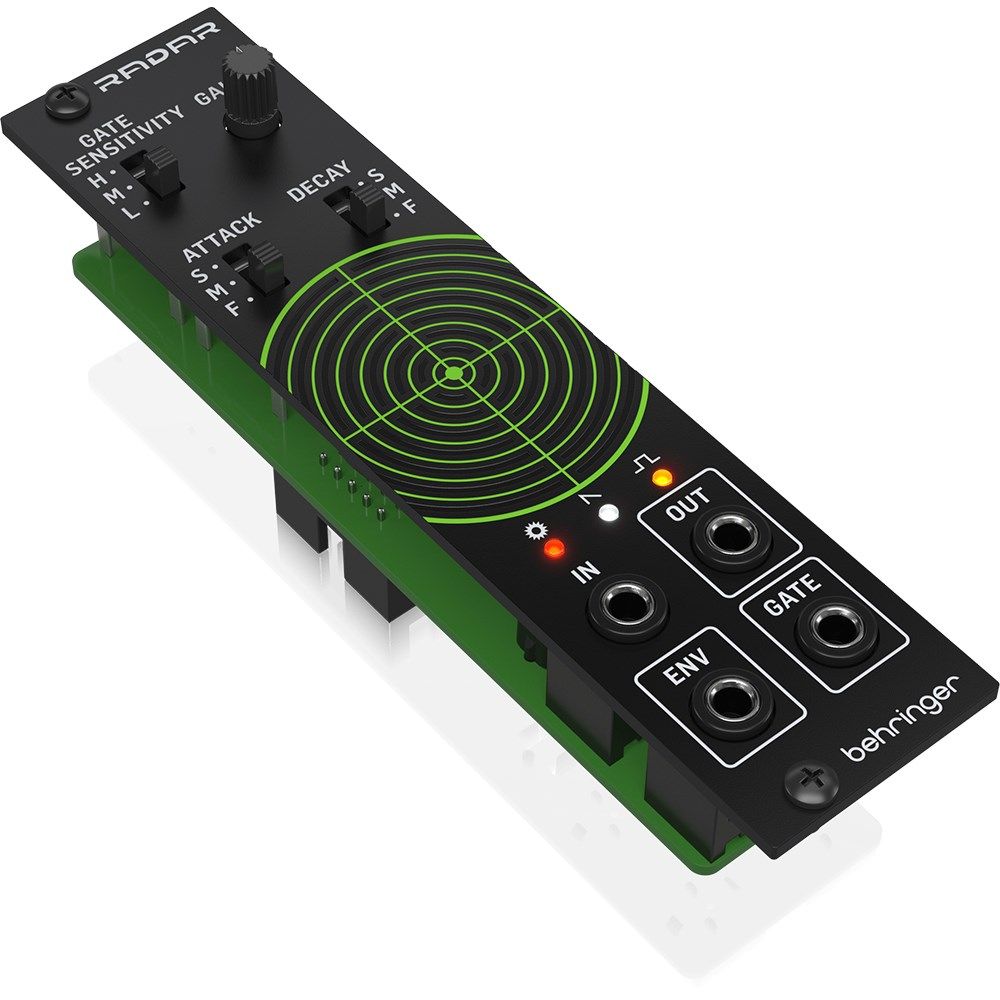

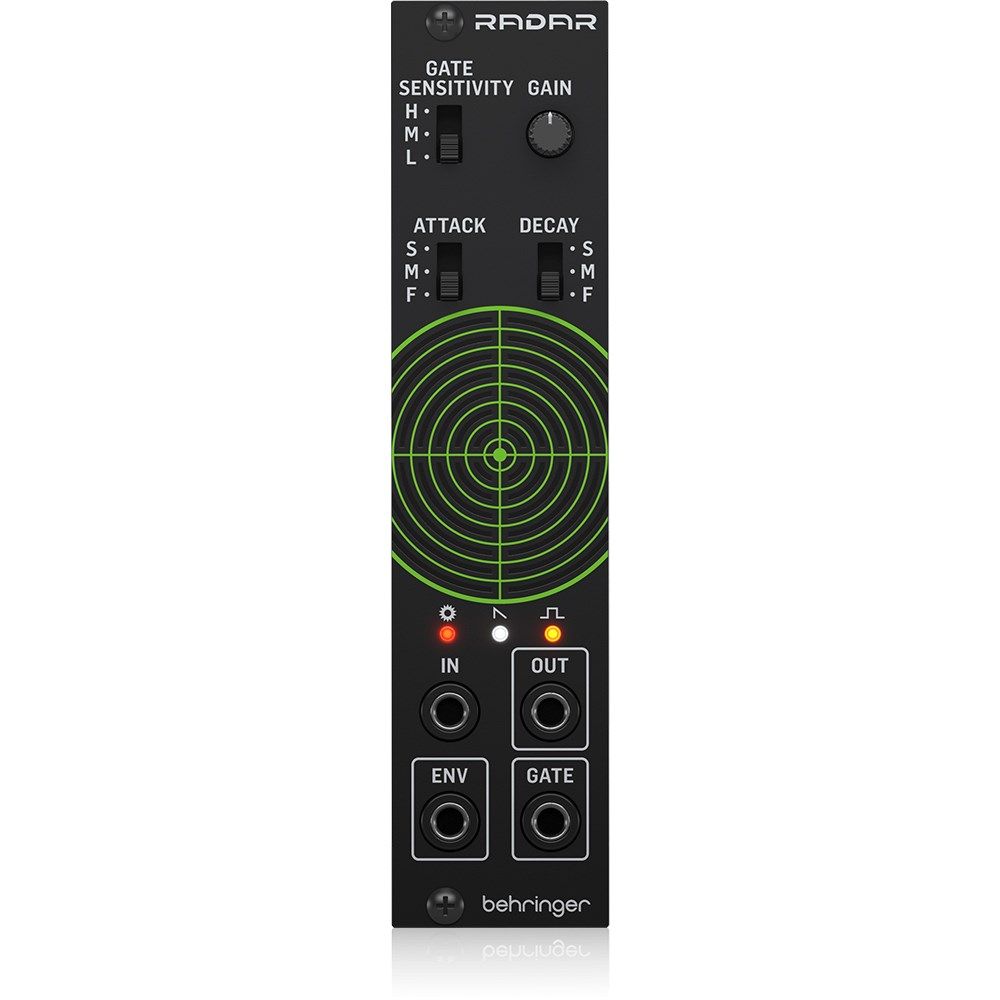

Behringer Radar Eurorack Contact and Microphone Module
BEH-RADAR
Express Post
Anywhere Australia wide*
The Behringer RADAR turns your modular synth into a percussion playground, capturing every tap, scratch, and ambient sound through its ingenious contact microphone system. This innovative Eurorack module features a pickup microphone positioned directly beneath its textured surface, converting physical interactions into musical signals that can be patched throughout your synthesiser setup to generate beats, atmospheric textures, and otherworldly sonic effects.
Beyond surface interaction, the RADAR’s sensitive pickup system captures surrounding acoustic waves from sources like modular case knocks, drum hits, or even loudspeaker output. These captured sounds can be processed into gate or envelope signals, with dedicated Gate Sensitivity, Attack, and Decay controls allowing precise shaping of your audio triggers for maximum creative flexibility.
Built for seamless integration into standard Eurorack systems, the RADAR connects easily via standard power cables and mounts securely with included screws. This straightforward installation process means you can quickly incorporate this unique sound-generating tool into your existing modular setup, opening up fresh possibilities for ambient soundscapes, rhythmic patterns, and experimental audio manipulation.
- Pickup microphone to generate wide range of sonic pulses and impulse combs
- Create unique sounds by scratching and tapping the RADAR surface
- Collect acoustic waves surrounding your modular case including loudspeakers
- Connect external microphones, electro-acoustic instruments such as guitars or line-level signals
- High-quality amplifier with up to 50 dB of gain for a wide range of signal sources
- 3 indicator LEDs to monitor input clipping, envelope follower level, and gate detector activity
- Gate detector with 3 sensitivity levels translates taps into gate signals
- Envelope follower with 3 attack and release times converts tap profile into an envelope CV
- 4 controls and switches give you real-time access to all important parameters
- Eurorack specs: 6 HP,10 mA +12 V, 5 mA -12 V
