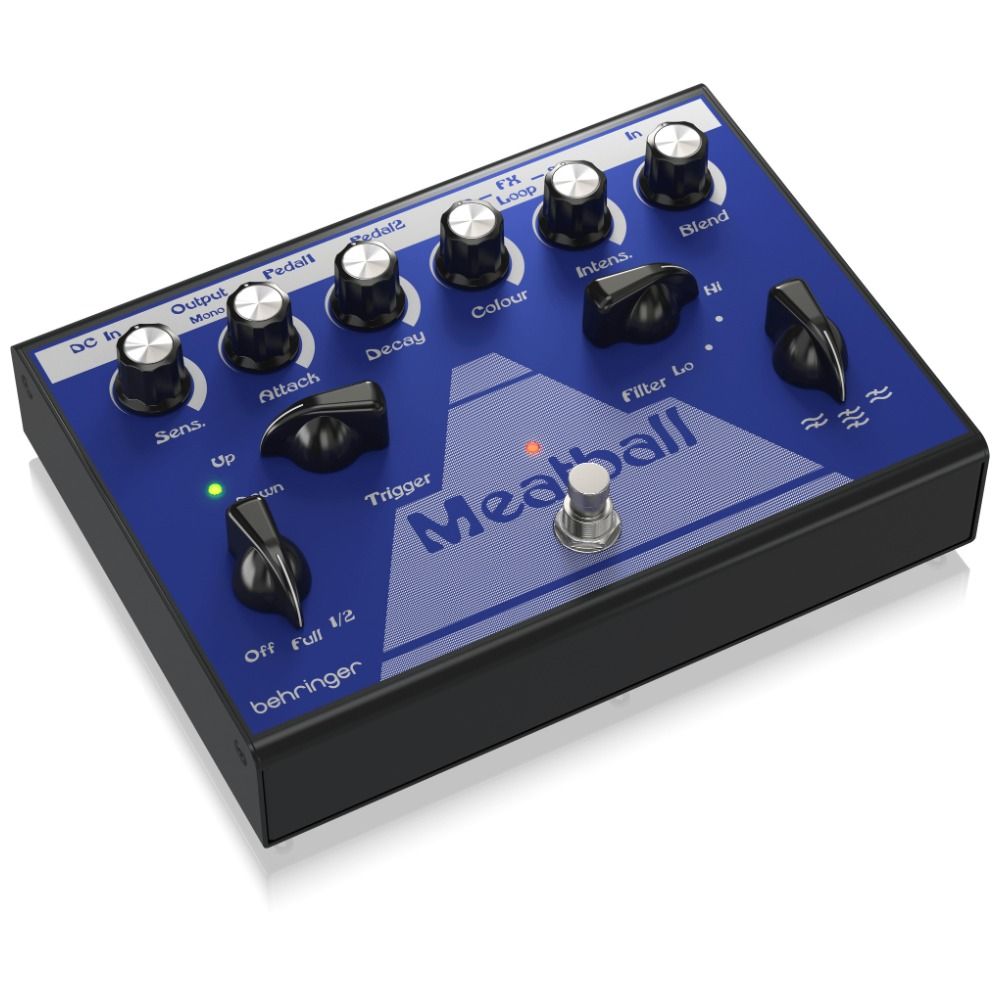

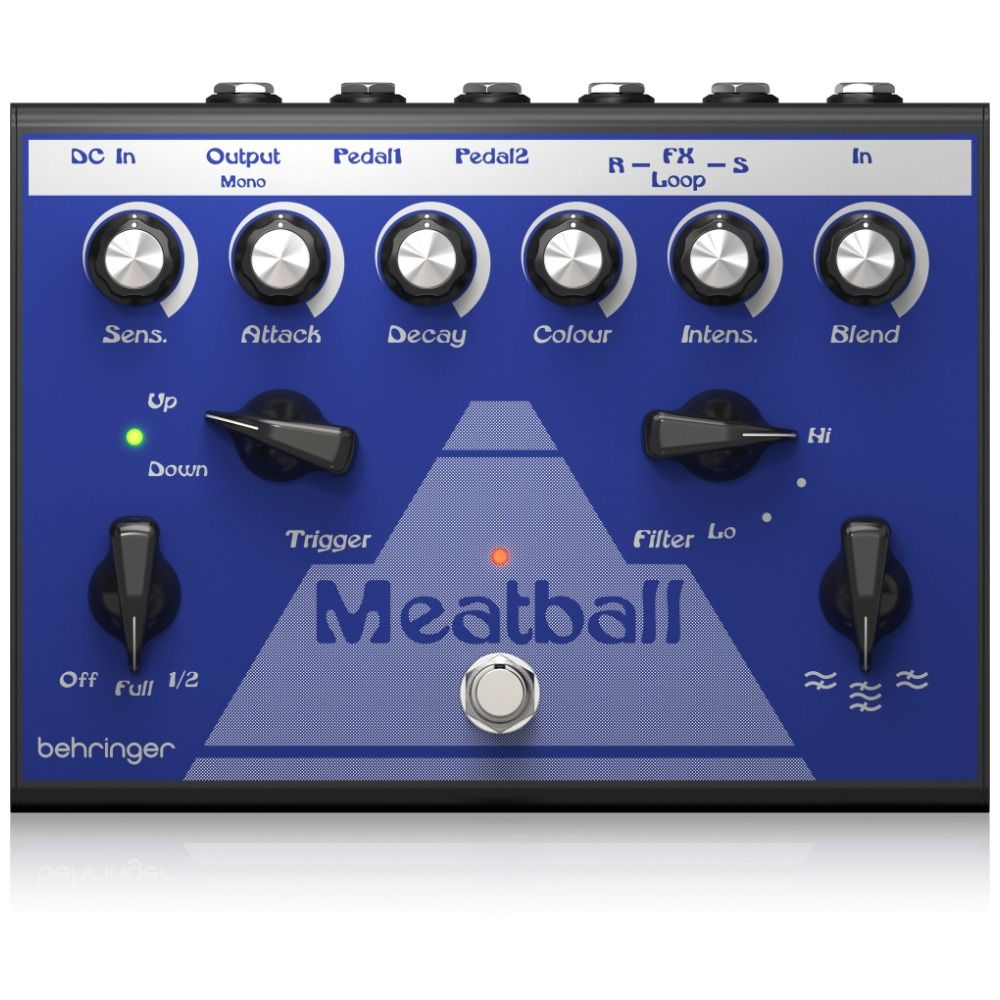

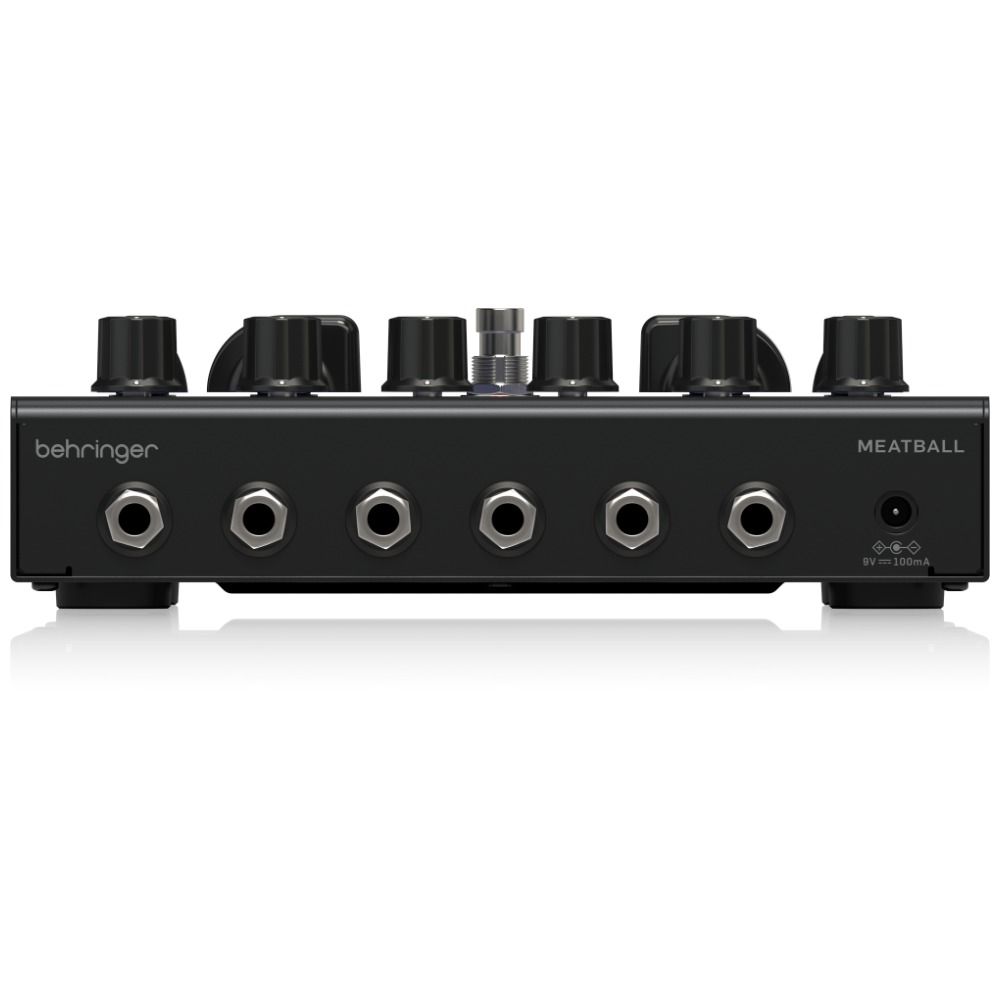

Behringer Meatball Envelope Filter Pedal

Behringer's Meatball delivers genuine envelope filtering through discrete analogue circuitry, responding dynamically to pick attack and finger dynamics. This effect pedal sits squarely in the lineage of studio and live funk tools, extracting those characteristic quack and wah textures that define expressive playing across guitar and bass. Built for gigging musicians, it weighs just 1.05 kg and operates from a standard 9 V DC supply, making it practical for pedalboard integration without unnecessary bulk.

The core architecture hinges on real–time sensitivity adjustment paired with independent attack and decay controls, allowing the filter sweep to track playing nuance with precision. Four filter modes – high–pass, band–pass, low–pass, and selectable sweep direction – unlock tonal territory from subtle midrange sculpting to pronounced resonance peaks. A dedicated blend knob lets you layer filtered and unprocessed signal, while two expression pedal inputs (180 kΩ and 34 kΩ impedance respectively) grant real–time sweep control. True bypass preserves signal integrity at 1.5 kΩ output impedance, and the dynamic range exceeds 93 dB, ensuring clarity across quiet and aggressive passages alike.

The Meatball's bandwidth switch – toggling between off, half, and full settings – and its resonance colour knob provide fine–grained sculpting beyond simple wah simulation. Frequency response spans 20 Hz to 20 kHz, covering the full instrumental spectrum, whilst the footswitch engages bypass independently of the filter processing, enabling seamless switching during performance. At 200 mm wide and 148.5 mm deep, it integrates efficiently into compact pedalboards without sacrificing control access.

Features

• Dynamic envelope filter responds in real–time to your playing dynamics and pick attack.
• Analogue circuitry delivers warm, organic filtering without digital artefacts or latency.
• Four filter modes: high–pass, band–pass, low–pass, and selectable sweep direction.
• Sensitivity, attack, and decay controls tailor filter response to your playing style.
• Blend knob mixes dry and filtered signals for precise tone layering.
• Two expression pedal inputs (180 kΩ and 34 kΩ) enable real–time sweep control.
• True bypass maintains signal integrity at 1.5 kΩ output impedance when disengaged.
• Compact footprint: 200 mm wide, 148.5 mm deep, 1.05 kg; runs on standard 9 V DC.
