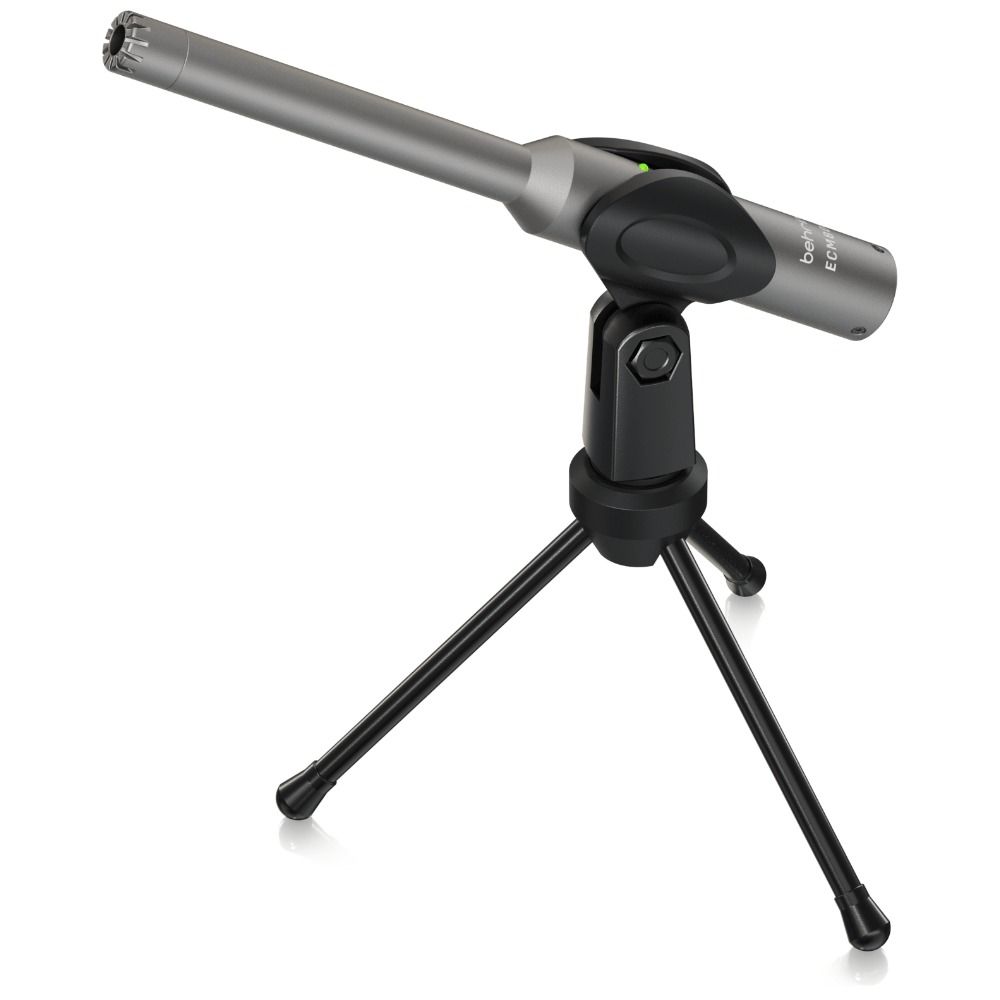

Behringer ECM8000-U Calibrated Measurement Microphone

BEH-ECM8000U

$89

Price Challenge!
Buy Now
Express Post

Anywhere Australia wide*

$22.25
4 payments

Late Fees Apply

Up to 12 months interest free

Fees Apply

More Info

4 payments
$30-$2000

No Fees/Interest

More Info

The Behringer ECM8000-U is a calibrated measurement microphone purpose-built for acoustic analysis and system tuning. Its ultra-linear response and omnidirectional pickup pattern make it suited for room acoustics assessment, live venue alignment, and studio monitor calibration work. The device ships ready to use: USB Type-C connectivity means instant integration with Windows, Mac, and Linux systems without additional drivers or hardware.

Built around a precision 6 mm electret capsule, the ECM8000-U delivers 24-bit resolution at 48 kHz sample rate, capturing detail across a 20 Hz to 20 kHz frequency window. Maximum SPL handling reaches 134 dB at 1 kHz with –14 dB gain applied, whilst signal-to-noise performance sits at 65 dB A-weighted. The lightweight 130 g form factor and included clamp bracket allow flexible positioning for measurements in confined spaces or at height; a protective zipper case keeps the capsule safe between sessions. Current draw is minimal at 18 mA, running directly from USB power with a green LED status indicator.

Room tuning, car audio assessment, and monitor setup form the primary use cases where flat response and true omnidirectional characteristics prove invaluable. Recording engineers and live sound technicians benefit from the ability to objectively measure acoustic conditions and verify speaker placement before committing to cable runs or permanent installation.

Features
  • Precision 6 mm electret capsule with ultra-linear frequency response characteristics
  • 24-bit resolution at 48 kHz sample rate for studio-grade audio capture
  • Omnidirectional polar pattern ensures uncoloured acoustic measurement across all axes
  • USB Type-C connectivity; plug-and-play operation on Windows, Mac, and Linux
  • 134 dB maximum SPL at –14 dB gain setting; 65 dB signal-to-noise ratio
  • Lightweight 130 g body with included microphone clamp and protective zipper case
  • USB-powered operation (5 V); green LED indicates active connection status
  • Frequency response 20 Hz to 20 kHz; –6 dB FS/Pa sensitivity at +20 dB gain
For more information, please visit the manufacturer's website.
