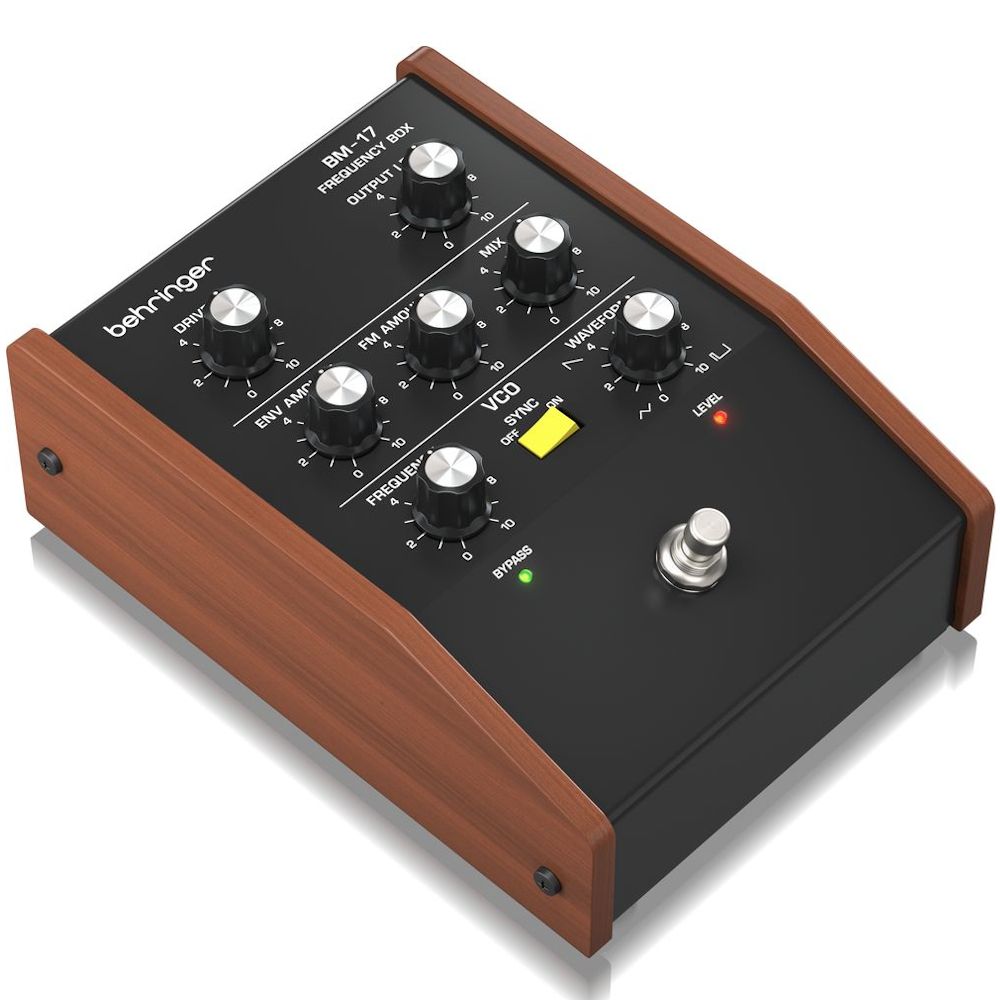

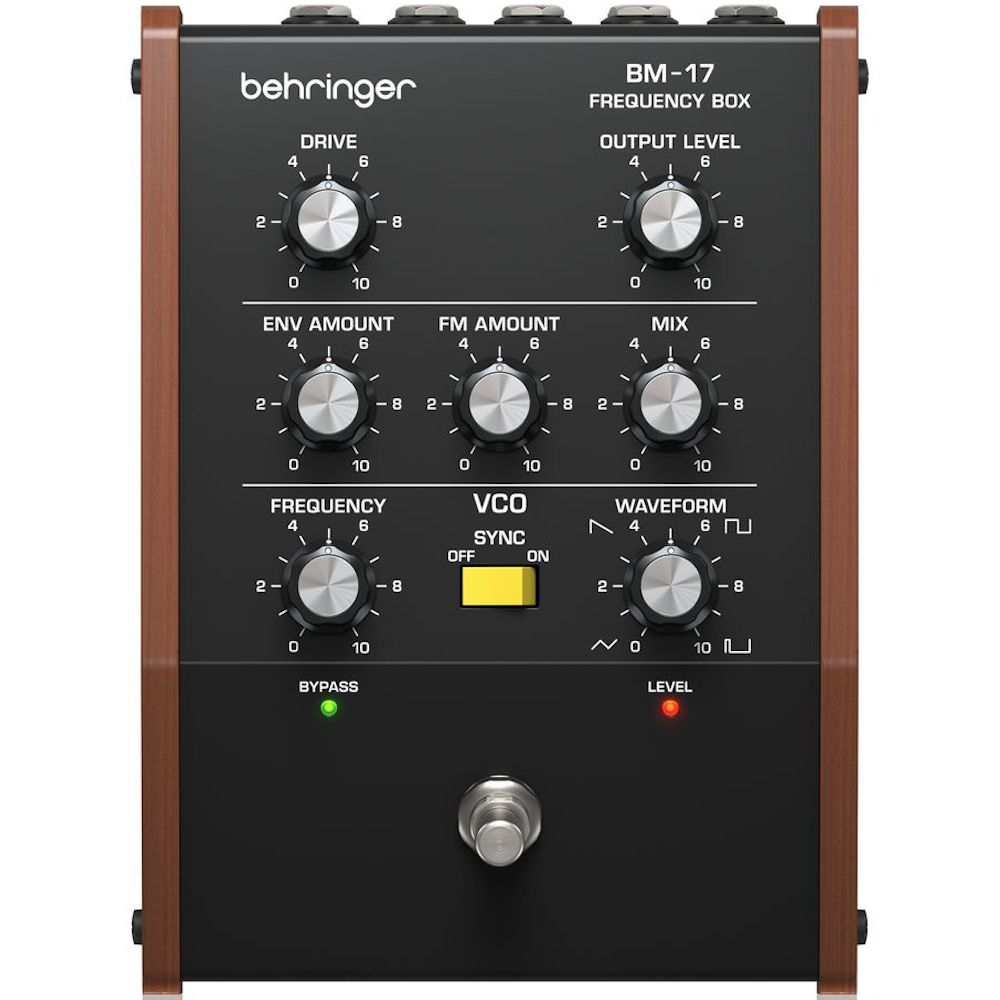

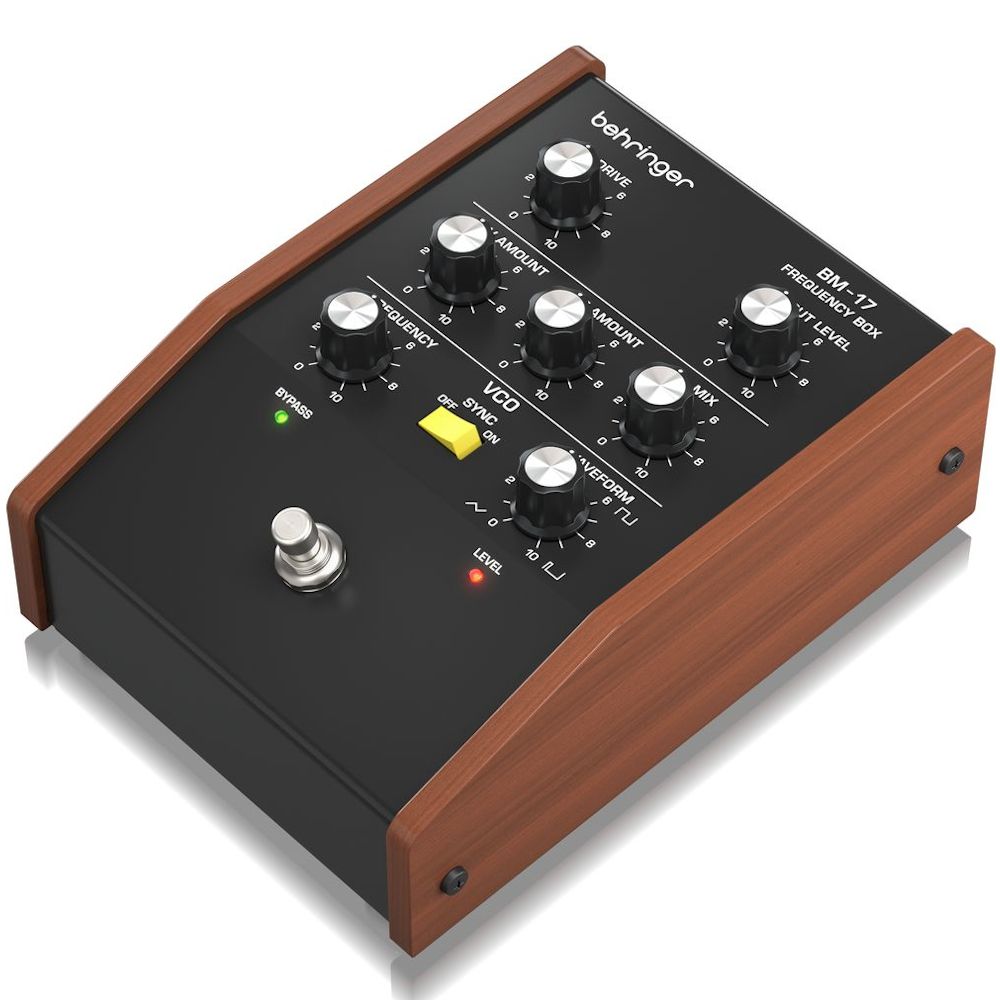

Behringer BM-17 Frequency Box Pedal

BEH-BM17

$209

$199

Price Challenge!
Buy Now
Free Shipping

Anywhere Australia wide*

$49.75
4 payments

Late Fees Apply

Up to 12 months interest free

Fees Apply

More Info

4 payments
$30-$2000

No Fees/Interest

More Info

Exploring new sonic territory can be challenging with standard guitar pedals that limit creativity. The Behringer BM-17 Frequency Box Pedal provides a versatile and expressive effects generator, recreating a renowned classic effect while offering modern flexibility for fuzz, synth-style tones, and experimental frequency modulation.

Powered by a voltage-controlled oscillator, the BM-17 features envelope control for dynamic response, blend and drive knobs for precise signal shaping, and a range switch to select oscillator frequency. An expression pedal input allows real-time modulation, while the compact and rugged design ensures it performs reliably both in the studio and onstage. Combining it with other pedals opens up endless creative possibilities.

With multiple inputs and outputs, including CV and TS/TRS connections, the BM-17 accommodates advanced setups and integration with modular systems. Delivering a wide frequency response from 20 Hz to 20 kHz, dynamic range over 83 dB, and signal-to-noise ratio above 73 dB, it provides professional-quality sound in a pedalboard-friendly format. Powered by standard 9 V DC, the BM-17 is ready to expand your tonal palette with expressive, powerful, and experimental effects.

Features
  • Voltage-controlled oscillator for versatile effects generation
  • Authentic recreation of a classic frequency modulation effect
  • Wide range of effects from fuzz distortion to modular synth-style sounds
  • Envelope control for dynamic and expressive frequency modulation
  • Blend control to mix input signal with oscillator output
  • Range switch to select oscillator frequency range
  • Drive control for adjusting input gain
  • Expression pedal input for real-time control
  • Compact and rugged design suitable for transport and onstage use

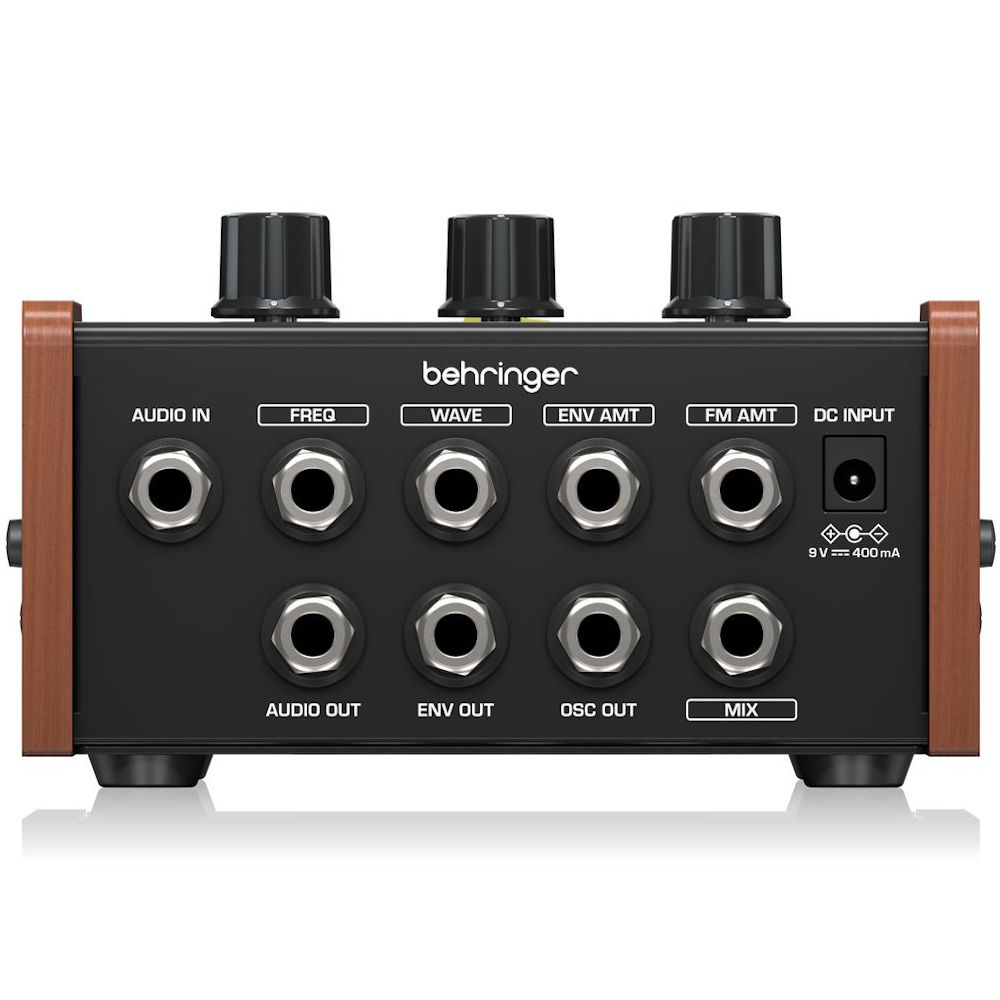

  • Multiple TS and TRS inputs/outputs with CV support for advanced setups
  • Frequency response: 20 Hz to 20 kHz (+0 / -2 dB)
  • Dynamic range > 83 dB and signal-to-noise ratio > 73 dB
  • Overall gain: +33 dB
  • Footswitch for sync on/off
  • Power input: standard 9 V DC, centre negative, > 300 mA (power supply not included)
  • Power consumption: 1.8 W
  • Dimensions: 85.9 x 147.6 x 196.9 mm (3.38 x 5.81 x 7.75")
  • Weight: 1.1 kg (2.43 lbs)
