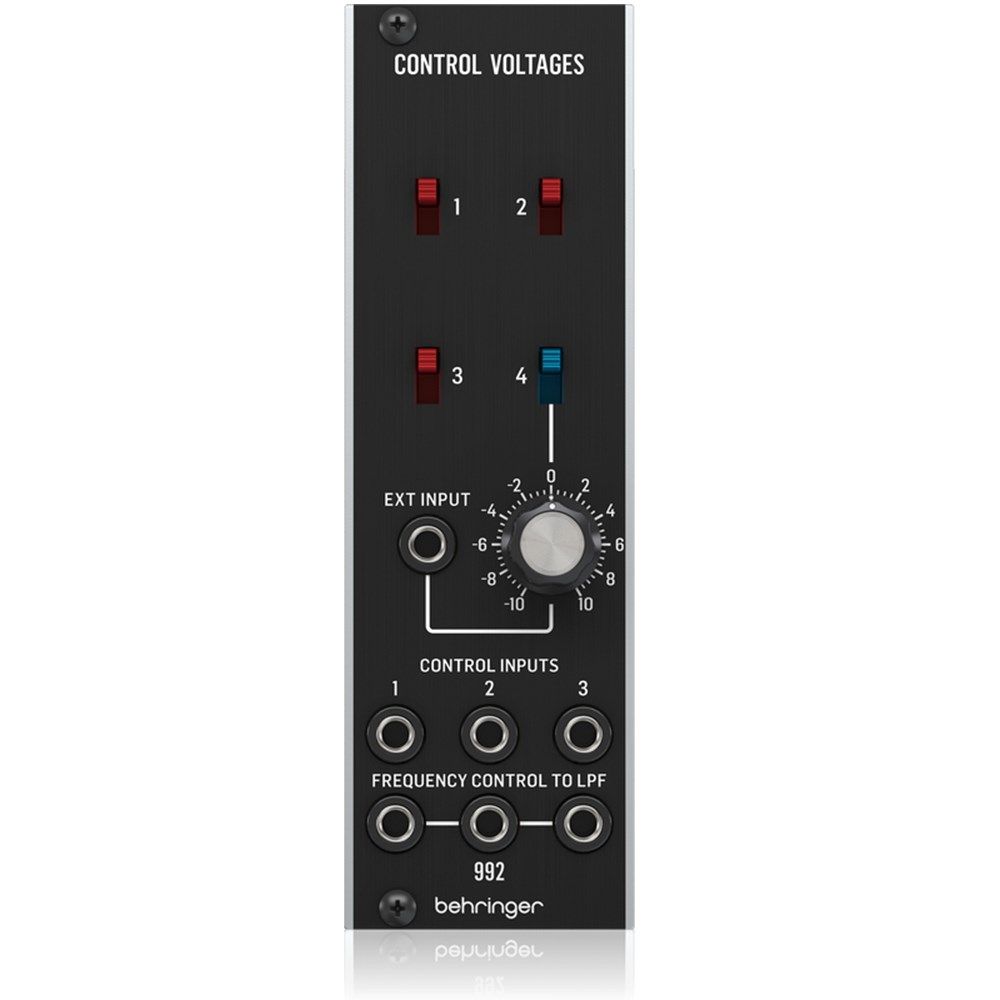

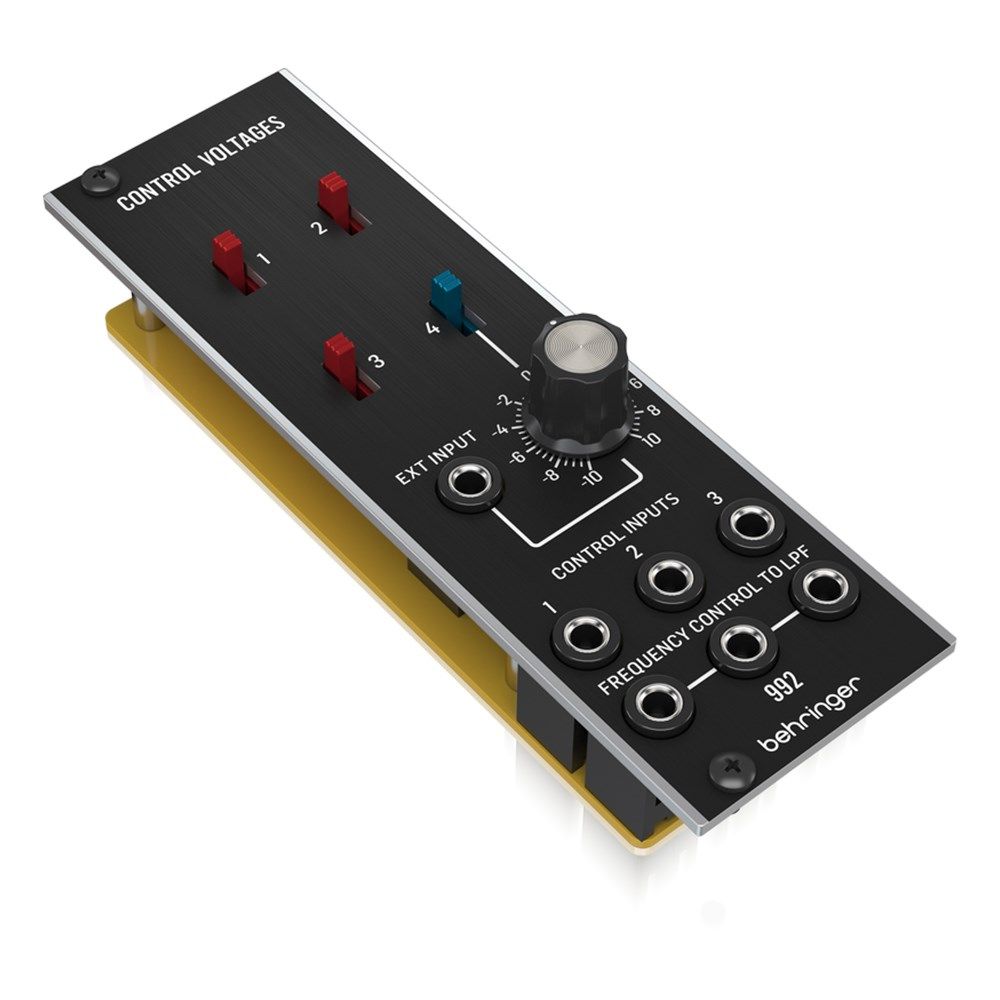

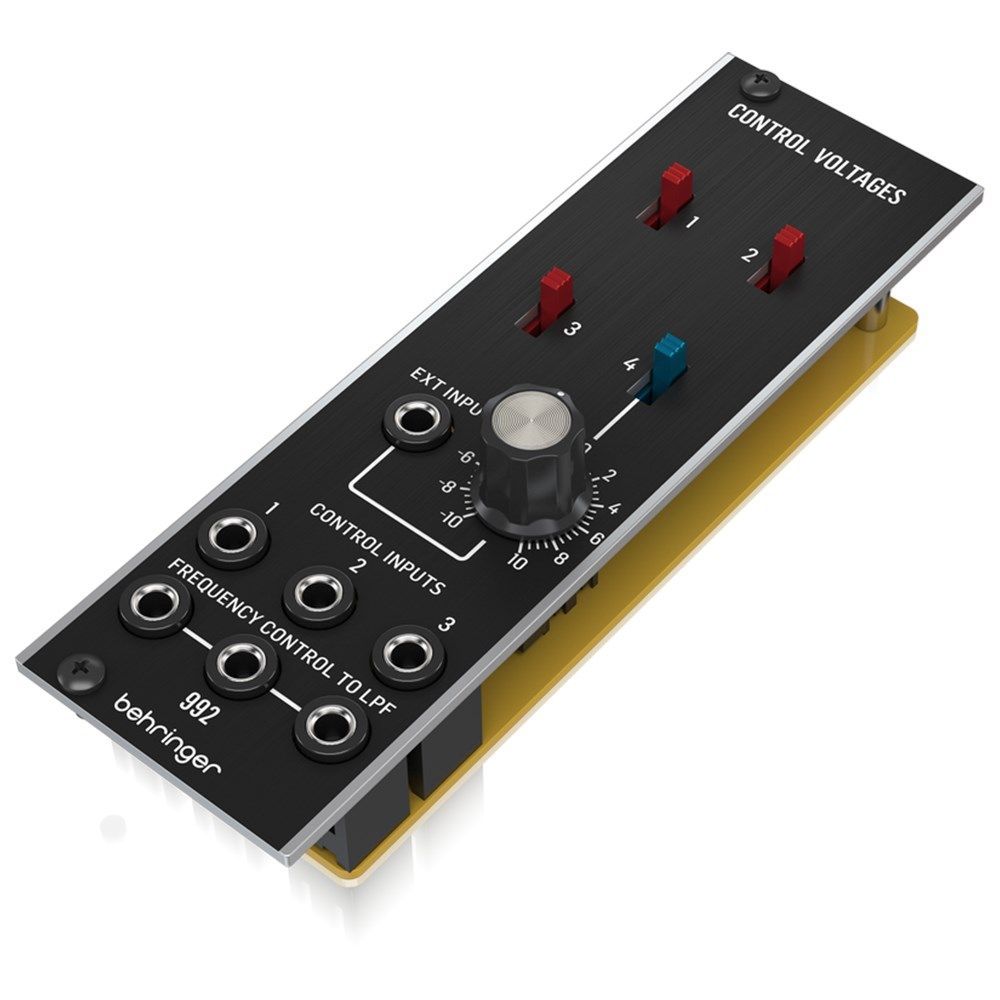

Behringer 992 Control Voltages Module
BEH-992CV
Express Post
Anywhere Australia wide*
The Behringer 992 CONTROL VOLTAGES Module brings the legendary circuitry of the iconic "Modular 55 & 35" Series directly to your Eurorack setup, offering the same authentic sound that shaped countless pop, rock and jazz recordings. This faithful reproduction allows musicians to craft their own distinctive synthesiser systems at an incredibly accessible price point, whether building a compact personal rig or creating an expansive wall-to-wall modular paradise.
At its core, the 992 features four channels dedicated to CV signal routing, specifically designed to work seamlessly with 904A LPF modules. Simple up/down switches provide instant connection control, letting you route signals to other modules with ease. The module includes an external input with an inverting attenuator knob that adjusts CV levels from 0 to 10 clockwise, or 0 to -10 counterclockwise, giving you precise control over your signal levels.
Three switched and summed CV inputs handle frequency control for VCF modules via standard 3.5mm TS cables, while three parallel CV outputs distribute the combined voltage from all four inputs. This configuration drives multiple 904A LPF and 904B HPF modules simultaneously, opening up endless sonic possibilities. Installation couldn’t be simpler – the module fits standard Eurorack cases and connects via included power cables and mounting screws, making it perfect for integration with your existing modular collection.
- Authentic reproduction of the circuitry from the “Modular 55 & 35” Series
- Artist roster includes world’s most famous pop, rock and jazz musicians
- 4-channel CV signal routing to 904A LPF module
- Single external input with inverting attenuator control
- 3 switched and summed CV inputs for frequency control of VCF modules
- 3 parallel CV outputs can drive multiple 904A LPF and 904B HPF modules
- Eurorack specs: 8 HP, 10 mA +12 V, 10 mA -12 V
- Designed and engineered in the U.K.
