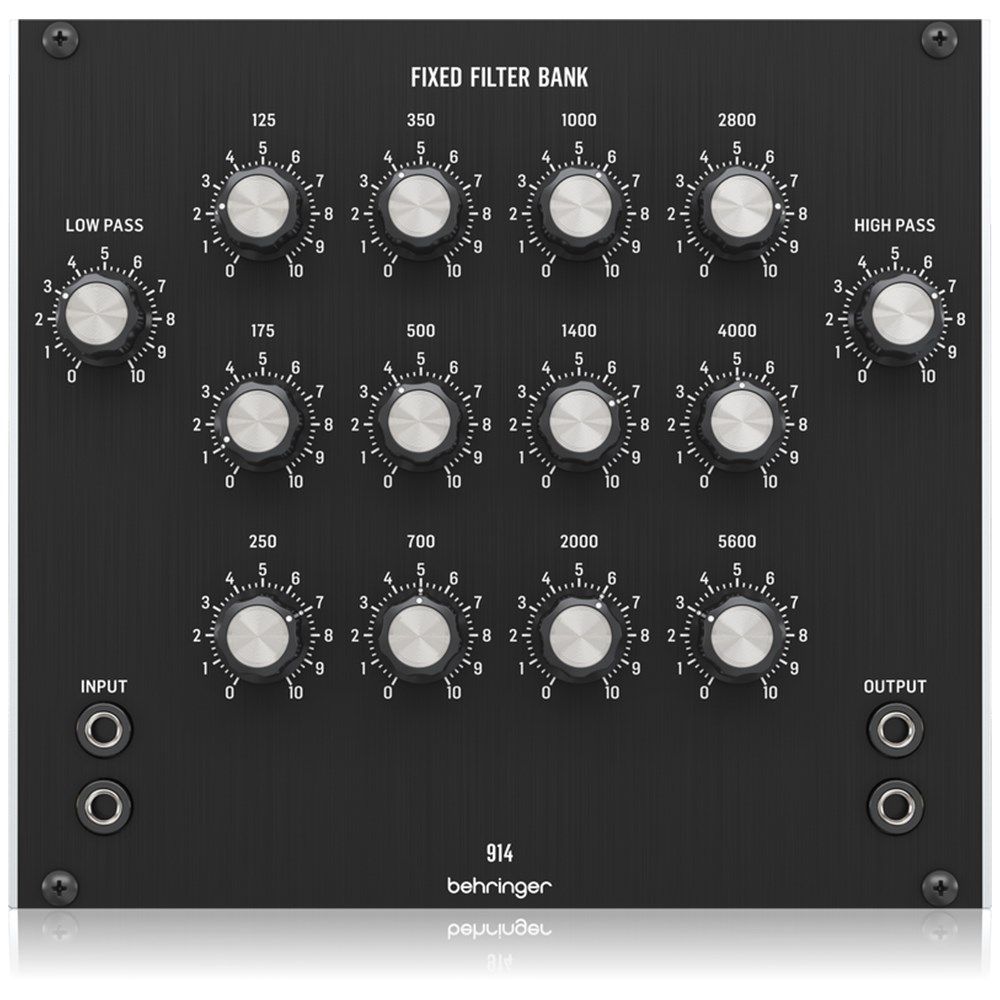

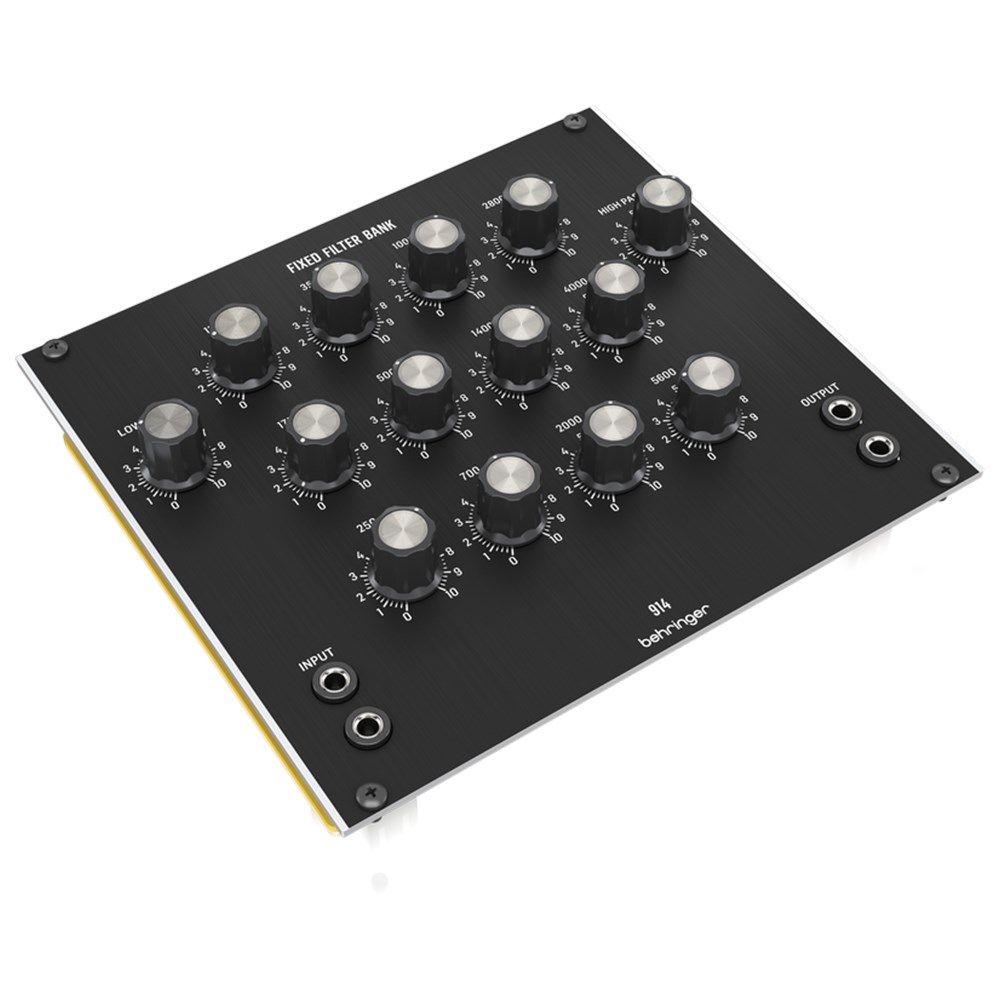

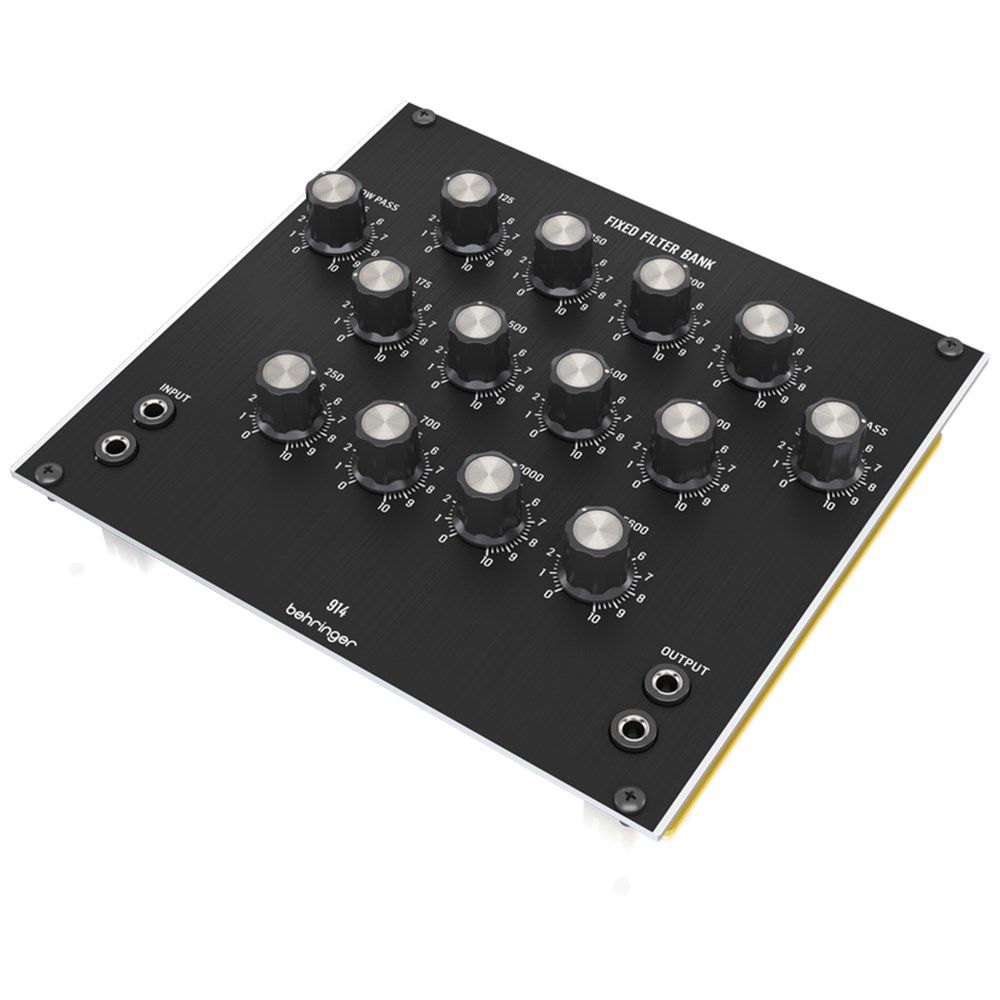

Behringer 914 Fixed Filter Bank Module
BEH-914FFB
Express Post
Anywhere Australia wide*
The Behringer 914 FIXED FILTER BANK brings the legendary discrete I/O circuitry from the iconic “Modular 55” Series directly into your Eurorack setup. This authentic reproduction has been the secret weapon of countless pop, rock and jazz musicians on stages worldwide. Now you can build your own distinctive synthesiser that fits perfectly in a standard Eurorack case without breaking the bank.
At the heart of the 914 are 12 active bandpass filters spanning from 125 Hz to 5.6 kHz, complemented by dedicated Low Pass and High Pass filters. Each frequency band offers individual gain control, giving you complete command over your signal’s timbre and resonance characteristics. This level of control allows for precise sound sculpting across the entire frequency spectrum.
Connectivity is straightforward with dual 3.5 mm input and output jacks that integrate seamlessly with your existing modular setup. The parallel-wired inputs let you filter your signal source while simultaneously passing the unfiltered signal to another module, whilst the outputs can route two different signals to separate destinations. Installation couldn’t be simpler – just connect the power cables and mount using the included screws for immediate integration into your modular system.
- Vintage-sounding 914 fixed filter bank module from the ‘70s
- Authentic reproduction of the discrete I/O circuitry from the “Modular 55” Series
- Artist roster includes world’s most famous pop, rock and jazz musicians
- 12 active bandpass filters ranging from 125 Hz-5.6 kHz
- Additional lowpass and highpass filters
- Dual input and output jacks
- Eurorack specs: 28 HP, 60 mA +12 V, 70 mA -12 V
- Designed and engineered in the U.K.
