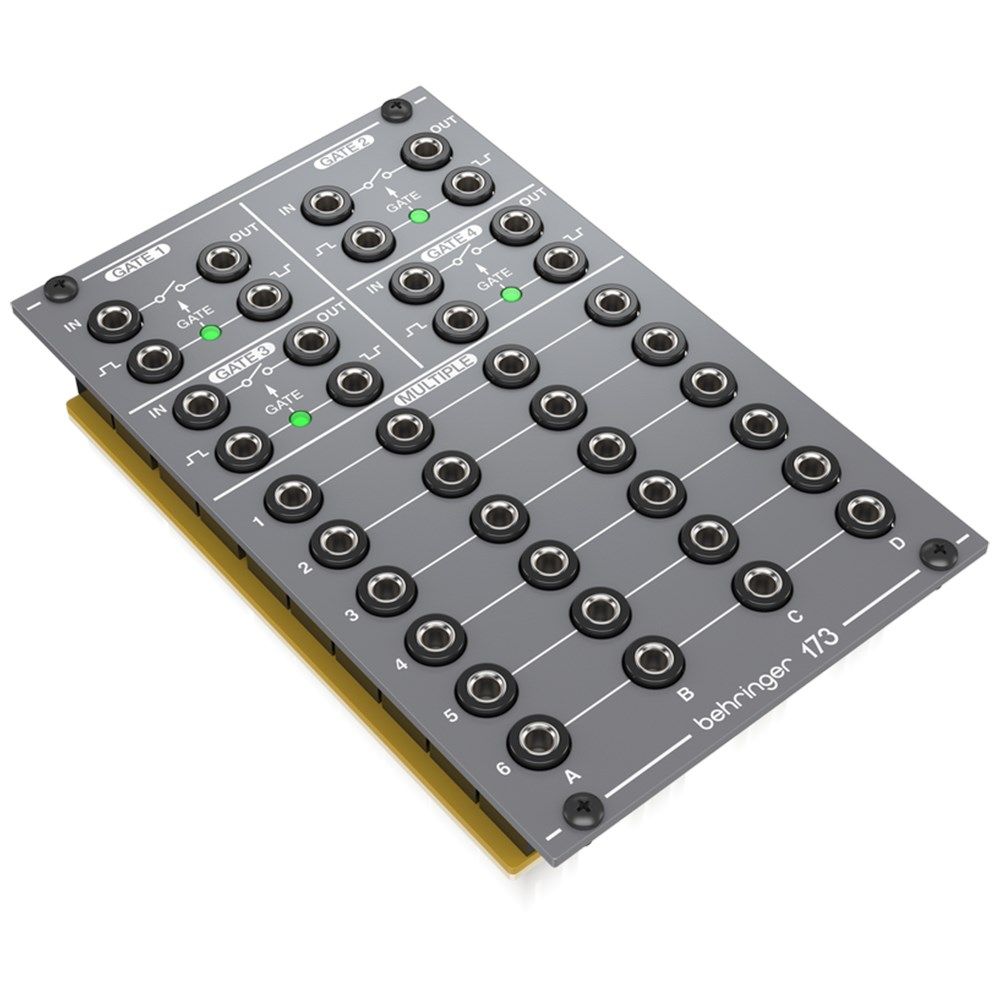

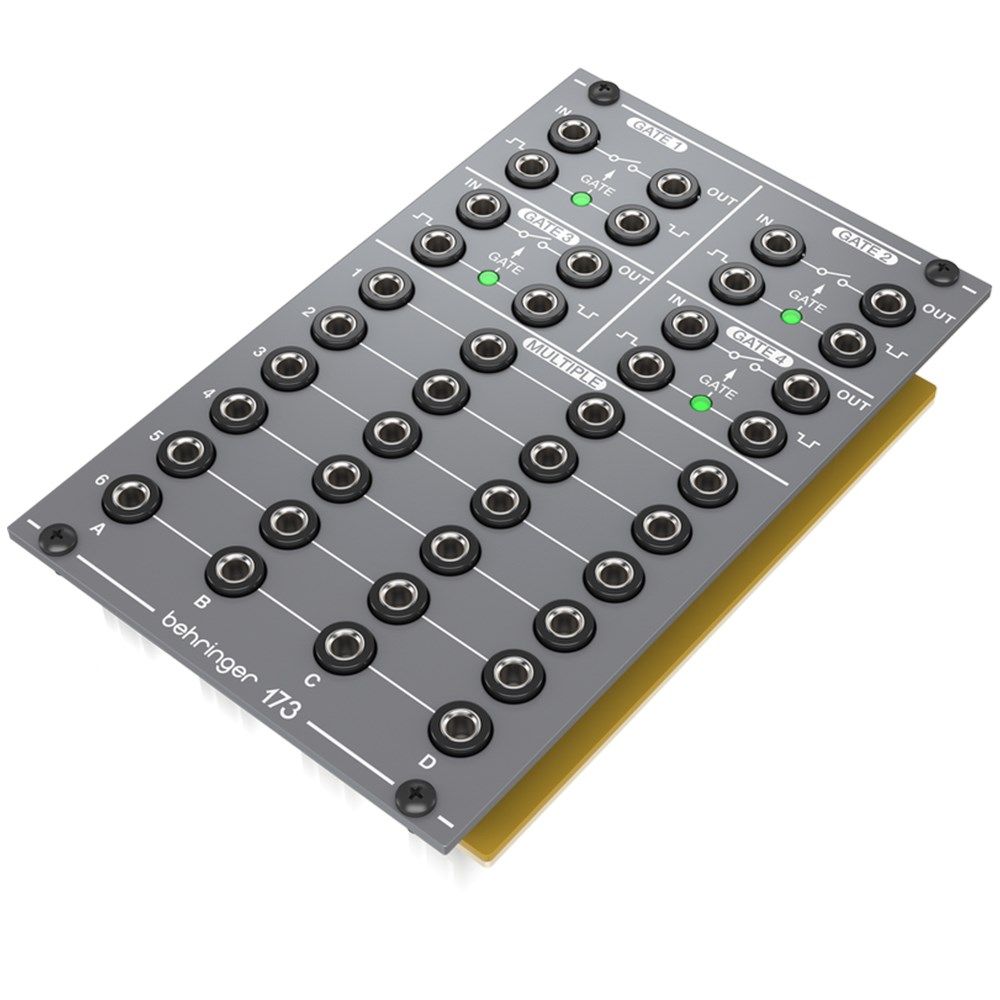

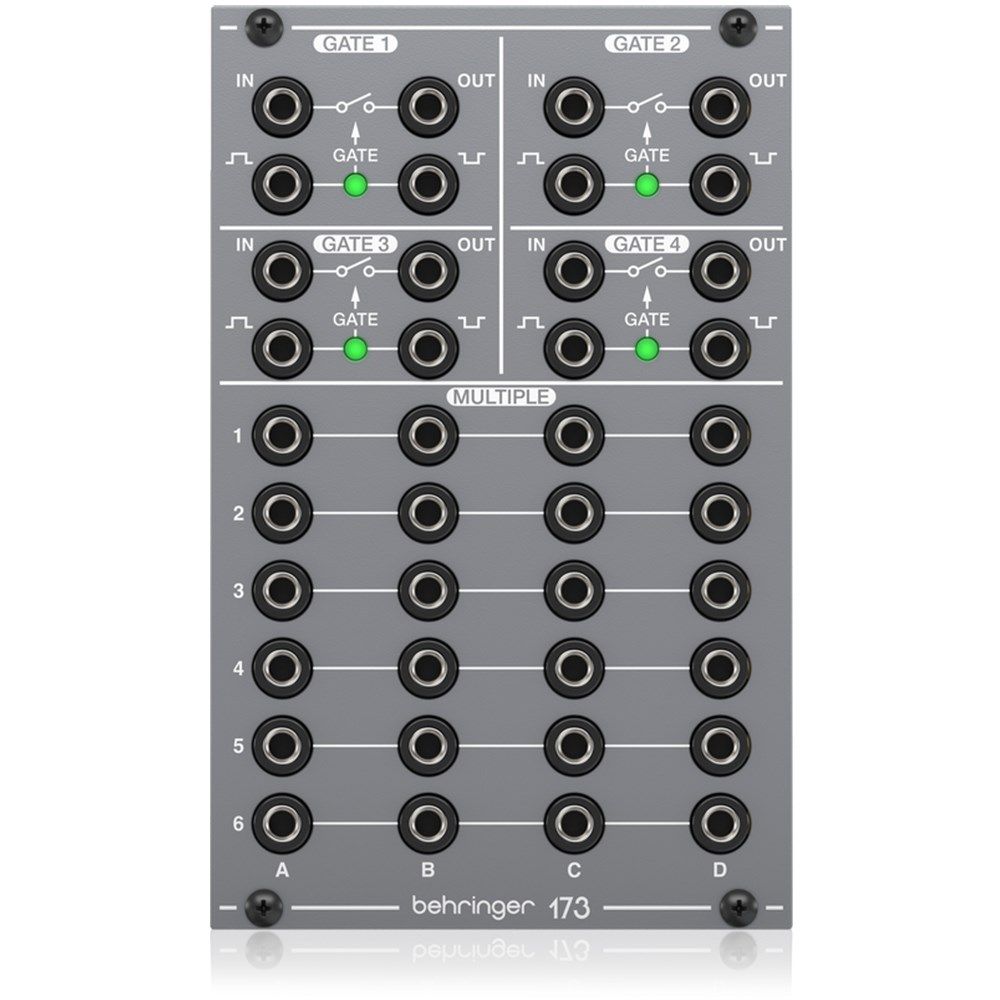

Behringer 173 Quad Gate Module
BEH-173QUADGATE
Express Post
Anywhere Australia wide*
Bring authentic 80s analogue circuitry to your modern Eurorack setup with the Behringer SYSTEM 100 173 QUAD GATE/MULTIPLES, a faithful reproduction of the legendary “System 100M” design. This versatile module combines four signal gates with comprehensive multiple functionality, making it an essential utility module for expanding your modular synthesiser’s routing capabilities.
The four signal gates feature buffered audio inputs and outputs for immediate signal switching, giving you the flexibility to choose between control gate operation with non-inverting (active high) or inverting (active low) inputs. This switching capability opens up creative possibilities for rhythmic gating, audio routing, and dynamic sound manipulation within your patches.
Six-channel multiples with four floating parallel connectors each ensure optimal signal integrity while distributing your signals across multiple destinations. This routing flexibility allows you to send signals from one source to various modules throughout your system, creating more intricate patches and complex sonic textures from single input sources.
Installation into your existing Eurorack case is straightforward – simply connect the power cables and secure with the included screws. The module integrates seamlessly with other synthesiser modules, making it perfect for both expanding current setups and building comprehensive modular systems.
- Amazing quad Signal Gate/Multiple module from the '80s
- Authentic reproduction of original "System 100M*" circuitry
- 4 signal gates (switches) with buffered audio inputs and outputs for immediate signal switching
- Gates feature control inputs for positive and negative triggers plus LED indicators
- 6-channel multiples, each with 4 floating parallel connectors for optimal signal integrity
- Eurorack specs: 16 HP, 40 mA +12 V, 40 mA -12 V
- Designed and engineered in the U.K.
