Behringer 112 Dual VCO Module
BEH-112DUALVCO
Express Post
Anywhere Australia wide*

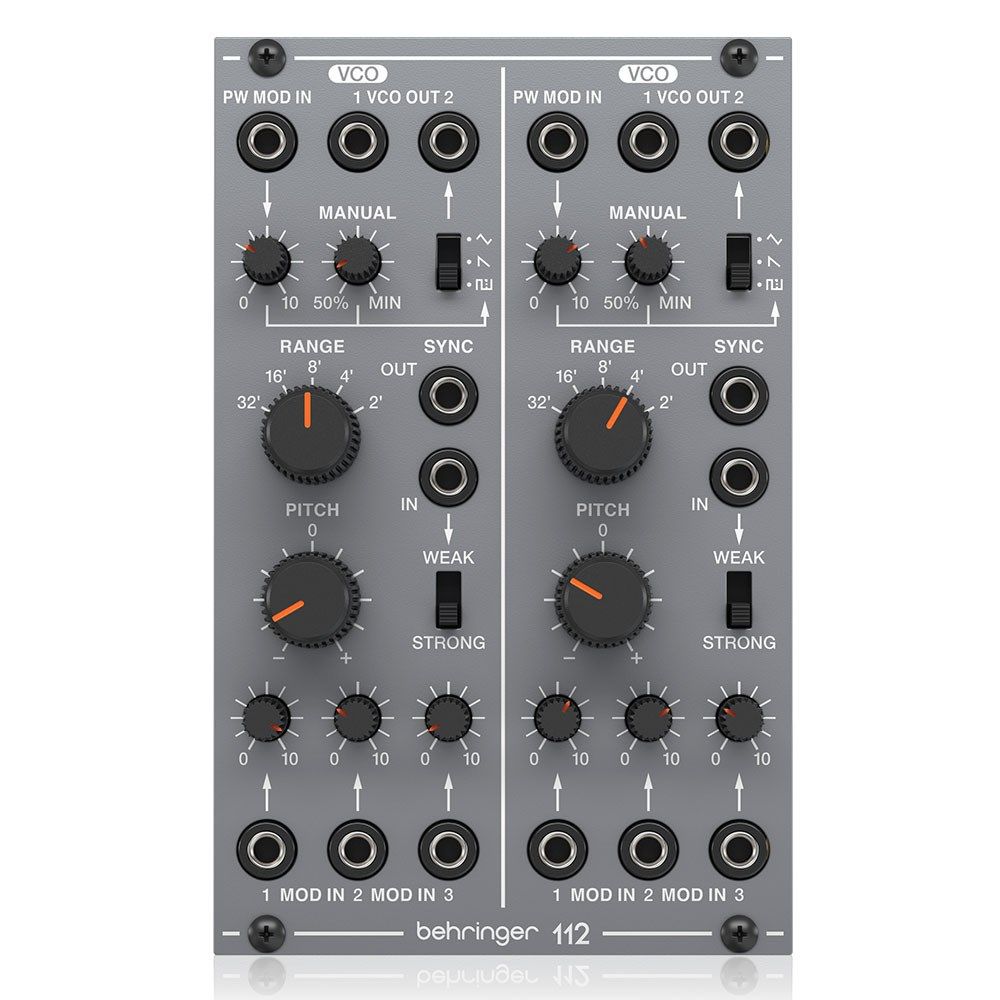

The Behringer System 100 112 DUAL VCO Module brings authentic 80s “System 100M” circuitry into your modern Eurorack setup at a price that won’t break the bank. This faithful reproduction captures the classic sound and functionality of the original design, making it perfect for expanding your current modular system or launching your first venture into modular synthesis.
Both VCOs offer three selectable waveforms - triangle, sawtooth, and square - each equipped with pulse-width modulation capabilities. The PWM can be controlled manually through dedicated knobs or externally via CV input, giving you simultaneous control over pulse width adjustment. The PW MOD IN jack accepts external signals, while the Mod Manual knob provides additional waveform tweaking possibilities.
Tonal control comes through octave range selection and fine-tuning via the Pitch knob, while strong and weak sync modes allow for precise phase locking between the two VCOs. Each VCO features three CV inputs, ready to accept modulation signals like LFOs for expanded sonic possibilities and dynamic sound shaping.
- Amazing Dual VCO module from the '80s
- Authentic reproduction of original System 100M circuitry
- Each VCO features 3 selectable waveforms: triangle, sawtooth and square with PWM
- PWM can be simultaneously controlled manually and via external CV input
- Each VCO offers pitch and range controls, 2 audio outputs and 3 CV inputs
- VCOs can be synced via strong and weak sync modes for accurate phase locking
- 18 controls and switches give you real-time access to all important parameters
- Eurorack specs: 16 HP, 130 mA +12 V, 70 mA -12V
- 3-Year Warranty Program
- Designed and engineered in the U.K.
