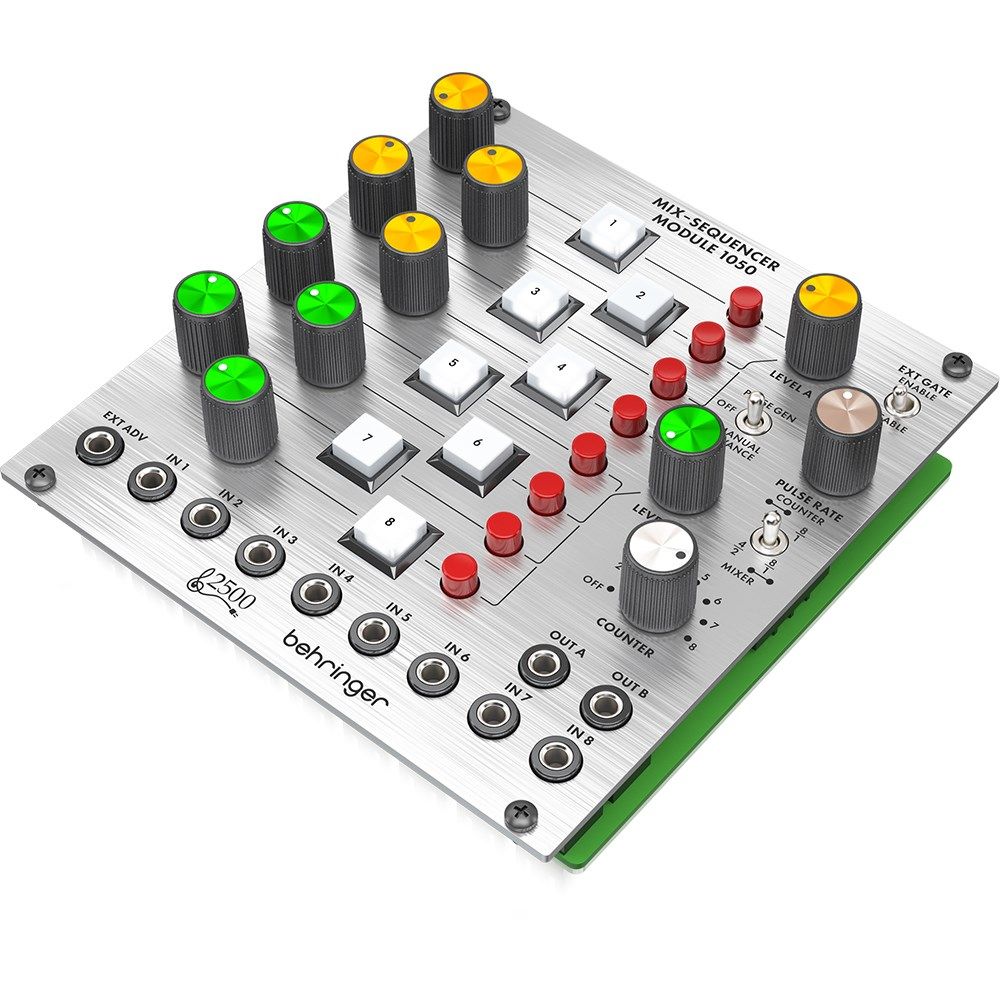

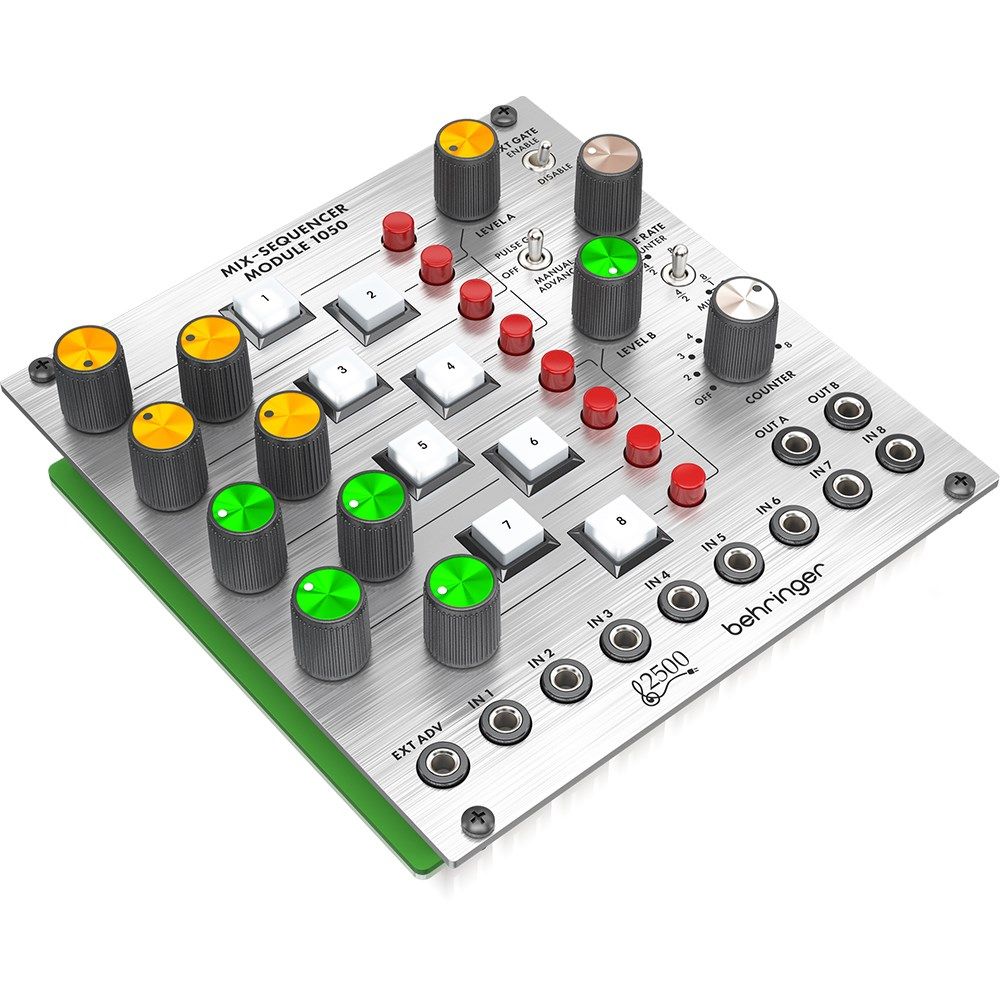

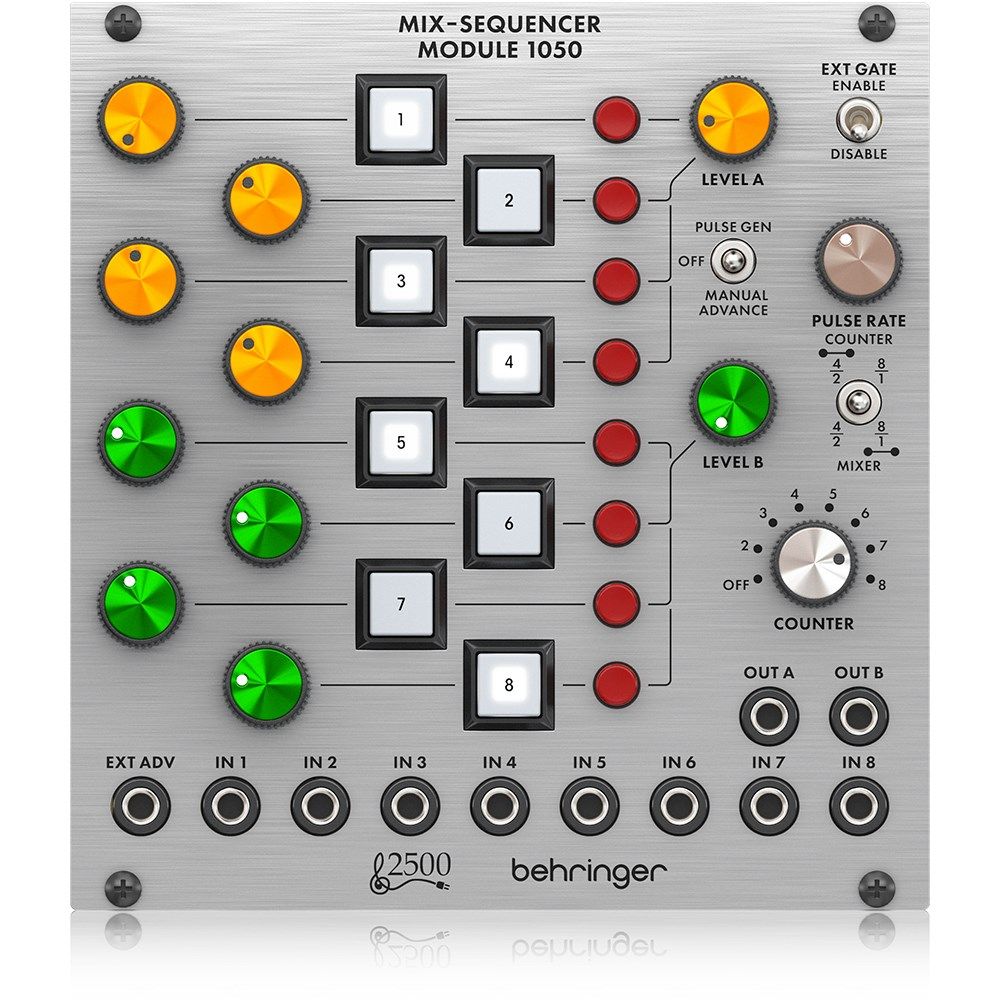

Classic 1050 sequential mixer module from the '70s
Authentic reproduction of the circuitry from the "2500" Series
Features sequential switching for rapid selection of waveforms and signals in a conventional audio mixer format
Dual 4-input mixers with electronically gated inputs and eight-step counter and clock
Each of the 8 audio inputs has its own attenuator and each dual output has a master gain control
Can be used as an 8-input mixer with 2 adjustable outputs or as 2 separate 4-input mixers
Illuminated push buttons select and indicate which inputs are gated
Exclusive-On push buttons turn on a specific channel while turning off all others to preview signals
Clock pulse generator can be switched on/off to sequence the channels in numerical order at a rate set by the Pulse Rate control
A rotary switch controls the step length of the sequence and can set the clock to off
Module can be clocked externally or connected internally and controlled by the 1027 or connected to a 1026 module to generate preset voltages
Eurorack specs: 24HP, 110 mA +12 V, 20 mA -12 V
