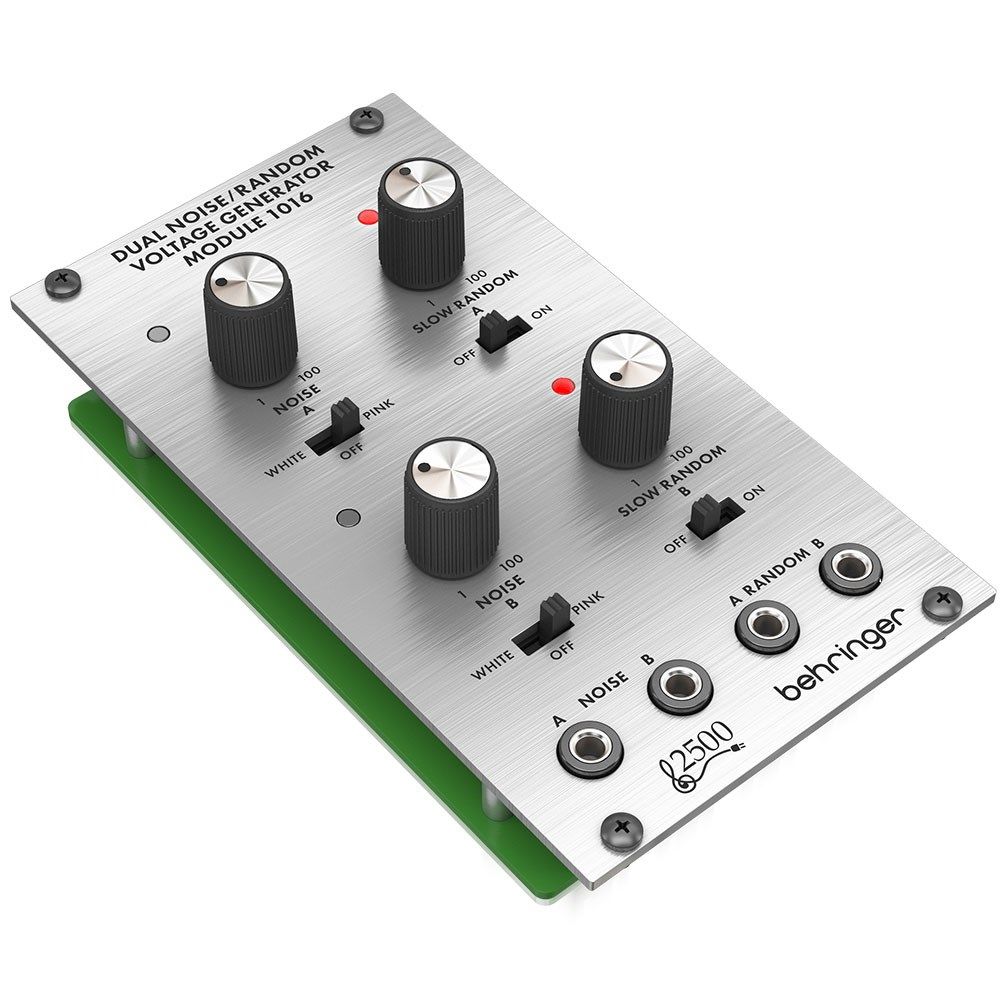

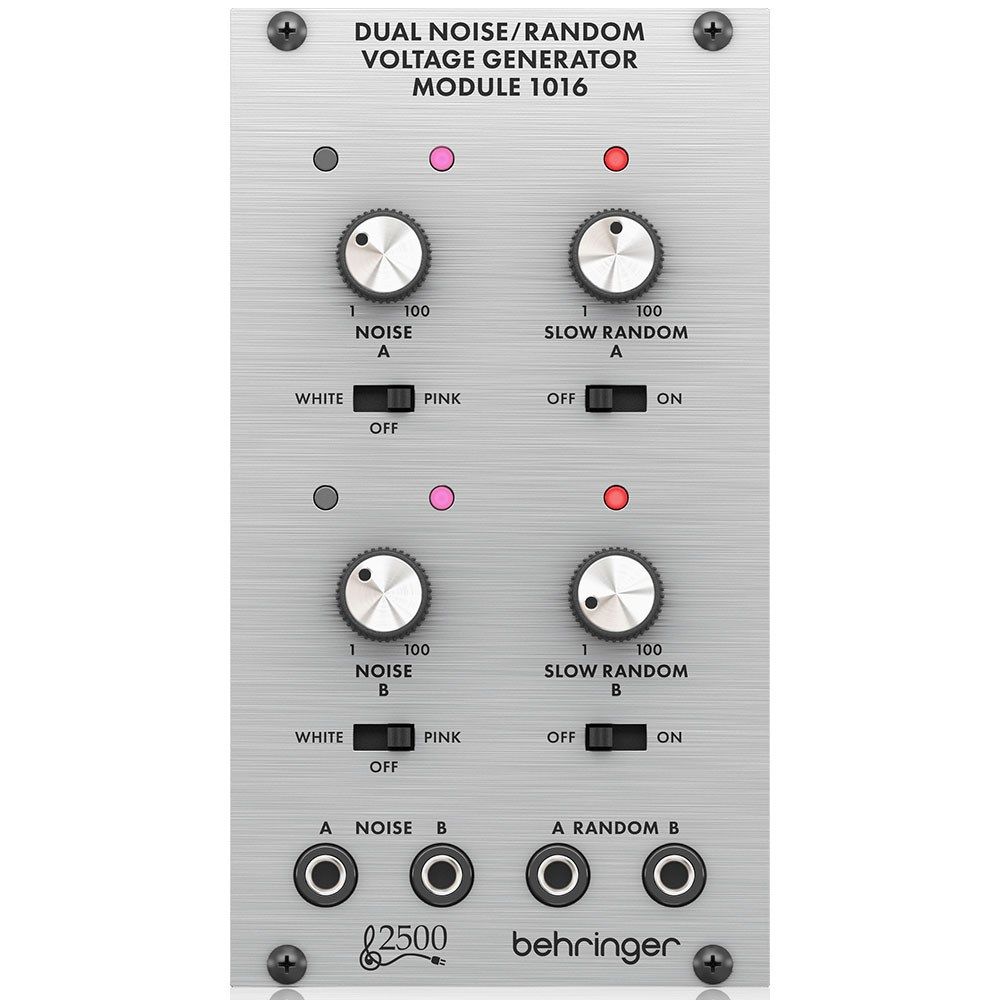

The Behringer 2500 series DUAL NOISE/RANDOM VOLTAGE MODULE 1016 brings authentic 1970s “System 2500” circuitry into your modern Eurorack setup at a price that won’t break the bank. This faithful reproduction captures the classic discrete transistor design of the original while fitting perfectly into standard Eurorack cases, making it an ideal choice for expanding your existing modular rig or starting your synthesis journey.
At its core, the 1016 features dual independent channels of white and pink noise generation, each with dedicated attenuators for precise level control. The intuitive white/pink selector switch comes with colour-coded LEDs for easy visual reference, whilst the slow random voltage generator produces unpredictable CV voltages that can be shaped using the built-in attenuators and controlled via individual on/off switches with LED indicators.
The module’s comprehensive connectivity options ensure maximum flexibility in your patches. Each channel provides separate outputs for white/pink noise as well as dedicated random voltage outputs, with all connections available simultaneously. This allows you to feed multiple noise and CV signals to other modules throughout your system, opening up creative possibilities that only truly independent dual channels can provide.
- Classic 1016 analog dual noise and random voltage generator module from the '70s
- Authentic reproduction of the circuitry from the "2500" Series
- The module consists of 2 identical white/pink noise and Random Voltage generators
- The noise outputs are generated from 2 independent transistor noise sources
- Filtering of the white noise is used to transform into pink noise and finally a slow random voltage
- 2 output attenuators enable the outputs to be reduced in volume
- White or Pink Noise are selectable via slide switch and LED indication
- Random Voltage can be switched on and off via slide switch with LED indication
- White noise is generated from 5 Hz to 20 kHz and Pink noise is filtered to attenuate the highs and boost the low frequencies resulting in equal energy per octave
- Slow random voltages feature peak signal power between 1 Hz and 10 Hz
- Eurorack specs: 14 HP, XX mA +12 V, XX mA -12 V
