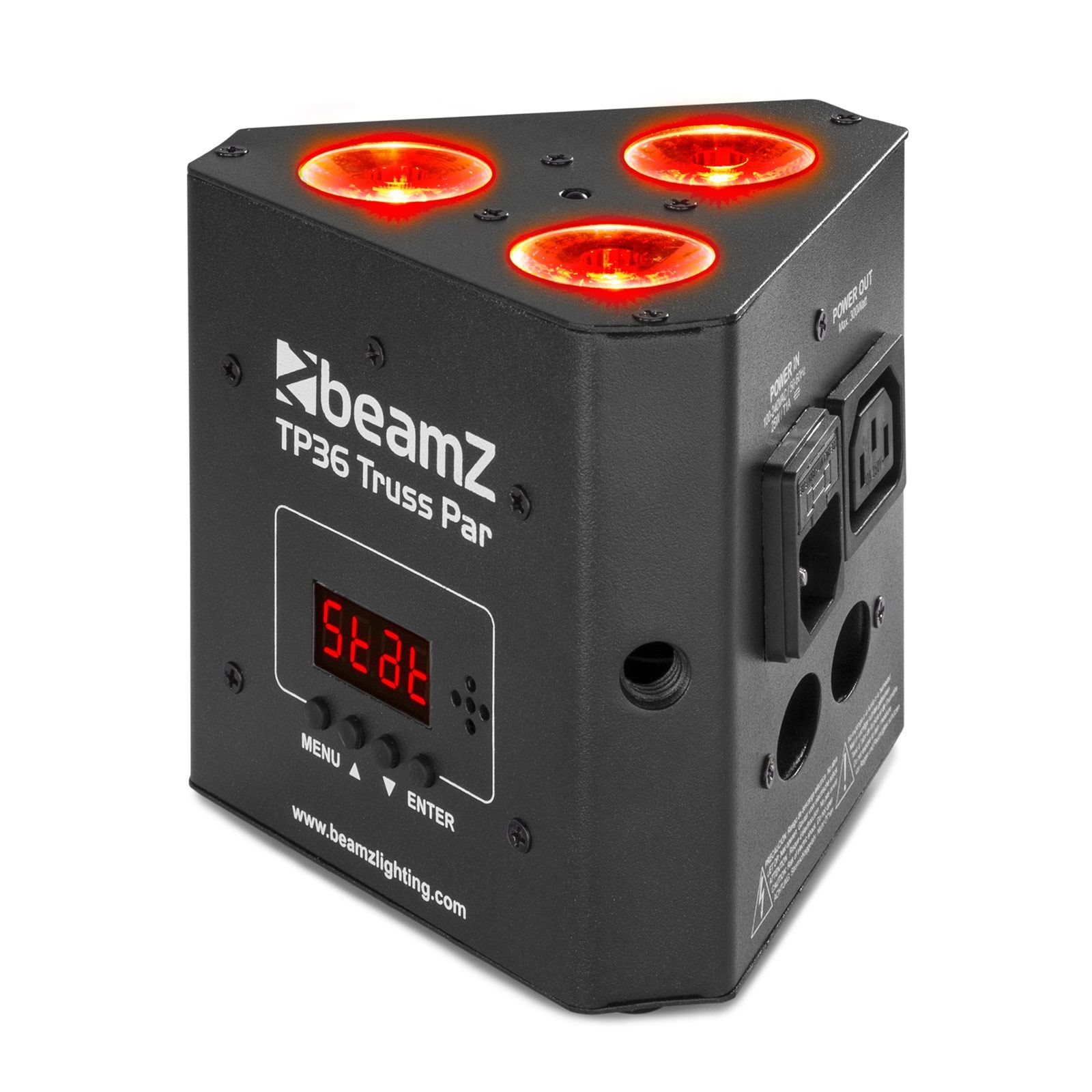

The BeamZ TP36 LED Par Uplighter brings professional‐grade lighting directly into your triangle truss setup with its innovative compact design. This versatile fixture features 3x 4W 4‐in‐1 super bright LEDs that provide RGB+UV colour mixing capabilities, making it an ideal choice for DJs, bands, and production companies looking to illuminate their truss systems. The unit's compact form factor allows it to fit seamlessly inside triangle truss while providing powerful uplighting in a variety of colours.

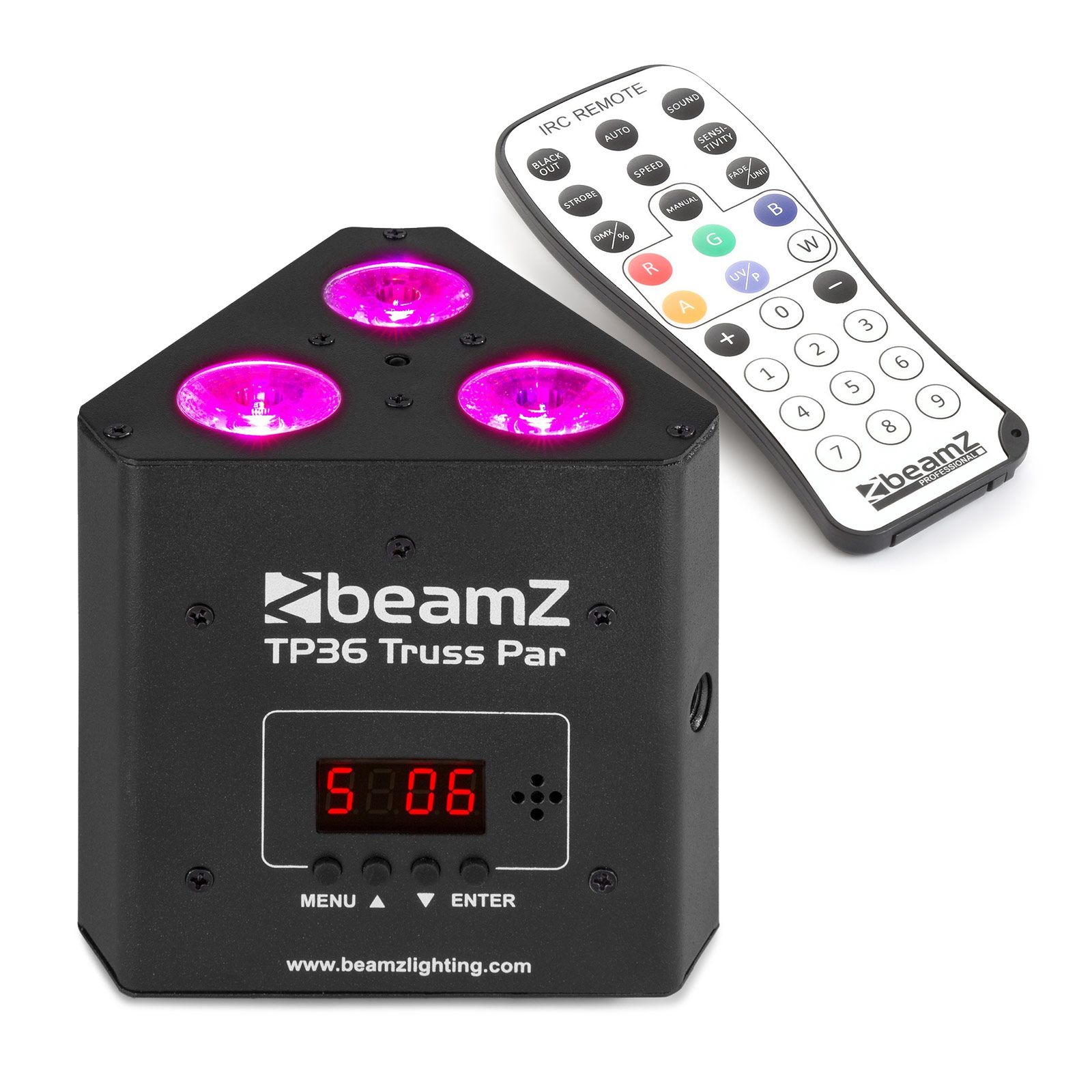

Operating the TP36 is straightforward thanks to its comprehensive control options and user‐friendly design. The fixture includes pre‐programmed shows with adjustable speed settings, plus a sound activation mode featuring adjustable sensitivity that syncs the lights to your music's beat. An LED control panel simplifies on‐the‐spot adjustments, while the included IR remote control provides convenient wireless operation. For those without prior lighting experience, the stand‐alone modes require no additional equipment to create impressive light shows.

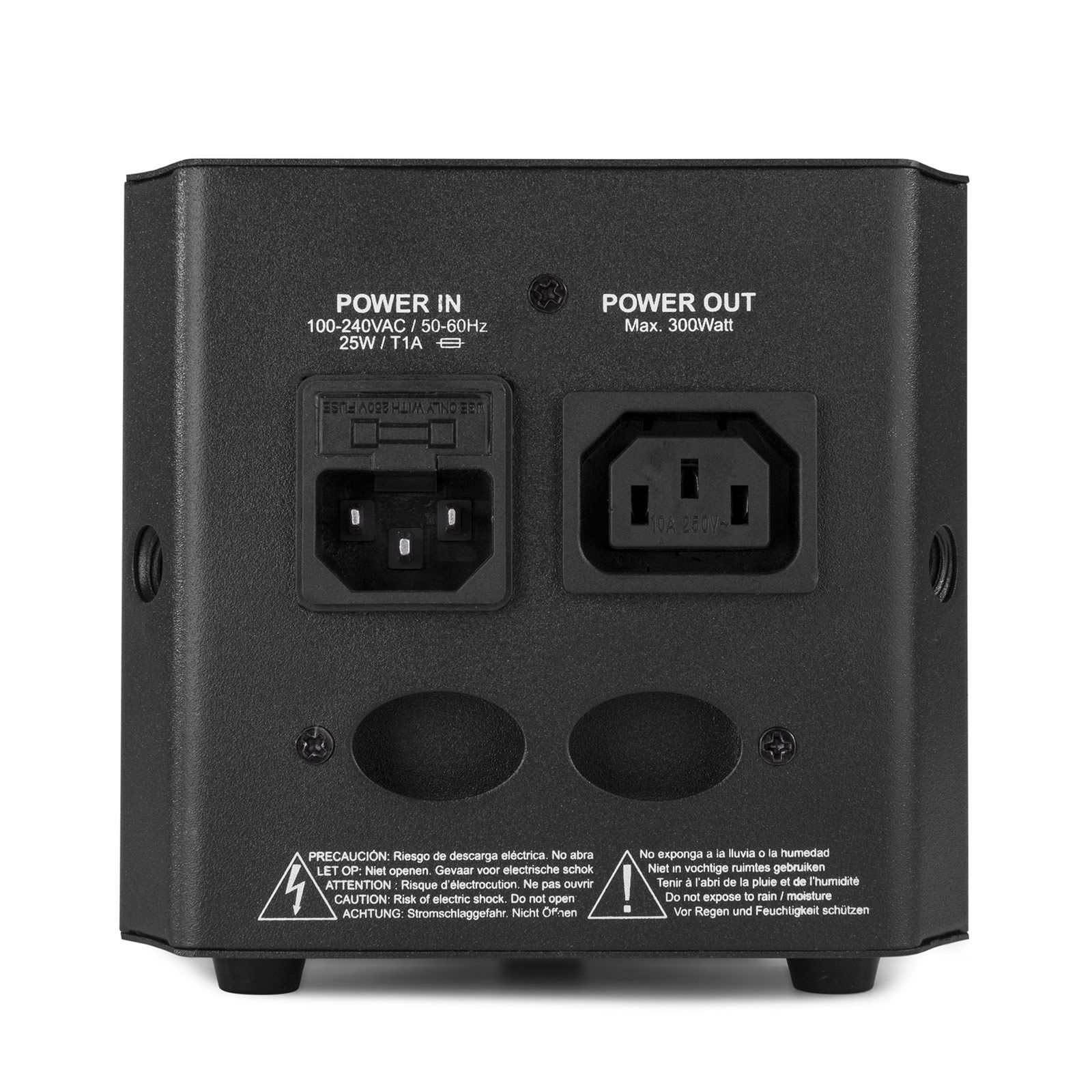

Advanced users will appreciate the TP36's professional DMX capabilities, offering 3, 4‐1, 4, and 8 channel options for precise control via external DMX controllers. The master/slave function enables synchronised shows across multiple connected units, while the 0‐100% electronic dimmer provides smooth brightness control. Additional features include DMX in/output via 3‐pin connections and IEC‐connector input/output for reliable power distribution throughout your lighting setup.
- Beam angle: 19 degree
- Field angle: 37 degree
- Number of colours: 4
- Colours: RGB-UV
- Number of LEDs: 3 x 4W
- Flash rate per second: 1 – 20Hz
- DMX channels: 3, 4-1, 4 or 8

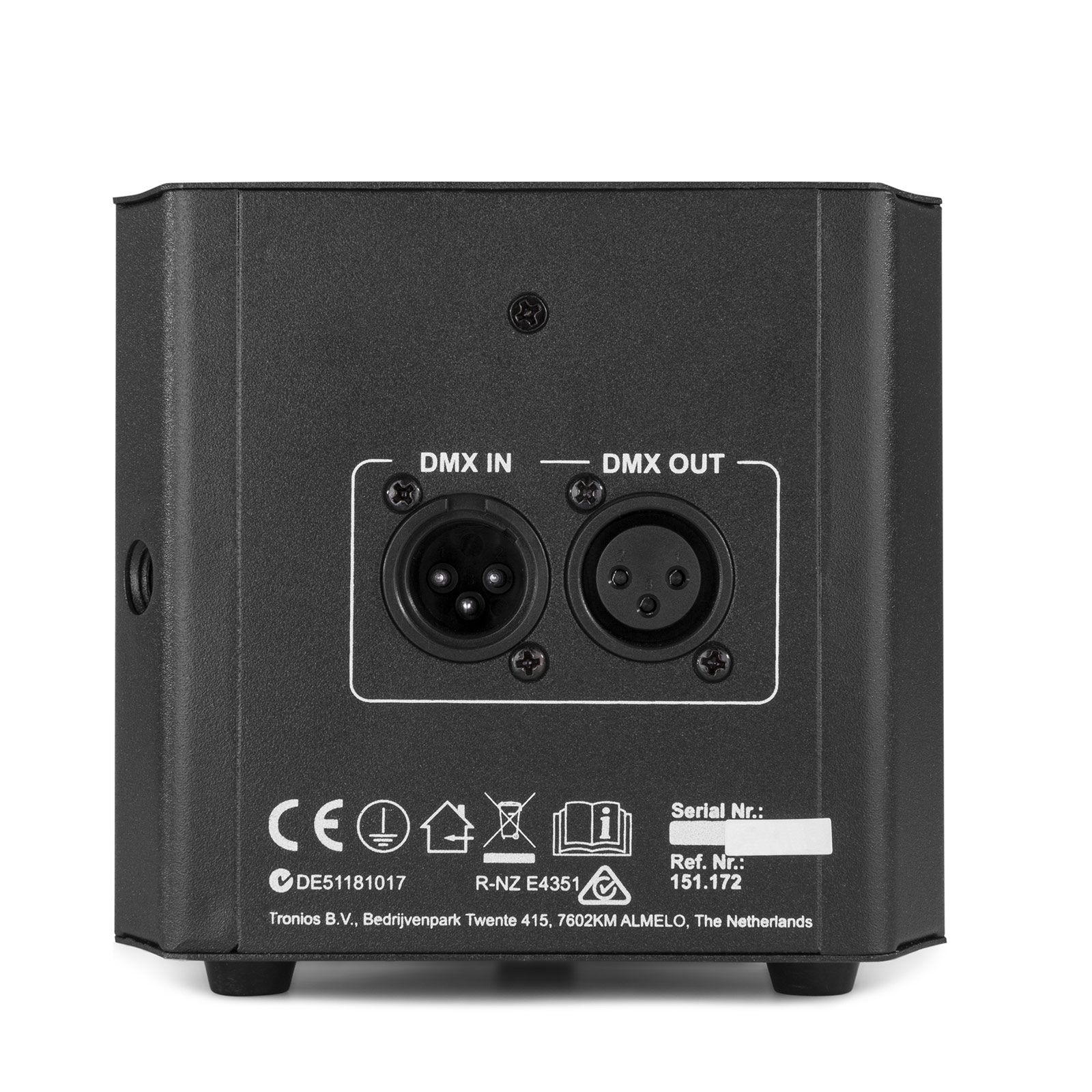

- DMX connection: 3-pin XLR
- Mode: DMX, Auto, Sound active, Master-Slave and IRC
- Power supply: 100-240VAC / 50-60Hz
- Consumption: 25W
- Display: LED
- Dimensions: 122 x 108 x 117mm
- Weight: 0.7kg
