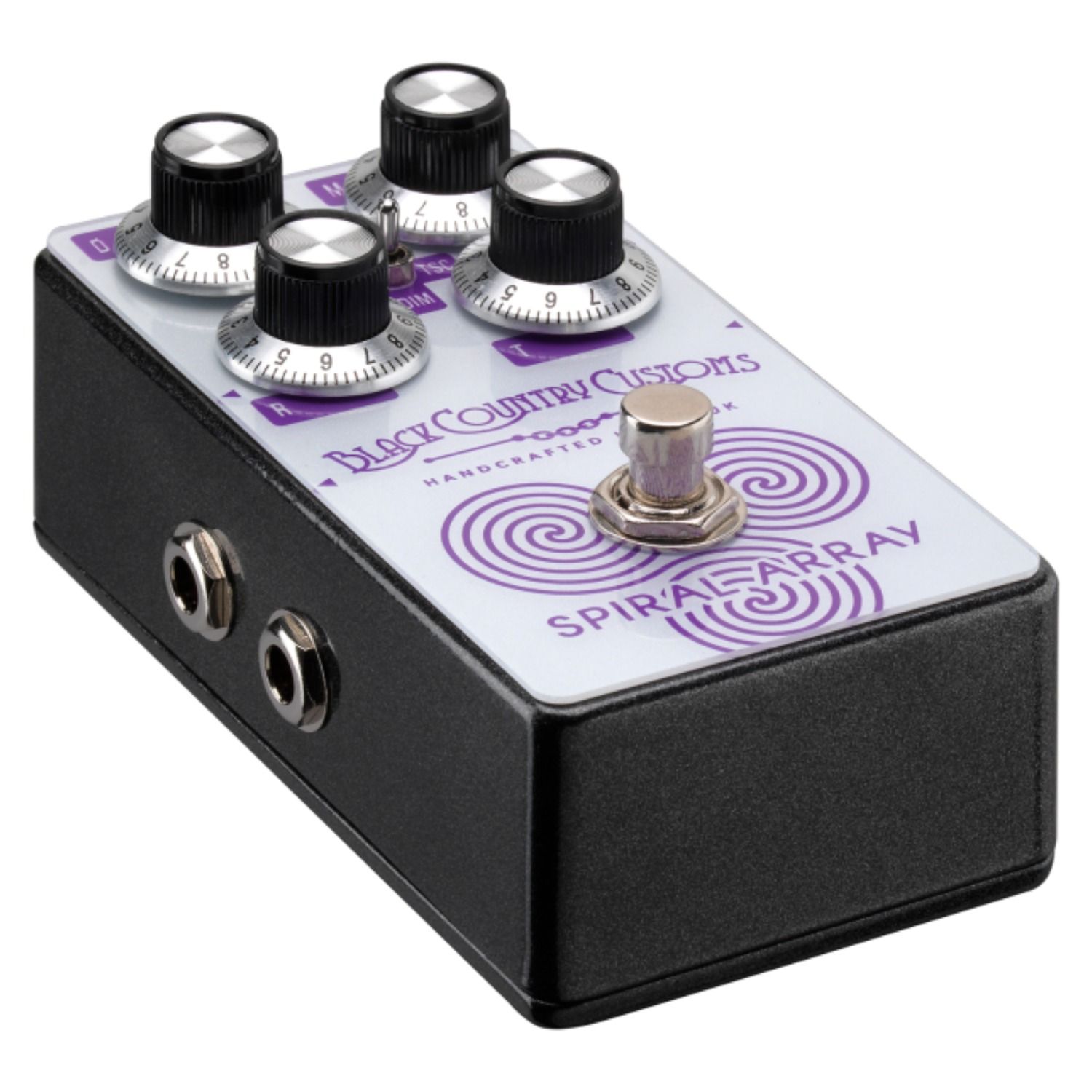

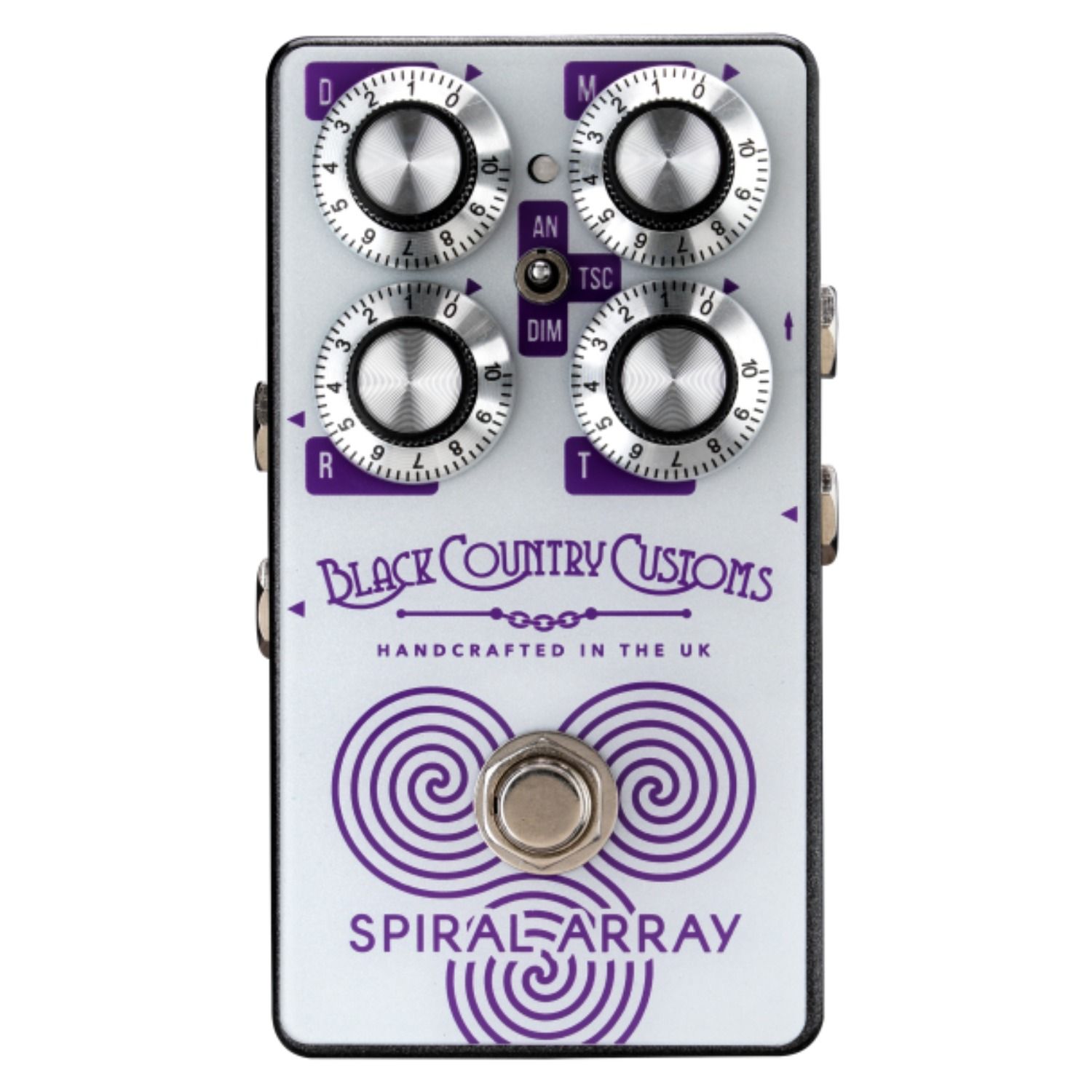

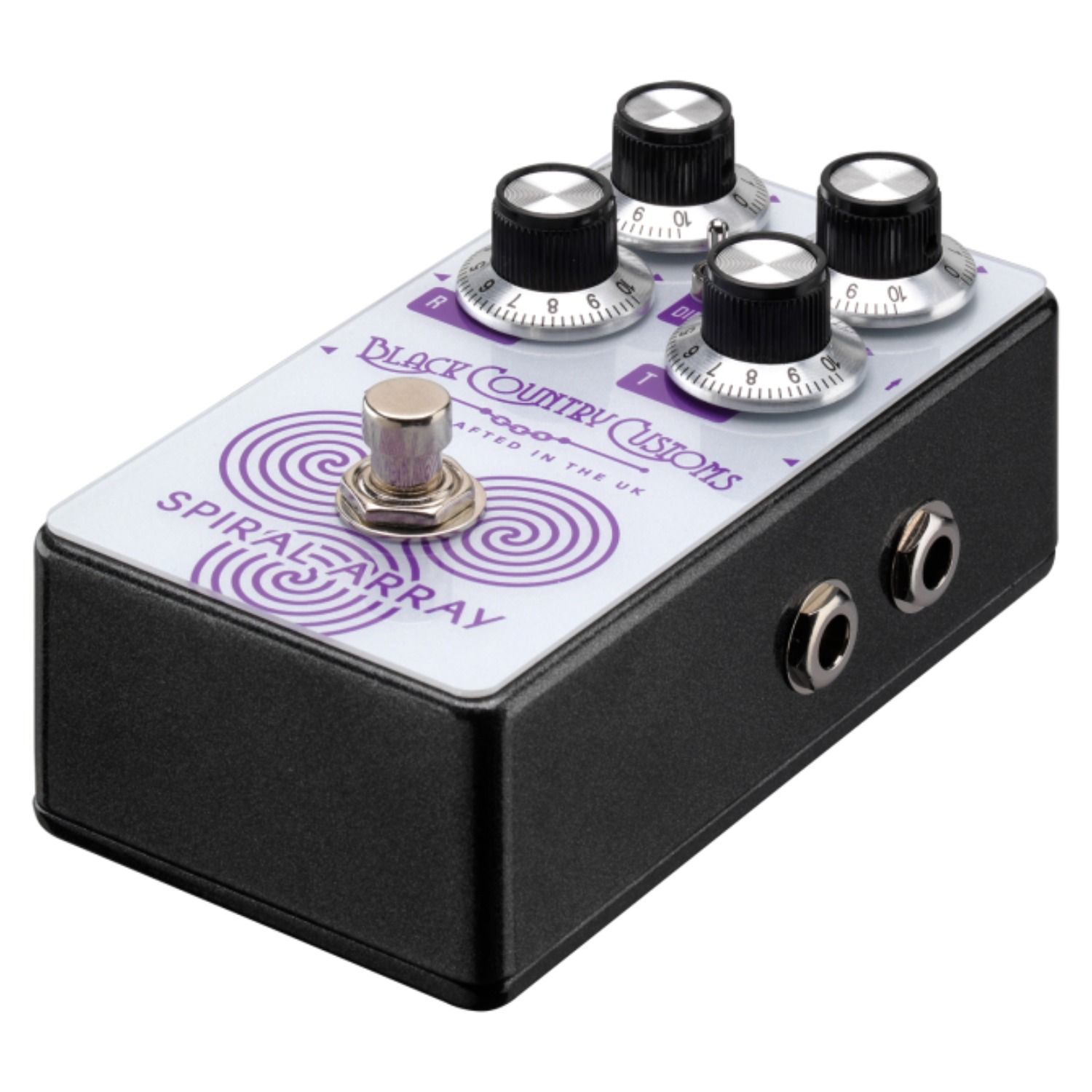

BCC SPIRAL ARRAY CHORUS PEDAL

The BCC Spiral Array Chorus Pedal is an analogue modulation stompbox designed to deliver rich, three–dimensional chorus textures with an emphasis on spatial depth and tonal complexity. Built around a bucket–brigade device circuit, it generates lush modulation that ranges from subtle shimmer to dense, swirling movement. The Spiral Array's defining characteristic is its multi–stage delay line architecture, which creates a more expansive stereo field than standard single–voice chorus designs. Controls include Rate, Depth, Mix, and a dedicated Spread parameter for adjusting the width of the modulated signal.

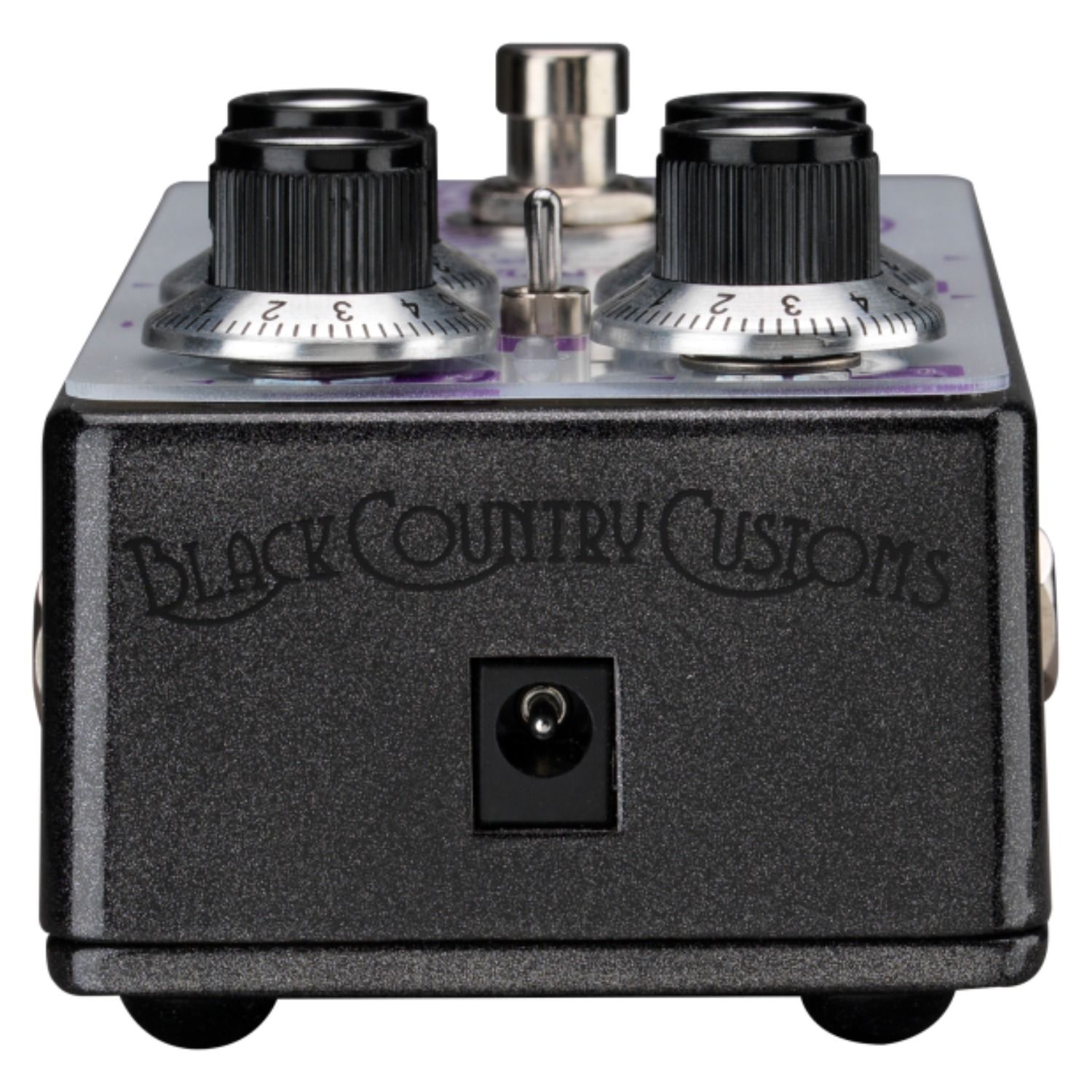

The pedal offers true bypass switching to preserve signal integrity when disengaged, and runs on standard 9V DC power with a 2.1mm centre–negative input. Its compact enclosure measures approximately 121mm x 66mm, making it compatible with most pedalboard configurations without consuming excessive real estate. The Spread control adjusts the phase relationship between the modulated voices, allowing players to dial in anything from tight doubling effects to wide, chorus–ensemble sounds. Stereo output jacks enable full use of the spatial processing, though the pedal functions equally well in mono applications.

Features

• Analogue bucket–brigade device circuit for warm, organic chorus tones
• Multi–stage delay line architecture for enhanced spatial depth
• Rate, Depth, Mix, and Spread controls for tonal shaping
• Stereo output configuration for wide soundstage and dimensional imaging
• True bypass switching maintains signal path integrity when off
• 9V DC centre–negative power input for standard pedalboard supplies
• Compact 121mm x 66mm enclosure fits most pedalboard layouts
• Mono or stereo operation depending on output routing preference
