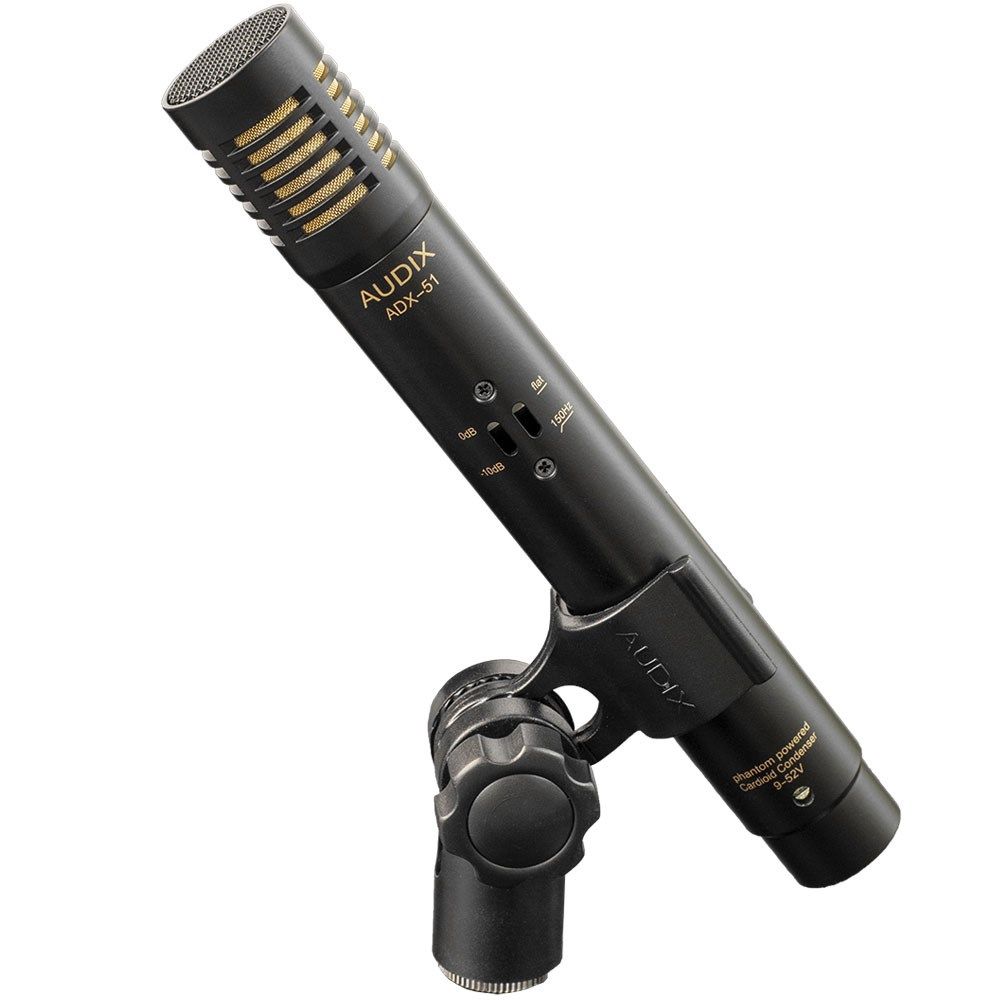

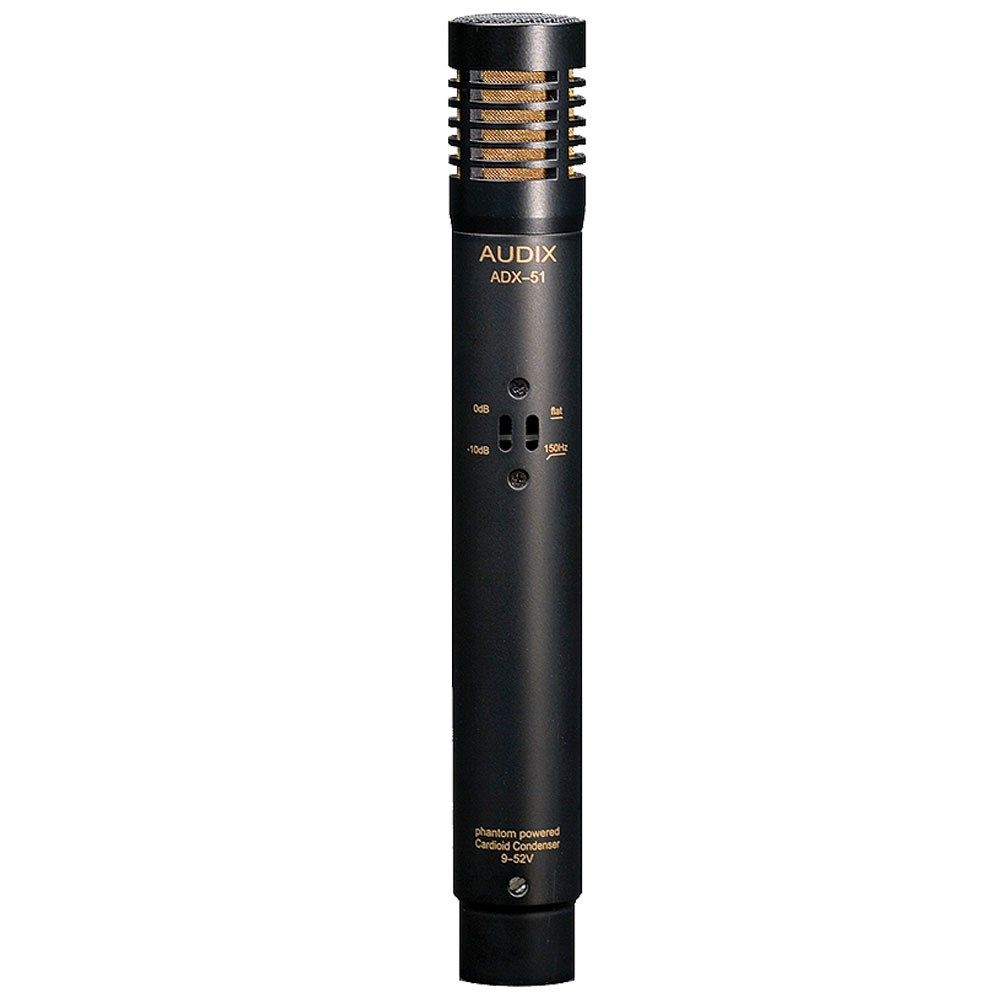

The ADX51 stands as a testament to American engineering excellence, offering professional musicians and audio engineers a pre-polarised condenser microphone that excels across stage, studio, and broadcast environments. This versatile instrument microphone combines clear, accurate response with the flexibility to handle both close and distance miking techniques for a diverse range of acoustic instruments.
At the heart of the ADX51's performance lies its uniformly controlled cardioid polar pattern, specifically engineered to capture the natural acoustics of your target instrument whilst effectively isolating it from surrounding stage noise. The microphone features an impressive frequency range spanning 40 Hz to 18 kHz, complemented by a 14 mm gold vapour diaphragm that ensures pristine audio capture.
Practical functionality meets professional requirements with the inclusion of a -10 dB pad and bass roll-off filter positioned at 150 Hz, providing essential control options for various recording scenarios. The ADX51's construction reflects its professional pedigree, featuring a precision-machined brass body with durable black E-coat finish, steel mesh grille, and gold-plated XLR connector for reliable connectivity.
Built to exacting standards with tight manufacturing tolerances, this cardioid studio condenser microphone offers exceptional positioning ease and long-term durability. Proudly designed, assembled, and tested by Audix in the USA, the ADX51 represents quality craftsmanship you can depend on for critical audio applications.
- Transducer Type: Pre-Polarized Condenser
- Frequency Response: 40 Hz – 18 kHz
- Polar Pattern: Cardioid
- Output Impedance: 100 ohms
- Sensitivity: 17 mV / Pa @ 1k
- Capsule Technology: Black Electret GV Diaphragm
- Off-Axis Rejection: >15 dB
- Maximum SPL: ?132 dB
- Power Requirements: 9-52 V Phantom
- Connector: 3-pin XLRm
- Polarity: Positive pressure on diaphragm produces positive voltage on pin 2 relative to pin 3 of output XLR connector
- Materials/Finish: Brass/Black Finish
- Weight: 184 g/6.5 oz
- Length: 160 mm/6.3 in

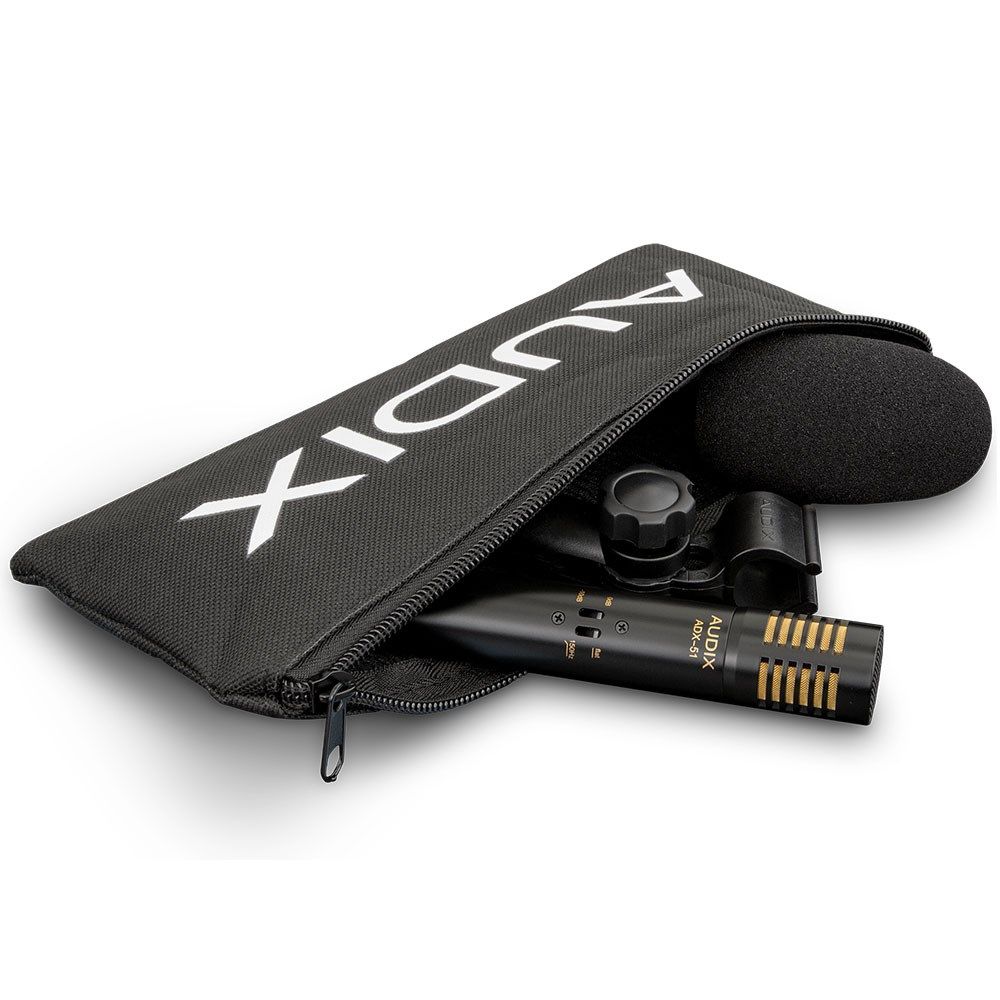

- Includes ADX51 Studio Condenser Microphone, DCLIP Microphone Clip, WS81C External Windscreen and P1 Carrying Pouch
