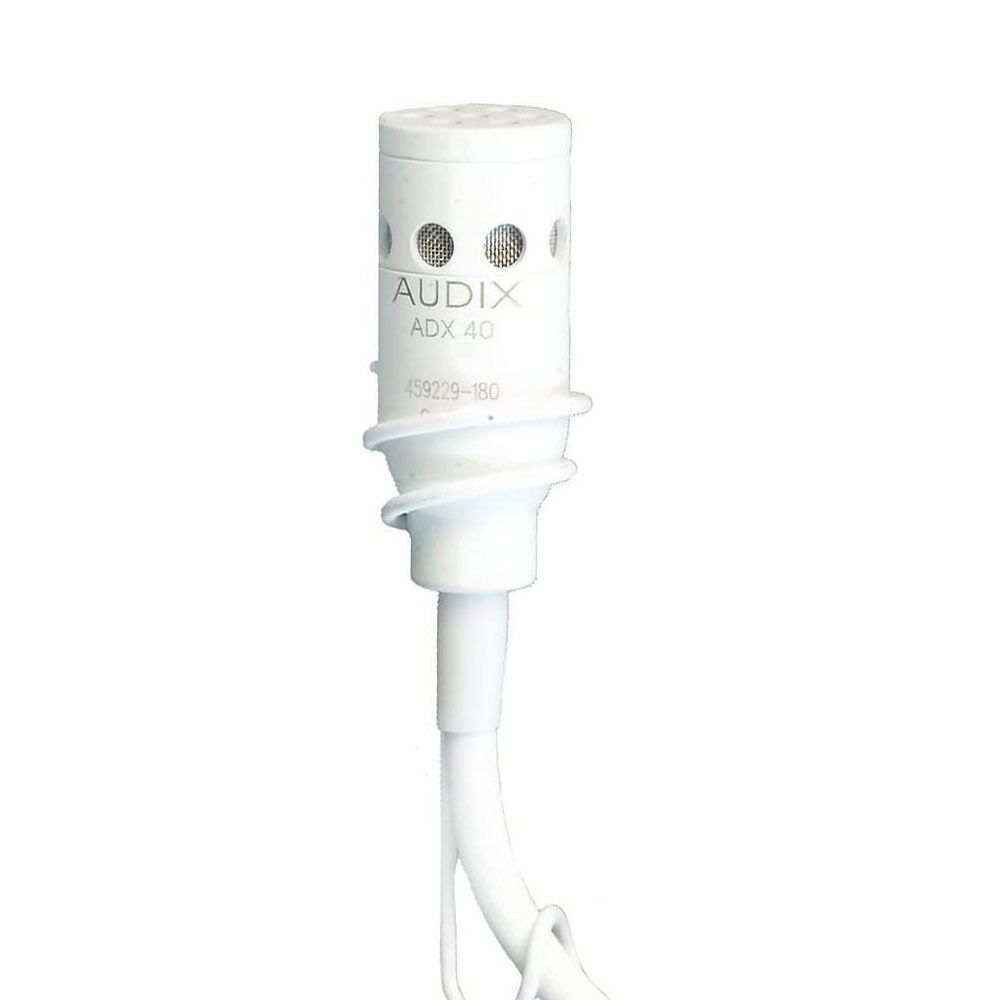

Capture pristine audio from above with the ADX40, a compact condenser microphone engineered specifically for overhead positioning in demanding performance environments. This miniaturised microphone excels in applications ranging from group vocals and choir recordings to theatrical productions and ambient room capture, offering professional-grade audio solutions where traditional microphone placement isn't practical.
The ADX40 features a uniformly controlled cardioid polar pattern that effectively isolates your target audio source from surrounding vocals and instruments on stage. For applications requiring even tighter pickup control, a hypercardioid polar pattern variant is also available. The microphone's impressive frequency response spans 40 Hz to 20 kHz, ensuring natural sound reproduction with exceptional clarity across the entire audio spectrum.

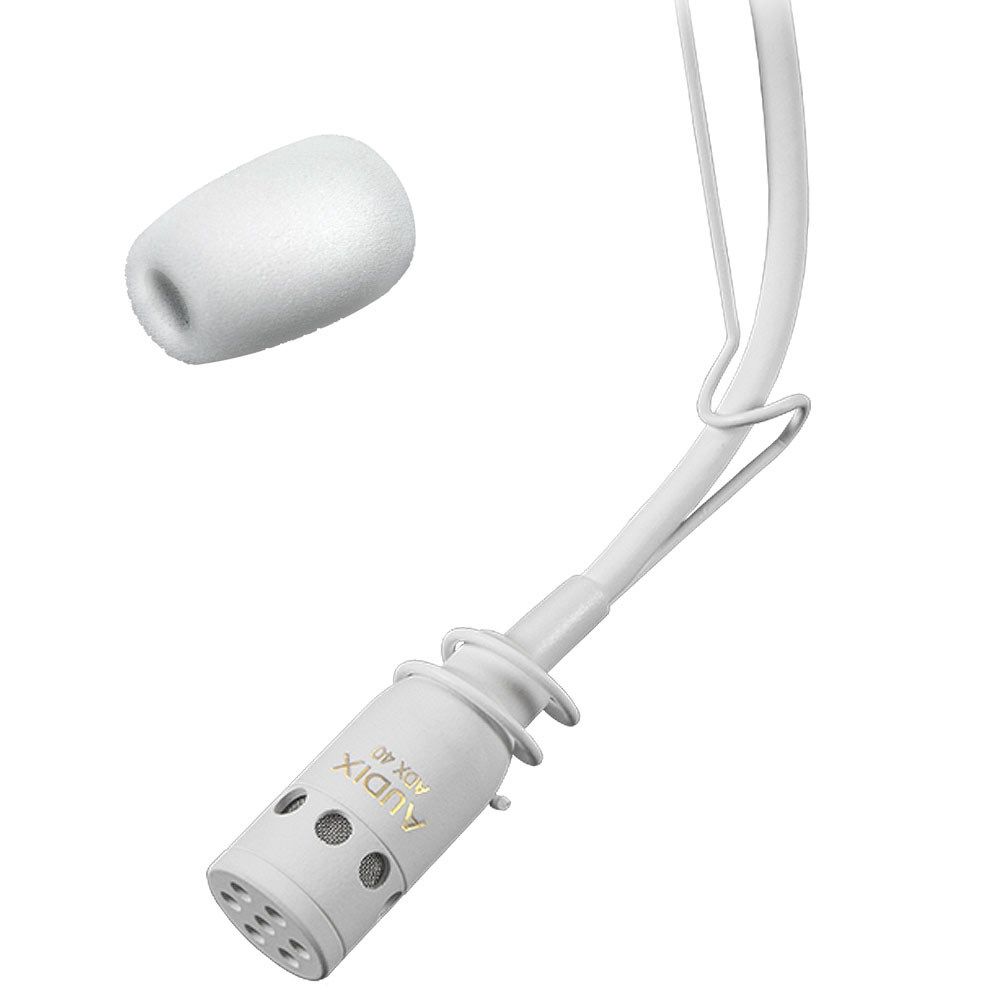

Each ADX40 comes complete with a 30-foot shielded cable permanently attached, plus an external windscreen, positioning wire hanger, and phantom power adaptor for immediate deployment. The microphone operates on 9-52V phantom power, making it compatible with most professional audio equipment and mixing consoles.
- Transducer Type: Condenser
- Frequency Response: 40 Hz – 20 kHz
- Polar Pattern: Cardioid Hypercardioid (ADX40HC)
- Output Impedance: 250 ohms balanced
- Sensitivity: 5 mV / Pa @ 1k
- Equivalent Noise Level: 29 dB (A weighted)
- Signal to Noise Ratio: 65 dB
- Maximum SPL: ?130 dB
- Power Requirements: 9 – 52 Volts phantom
- Cable/Connector: Shielded 30’ terminating to a miniature 3 pin Female XLR connector
- Polarity: Positive pressure on diaphragm produces positive voltage on pin 2 relative to pin 3
- Materials/Finish: Brass/Black E-Coat
- Weight: 110g/4oz
- Length: 30mm/1.2in
- Includes ADX40 Miniature Overhead Condenser Microphone, APS910 Cylindrical Preamplifier, HANGER40 Wire Hanger, P1 Carrying Pouch, 30? Attached Shielded Cable and WS20 External Windscreen
