Analog Specifications

  • Gain: Nominally unity with source device

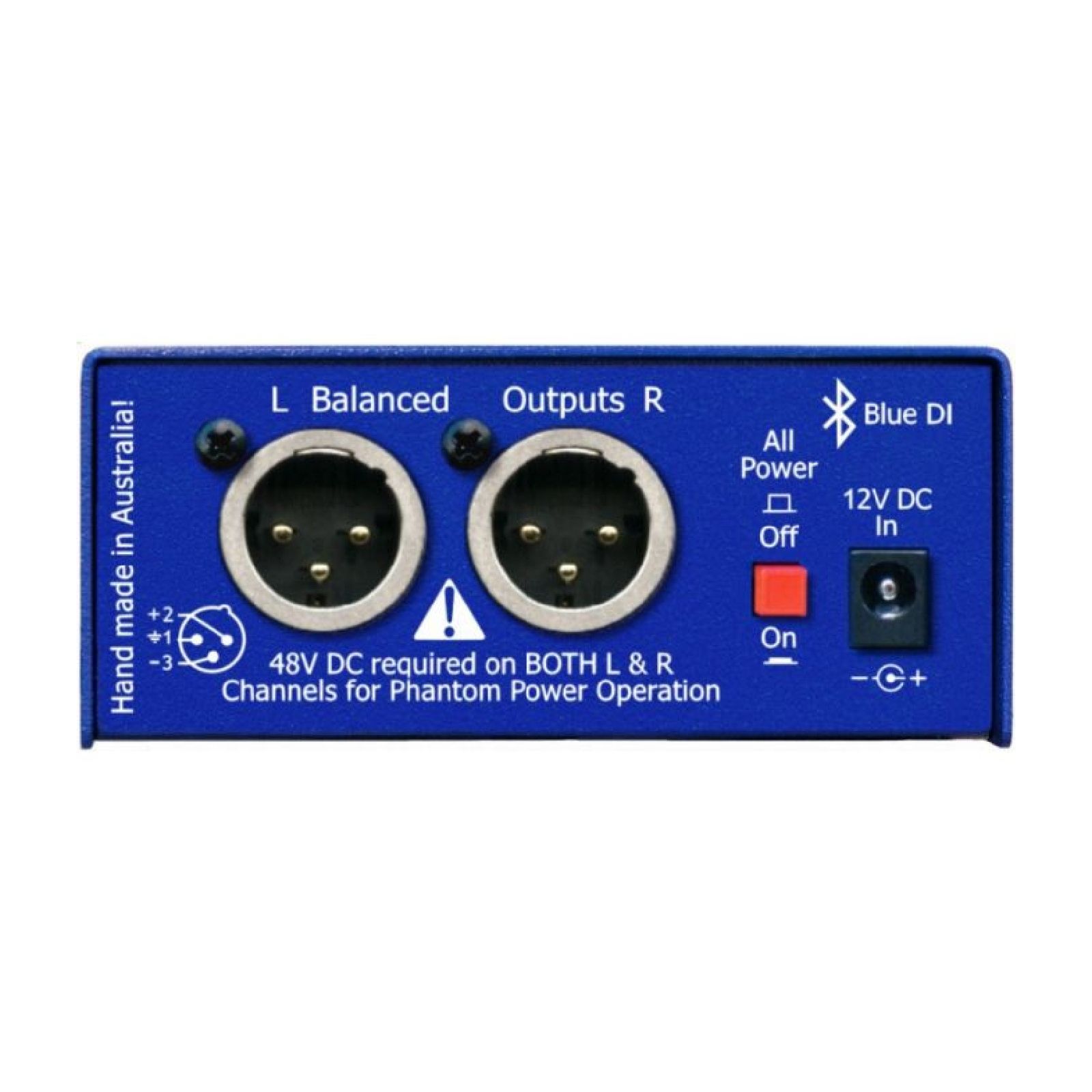

  • Outputs:
  • Stereo Balanced - 200 Ohms output impedance
  • Pin 1 Ground
  • Pin 2 + Signal
  • Pin 3 – Signal
  • Power Requirements:
  • +48VDC Phantom Power - Please Note that both Left and Right XLR outputs must have 48 VDC Phantom applied or,
  • Use the +12VDC socket for an External DC power supply

Receiver Specifications

  • Range: Approx 12 metres

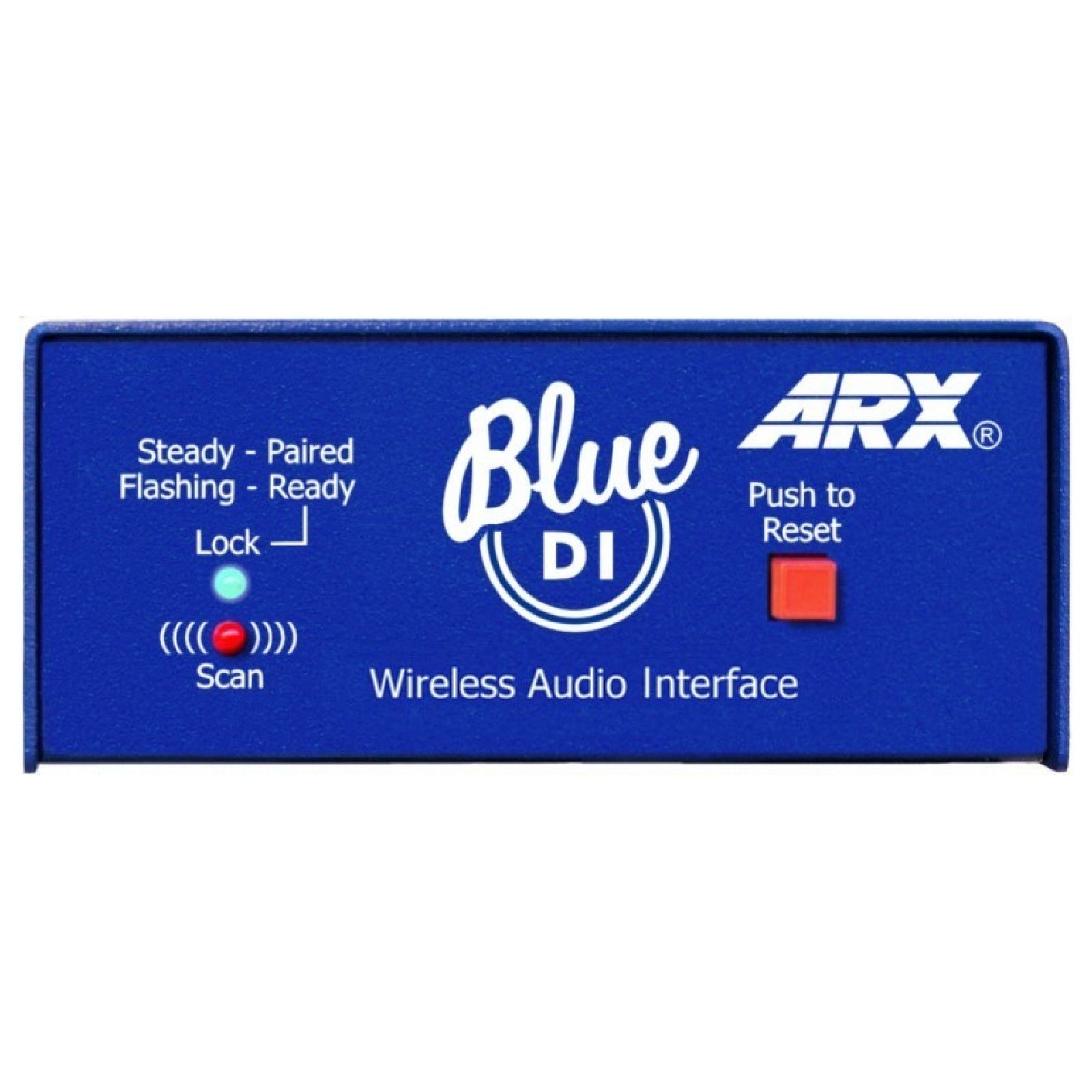

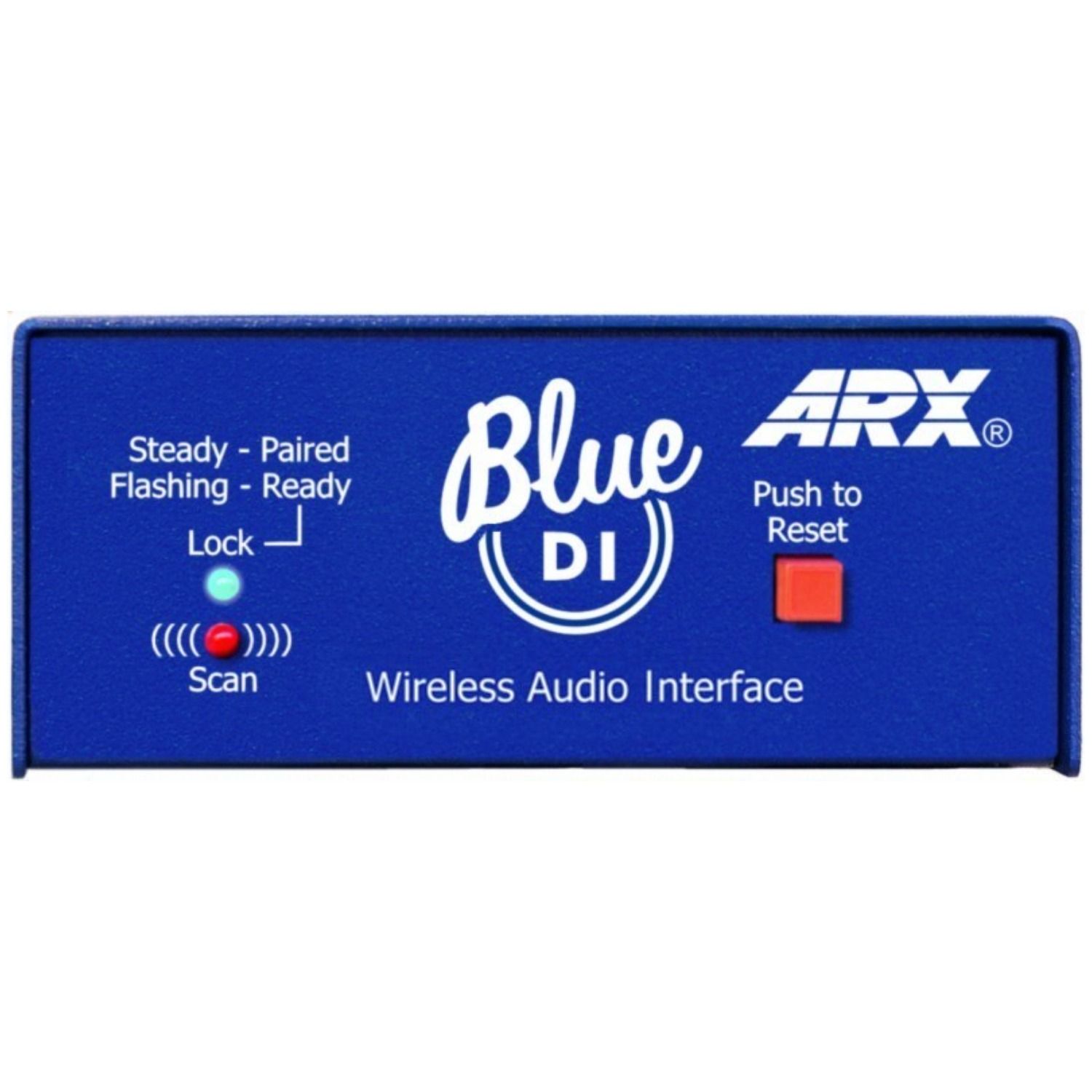

  • LED Indicators:
  • Scan Red LED: Red LED Flashes
  • Lock Blue LED: Matching/Pairing: Blue LED Flashes / Matched/Paired: Blue LED On
  • Frequency: 2.402 - 2.480 GHz
  • Sensitivity: -90dBM @0.1% BER
  • Codec: 24 bit / 44.1kHz / 48kHz
  • Construction: All-steel powder-coated chassis, fibreglass PCB
