Expand your studio's capabilities without breaking the bank or overwhelming your setup with the AudioFuse X8 series. These compact units solve the common problem of needing more audio channels by adding 8 additional inputs or outputs to your existing interface, giving you the flexibility to handle larger projects and more complex routing scenarios.
The AudioFuse X8 input expander features premium ADAT converters that maintain crystal-clear recording quality across all 8 channels. Meanwhile, the AudioFuse X8 OUT provides 8 high-quality line outputs with latest-generation DA converters supporting up to 96 kHz sampling rates, perfect for sending audio to outboard gear, multiple monitor speakers, or controlling an array of synthesisers through DC-coupled outputs.

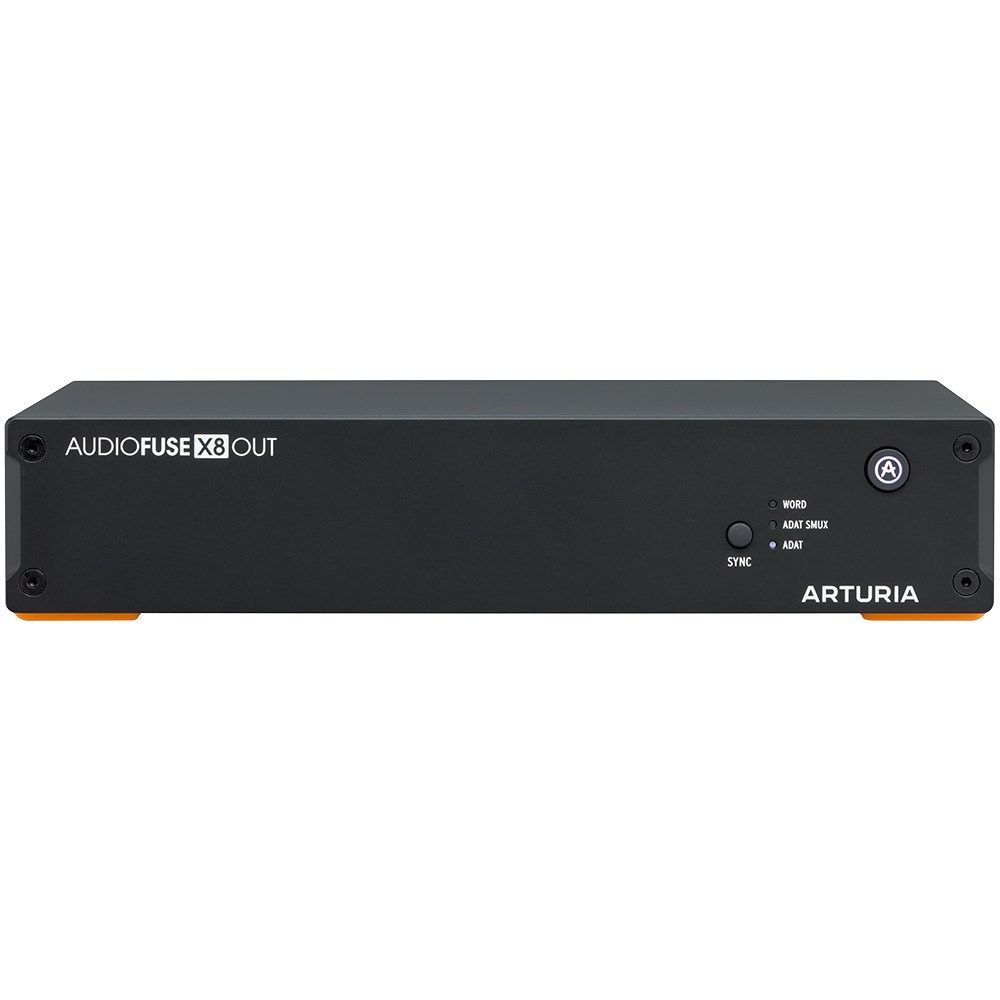

Both units feature intuitive front-panel controls and colourful VU metres that make audio adjustment straightforward and visual. Their compact design and versatile rack mounting options integrate seamlessly into existing studio setups, ensuring your workspace remains organised while significantly expanding your connectivity options for any project that comes your way.
- Audio interface expander
- 8 high quality analog outputs [1/4" TRS]
- Output impedance: 240Ω
- Maximum input level: +24dBu
- Frequency response 20Hz to 20kHz: +/-0.04dB (min gain)
- Dynamic range: 120.5dB typical (A-weighted)
- THD+N @ 1kHz: -106dB typical (un-weighted)
- Latest generation DA converters up to 96 kHz

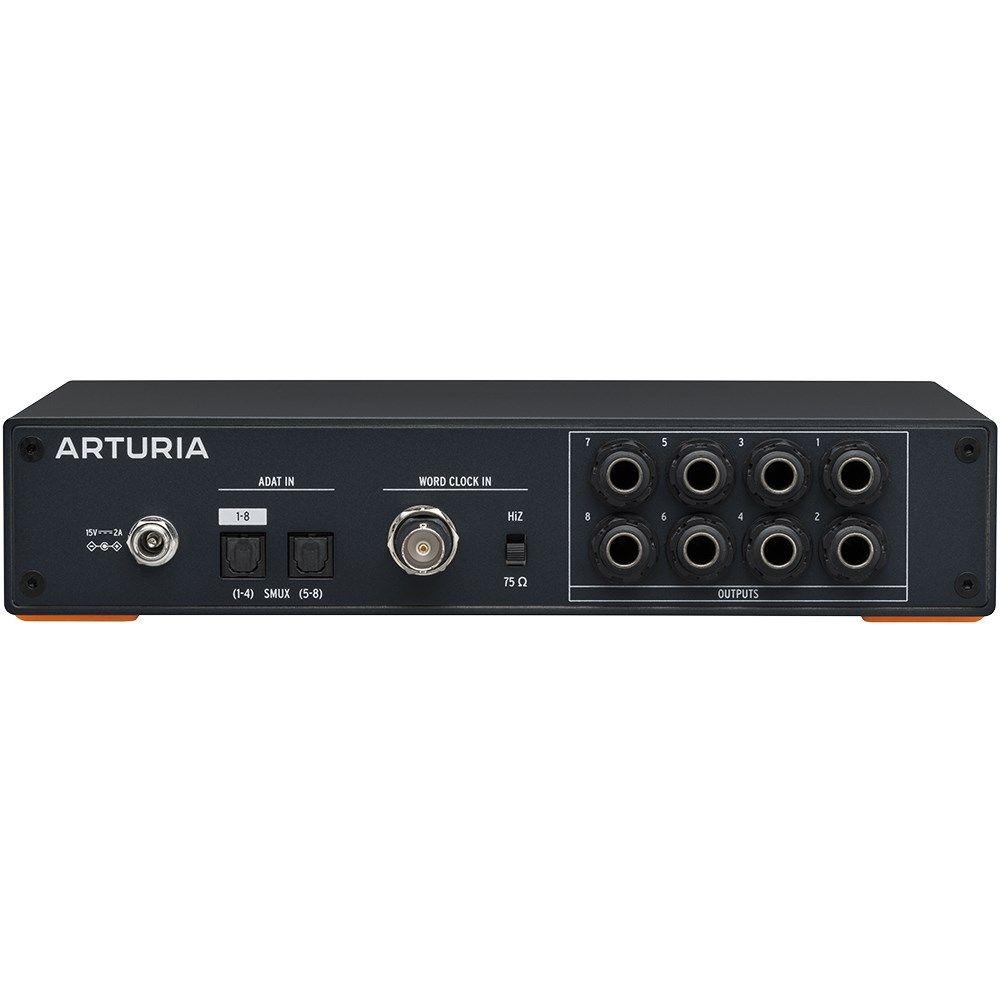

- ADAT in
- BNC Word clock in
- Robust half 1-U aluminium rack chassis
- Removable rack ears included for flexible installation
- AudioFuse creative suite included to explore and alter your sound
