Expand your studio's recording capacity without breaking the bank or overwhelming your setup with the AudioFuse X8 series. These compact ADAT expansion units provide a cost-effective solution for adding premium audio channels to your existing interface, giving you the flexibility to handle larger projects and accommodate more instruments and outboard gear in your studio.
The AudioFuse X8 IN specifically focuses on input expansion, offering 8 high-quality line-level inputs that connect seamlessly to any ADAT-compatible audio interface. Built with the latest generation AD converters supporting up to 96 kHz sampling rates, this unit ensures your recordings maintain exceptional fidelity while providing the additional input capacity your growing studio demands.
Practical design elements make operation straightforward, with front-panel controls and vibrant VU metres allowing for easy audio adjustment and monitoring. The compact form factor and versatile rack mounting options mean the AudioFuse X8 integrates perfectly into your current setup, ensuring your studio remains ready to handle any project that comes through the door.
- Audio interface expander
- 8 high quality analog inputs [1/4" TRS]
- Input impedance: 20kΩ
- Maximum input level: +24dBu
- Frequency response 20Hz to 20kHz: +/-0.06dB (min gain)
- Dynamic range: 119dB typical (A-weighted)
- THD+N @ 1kHz: -112dB typical (un-weighted)
- Latest generation AD converters up to 96 kHz

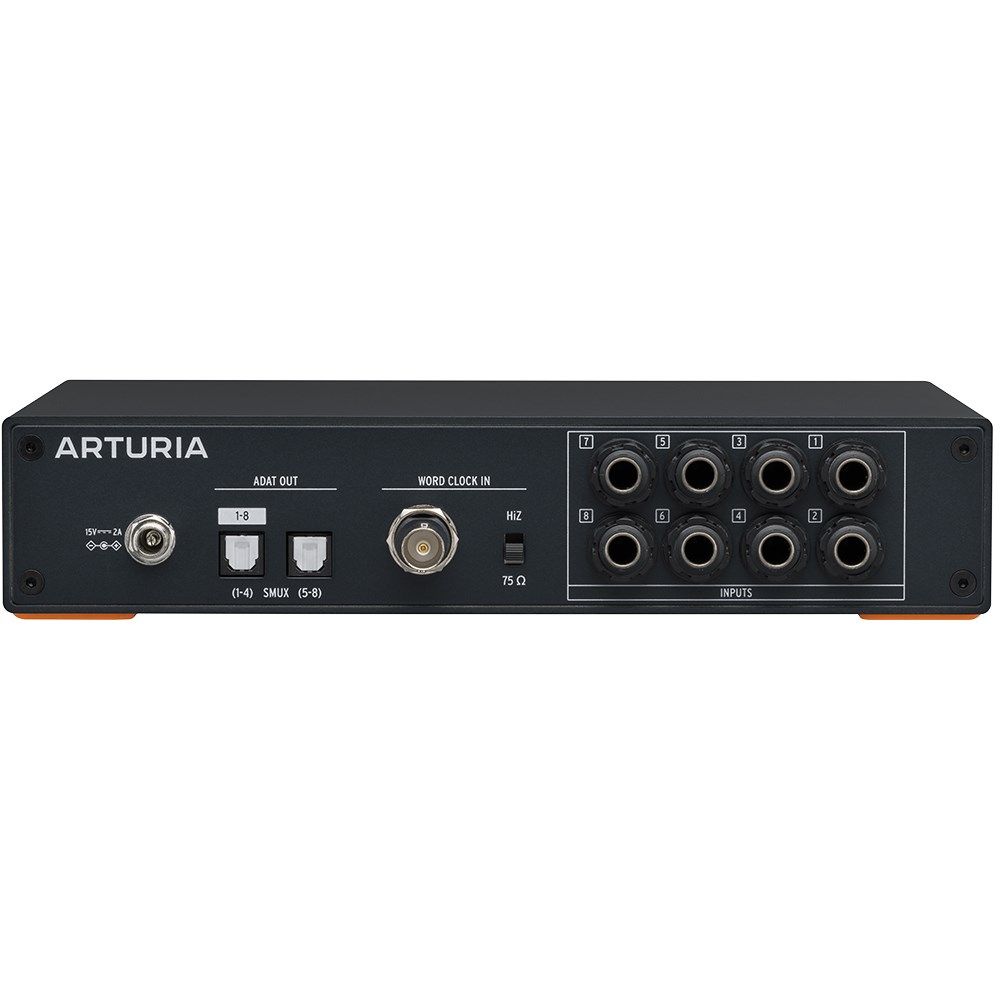

- ADAT out
- BNC Word clock in

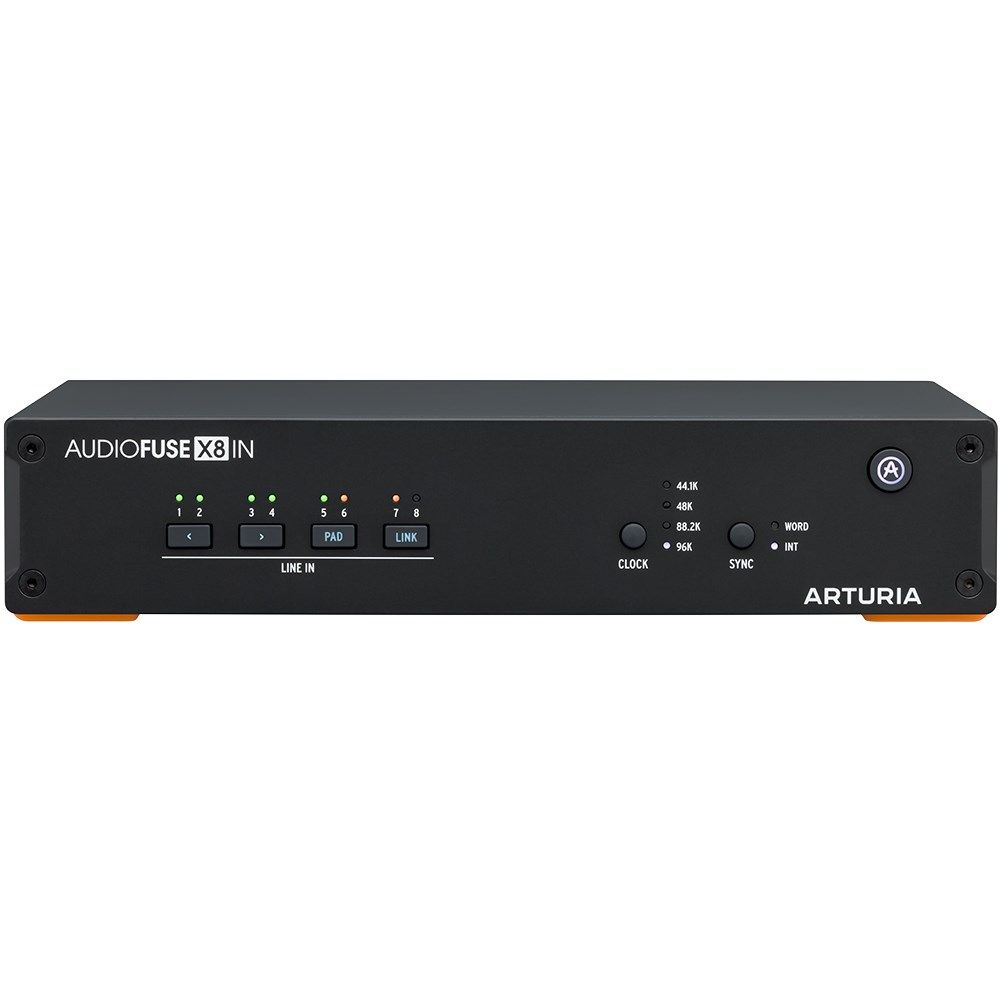

- VU meter to monitor your sound in real time
- Robust half 1-U aluminium rack chassis
- Removable rack ears included for flexible installation
- AudioFuse creative suite included to explore and alter your sound
