ART ProSplit High Performance Transformer Isolated Mic Splitter

APA-PROSPLIT

$129

Price Challenge!
Buy Now
Free Shipping

Anywhere Australia wide*

$32.25
4 payments

Late Fees Apply

Up to 12 months interest free

Fees Apply

More Info

4 payments
$30-$2000

No Fees/Interest

More Info

Derringers Music is pleased to present the ART ProSplit High Performance Transformer Isolated Microphone Splitter.

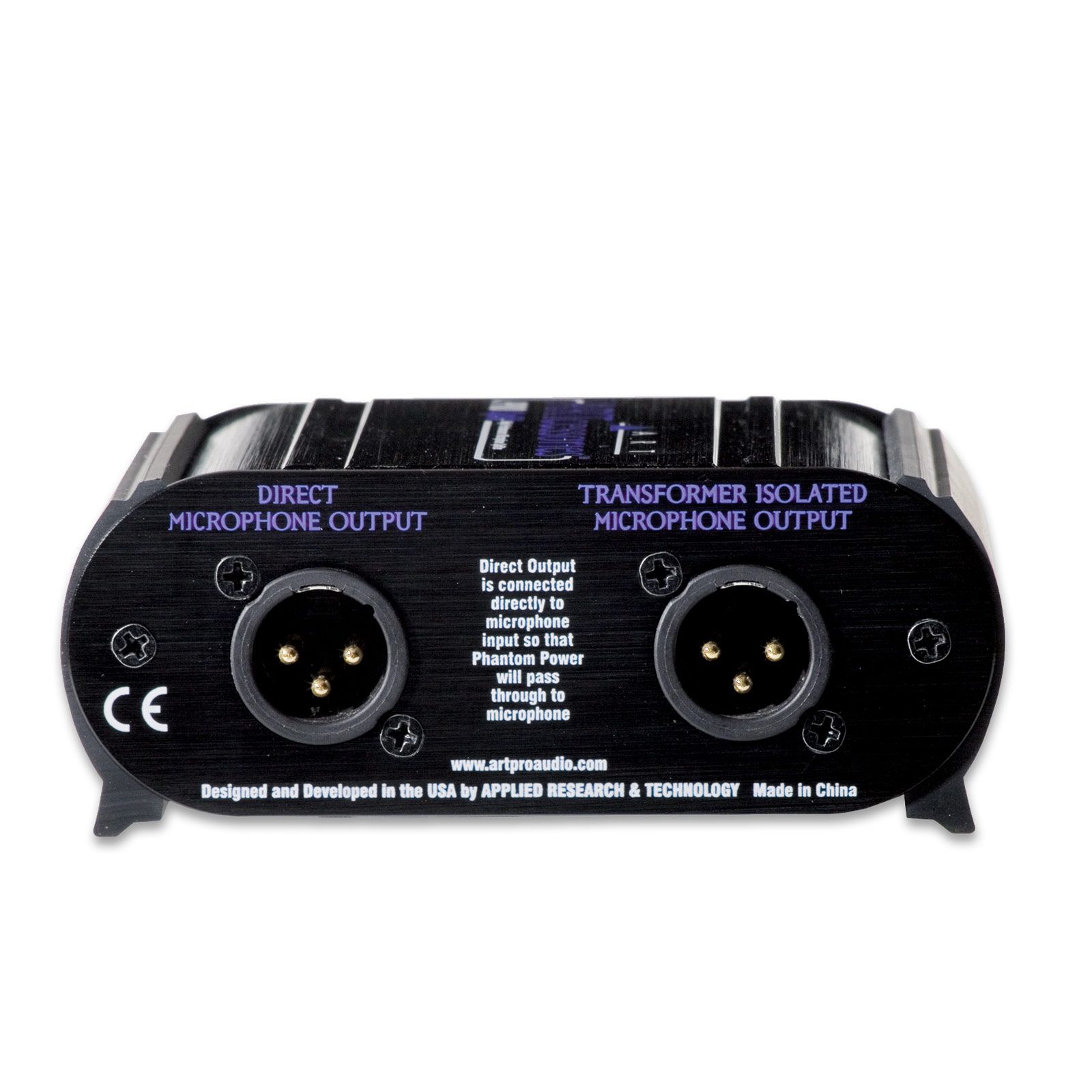

The ProSplit provides one direct output and one transformer isolated output from a single microphone.

Applications include sending the direct output to the main or Front-of-House mixer, with the second isolated output being sent to a monitor or recording mixer. The direct output passes phantom power from the main mixer to the microphone for use with condenser microphones.

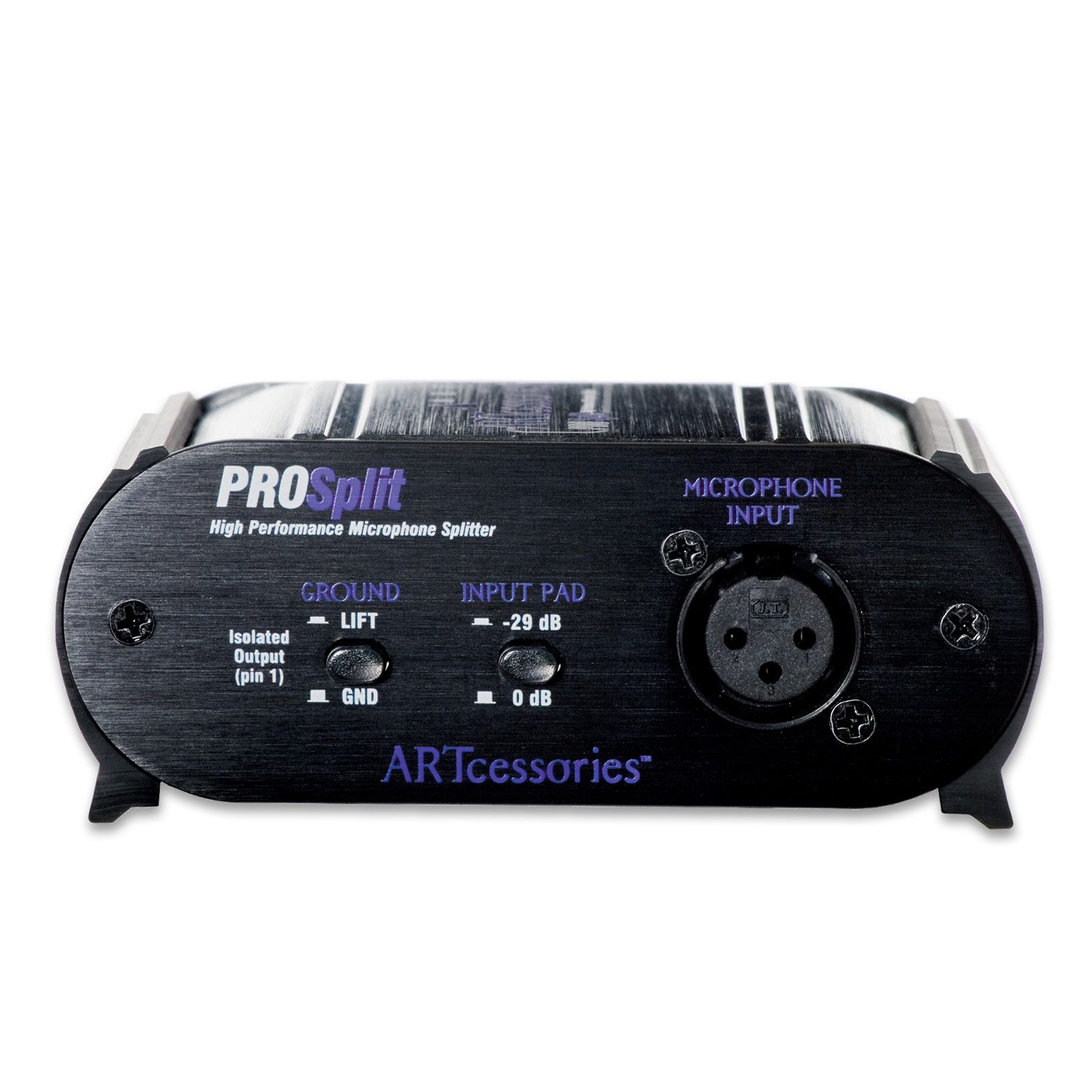

The ProSplit includes a ground-lift switch on the isolated output to reduce noise due to ground loops between connected equipment. For versatility the ProSplit also features an attenuator pad switch on the input that can be used to alternately connect a pre-amplified (line-level) signal to the two microphone-level ProSplit outputs.

Features

  • Low distortion with wide frequency response
  • Two functions in one box – combines and/or splits
  • Phase invert switch for subtractive combining
  • Galvanic isolation to block phantom power between channels
  • Ground lift switch to reduce noise due to ground loops

Come on in to one of Derringers stores to chat with our knowledgeable team, give us a ring, or email us! You can also simply hit the cart button and checkout to get one of these sent to your door ASAP! We've been looking after you — our musical family — for decades, offering our wealth of expertise and knowledge Adelaide and Australia wide! We won't be beaten!

Derringers Music — We're your support crew!

For more information, please visit the manufacturer's website.
  • Frequency Response: 20Hz to 20kHz, ±0.25dB @ -15dBu -3dB@approx.165Hz
  • Total Harmonic Distortion:
    • <0.26% from 20Hz to 20kHz, -15dBu input
    • <0.1% from 45Hz to 20kHz, -15dBu input
    • 0.002% Typical @ 1kHz, -15dBu input
  • Phase Shift: <10 degrees @ 20kHz (Ref, 1kHz)
  • Input Impedance: >1.1k Ω @ 1kHz (Typical driving source impedance is 150 Ω)
  • Ouput Impedance: <255 Ω @ 1kHz (Typical output load impedance is 1k Ω)
  • Maximum Input Level: -1.4dBu @ 20Hz/+3.5dBu
  • CMRR: >105dB @ 60Hz / >80dB @ 3kHz
  • Insertion Loss: Approximately 2dB @ 1kHz
  • Maximum Input Level For 1% THD: -1.4dBu @ 20Hz/+3.5dBu @ 30Hz / +9.4dBu @ 50Hz
  • Dimensions: 1.85″ H x 4.6″ W x:  3.5″D (47mm x 117mm x 89mm)
  • Weight: 0.9 lbs (0.4 kg)
