Professional musicians and audio engineers demand precise headphone monitoring solutions that adapt to complex studio environments. The HeadAmp6 stands as a comprehensive six-channel stereo headphone amplifier, engineered to provide independent “more-me” mixing capabilities through dedicated auxiliary inputs on every channel.
Each output channel features an innovative dual-function Balance Control that operates in two distinct modes: panning between left and right channels of the main signal bus, or blending the primary stereo signal with the channel’s auxiliary input. This flexibility allows musicians to create personalised monitor mixes tailored to their specific requirements during recording sessions.

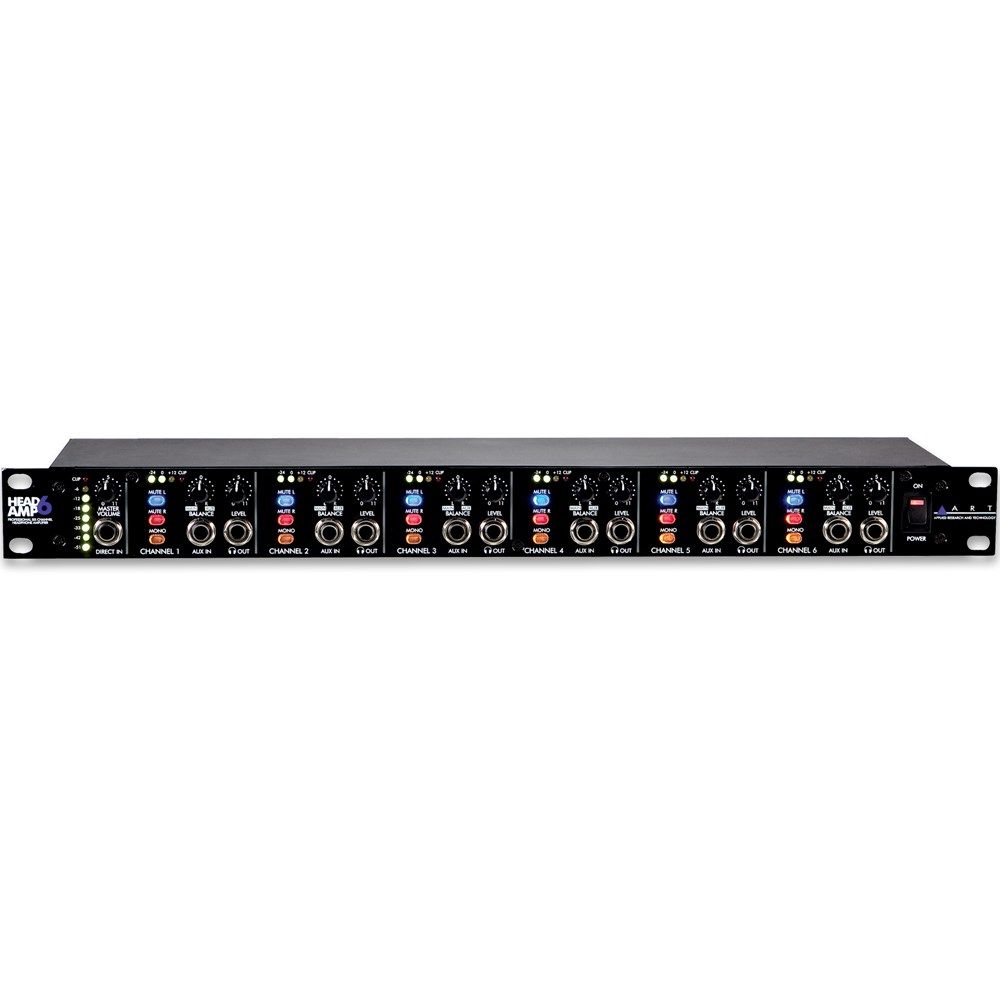

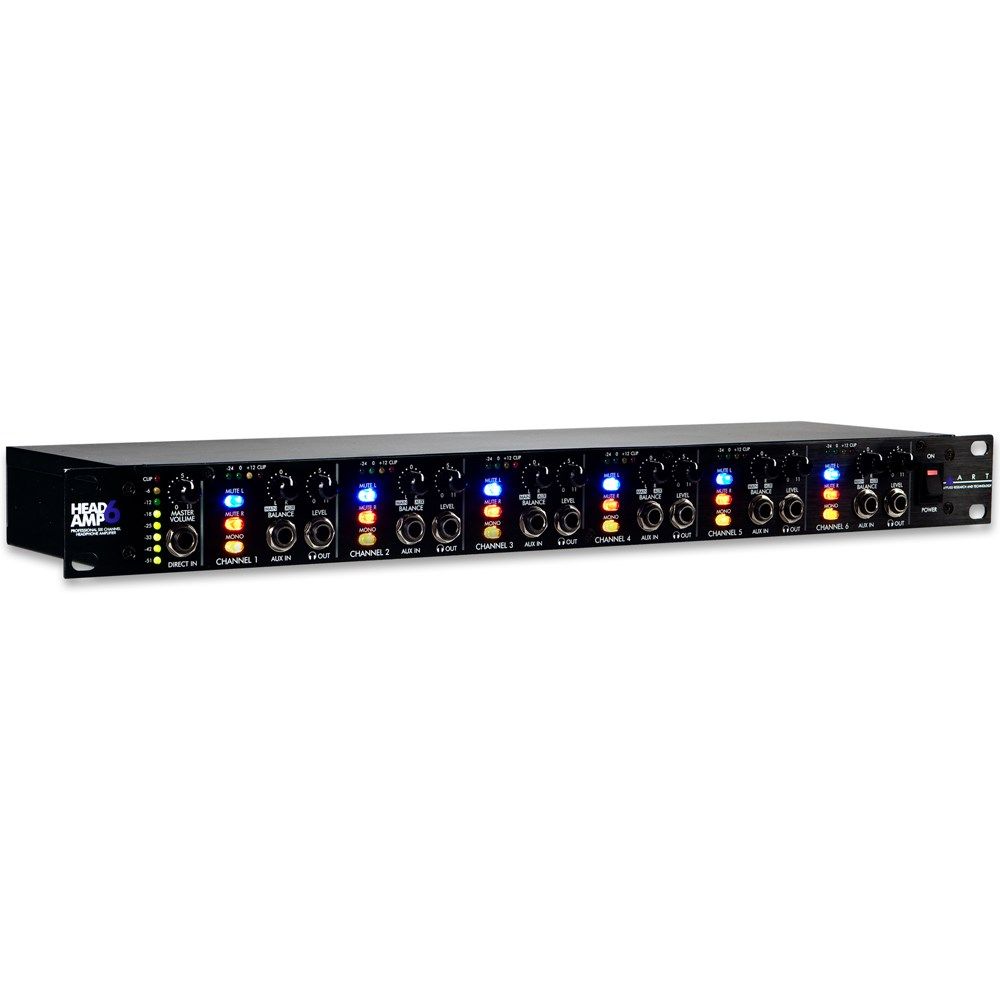

The unit’s versatile connectivity includes both front and rear panel stereo 1/4-inch TRS headphone jacks across all channels, facilitating quick patching and permanent installations. Four distinct monitoring modes—Stereo, Mono Left, Mono Right, and Mono Both—are accessible via dedicated Mono, Mute L, and Mute R buttons, whilst independent output level controls ensure optimal listening levels for each user.

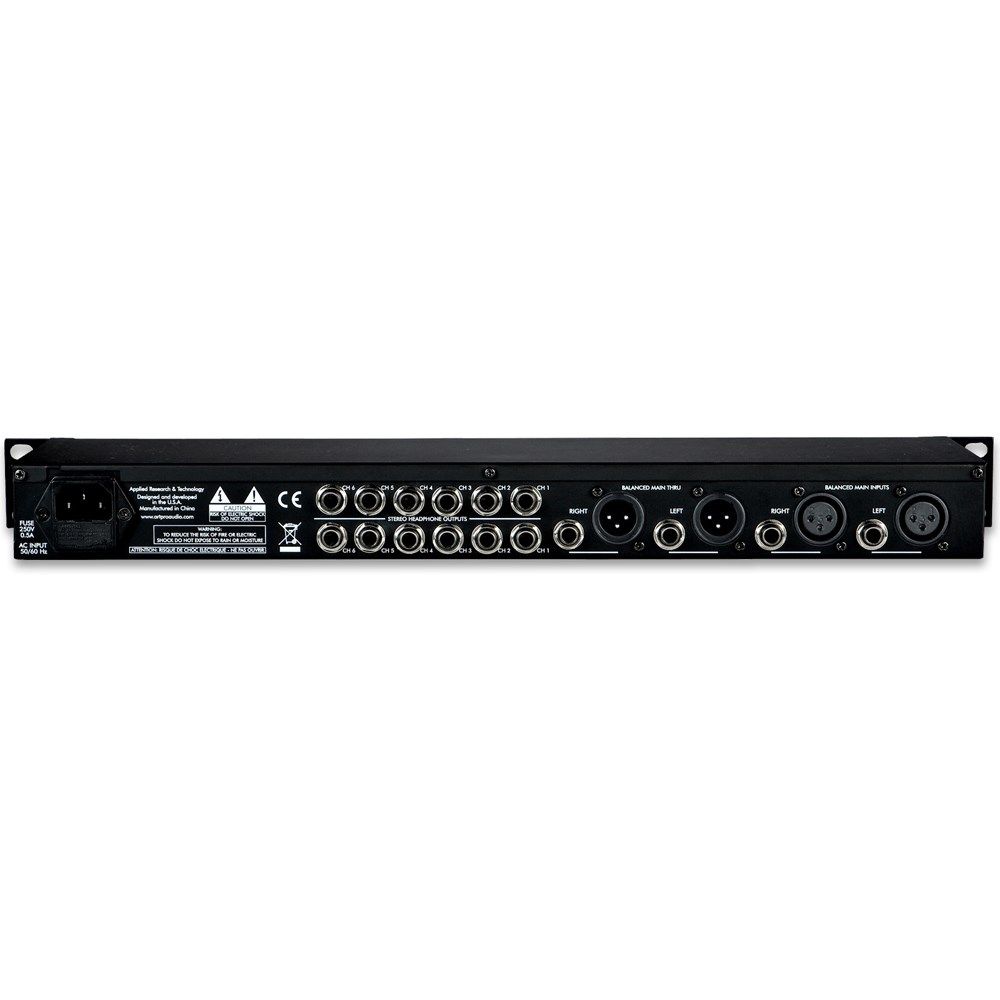

Input connectivity encompasses XLR and 1/4-inch TRS balanced inputs with corresponding “Thru” jacks for daisy-chaining multiple units, plus a convenient front panel Direct In jack for immediate source override. Visual monitoring is provided through eight-segment LED metering on the main bus and four-segment indicators per output channel, giving comprehensive signal level feedback throughout the entire signal path.
- Six independent high-power headphone amplifier channels
- Dual function balance/mix control per channel
- Front panel stereo AUX input for each channel
- Multiple monitoring settings per channel
- Individual output level control per channel
- Precision four segment LED metering per channel
- Master volume control w/ eight segment LED metering
- Front panel direct in jack
- One front and two rear mounted headphone jacks per channel
- Connects and drives up to 18 headphones simultaneously
- XLR and 1/4″ main inputs and outputs
- Parallel main outputs for multiple unit use
