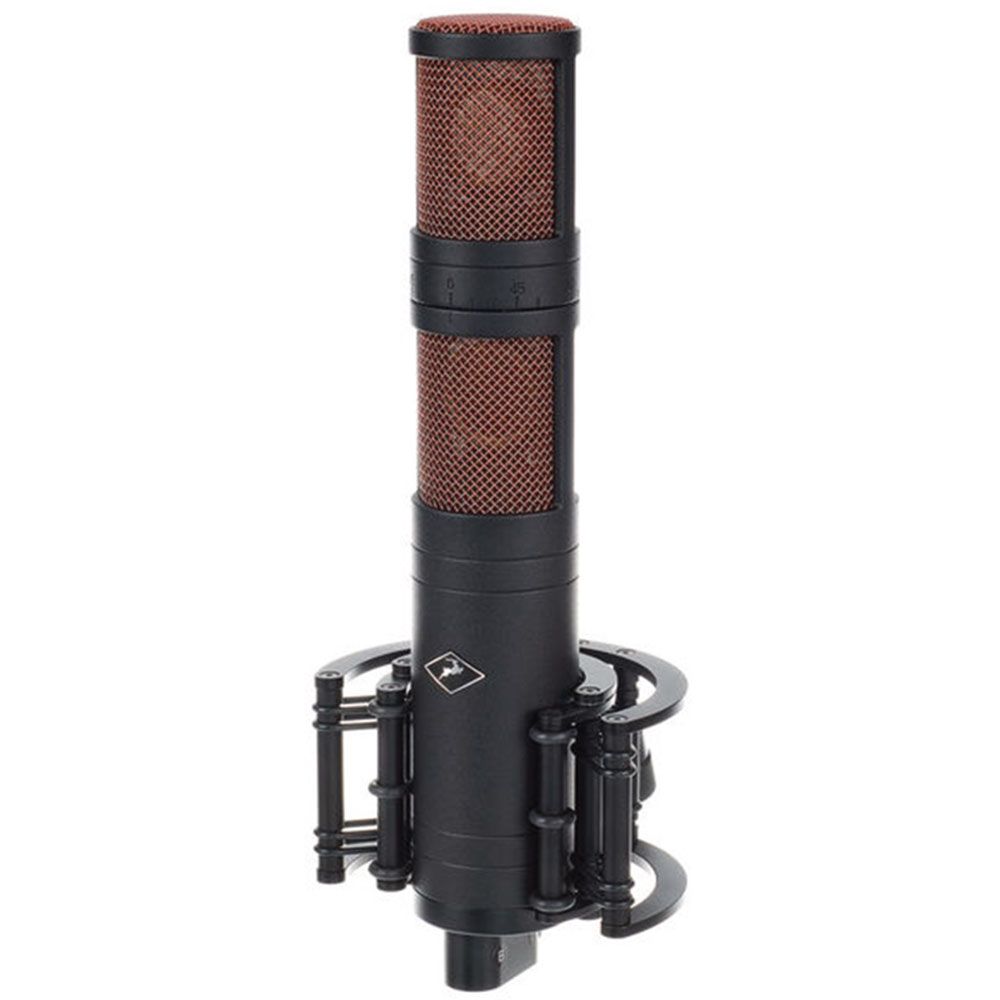

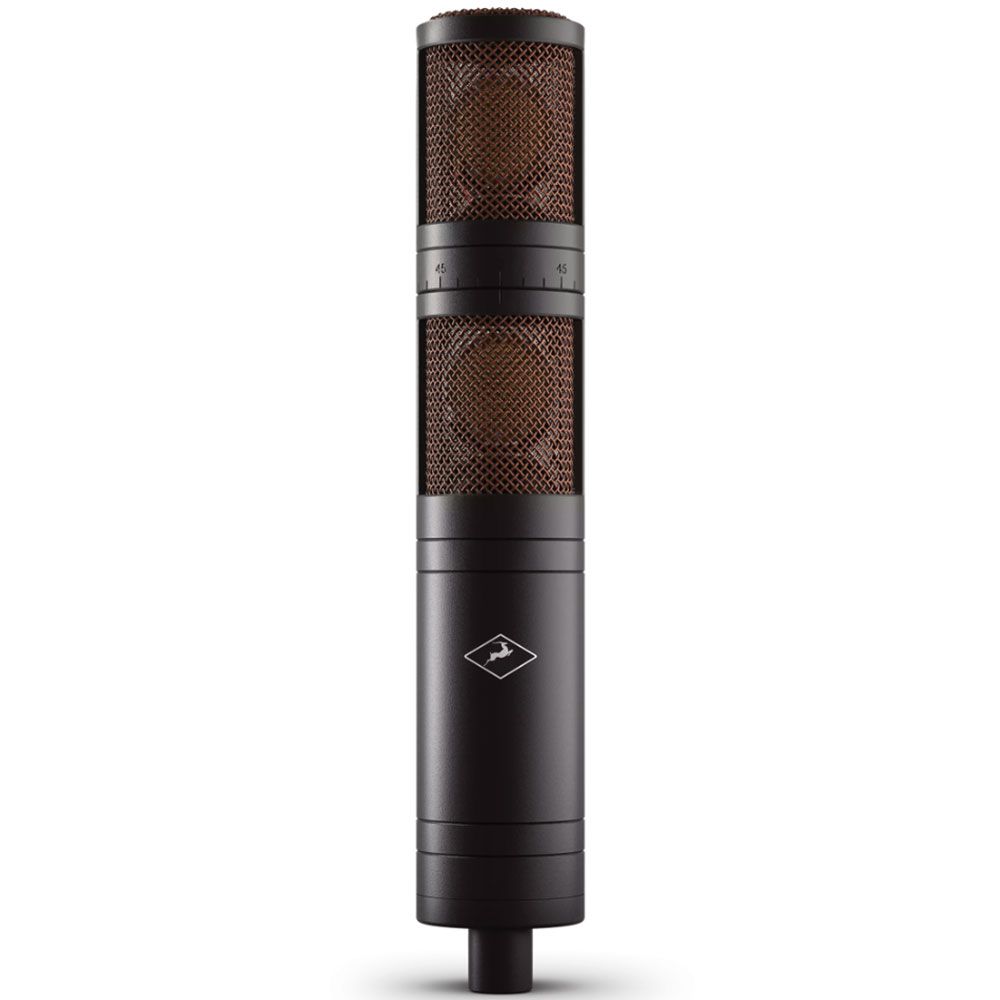

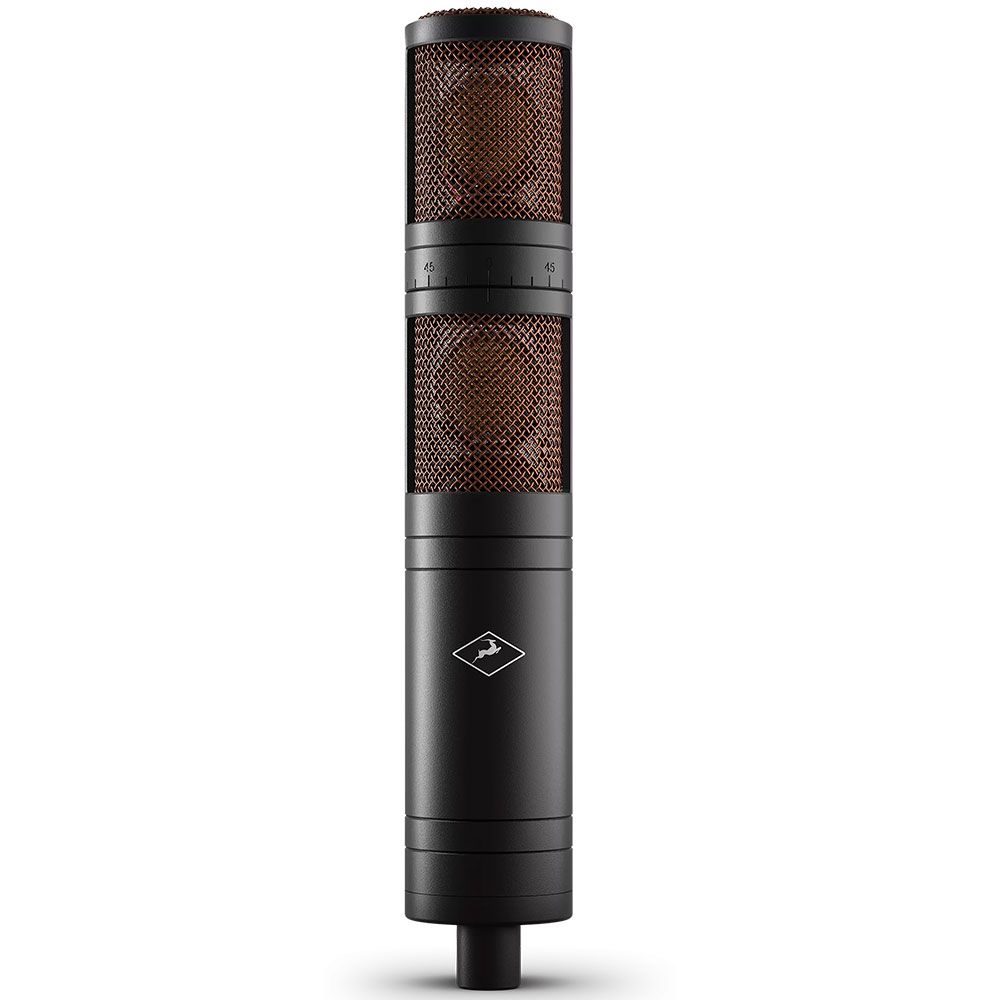

Antelope Audio Edge Quadro Stereo Modelling Microphone w/ Two Dual-Membrane Capsules

The Antelope Audio Edge Quadro is a flagship stereo modelling microphone designed for engineers who want maximum flexibility, realism and creative control in their recordings.

Featuring two large dual‐membrane capsules, each built with precisely aligned 6‐micron gold‐sputtered diaphragms, the Quadro captures sound with exceptional accuracy and perfect phase coherence.

Its unique rotating upper head allows seamless adjustment of pickup angle during a session, making it ideal for advanced stereo techniques such as M/S, X/Y, Blumlein, spaced pairs and full 360‐degree sound capture. Each capsule outputs two independent channels, enabling four‐channel recording for complete multi‐dimensional processing.

Edge Quadro includes Antelope's powerful modelling technology, offering a growing collection of 18 legendary microphone emulations. Each head can load a different model and polar pattern, allowing endless tonal combinations and precise control both during tracking and in post‐production.

Housed in a premium wooden case and bundled with a luxury shockmount and high‐grade dual Y‐cables, the Edge Quadro is a complete high‐end solution for anyone seeking cutting‐edge stereo recording and unparalleled modelling versatility.

Features

• Quadriphonic modelling microphone with dual‐output design
• 2 x large‐diaphragm, dual‐membrane condenser capsules
• 34 mm gold‐sputtered 6 micron diaphragms
• Multi‐pattern operation: cardioid, figure‐8, omnidirectional and all intermediate positions
• Supports stereo techniques including M/S, X/Y and Blumlein
• Frequency response: 20 ‐ 20000 Hz
• Sensitivity: ‐35 dB | 18 mV/Pa (‐1 to +3 dB)
• Total harmonic distortion: ‐116 dB
• Self‐noise: 19 dB(A)
• Signal‐to‐noise ratio: 75 dB(A)
• Output impedance: 50 Ohm
• Requires +48 V phantom power
• Outputs: 2 x 5‐pin XLR connectors
• Includes 18 vintage microphone emulations
• Supplied with two 5 m cables, shockmount suspension and wooden case
