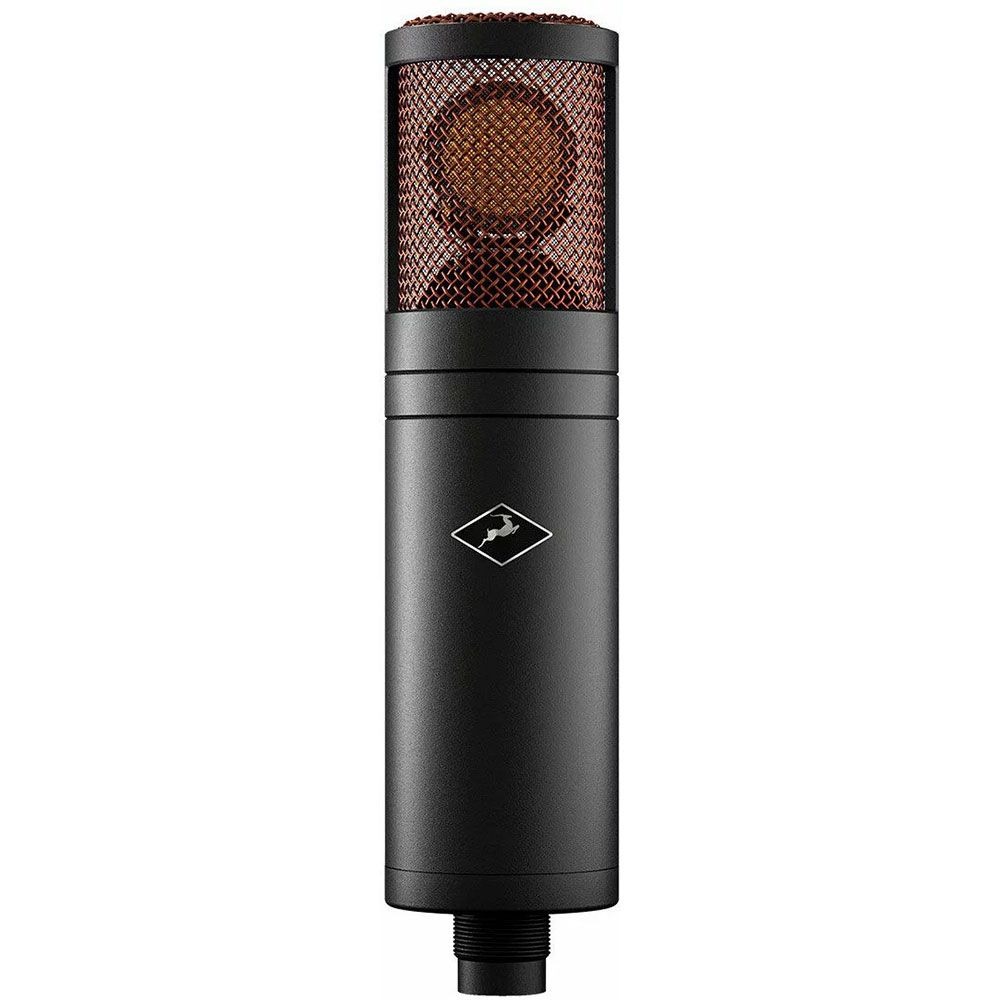

Antelope Audio Edge Duo Multi-Pattern Large Dual Diaphrahm Modelling Microphone

The Antelope Audio Edge Duo is a multi‐pattern, large dual‐diaphragm condenser microphone designed to bring premium studio flexibility and world‐class tonal variety into a single microphone body.

Thanks to its dual‐diaphragm architecture and advanced Modelling Engine, the Edge Duo can accurately reproduce the behaviour, tone and transient response of 18 legendary microphones. These include iconic German, Austrian, British, Japanese and American designs, many of which are rare or unattainable.

Designed for modern hybrid workflows, the microphone allows users to switch microphone models, choose polar patterns and refine their sound either before recording or in post‐production. When paired with Antelope's Synergy Core interfaces, the emulations can be monitored in real time with imperceptible latency, but the Edge Duo is fully compatible with any preamp that provides 48V phantom power.

Versatile, precise and capable of capturing three‐dimensional, high‐resolution sound, the Edge Duo is an all‐purpose studio microphone suitable for vocals, acoustic instruments, drum overheads, room miking and virtually any source requiring premium sonic detail and creative flexibility.

Features

• Single large capsule with dual 6u gold‐sputtered membranes
• 34 mm diaphragm diameter
• Multi‐pattern design: cardioid, figure‐8 and omnidirectional
• 20 Hz � 20 kHz frequency response
• 19 dB(A) self‐noise
• 75 dB(A) signal‐to‐noise ratio
• Sensitivity: ‐35 dB | 18 mV/Pa (‐1 to +3 dB)
• THD+N: ‐116 dB
• Requires 48 V DC phantom power
• 50 Ohm output impedance at 1 kHz

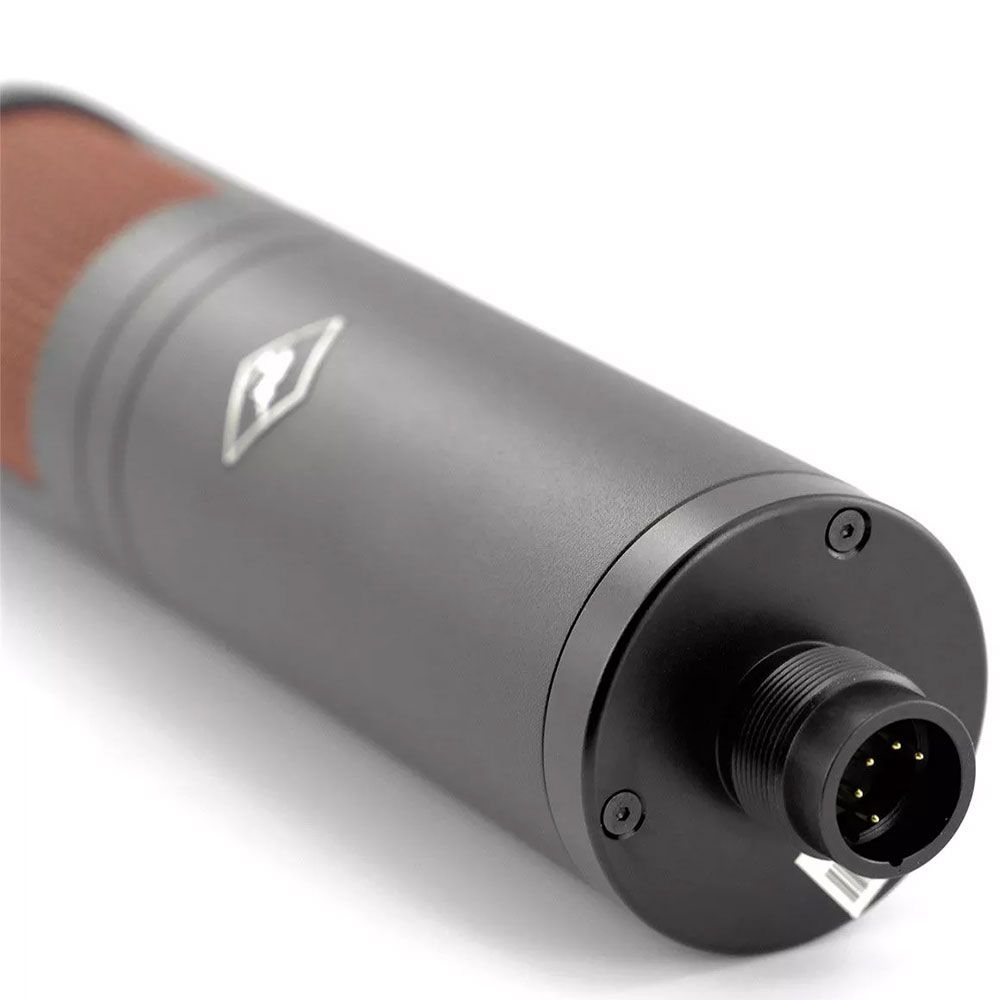

• 5‐pin male XLR output connector
• Dual 3‐pin XLR output channels (via breakout cable)
• Weight: 1.23 lbs (560 g)
• Dimensions: 8.6 in x 2.1 in (219 mm x 53 mm)

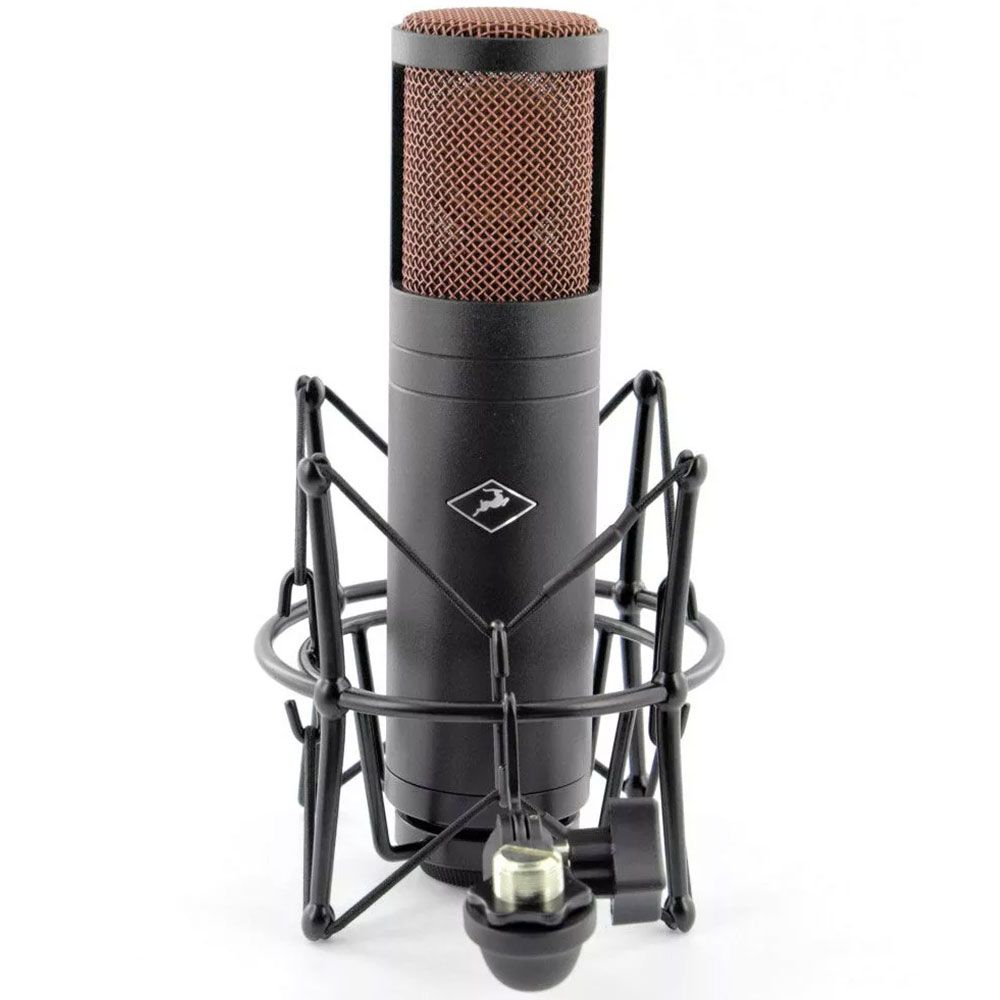

• Includes 5 m Y‐cable (5‐pin to dual 3‐pin XLR), shockmount and pop‐filter
