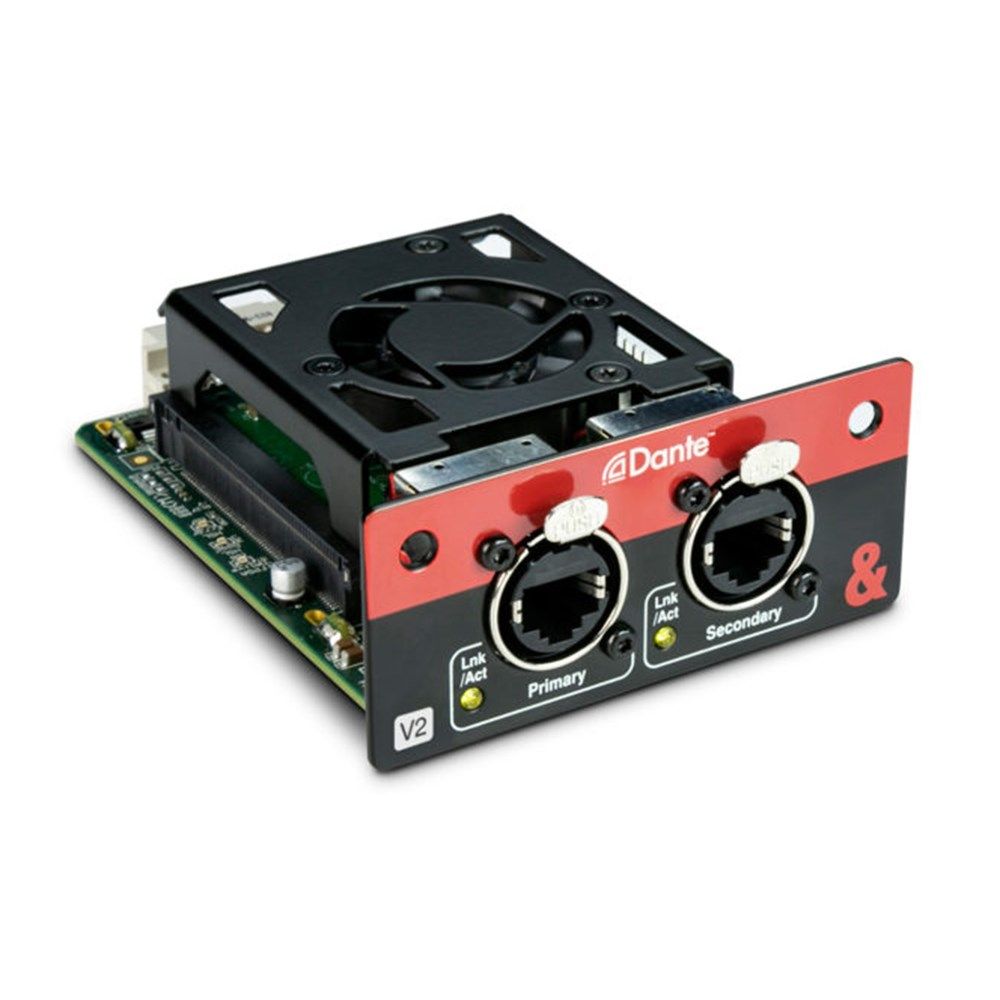

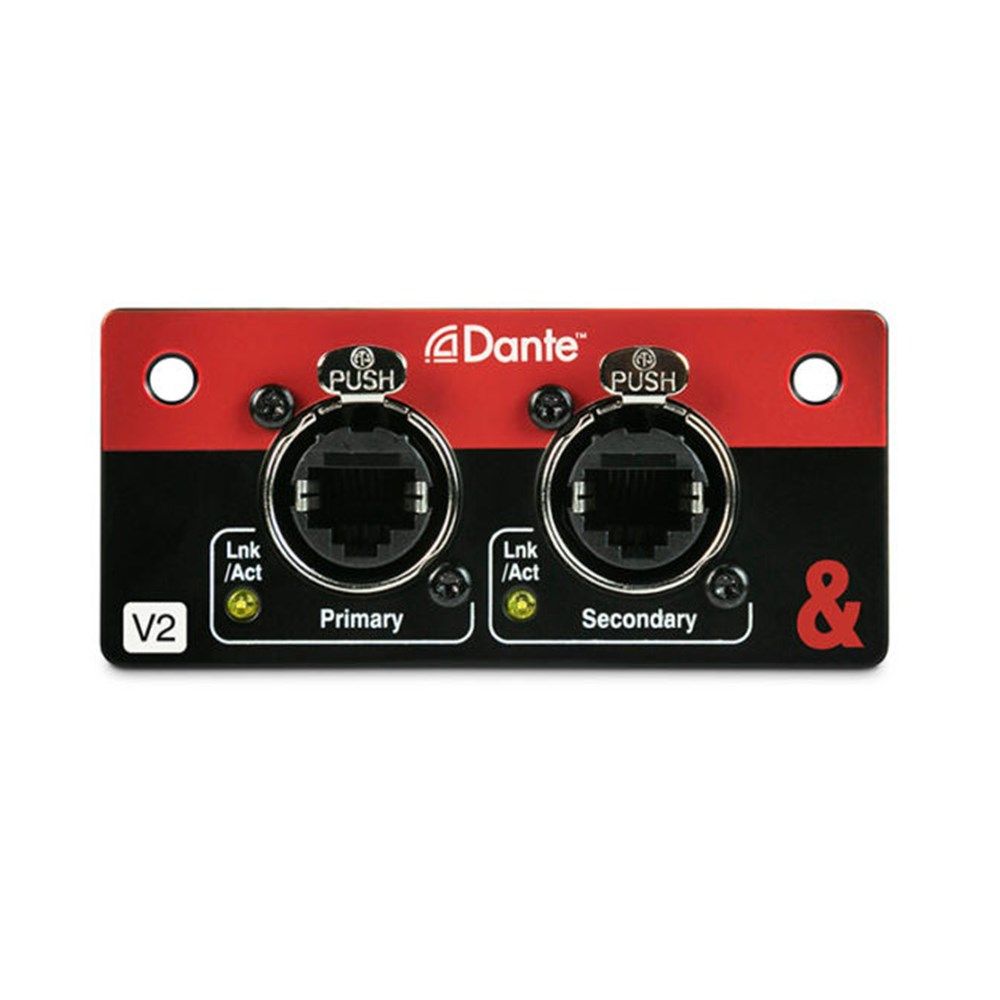

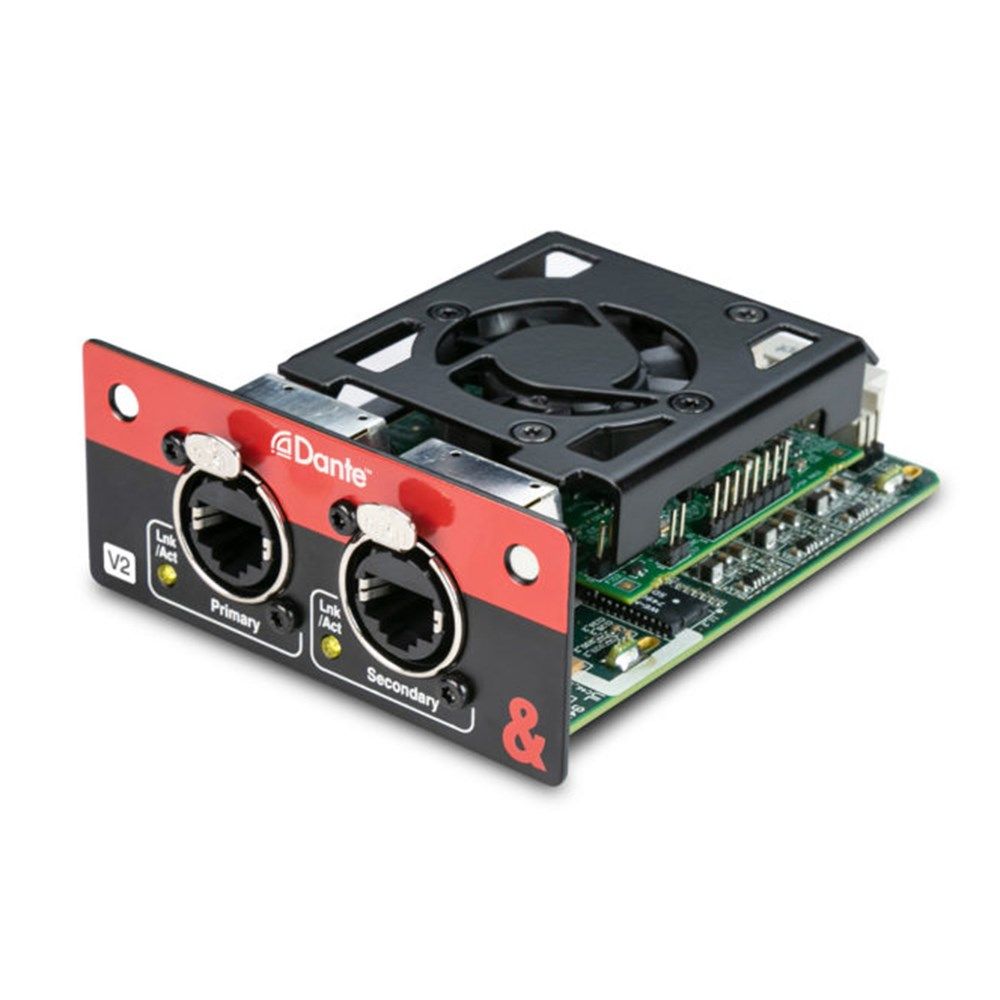

Allen & Heath SQ Dante 64x64 Audio Networking Card Module for SQ Series Mixers

The SQ Dante card opens up a world of professional networking possibilities for your SQ mixer or AHM processor, providing a comprehensive 64×64 channel interface that operates at both 96kHz and 48kHz sample rates. This powerful networking solution connects your console seamlessly to DT expanders, wireless systems, amplifiers, preamps and any other Dante-enabled devices across your network, whilst maintaining SQ’s exceptional high-resolution 96kHz audio quality throughout the signal chain.

Flexibility sits at the heart of the SQ Dante card’s design, with switchable sample rates allowing integration into existing Dante networks running at either 96kHz or 48kHz. Beyond system integration capabilities, the card facilitates cost-effective digital splits and enables direct multitrack recording straight to your computer, streamlining your workflow from performance to post-production.

The V2 iteration maintains all the features and specifications that made the original module so popular amongst SQ users, whilst adding compatibility with AHM matrix processors. SQ users will find no functional differences between versions, though firmware V1.5 or higher is required, and the expanded compatibility means the same card can now serve double duty across both product lines.
