Allen & Heath DT22-M 2X2 Dante Interaface inc Mount
ANH-DT22M
$899
Free Shipping
Anywhere Australia wide*

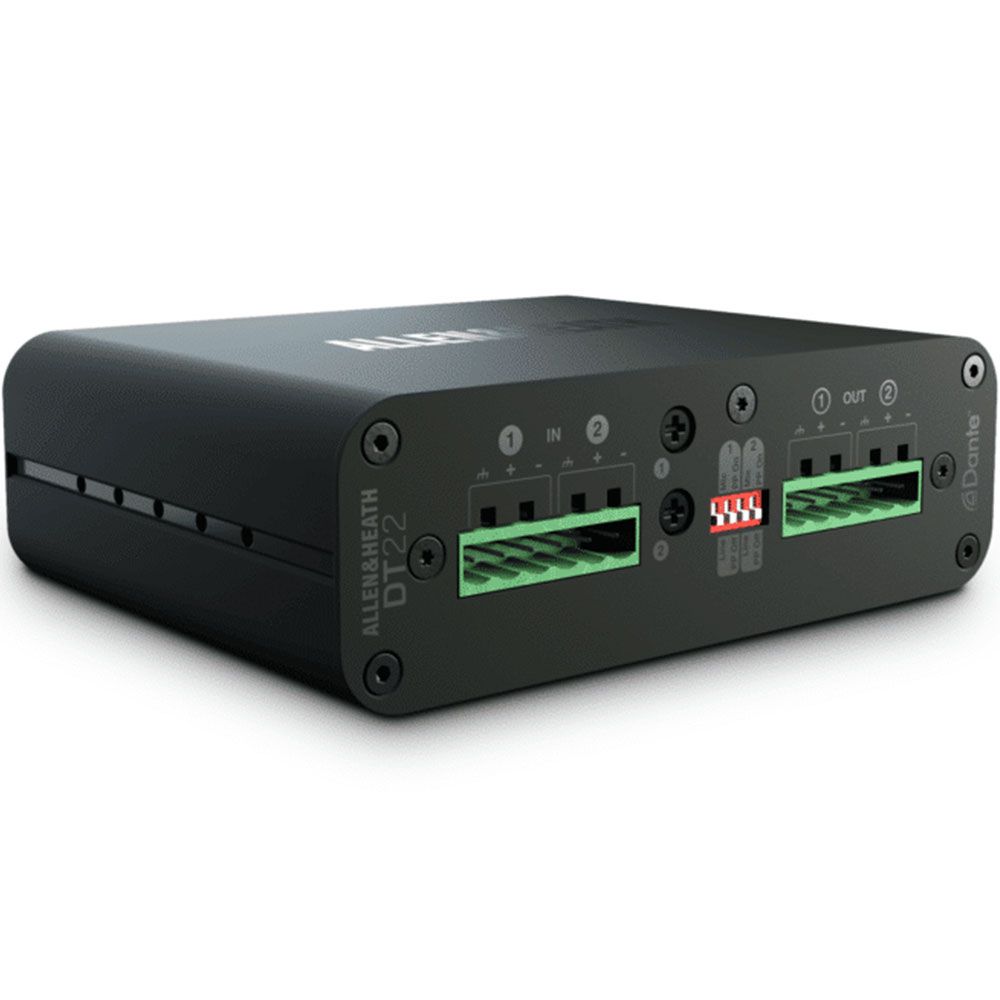

The DT22 brings professional Dante networking capabilities to any space where analogue audio connections are essential. This compact interface seamlessly bridges the gap between Phoenix/Euroblock equipped hardware and modern Dante networks, offering two inputs and two outputs in a portable form factor that's perfect for fixed installation scenarios.

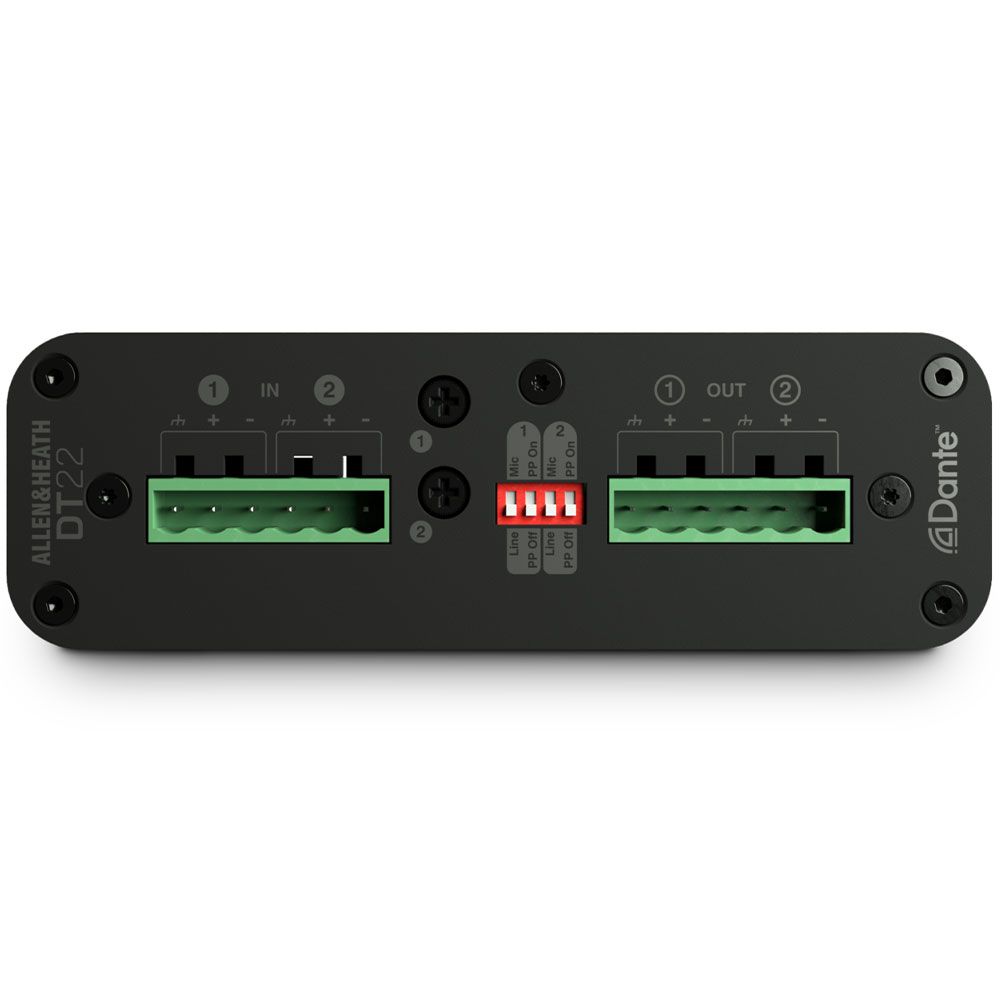

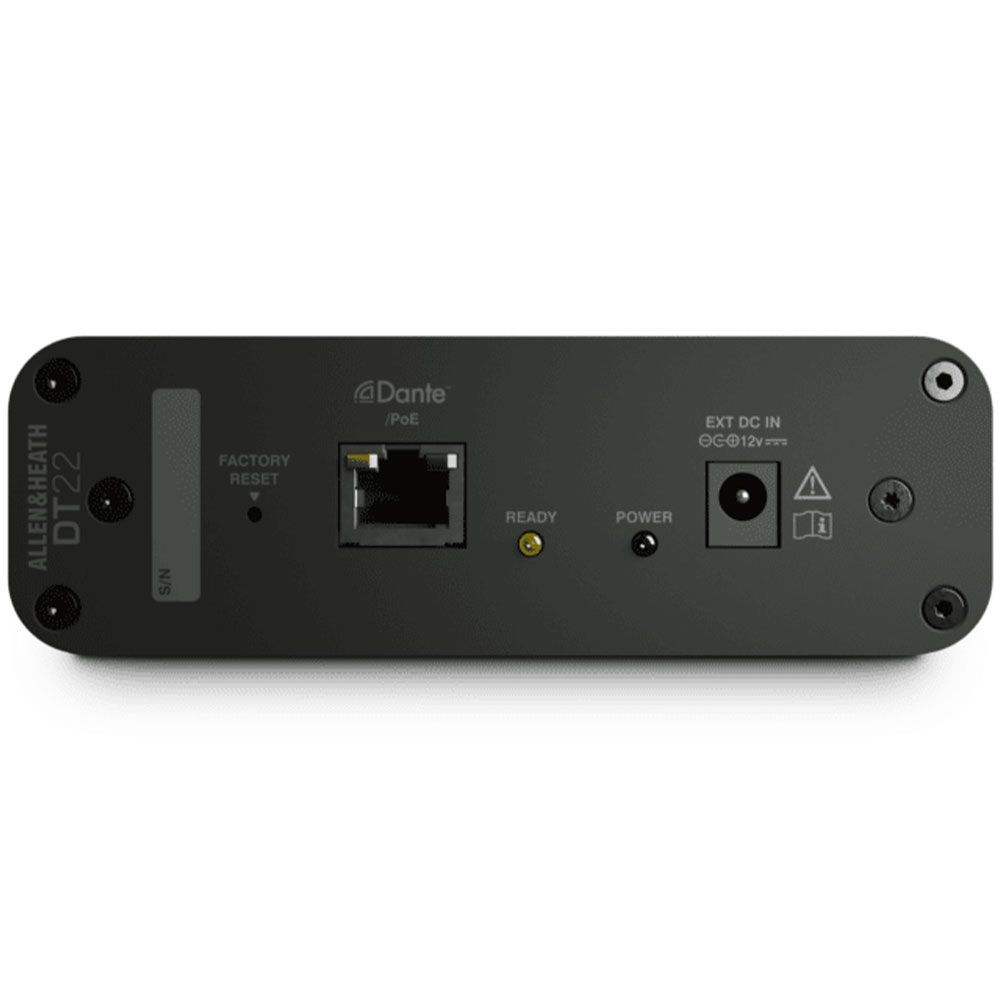

Operating at both 48kHz and 96kHz sample rates, the DT22 provides convenient placement of two mic/line inputs and two line outputs through standard Phoenix/Euroblock connectors. The unit integrates effortlessly with Allen & Heath mixers and AHM systems, while maintaining full compatibility with third-party Dante hardware. Power options include both PoE and DC 12V supply for installation flexibility.

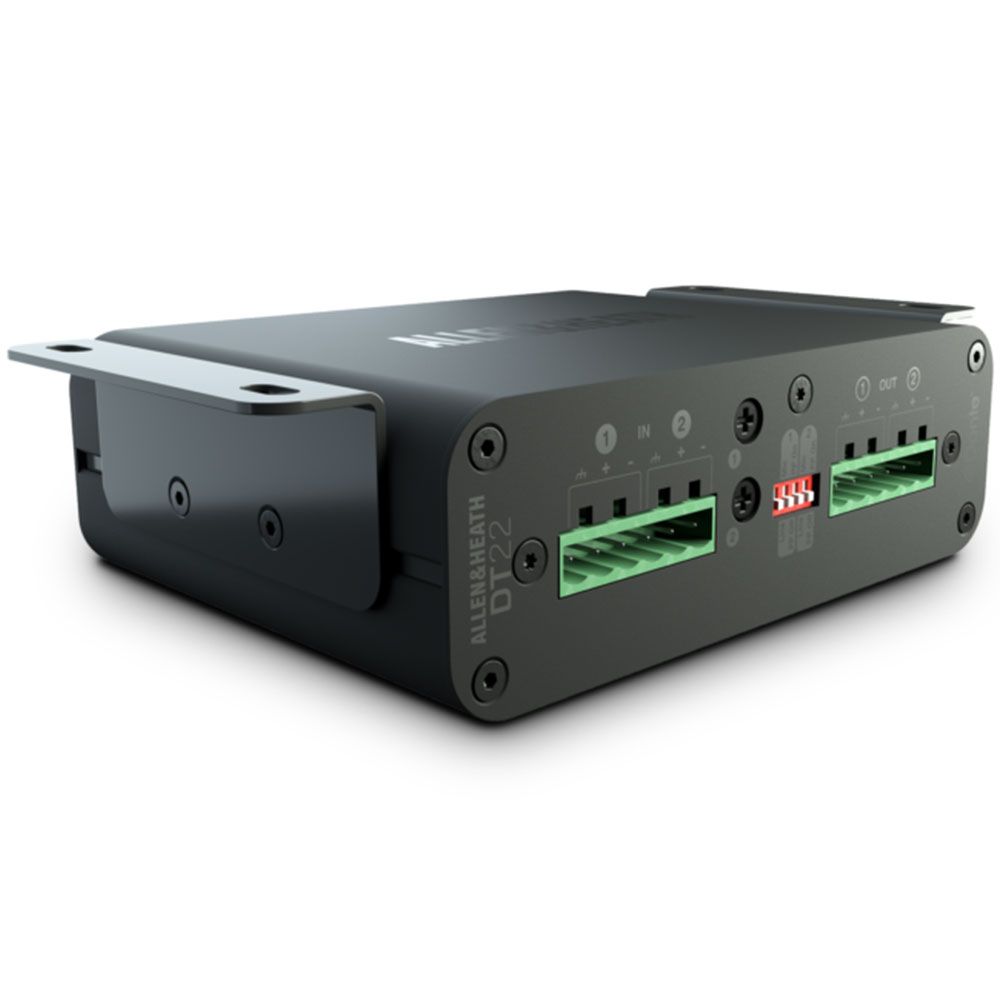

Built specifically for permanent installation, the DT22 excels in meeting rooms, breakout spaces, and podium setups where local microphone, PC, and speaker connections are required. Surface mount ears come included, making it simple to install under tables or podiums. The unit works with any digital mixer equipped with a Dante card, ensuring broad compatibility across professional audio systems.
- Mic/Line Inputs Balanced Phoenix, +48V PP
- Analogue Gain 0 to +55dB
- Line Inputs -20dB PAD
- Maximum Input Level +30dBu (line in)
- Input Impedance >4kΩ (mic), >10kΩ (line)
- Line Outputs Balanced Phoenix
- Output Impedance <75Ω
- Nominal Output +4dBu = 0dB meter reading
- Maximum Output +22dBu
- Dante 48kHz/96kHz
- DC Input +12V DC 1.25A
- Power Consumption 10W max
- Operating Temperature Range 0°C to 40°C (32°F to 104°F)
- PoE Requirements 802.3af 15W
- Dimensions and Weight DT22: Width 130/5.1” x Depth 100/3.9” x Height 43 mm/1.7” x Weight 0.5kg/1lbs
