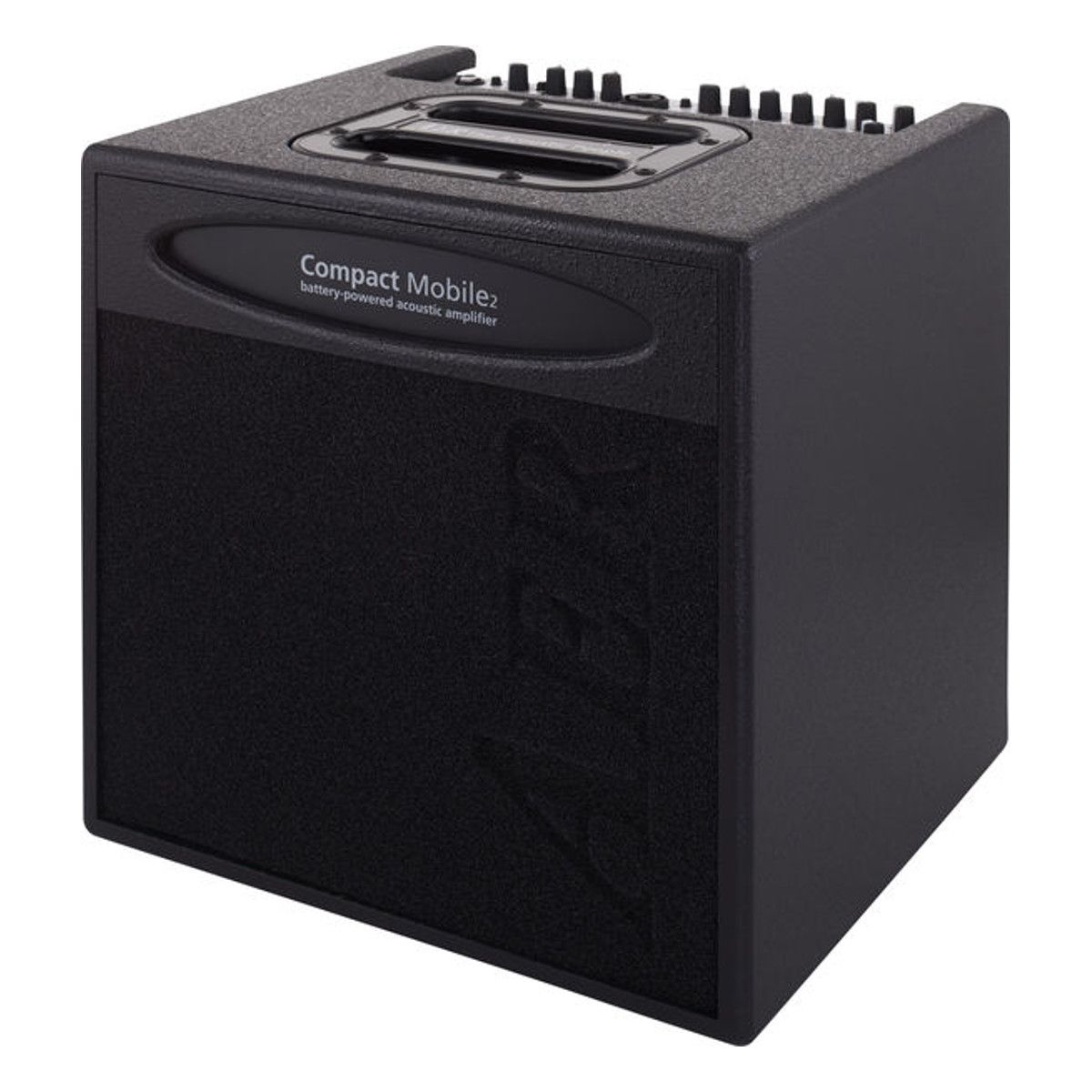

The AER Compact 60 Mobile Acoustic Guitar Amplifier brings professional‐grade sound to any location with its innovative battery‐powered design. Built upon the proven foundation of the standard Compact 60, this mobile version offers musicians the freedom to perform anywhere without compromising on audio quality.
This amplifier provides 60 watts of clean power through a precision‐engineered twin‐cone 8" speaker system that maintains AER’s renowned tonal balance. The carefully designed speaker configuration ensures your acoustic guitar’s natural character is faithfully reproduced across all frequencies.
With an impressive 4‐hour battery life, the Compact 60 Mobile eliminates the need for mains power connections during performances, rehearsals, or practice sessions. This makes it an ideal choice for buskers, outdoor gigs, remote recording sessions, and any situation where portability and reliability are paramount.
- Inputs Ch1: Line: unbalanced.
- High/Low -10 dbV
- Ch2: Line: unbalanced / balanced.
- Eff. Return: -10dBV/10k
- Outputs: Tuner: -10dBV
- Line: 0dBV
- DI: -20dBV
- Send: -10dbV
- AUX CD input
- Foot switch Tip: built in effect
- Ring: external effect
- Sleeve: ground
- EQ:
- Ch1: Bass: +- 8 dB/ 100 Hz
- Middle: +- 3 dB/ 550 Hz
- Treble: +- 11 dB/ 10 kHz
- Ch2: Bass: +- 8 dB/ 100 Hz
- Treble: +- 11 dB/ 10 kHz
- Analog Signal
- Processor: Limiter, Subsonic Filter and Enhancer
- Effect: Four build-in effects, hall, bright hall, reverb/chorus, flanger
- Power Amp: Power consumption: 220-240 V / 50-60Hz / 70 VA (110V / 50-60Hz)
- Rating: 60 Watt / 4 ohm RMS
- Mains Fuse: 1A slow
- Speaker: 8" twin-cone speaker-system (96 dB 1w/1m, freq. range 60Hz-18kHz )
- Cabinet: 0.59" 3(15 mm) birch plywood
- Dimension: 10.24" 3(260 mm) high, 13.00"
- 3(330 mm) wide, 19.06" 3(230 mm) deep
- Finish: water based acrylic, black spatter finish
- Weight: 18.74 (8.5 kg)
- 0dB/V 1V
- specifications and appearance subject to change without notice
- Channel 1:
- Input socket for a 6.3 mm jack plug
- High/Low switch to adjust input sensitivity High impedance only instruments with a piezoelectric pickup, Low for instruments with active preamplifiers and magnetic sound pickups
- Clip overload indicator
- Gain input level control
- Color mid-range contour filter
- Bass tone control for bass
- Middle tone control for mid-range
- Treble tone control for treble
