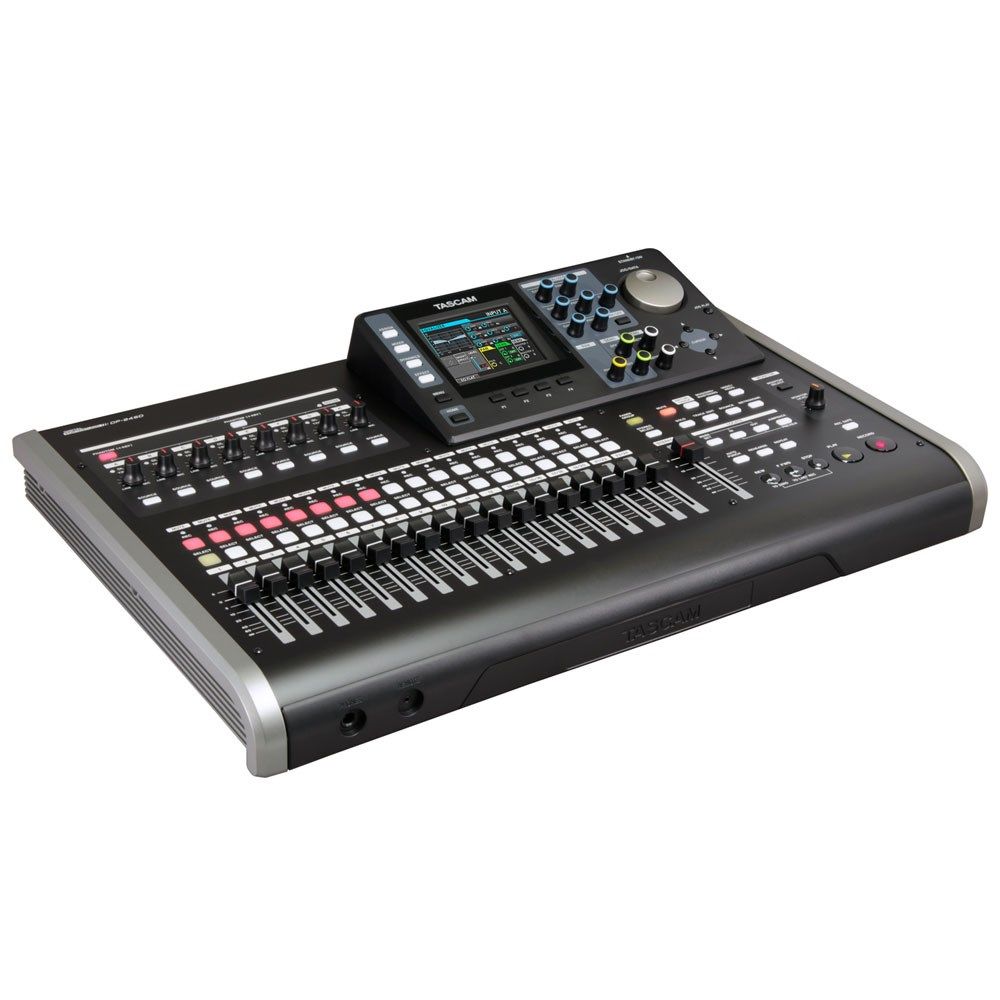

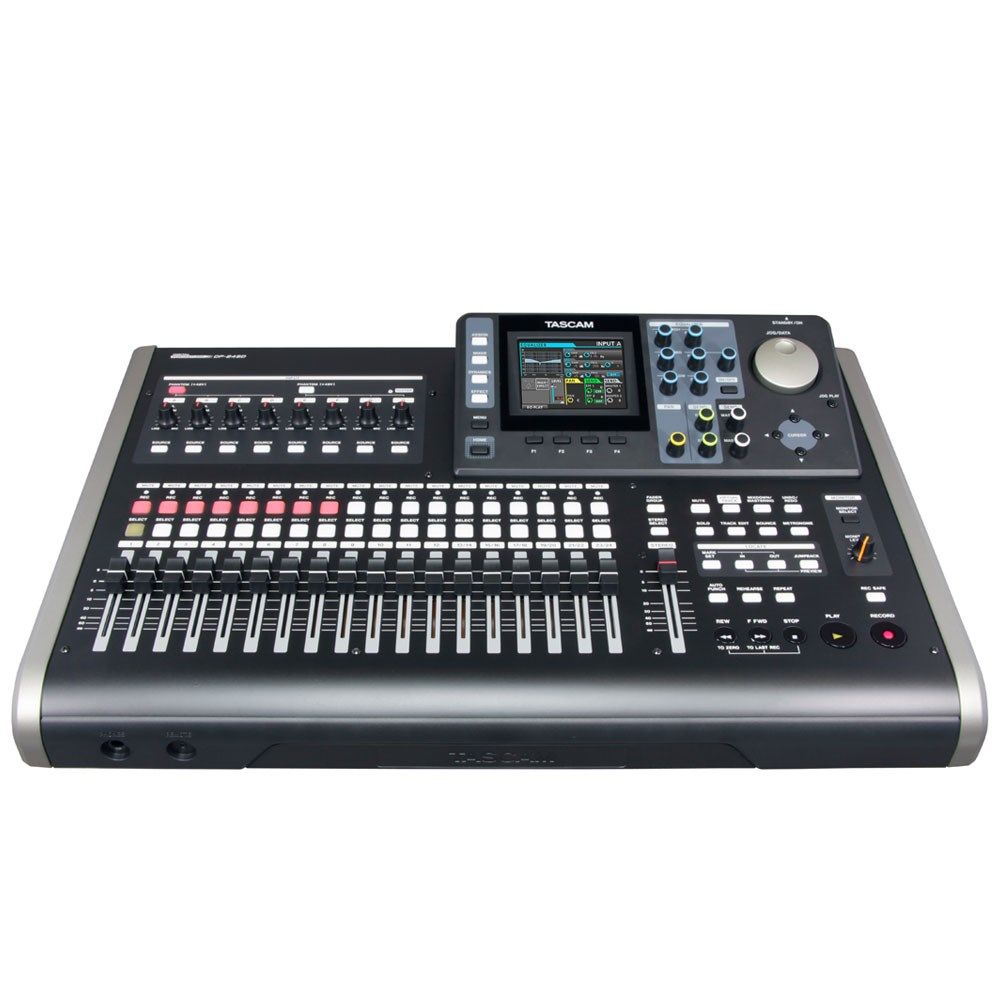

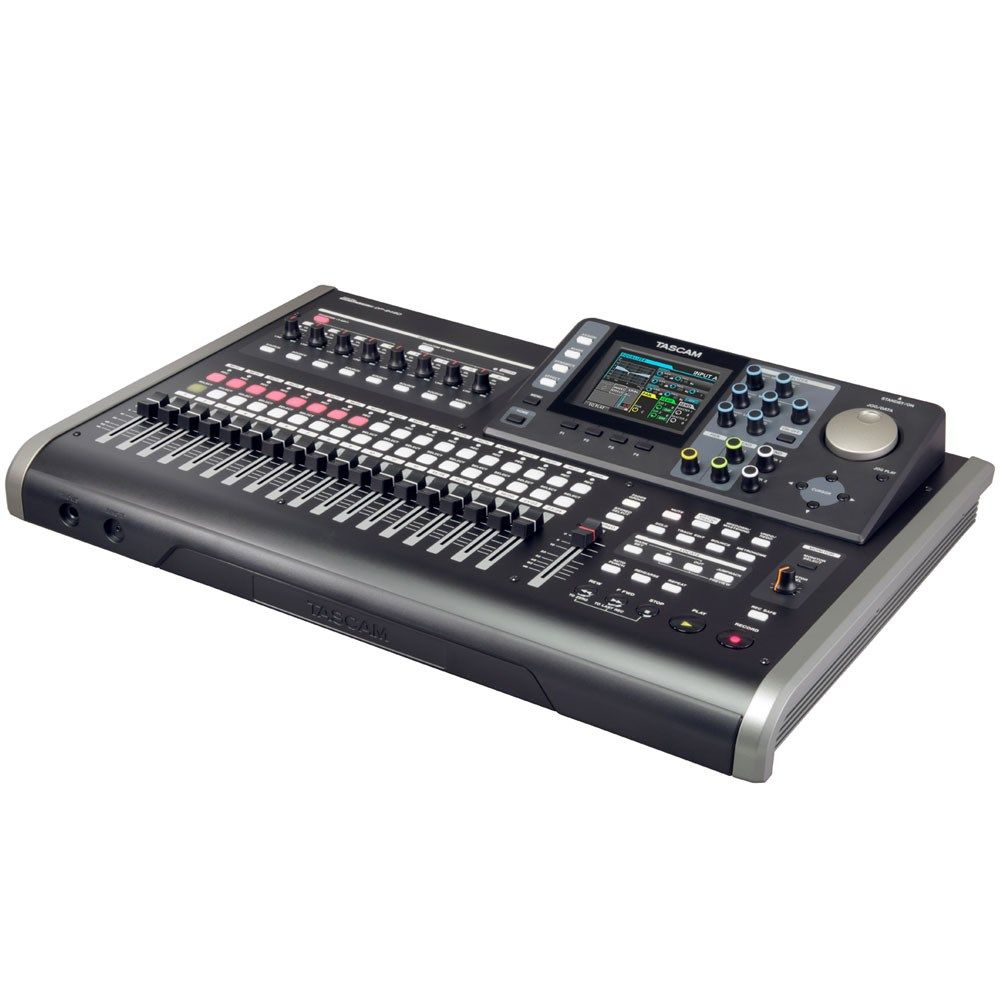

Create professional studio recordings without the complexity of computer-based systems with the DP-24SD Digital Portastudio. This 24-track workstation supports eight simultaneous recording tracks and features a comprehensive built-in mixer complete with EQ, reverb, amp simulation, and multi-band mastering effects. The Digital Portastudio series puts complete music production at your fingertips through an intuitive control surface that keeps your creative workflow uninterrupted.
The DP-24SD’s large full-colour LCD provides clear visual feedback of your tracks, meters, and effects parameters. Twelve dedicated encoders give you direct control over EQ, effects sends, and panning functions. The unit houses 10 effects processors available during mixing, including compression, guitar amp modelling, delay, and reverb to shape your sound professionally.

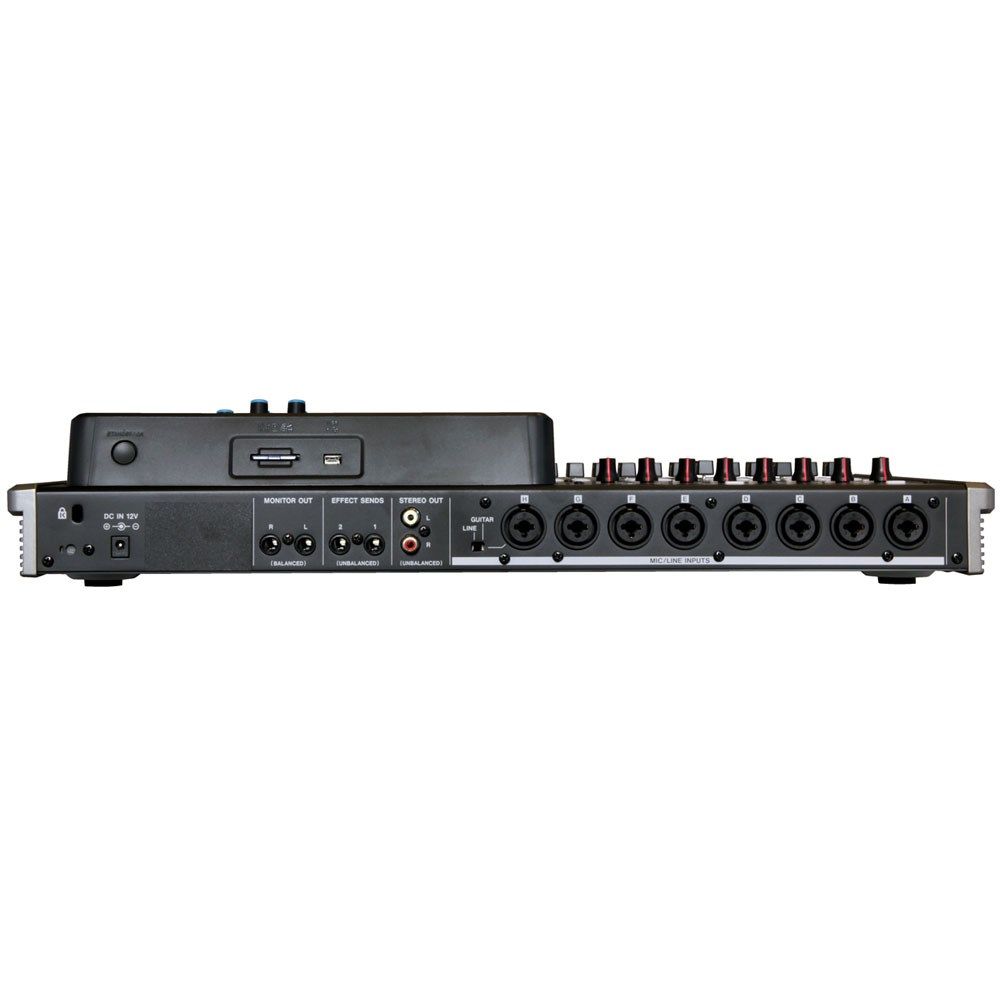

Recording flexibility comes through eight XLR mic/line inputs, each equipped with phantom power for condenser microphones, switchable in banks of four. One input features an instrument-level impedance switch specifically designed for direct guitar or bass recording. The rear panel includes balanced monitor outputs and effects sends, while USB connectivity allows seamless transfer of tracks and mixes from your SD card to computer for CD burning or online distribution.
- Simultaneous 24-track playback
- 12 mono tracks + 6 stereo tracks
- Simultaneous 8-track recording
- 16 or 24 bit, 44.1 or 48 kHz recording
- 8 XLR/TRS combo connectors
- Phantom power supplied on all inputs (INPUT A-D,E-H)
- High-impedance input available (INPUT H)
- Stereo RCA output
- 2 effect send outputs (1/4" TS jack)
- 70mW/ch headphone amplifier
- Remote connector for optional RC-3F footswitch
- INPUT A-H and each track equipped with 3-band EQ
- Automatic punch in/out
- Various edit functions
- Undo and Redo function with Undo history
- Dynamics effects for input (Limiter, Compressor, Noise Suppressor, Exciter)
- Guitar effects (Amp Simulator, Reverb, Compressor, Chorus, Flanger, Phaser)
- Mix-down effects (Reverb, Delay, Stereo Chorus)
- Mastering Effects (Multi-band Compressor, Equalizer, Dither, Normalize)
- Track bounce function
