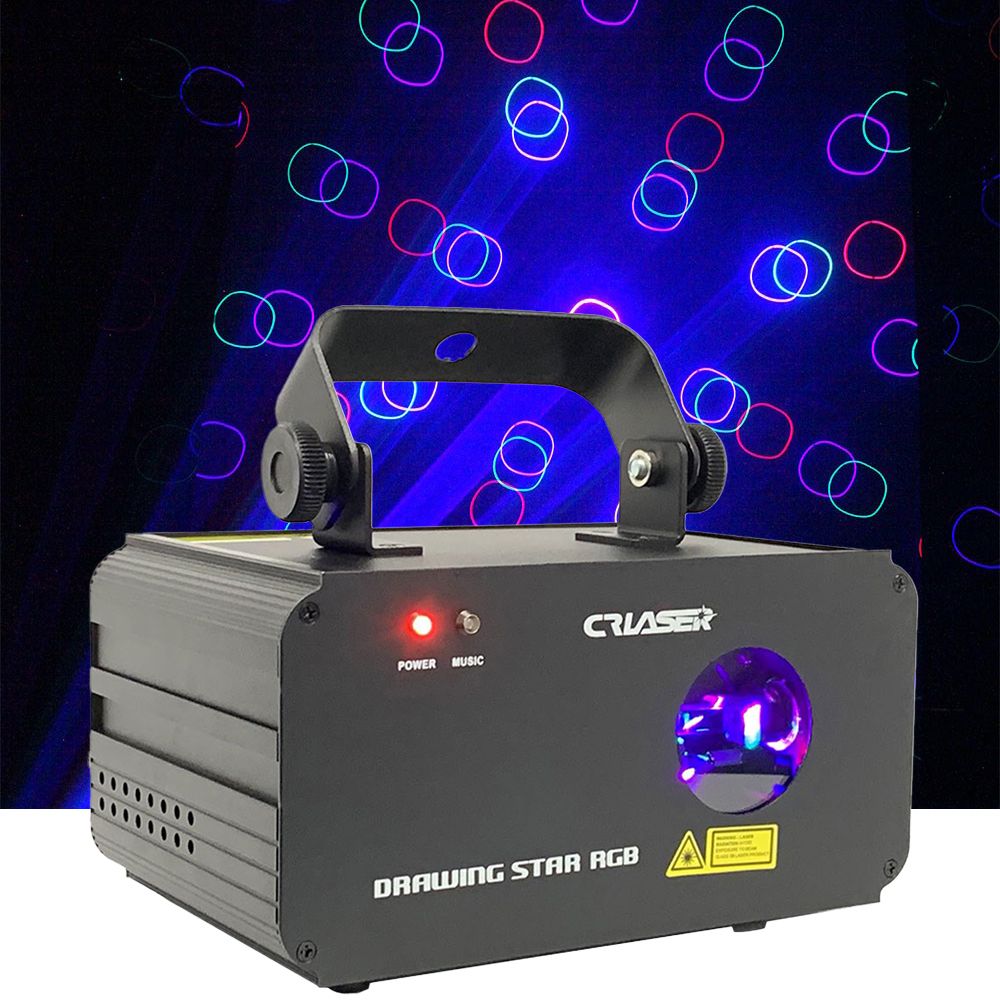

Experience the cosmic brilliance of the Drawing Star RGB laser projector, where cutting-edge technology meets spectacular visual artistry. This compact powerhouse combines 800mW of total laser output across green (100mW), red (200mW), and blue (500mW) wavelengths, creating an immersive starfield effect that brings the wonder of deep space to any venue. The advanced double rotating burst grating system produces wider diffraction angles and superior beam symmetry, resulting in countless multi-coloured laser beams that dance across your space with professional precision.
Built for versatility and professional performance, the Drawing Star RGB features comprehensive control options including internal 4-in-1 modes, disco pub sound control mixing, and standard DMX512 signal control. The high-speed stepper motor drive combined with precision grating scan technology ensures smooth, accurate beam positioning, while the TTL modulation capability (0-1KHz frequency range) allows for dynamic effects programming. Multiple units can work together seamlessly without additional cabling, making it ideal for larger installations.
Measuring a compact 220x170x170mm and weighing just 2.2kg, this 30W laser projector doesn't compromise on connectivity or safety features. Standard DMX512 input/output ports facilitate professional lighting system integration, while the interlock emergency switching port ensures safe operation in any environment. The Drawing Star RGB represents the latest evolution in the CR 7 Colour laser series, offering professional-grade performance in a portable, user-friendly package.
- Laser Power: 100mW-G + 200mW-R + 500mWB
- Laser Colour: Green, Red and Blue
- Power Rating: 30W
- Laser Modulation: TTL Modulation Signal, Frequency 0~1KHz
- Scan System: High speed step motor drive and grating scan

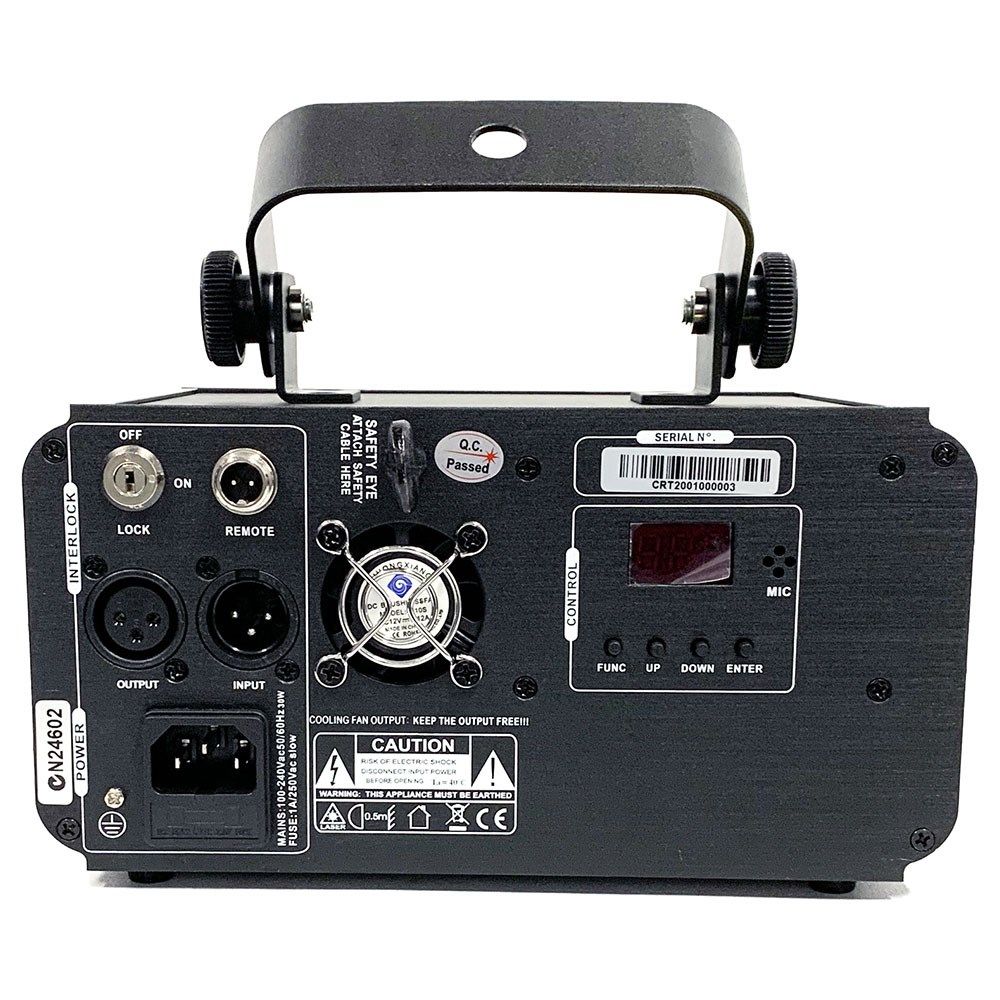

- System Port: DMX512 input and output port, Interlock Emergency switching port
- Control Mode: Inside 4 in 1 mode, DISCO Pub Sound control Mixture, Standard DMX512 signal control
- Control Function: Precision Step motor to orientation, Multi laser work together without cable
- Size: 220x170x170mm
- Weight: 2.2kg
